Abstract
The utility model relates to a EPS reworked material pelleter with grain mechanism is cut to multichannel, which comprises a frame, the top fixedly connected with feeder hopper of frame, the inner wall fixedly connected with multichannel baffle of feeder hopper, be provided with the pan feeding groove between the multichannel baffle, one side fixedly connected with driving motor of frame, driving motor's output fixedly connected with worm, the frame inner wall is provided with cutting assembly. The utility model discloses, through multichannel baffle and a plurality of cutting assembly's use, can once only carry out the multichannel cutting, promote the eager efficiency of cutting of EPS reworked material, the dust absorption pump inhales the piece and the dust that the cutting produced to the inside storage of box of subassembly that gathers dust.
Description
Technical Field
The utility model relates to a cut the grain field, especially relate to a EPS reworked material pelleter with mechanism is cut to multichannel.
Background
Granulator mould divide into manually and electronic, and the granulator needs often to trade the net and be used for removing impurity, and extrusion tooling generally is 18 holes, and filter screen blocks back extruder pressure very big, and original manual net of trading can be tired relatively, can use electronic mould, replaces artifically with the motor, labour saving and time saving.
Present current pelleter, simple structure generally only has one grain cutting mechanism, leads to operating time longer to work efficiency has been reduced.
SUMMERY OF THE UTILITY MODEL
The utility model provides a EPS reclaimed material pelleter with multichannel eager grain mechanism has solved the technical problem among the prior art.
The utility model provides a scheme as follows of above-mentioned technical problem: the utility model provides a EPS reclaimed material pelleter with multichannel pelleter constructs, which comprises a frame, the top fixedly connected with feeder hopper of frame, the inner wall fixedly connected with multichannel baffle of feeder hopper, be provided with the pan feeding groove between the multichannel baffle, one side fixedly connected with driving motor of frame, driving motor's output fixedly connected with worm, the frame inner wall is provided with cutting assembly, cutting assembly is including rotating connecting rod, cutting knife and worm wheel, it rotates to rotate connecting rod and frame inner wall and connects, worm wheel and the terminal fixed connection of rotation connecting rod, worm wheel and worm meshing, one side fixedly connected with material pouring plate of frame.
On the basis of the technical scheme, the utility model discloses can also do following improvement.
Further, one side fixedly connected with dust absorption pump of frame, the exhaust pipe is installed to the output of dust absorption pump, the dust absorption pipe is installed to the input of dust absorption pump, the terminal fixedly connected with subassembly that gathers dust of dust absorption pipe, the pipe is accomodate to one side fixedly connected with of subassembly that gathers dust, it runs through the frame to accomodate the pipe.
Further, the subassembly that gathers dust includes the box, the gas outlet has been seted up at the top of box, gas outlet and dust absorption pipe intercommunication, the air inlet has been seted up to one side of box, the air inlet with accomodate a fixed connection, the interior roof fixedly connected with filter of box, box one side articulates there is the material door of getting.
Furthermore, the inner bottom wall of the frame is fixedly connected with a material guide plate.
Further, the driving motor is a stepping motor.
Furthermore, the feed hopper adopts a square hopper.
Further, the inner wall of the frame is plated with chrome.
Further, the cutting knife adopts a stainless steel saw blade.
The utility model has the advantages that: the utility model provides a EPS reclaimed material pelleter with multichannel is cut grain mechanism has following advantage:
1. through the use of a plurality of partition plates and a plurality of cutting assemblies, a plurality of cutting can be carried out at one time, and the particle cutting efficiency of the EPS reclaimed material is improved;
2. and the dust suction pump sucks the chips and dust generated by cutting into the box body of the dust collection assembly for storage.
The above description is only an overview of the technical solution of the present invention, and in order to make the technical means of the present invention clearer and can be implemented according to the content of the description, the following detailed description is made with reference to the preferred embodiments of the present invention and accompanying drawings. The detailed description of the present invention is given by the following examples and the accompanying drawings.
Drawings
The accompanying drawings, which are included to provide a further understanding of the invention and are incorporated in and constitute a part of this application, illustrate embodiment(s) of the invention and together with the description serve to explain the invention without undue limitation to the invention. In the drawings:

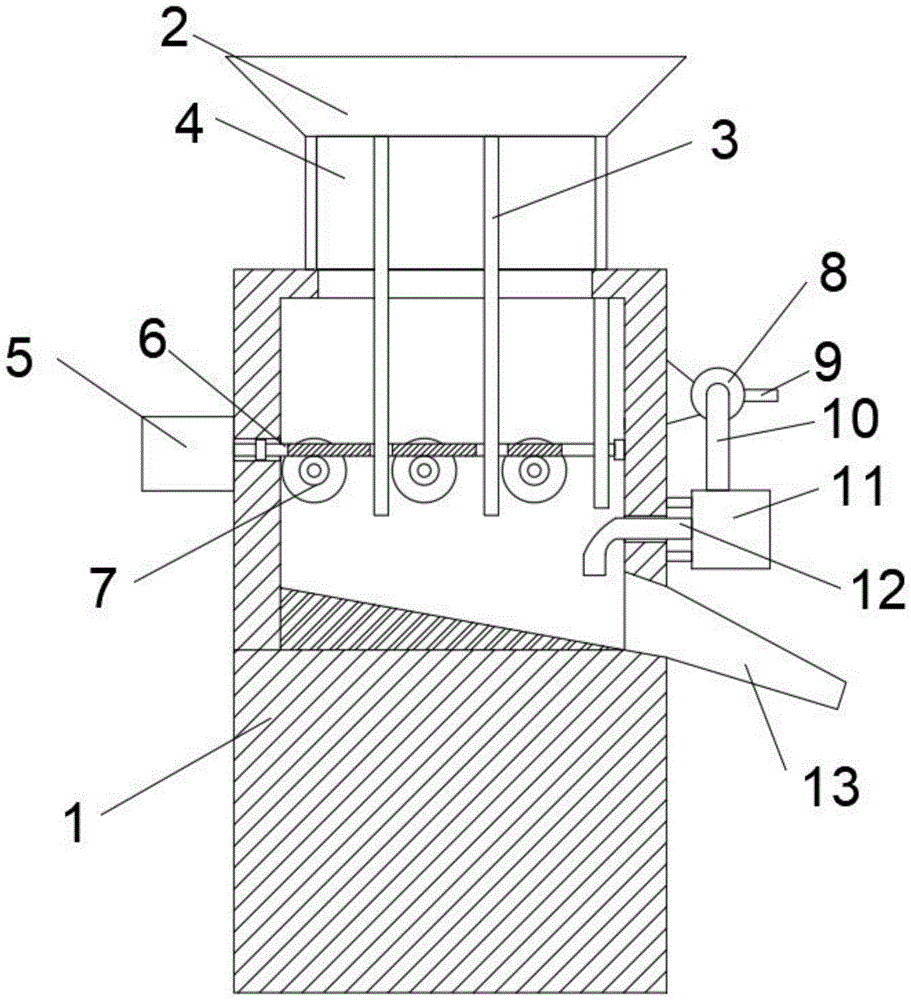

fig. 1 is a schematic cross-sectional structural view of an EPS recycled material granulator with a multi-channel granulating mechanism according to an embodiment of the present invention;
FIG. 2 is a schematic structural diagram of a cutting assembly of the EPS regrind granulator with a multi-channel granulating mechanism provided in FIG. 1;
fig. 3 is a schematic structural diagram of a dust collecting assembly in the EPS reclaimed material granulator with a multi-channel granulating mechanism, which is provided in fig. 1.
In the drawings, the components represented by the respective reference numerals are listed below:
1. a frame; 2. a feed hopper; 3. a plurality of partition plates; 4. a feeding groove; 5. a drive motor; 6. a worm; 7. a cutting assembly; 8. a dust suction pump; 9. an exhaust duct; 10. a dust collection pipe; 11. a dust collecting assembly; 12. a storage tube; 13. material pouring plates; 71. rotating the connecting rod; 72. cutting; 73. a worm gear; 111. an air inlet; 112. an air outlet; 113. a filter plate; 114. a material taking door.
Detailed Description
The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention. The invention is described in more detail in the following paragraphs by way of example with reference to the accompanying drawings. The advantages and features of the present invention will become more fully apparent from the following description and appended claims. It should be noted that the drawings are in a very simplified form and are not to precise scale, which is only used for the purpose of facilitating and clearly explaining the embodiments of the present invention.
It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When a component is referred to as being "connected" to another component, it can be directly connected to the other component or intervening components may also be present. When a component is referred to as being "disposed on" another component, it can be directly on the other component or intervening components may also be present. The terms "vertical," "horizontal," "left," "right," and the like as used herein are for illustrative purposes only.
Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used in the description of the invention herein is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.
As shown in fig. 1-3, the utility model provides a EPS reworked material pelleter with multichannel eager grain mechanism, which comprises a frame 1, the top fixedly connected with feeder hopper 2 of frame 1, the inner wall fixedly connected with multichannel baffle 3 of feeder hopper 2, be provided with pan feeding groove 4 between the multichannel baffle 3, one side fixedly connected with driving motor 5 of frame 1, driving motor 5's output fixedly connected with worm 6, frame 1 inner wall is provided with cutting assembly 7, cutting assembly 7 is including rotating connecting rod 71, cutting knife 72 and worm wheel 73, rotating connecting rod 71 and frame 1 inner wall rotate to be connected, worm wheel 73 and the terminal fixed connection of rotating connecting rod 71, worm wheel 73 and the meshing of worm 6, one side fixedly connected with material pouring plate 13 of frame 1, use through multichannel baffle 3 and a plurality of cutting assembly 7, can once only carry out the multichannel cutting, promote the effect that the EPS reworked material was cut a grain.
Preferably, one side fixedly connected with dust absorption pump 8 of frame 1, exhaust pipe 9 is installed to dust absorption pump 8's output, dust absorption pipe 10 is installed to dust absorption pump 8's input, dust absorption pipe 10's terminal fixedly connected with subassembly 11 that gathers dust, one side fixedly connected with of subassembly 11 that gathers dust accomodates pipe 12, accomodate pipe 12 and run through frame 1, can collect the piece and the dust that the cutting produced in frame 1 through dust absorption pump 8's use, avoid piece and dust to influence the raw granules that cut out.
Preferably, subassembly 11 gathers dust includes the box, and gas outlet 112 has been seted up at the top of box, and gas outlet 112 and dust absorption pipe 10 intercommunication, and air inlet 111 has been seted up to one side of box, and air inlet 111 and storage pipe 12 fixed connection, the interior roof fixedly connected with filter 113 of box, box one side articulate have and get material door 114, can conveniently store the piece and the dust that the cutting produced inside the box through subassembly 11 gathers dust.
Preferably, the inner bottom wall of the frame 1 is fixedly connected with a material guide plate, so that cut raw material particles can be conveniently discharged from the material pouring plate 13.
Preferably, the driving motor 5 is a stepping motor, and the stepping motor can conveniently control the rotating speed of the stepping motor so as to conveniently control the cutting effect of the stepping motor.
Preferably, the feed hopper 2 adopts a square hopper, so that raw materials can enter the feeding groove 4 conveniently.
Preferably, the inner wall of the frame 1 is plated with chrome, so that the inner wall of the frame 1 is not easy to rust, and the service life of the frame is prolonged.
Preferably, the cutting knife 72 is a stainless steel saw blade, raw materials are cut through the stainless steel saw blade, and the stainless steel is durable and is not easy to rust.
The utility model discloses a concrete theory of operation and application method do: when using, in sending into frame 1 with the raw materials from feeder hopper 2, the raw materials gets into inside frame 1, later start driving motor 5, the rotation of driving motor 5 output drives worm 6 and rotates, worm 6 drives worm wheel 73 and rotates just so and just so can make rotation connecting rod 71 drive cutting knife 72 and rotate, cutting knife 72 cuts the raw materials, the raw materials grain that the cutting produced drops to the stock guide on, start dust absorption pump 8 this moment, piece and the dust that dust absorption pump 8 will cut the production are inhaled to the inside storage of box of subassembly 11 that gathers dust.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like. Those not described in detail in this specification are within the skill of the art.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in any way; all the persons skilled in the art can smoothly implement the present invention as shown in the attached drawings and described above; however, those skilled in the art should understand that the equivalent embodiments of the present invention are equivalent embodiments of the present invention, and that the changes, modifications and evolutions made by the above-disclosed technical contents are not departed from the technical scope of the present invention; meanwhile, any changes, modifications, evolutions, etc. of equivalent changes made to the above embodiments according to the essential technology of the present invention still belong to the protection scope of the technical solution of the present invention.
Claims (8)
1. The utility model provides a EPS reclaimed material pelleter with multichannel is cut grain mechanism, includes frame (1), its characterized in that, top fixedly connected with feeder hopper (2) of frame (1), inner wall fixedly connected with multichannel baffle (3) of feeder hopper (2), be provided with pan feeding groove (4) between multichannel baffle (3), one side fixedly connected with driving motor (5) of frame (1), the output fixedly connected with worm (6) of driving motor (5), frame (1) inner wall is provided with cutting assembly (7), cutting assembly (7) are including rotating connecting rod (71), cutting knife (72) and worm wheel (73), it connects to rotate connecting rod (71) and frame (1) inner wall rotation, worm wheel (73) and the terminal fixed connection of rotation connecting rod (71), worm wheel (73) and worm (6) meshing, one side fixedly connected with material pouring plate (13) of frame (1).
2. The EPS reclaimed material granulator with a multi-channel granulating mechanism according to claim 1, characterized in that a dust suction pump (8) is fixedly connected to one side of the frame (1), an exhaust pipe (9) is installed at the output end of the dust suction pump (8), a dust suction pipe (10) is installed at the input end of the dust suction pump (8), a dust collection component (11) is fixedly connected to the tail end of the dust suction pipe (10), a storage pipe (12) is fixedly connected to one side of the dust collection component (11), and the storage pipe (12) penetrates through the frame (1).
3. The EPS reclaimed material granulator with the multi-channel granulating mechanism is characterized in that the dust collection assembly (11) comprises a box body, an air outlet (112) is formed in the top of the box body, the air outlet (112) is communicated with the dust suction pipe (10), an air inlet (111) is formed in one side of the box body, the air inlet (111) is fixedly connected with the accommodating pipe (12), a filter plate (113) is fixedly connected to the inner top wall of the box body, and a material taking door (114) is hinged to one side of the box body.
4. The EPS reclaimed material granulator with a multi-channel granulating mechanism according to claim 1, characterized in that a material guide plate is fixedly connected to the inner bottom wall of the frame (1).
5. The EPS regrind pelletizer having a multi-pass pelletizer mechanism as claimed in claim 1, wherein the driving motor (5) is a stepping motor.
6. The EPS regrind pelletizer having multiple strand pelletizing mechanism according to claim 1, wherein the feed hopper (2) is a square hopper.
7. The EPS regrind pelletizer having a multiple strand pelletizing mechanism according to claim 1, wherein the inner wall of the frame (1) is chrome-plated.
8. The EPS regrind pelletizer having a multi-pass pelletizer mechanism as claimed in claim 1, wherein the cutter (72) is a stainless steel saw blade.
