CN218312893U - Novel dust protected numerical control flat grinder

Info

Publication number: CN218312893U
Application number: CN202222080880.0U
Authority: CN
Inventors: 徐佳楠
Original assignee: Nantong Hailun Machine Tool Co ltd
Current assignee: Nantong Hailun Machine Tool Co ltd
Priority date: 2022-08-09
Filing date: 2022-08-09
Publication date: 2023-01-17
Anticipated expiration: 2032-08-09

Abstract

The utility model discloses a novel dust protected numerical control flat grinder relates to numerical control flat grinder technical field, including numerical control flat grinder main part, numerical control flat grinder main part is including workstation and emery wheel grinding mechanism, the inside movable mounting of numerical control flat grinder main part has grinding machine dust cleaning device, the utility model discloses an adopt the common cooperation between fan, dust filter plate, arm-tie, abnormal shape lug and the draw-in groove, absorb and collect the workstation dust through opening the fan, through the cooperation of dust filter plate and draw-in groove, carry out the joint with the fan with the dust filter plate, recycle the interact of arm-tie and abnormal shape lug, take out fast the dust filter plate, ensure the quick and efficient clearance to the dust, recycle the air outlet and carry out the air-out, guarantee the inside circulation of air of fan, solved and be difficult to dismantle the filter screen that will collect the dust fast, carry out the problem of clearing up, further improved numerical control flat grinder's extensive popularization.

Description

Novel dust protected numerical control flat grinder

Technical Field

The utility model relates to a numerical control flat grinder technical field, concretely relates to novel dust protected numerical control flat grinder.

Background

Numerical control flat grinder is one kind of grinding machine, mainly use the emery wheel rotation to grind the work piece so that it can reach the roughness of requirement, can divide into rectangle workstation and circular workstation two kinds according to the workstation shape, rectangle workstation flat grinder's main parameter is workstation width and length, circular workstation's main parameter is the table surface diameter, when using numerical control flat grinder to grind the work piece, there is a small amount of dust spill, install the shielding plate on the current numerical control flat grinder and shelter from, but the dust is sheltered from the back, can depend on both sides shielding plate, the staff is difficult for aliging and cleans, not only the aesthetic property is relatively poor, and cause the potential safety hazard easily, consequently, a novel dust protected numerical control flat grinder has been proposed.

The following problems exist in the prior art:

1. when the existing numerical control surface grinding machine is used, the function of dust adsorption is not achieved, excessive dust is accumulated and enters the grinding machine, internal elements are easily damaged, and the practicability and effectiveness of the device are reduced;

2. when the existing numerical control surface grinding machine is used, a filter screen for collecting dust is difficult to rapidly disassemble and clean, so that the wide popularization of the numerical control surface grinding machine is further limited.

SUMMERY OF THE UTILITY MODEL

The utility model provides a novel dust protected numerical control flat grinder to solve the problem of proposing among the above-mentioned background art.

In order to solve the technical problem, the utility model discloses the technical scheme who adopts is:

the utility model provides a novel dust protected numerical control flat grinder, includes the numerical control flat grinder main part, the numerical control flat grinder main part grinds the mechanism including workstation and emery wheel, the inside movable mounting of numerical control flat grinder main part has grinding machine dust cleaning device, grinding machine dust cleaning device's upper end fixed mounting has dust filter equipment, grinding machine dust cleaning device is including backplate and dust absorption pipeline, movable groove has been seted up to the medial surface of backplate, dust filter equipment is including the fan, the draw-in groove has been seted up to the internal surface of fan.

The utility model discloses technical scheme's further improvement lies in: the back of the back plate is fixedly provided with a motor, and an output shaft of the motor is fixedly provided with a first bevel gear.

The utility model discloses technical scheme's further improvement lies in: the outer surface of the first conical gear is meshed with the second conical gear in a rotating mode, a threaded rod is fixedly mounted on the outer surface of the second conical gear, and the two ends of the threaded rod are rotatably connected with the inner wall of the back plate.

The utility model discloses technical scheme's further improvement lies in: the outer surface threaded connection of threaded rod has the slider, the lateral surface fixed mounting of slider has the telescopic link.

The utility model discloses technical scheme's further improvement lies in: the lateral surface fixed mounting of telescopic link has the connecting plate, the internal surface of connecting plate and dust absorption pipeline's outer fixed surface are connected, dust absorption pipeline's upper end fixedly connected with flexible hose, the one end fixed mounting that dust absorption pipeline is close to the workstation has the dust absorption head.

The utility model discloses technical scheme's further improvement lies in: the inner surface joint of draw-in groove has the dirt board of straining, strain the upper end surface fixed connection of dirt board and have the arm-tie.

The utility model discloses technical scheme's further improvement lies in: the upper surface fixed mounting of fan has heterotypic lug, the surface of heterotypic lug and the internal surface joint of arm-tie, the air outlet has been seted up to the upper surface of fan.

Since the technical scheme is used, the utility model discloses relative prior art, the technological progress who gains is:

1. the utility model provides a novel dust protected numerical control flat grinder, adopt the backplate, the movable slot, including a motor, an end cap, a controller, and a cover plate, the telescopic link, the connecting plate, the common cooperation between dust absorption pipeline and the expansion hose, start through the motor, make first bevel gear rotate, and then drive second bevel gear and mesh with first bevel gear and rotate, it rotates to drive the threaded rod, recycle the mutually supporting of slider and telescopic link, make the telescopic link go up and down, make grinding machine dust cleaning device can carry out the absorption of multi-angle to the dust of workstation top, cooperation through the connecting plate, be connected dust absorption pipeline with it, ensure to drive accurate dust absorption, just carry out the dust absorption operation when grinding, and the work efficiency is improved, it piles up too much to have solved the dust, enter into inside the grinding machine, cause the problem of the damage of internal component easily, the practicality and the validity of device have been strengthened.

2. The utility model provides a novel dust protected numerical control flat grinder, adopt the fan, the dirt board filters, the arm-tie, the common cooperation between heterotypic lug and the draw-in groove, absorb and collect the workstation dust through opening the fan, through the cooperation of dirt board filters and draw-in groove, carry out the joint with the fan to the dirt board filters, recycle the interact of arm-tie and heterotypic lug, take out fast the dirt board filters, ensure the quick and efficient clearance to the dust, recycle the air outlet and carry out the air-out, guarantee the inside circulation of air of fan, it dismantles fast to have solved the filter screen that is difficult to will collect the dust, the problem of clearing up carries out, numerical control flat grinder's extensive popularization has further been improved.

Drawings

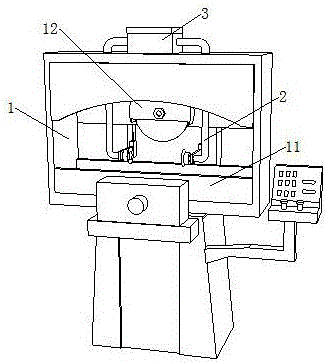

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic perspective view of the dust cleaning device of the grinding machine of the present invention;

FIG. 3 is a schematic side view of the dust cleaning device of the grinding machine according to the present invention;

fig. 4 is a schematic front sectional view of the dust filter of the present invention.

In the figure: 1. a numerically controlled surface grinder body; 2. a dust cleaning device of the grinding machine; 3. a dust filtering device; 11. a work table; 12. a grinding wheel grinding mechanism; 21. a back plate; 211. a movable groove; 22. a motor; 221. a first conical gear; 222. a second bevel gear; 23. a threaded rod; 24. a slider; 25. a telescopic rod; 26. a connecting plate; 27. a dust collection duct; 271. a flexible hose; 31. a fan; 32. a dust filter plate; 33. pulling a plate; 34. a special-shaped bump; 35. a clamping groove.

Detailed Description

The present invention will be described in further detail with reference to the following examples:

example 1

As shown in fig. 1-4, the utility model provides a novel dust protected numerical control surface grinding machine, including numerical control surface grinding machine main part 1, numerical control surface grinding machine main part 1 grinds mechanism 12 including workstation 11 and emery wheel, the inside movable mounting of numerical control surface grinding machine main part 1 has grinding machine dust cleaning device 2, grinding machine dust cleaning device 2's upper end fixed mounting has dust filter equipment 3, grinding machine dust cleaning device 2 is including backplate 21 and dust absorption pipeline 27, movable groove 211 has been seted up to the medial surface of backplate 21, dust filter equipment 3 is including fan 31, draw-in groove 35 has been seted up to the internal surface of fan 31, the back fixed mounting of backplate 21 has motor 22, fixed mounting has bevel gear 221 on motor 22's the output shaft, the surface engagement of bevel gear 221 rotates there is bevel gear two 222, the surface fixed mounting of bevel gear two 222 has threaded rod 23, the both ends of threaded rod 23 are connected with the inner wall rotation of backplate 21.

In this embodiment, through starter motor 22 for bevel gear 221 rotates, and then drives bevel gear two 222 and bevel gear 221 and mesh and rotate, drives threaded rod 23 and rotates, recycles mutually supporting of slider 24 and telescopic link 25, makes telescopic link 25 go up and down, ensures that grinding machine dust cleaning device 2 when the dust absorption, also can clear up the dust on emery wheel grinding mechanism 12 and the organism inner wall, improves the practicality.

Example 2

As shown in fig. 1-4, on the basis of embodiment 1, the utility model provides a technical solution: preferably, the outer surface of the threaded rod 23 is connected with a slider 24 through a thread, an expansion link 25 is fixedly mounted on the outer side surface of the slider 24, a connecting plate 26 is fixedly mounted on the outer side surface of the expansion link 25, the inner surface of the connecting plate 26 is fixedly connected with the outer surface of a dust suction pipeline 27, an expansion hose 271 is fixedly connected to the upper end of the dust suction pipeline 27, and a dust suction head is fixedly mounted at one end of the dust suction pipeline 27 close to the workbench 11.

In this embodiment, the dust suction pipe 27 is connected to the connecting plate 26 in cooperation, so that accurate dust suction is ensured, dust suction operation is performed during grinding, and work efficiency is improved.

Example 3

As shown in fig. 1-4, on the basis of embodiment 1, the utility model provides a technical solution: preferably, the inner surface of the clamping groove 35 is clamped with a dust filter 32, the outer surface of the upper end of the dust filter 32 is fixedly connected with a pull plate 33, the upper surface of the fan 31 is fixedly provided with a special-shaped projection 34, the outer surface of the special-shaped projection 34 is clamped with the inner surface of the pull plate 33, and the upper surface of the fan 31 is provided with an air outlet.

In this embodiment, absorb and collect 11 dusts of workstation through opening fan 31, through the cooperation of straining dirt board 32 and draw-in groove 35, will strain dirt board 32 and fan 31 and carry out the joint, recycle the interact of arm-tie 33 and heterotypic lug 34, take out fast straining dirt board 32, ensure the clearance to the quick and efficient of dust, recycle the air outlet and carry out the air-out, guarantee the inside circulation of air of fan 31.

The working principle of the novel dustproof numerical control surface grinding machine is described in detail below.

As shown in fig. 1-4, in use, firstly, a worker places materials to be ground, after the clamping is stable, the grinding wheel grinding mechanism 12 is started to grind, the motor 22 is started to rotate the bevel gear 221, and further the bevel gear two 222 and the bevel gear one 221 are driven to mesh and rotate, the threaded rod 23 is driven to rotate, the slider 24 and the telescopic rod 25 are reused to cooperate with each other, the telescopic rod 25 is lifted, the grinding machine dust cleaning device 2 can absorb dust above the workbench 11 in multiple angles, the dust absorption pipeline 27 is connected with the connecting plate 26 through cooperation of the connecting plate 26, dust absorption precision is ensured, dust absorption operation is ensured when dust is driven, dust absorption operation is carried out during grinding, the working efficiency is improved, furthermore, dust is absorbed under the action of the fan 31, dust is absorbed and collected by starting the fan 31 on the workbench 11, the dust filtering plate 32 and the fan 35 are matched, the dust filtering plate 32 and the fan 31 are clamped, interaction of the pulling plate 33 and the special-shaped lug 34 is reused, the dust filtering plate 32 is quickly pulled out, dust is ensured to be quickly cleaned, the dust is cleaned, the air is circulated through the air outlet of the air, and the main body of the grinding machine, and the air outlet is ensured to be efficient, and the main body of the grinding machine is ensured, and the air outlet is ensured, and the main body is stable and the air of the grinding machine.

The present invention has been described in detail with reference to the above general description, but it will be apparent to one of ordinary skill in the art that modifications and improvements can be made to the invention. Therefore, modifications or improvements without departing from the spirit of the invention are within the scope of the invention.

Claims

1. The utility model provides a novel dust protected numerically control surface grinder, includes numerically control surface grinder main part (1), its characterized in that: numerical control flat grinder main part (1) grinds mechanism (12) including workstation (11) and emery wheel, the inside movable mounting of numerical control flat grinder main part (1) has grinding machine dust cleaning device (2), the upper end fixed mounting of grinding machine dust cleaning device (2) has dust filter equipment (3), grinding machine dust cleaning device (2) are including backplate (21) and dust absorption pipeline (27), movable groove (211) have been seted up to the medial surface of backplate (21), dust filter equipment (3) are including fan (31), draw-in groove (35) have been seted up to the internal surface of fan (31).

2. The novel dustproof numerical control surface grinding machine according to claim 1, characterized in that: the back of backplate (21) is fixed with motor (22), fixed mounting has bevel gear (221) on the output shaft of motor (22).

3. The novel dustproof numerical control surface grinding machine according to claim 2, characterized in that: the outer surface of the first conical gear (221) is meshed with the second conical gear (222) in a rotating mode, a threaded rod (23) is fixedly mounted on the outer surface of the second conical gear (222), and two ends of the threaded rod (23) are rotatably connected with the inner wall of the back plate (21).

4. The novel dustproof numerical control surface grinding machine according to claim 3, characterized in that: the outer surface threaded connection of threaded rod (23) has slider (24), the lateral surface fixed mounting of slider (24) has telescopic link (25).

5. The novel dustproof numerical control surface grinding machine according to claim 4, characterized in that: the lateral surface fixed mounting of telescopic link (25) has connecting plate (26), the internal surface of connecting plate (26) is connected with the external fixed surface of dust absorption pipeline (27), the upper end fixedly connected with expansion hose (271) of dust absorption pipeline (27), the one end fixed mounting that dust absorption pipeline (27) are close to workstation (11) has the dust absorption head.

6. The novel dustproof numerical control surface grinding machine according to claim 1, characterized in that: the inner surface joint of draw-in groove (35) has dust filter plate (32), the upper end surface fixed connection of dust filter plate (32) has arm-tie (33).

7. The novel dustproof numerical control surface grinding machine according to claim 1, characterized in that: the upper surface fixed mounting of fan (31) has heterotypic lug (34), the surface of heterotypic lug (34) and the internal surface joint of arm-tie (33), the air outlet has been seted up to the upper surface of fan (31).
