Abstract
The utility model discloses a backbone nursing is with cervical vertebra patient turning over device belongs to backbone nursing technical field, wherein, the camera includes a supporting plate, the backup pad top has been seted up first and has been accomodate the groove and the second accomodates the groove, first groove top of accomodating has first board and the second board of turning over to turn over through hinge swing joint, the second stands up the board side and has seted up the movable hole, movable hole side fixedly connected with spring, spring other end fixedly connected with baffle, baffle side sliding connection is at the movable hole inner wall, baffle side fixedly connected with bayonet lock. Its beneficial effect is, through second electric putter and third electric putter, the nurse when standing up for the patient, external control ware makes second electric putter and third electric putter promote first layer board and second layer board change angle simultaneously, prevents that the patient neck from receiving the secondary injury, plays the supporting role to the patient's head that the body of the side was lain down simultaneously.
Description
Technical Field
The utility model relates to a backbone nursing technical field, more specifically say, it relates to a backbone nursing is with cervical vertebra patient turning device.
Background
Cervical spondylosis is mainly caused by long-term strain of cervical vertebra, hyperosteogeny, or prolapsed intervertebral disc and thickened ligament, so that spinal cord, nerve root or vertebral artery of cervical vertebra are pressed, a series of clinical syndromes of dysfunction appear, and the cervical vertebra patient can turn over himself or herself difficultly, so a turning-over device is needed to assist the cervical vertebra patient to turn over.
For example, the turning device for cervical vertebra patients for spine nursing disclosed in the Chinese patent literature has the following publication number: CN214157750U, published: 20210910, though it is inconvenient for the patient to stand up to have solved conventional nurse, and lead to the patient to receive the problem of new injury easily moreover, do not solve nurse and after for the cervical vertebra patient turns over, the head also needs the problem of support, and the device needs the manual work to be flourishing high for turning over the board simultaneously, has increaseed nurse's work load, and when the patient lies on one's side in addition, the device is not convenient for the crooked placing of patient's shank, consequently to above-mentioned problem, specially provides a cervical vertebra patient turns over device for backbone nursing.
SUMMERY OF THE UTILITY MODEL
(1) Technical problem to be solved
Not enough to prior art exists, the utility model aims to provide a cervical vertebra patient turning device is used in backbone nursing, it has the characteristics that the patient head of being convenient for support, the labour that has alleviateed the nurse and the crooked placing of shank of being convenient for the patient of lying on one's side.
(2) Technical scheme
In order to achieve the above purpose, the utility model provides a cervical vertebra patient turning device for spine nursing, which comprises a support plate, wherein the top of the support plate is provided with a first accommodating groove and a second accommodating groove, the top of the first accommodating groove is movably connected with a first turning plate and a second turning plate through hinges, the side of the second turning plate is provided with a movable hole, the side of the movable hole is fixedly connected with a spring, the other end of the spring is fixedly connected with a baffle plate, the side of the baffle plate is slidably connected with the inner wall of the movable hole, the side of the baffle plate is fixedly connected with a bayonet lock, the side of the first turning plate is provided with a clamping groove, the bayonet lock is clamped in the clamping groove, the movable hole inner wall stands up the board top with the second and has seted up same movable groove, baffle side fixedly connected with draws the knot, draw knot side sliding connection at the movable groove inner wall, second storage tank bottom fixedly connected with second electric putter and third electric putter, second electric putter and third electric putter top all have the second fixed station, two through round pin axle swing joint second fixed station top difference fixedly connected with first layer board and second layer board, hinge swing joint is passed through to first layer board side in the second layer board side, same silica gel pillow of first layer board and second layer board top fixedly connected with.
Use this technical scheme's a cervical vertebra patient for backbone nursing during turnover device, through second electric putter and third electric putter, the nurse is when standing up for the patient, external control ware is according to direction control second electric putter and the function of third electric putter that the nurse stood up for the patient, thereby promote first layer board and second layer board change angle, make patient's head obtain supporting, it is more comfortable to make the patient use, prevent simultaneously that patient's cervical vertebra and vertebra from not keeping perpendicularly, and make the patient receive the secondary injury.
Further, first containing groove bottom fixedly connected with activity box, activity box side fixedly connected with motor, motor output shaft fixedly connected with screw thread post, the screw thread post other end rotates through the pivot and wears to establish in the bearing that activity box inner wall was inlayed, screw thread post surface threaded connection has the movable block, sliding connection is at activity box inner wall in the side of the movable block, the movable block side has the connecting rod through round pin axle swing joint, the connecting rod top has first fixed station through round pin axle swing joint, first fixed station top fixed connection turns over the body board bottom at the second.
Further, backup pad side fixedly connected with movable ring, movable ring inner wall sliding connection has the baffle, baffle bottom fixedly connected with connecting plate, connecting plate side fixedly connected with fourth electric putter, fourth electric putter top fixed connection is in movable ring bottom.
Furthermore, a first electric push rod is fixedly connected to the bottom of the supporting plate, the number of the first electric push rods is four, the first electric push rods are arranged at the bottom of the supporting plate in a rectangular mode, and the bottom of the supporting plate is fixedly connected with a brake wheel.
Furthermore, four the same support frame of first electric putter side fixedly connected with, backup pad bottom fixedly connected with battery.
Further, first groove of accomodating has two, and the symmetry sets up at the backup pad top, the movable ring has two, and the symmetry sets up in the backup pad side.
(3) Advantageous effects
To sum up, the utility model discloses following beneficial effect has:
1. according to the cervical vertebra patient turning-over device for spine nursing, when a nurse turns over a patient, the second electric push rod and the third electric push rod push the first supporting plate and the second supporting plate to change angles by the aid of the external controller, so that the neck of the patient is prevented from being secondarily injured, and meanwhile, the head of the patient lying on the side body is supported;
2. according to the cervical vertebra patient turning-over device for spine nursing, the threaded column is driven to rotate through the operation of the motor, so that the movable block is driven to move, the movable block drives the connecting rod to move, the second turning-over plate is pushed to rise, a patient can turn over, the labor force of a nurse is reduced, and meanwhile, the nurse can conveniently observe the turning-over state of the patient in time;
3. this cervical vertebra patient turning device for backbone nursing draws to detain through the pulling to drive the bayonet lock and remove, make the bayonet lock break away from in the draw-in groove, thereby can fold first board of standing up and withdraw first accomodating the inslot, patient's shank can be crooked and place, makes the patient use more comfortable, through fourth electric putter, thereby drives the baffle and goes up and down, makes things convenient for the patient to lie on the device, and the nurse of also being convenient for simultaneously nurses the patient.
Drawings
In order to clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the embodiments or the technical solutions in the prior art will be briefly described below, it is obvious that the drawings in the following description are only one embodiment of the present invention, and other drawings can be obtained by those skilled in the art without creative efforts.

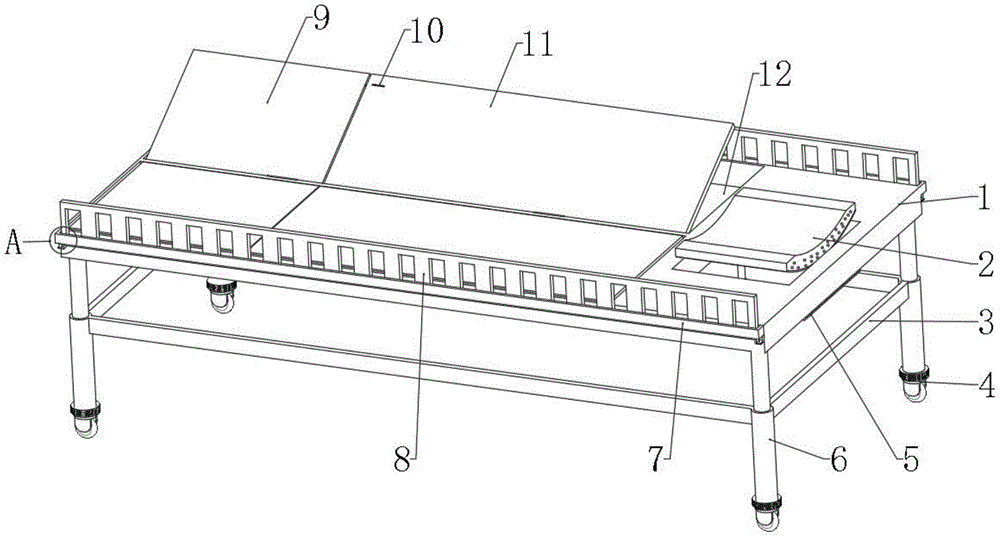

Fig. 1 is a front view of the present invention;
FIG. 2 is a schematic structural view of the silica gel pillow of the present invention;
FIG. 3 is a schematic structural view of the screw post of the present invention;
FIG. 4 is a schematic structural view of the latch of the present invention;
fig. 5 is an enlarged schematic view of a portion a in fig. 1.
The labels in the figures are:
1. a support plate; 2. a silica gel pillow; 3. a support frame; 4. a brake wheel; 5. a storage battery; 6. a first electric push rod; 7. a movable ring; 8. a baffle plate; 9. a first flipping panel; 10. a movable groove; 11. a second flipping panel; 12. a first receiving groove; 13. a second electric push rod; 14. a third electric push rod; 15. a second receiving groove; 16. a movable box; 17. a motor; 18. a movable block; 19. a connecting rod; 20. a threaded post; 21. a first fixed table; 22. a movable hole; 23. a spring; 24. a partition plate; 25. a bayonet lock; 26. a card slot; 27. pulling the button; 28. a fourth electric push rod; 29. a connecting plate; 30. a second stationary stage; 31. a first pallet; 32. a second pallet.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the following description is made for the technical solution of the present invention in the embodiments to explain the present invention clearly and completely, obviously, the described embodiments are only a part of the embodiments of the present invention, but not all the embodiments.
Example (b):
the present invention will be described in further detail with reference to fig. 1 to 5.
Referring to fig. 1-5, the present invention provides a technical solution: the utility model provides a cervical vertebra patient stands up device for backbone nursing, including backup pad 1, 1 top of backup pad has been seted up first and has been accomodate groove 12 and second and accomodate groove 15, first 12 tops of accomodating groove have first turn-over board 9 and second turn-over board 11 through hinge swing joint, second turns over 11 sides of body and has been seted up the activity hole 22, activity hole 22 side fixedly connected with spring 23, spring 23 other end fixedly connected with baffle 24, 24 side sliding connection of baffle is at activity hole 22 inner wall, 24 side fixedly connected with bayonet lock 25 of baffle, first turn-over board 9 sides has been seted up the draw-in groove 26, bayonet lock 25 joint is in draw-in groove 26, same activity groove 10 has been seted up at activity hole 22 inner wall and second turn-over 11 tops, 24 side fixedly connected with of baffle draws buckle 27, draw buckle 27 side sliding connection is at activity groove 10 inner wall, second accomodate groove 15 bottom fixedly connected with second electric putter 13 and third electric putter 14, second electric putter 13 and third electric putter 14 top all have second fixed station 30 through the round pin hub connection, two fixed station 30 tops of second fixed connection are at first fixed station 30 and second movable connection respectively and second movable plate 31 and second movable layer board 32, second movable layer board 32 and second movable layer board 32 side fixed layer board 32, second electric putter 32 are through hinge swing joint.
Through adopting above-mentioned technical scheme, through second electric putter 13 and third electric putter 14, the nurse is when standing up for the patient, external control ware makes second electric putter 13 and third electric putter 14 promote first layer board 31 and second layer board 32 change angle simultaneously, prevent that the patient neck from receiving the secondary injury, simultaneously play the supporting role to the patient head that the body of offside was lain down, draw knot 27 through the pulling, thereby drive bayonet lock 25 and remove, make bayonet lock 25 break away from in the draw-in groove 26, thereby can fold first board 9 of turning over and withdraw first accomodating inslot 12, the patient's shank can be crooked to be placed, it is more comfortable to make the patient use.
Specifically, first 12 bottom fixedly connected with activity boxes 16 of holding in the groove, 16 side fixedly connected with motors 17 of activity box, 17 output shaft fixedly connected with screw thread post 20 of motor, the screw thread post 20 other end rotates through the pivot and wears to establish in the bearing that the inner wall of activity box 16 was inlayed, 20 surperficial threaded connection of screw thread post has movable block 18, 18 side sliding connection of movable block is at the 16 inner walls of activity box, 18 sides of movable block have connecting rod 19 through round pin axle swing joint, 19 tops of connecting rod have first fixed station 21 through round pin axle swing joint, 21 tops fixed connection of first fixed station is in the second 11 bottoms of turning over the body.
By adopting the technical scheme, the motor 17 is operated to drive the threaded column 20 to rotate, so that the movable block 18 is driven to move, the movable block 18 drives the connecting rod 19 to move, the second turning plate 11 is propped to lift, the patient can turn over, the labor force of a nurse is reduced, and meanwhile, the nurse can conveniently observe the turning-over state of the patient in time.
Specifically, the side face of the supporting plate 1 is fixedly connected with a movable ring 7, the inner wall of the movable ring 7 is slidably connected with a baffle 8, the bottom of the baffle 8 is fixedly connected with a connecting plate 29, the side face of the connecting plate 29 is fixedly connected with a fourth electric push rod 28, and the top of the fourth electric push rod 28 is fixedly connected to the bottom of the movable ring 7.
Through adopting above-mentioned technical scheme, through fourth electric putter 28 to drive baffle 8 and go up and down, make things convenient for the patient to lie on the device, also be convenient for the nurse to patient's nursing simultaneously.
Specifically, 1 bottom fixedly connected with first electric putter 6 of backup pad, first electric putter 6 has four, and is the rectangle setting in 1 bottom of backup pad, the equal fixedly connected with brake wheel 4 in 1 bottom of four backup pads, the same support frame 3 of 6 side fixedly connected with of four first electric putter, 1 bottom fixedly connected with battery 5 of backup pad, first groove 12 of accomodating has two, and the symmetry sets up at 1 top of backup pad, and movable circle 7 has two, and the symmetry sets up in 1 side of backup pad.
Through adopting above-mentioned technical scheme, function through first electric putter 6 to rise backup pad 1, thereby be convenient for the nurse to patient's nursing, through brake wheel 4, be convenient for nurse mobile device.
The utility model discloses a theory of operation does:
when in use, the nurse firstly moves the device to a suitable position, step on the brake wheel 4, fix the device, then control the operation of the fourth electric putter 28 through the external controller, thereby drive the baffle 8 to move, after falling the baffle 8, the patient lies on the support plate 1, the nurse raises the baffle 8 again, then the nurse controls the operation of the first electric putter 6 through the external controller as required, thereby raise the support plate 1 to a suitable height, when the nurse needs to turn over the patient, the direction in which the nurse turns over as required, control the operation of the motor 17 through the external controller, drive the threaded post 20 to rotate, thereby drive the movable block 18 to move, the movable block 18 drives the connecting rod 19 to move, thereby it rises to support the second turning-over plate 11, thereby promote the patient, simultaneously the external controller is according to the direction of the patient, control the second electric putter 13 and the third electric putter 14 to operate together, thereby promote the first supporting plate 31 and second supporting plate 32 to move, make the head of the patient supported, simultaneously the height of the patient can adjust the pillow of the silica gel according to turn over, make the patient use the patient more comfortable, when the patient turns over the side, the patient pulls the side of the patient can place the side push rod 14 to move, thereby make the bayonet control the bayonet lock control the bayonet to move the bayonet lock to move, thereby make the bayonet lock control the bayonet lock 26, when the patient to move, the patient can make the patient to pull the bayonet lock control the bayonet lock in the side of the bayonet lock 26 to move, thereby make the bayonet lock can make the patient to move, thereby make the bayonet lock control the patient to make the bayonet lock control the bayonet lock 26, the patient to move, thereby make the bayonet lock can make the patient to pull the bayonet lock can make the bayonet lock can be more convenient for the patient to fold, the patient to take care in the patient take down, thereby make the patient take the bayonet lock can take down, thereby make the bayonet lock 26, the patient take care, the bayonet lock can take care of the patient.
The present embodiment is only for explaining the present invention, and it is not limited to the present invention, and those skilled in the art can make modifications to the present embodiment without inventive contribution as required after reading the present specification, but all of them are protected by patent laws within the scope of the claims of the present invention.
Claims (6)
1. The utility model provides a cervical vertebra patient stands up device for backbone nursing, includes backup pad (1), its characterized in that: first groove (12) and second of accomodating have been seted up at backup pad (1) top and first groove (15) of accomodating have been accomodate to the second, first groove (12) top of accomodating has first board (9) and the second board (11) of turning over through hinge swing joint, the second has turned over board (11) side and has seted up activity hole (22), activity hole (22) side fixedly connected with spring (23), spring (23) other end fixedly connected with baffle (24), baffle (24) side sliding connection has the inner wall at activity hole (22), baffle (24) side fixedly connected with bayonet lock (25), draw-in groove (26) have been seted up to first board (9) side of turning over, bayonet lock (25) joint is in draw-in groove (26), same activity groove (10) has been seted up at activity hole (22) inner wall and second board (11) top of turning over, baffle (24) side fixedly connected with draws knot (27), draw knot (27) side sliding connection has the inner wall at activity groove (10), the second is accomodate groove (15) bottom fixedly connected with second fixed push rod (13) and second movable push rod (13) and second electric putter (13) top and electric putter (13) respectively, second fixed push rod (13) and electric putter (13) top and electric putter (13) are accommodated by first electric putter (13) and electric putter (13) respectively (32) The side face of the first supporting plate (31) is movably connected to the side face of the second supporting plate (32) through a hinge, and the tops of the first supporting plate (31) and the second supporting plate (32) are fixedly connected with the same silica gel pillow (2).
2. The turning device for cervical vertebra patients for spine nursing according to claim 1, wherein: first groove (12) bottom fixedly connected with activity box (16) of accomodating, activity box (16) side fixedly connected with motor (17), motor (17) output shaft fixedly connected with screw thread post (20), screw thread post (20) other end rotates through the pivot and wears to establish in the bearing that activity box (16) inner wall was inlayed, screw thread post (20) surperficial threaded connection has movable block (18), movable block (18) side sliding connection is at activity box (16) inner wall, movable block (18) side has connecting rod (19) through round pin axle swing joint, connecting rod (19) top has first fixed station (21) through round pin axle swing joint, first fixed station (21) top fixed connection turns over board (11) bottom at the second.
3. The turning-over device for the cervical vertebra patient for the spine nursing as claimed in claim 1, wherein: backup pad (1) side fixedly connected with activity circle (7), activity circle (7) inner wall sliding connection has baffle (8), baffle (8) bottom fixedly connected with connecting plate (29), connecting plate (29) side fixedly connected with fourth electric putter (28), fourth electric putter (28) top fixed connection is in activity circle (7) bottom.
4. The turning-over device for the cervical vertebra patient for the spine nursing as claimed in claim 1, wherein: backup pad (1) bottom fixedly connected with electric putter (6), electric putter (6) have four, and are the rectangle setting in backup pad (1) bottom, four the equal fixedly connected with brake wheel (4) in backup pad (1) bottom.
5. The cervical vertebra patient turning device for spine nursing of claim 4, characterized in that: four first electric putter (6) side fixedly connected with is same support frame (3), backup pad (1) bottom fixedly connected with battery (5).
6. The turning device for cervical vertebra patients for spine nursing according to claim 3, wherein: the first containing grooves (12) are two and symmetrically arranged at the top of the supporting plate (1), and the movable rings (7) are two and symmetrically arranged on the side face of the supporting plate (1).
