Abstract
The utility model discloses a boiler flue convenient to laying dust recovery processing relates to the boiler flue field, which comprises a housin, the both ends of casing are provided with air inlet and gas vent respectively, the top of casing is connected with the water pump, the one end of water pump is connected with the pipeline that draws water, and the pipeline that draws water is connected with the cistern, the internal backup pad that is connected with of cistern, the other end of water pump is connected with outlet conduit, and outlet conduit runs through and is connected with the catch tray in the casing, bottom in the casing is connected with the fixed plate, the top of fixed plate is provided with the annular and spouts the circle. The utility model discloses a water pump spouts the circle to the annular and supplies water, realizes filtering the dust particle in the flue gas, through the cooperation of backup pad in the cistern with the filter screen, realizes separating water source and dust particle to collect the dust particle through the backup pad, realize inside sprinkler's hydrologic cycle through the drinking-water pipeline simultaneously.
Description
Technical Field
The utility model relates to a boiler flue field specifically is a boiler flue convenient to laying dust recovery processing.
Background
The boiler is an energy conversion device, the energy input to the boiler comprises chemical energy and electric energy in fuel, the boiler outputs steam, high-temperature water or an organic heat carrier with certain heat energy, and meanwhile, the boiler can generate smoke in the operation process, and the smoke is discharged through a boiler flue.
When the existing boiler flue is used, the flue gas is usually directly discharged out of the flue, and the accumulated dust in the flue gas cannot be recovered, so that the discharged flue gas can pollute the environment, does not accord with the environmental protection discharge standard specified by the state, and simultaneously causes the waste of the accumulated dust particles.
SUMMERY OF THE UTILITY MODEL
Based on this, the utility model aims at providing a boiler flue convenient to laying dust recovery processing to solve current boiler flue when using, can't carry out recovery processing to its inside laying dust, the flue gas that leads to discharging out can the polluted environment, has also caused the extravagant technical problem of laying dust granule simultaneously.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a boiler flue convenient to laying dust recovery processing, includes the casing, the both ends of casing are provided with air inlet and gas vent respectively, the top fixedly connected with water pump of casing, the one end of water pump is connected with the pipeline that draws water, and the bottom through connection that the pipeline that draws water extends to the casing has the cistern, sliding connection has the backup pad in the cistern, and is provided with the filter screen in the backup pad, the other end of water pump is connected with outlet conduit, and outlet conduit runs through and is connected with the catch tray in the casing, bottom fixedly connected with fixed plate in the casing, the top of fixed plate is provided with a plurality of annular and spouts the circle, and the top that the circle was spouted to the annular is connected with the catch tray, be provided with the mesopore in the annular spouts the circle, bottom in the casing is provided with the through-hole.
Through adopting above-mentioned technical scheme, spout the circle water supply to the annular through the water pump, realize filtering the dust particle in the flue gas, prevent that it from following the flue gas exhaust polluted environment, through the cooperation of backup pad in the cistern and filter screen, realize separating water source and dust particle to collect the dust particle through the backup pad, be used for subsequent use, prevent its extravagant, realize inside sprinkler's hydrologic cycle through the pipeline that draws water simultaneously, need not the manual work and carry out the continuation and add water.
The utility model discloses further set up to, be close to one side fixedly connected with filter of gas vent in the casing.
Through adopting above-mentioned technical scheme, through the setting of filter, still carry a small amount of dust particles in preventing the flue gas to carry out secondary filter to it.
The utility model discloses further set up to, the annular is spouted and is provided with array nozzle in the circle.
Through adopting above-mentioned technical scheme, can increase its annular through the nozzle and spout the area of spraying of circle, make it fully contact with the dust particle in the flue gas, filter it.
The utility model discloses further set up to, the one end of gas vent is located the casing and is provided with the air discharge fan.
Through adopting above-mentioned technical scheme, through the setting of air discharge fan, can accelerate the exhaust rate of gas fume of gas vent department, make its inside flue gas that newly gets into filter more completely.
The utility model discloses further set up to, the front end upper portion of cistern is connected with the shutter through the hinge rotation.
Through adopting above-mentioned technical scheme, can collect the dust granule after filtering alone through the shutter, be favorable to later stage people to accept it once more.
The utility model discloses further set up to, both sides are provided with in the cistern and supply the gliding spout of backup pad.
Through adopting above-mentioned technical scheme, through the spout, can be with the backup pad roll-off after opening the shutter, the later stage people of being convenient for take out the dust granule in the backup pad.
The utility model discloses further set up to, the annular spouts and is detachable the connection between circle and the water storage disk.
Through adopting above-mentioned technical scheme, through detachable connection between them, the later stage maintenance personal of being convenient for maintains it, reduces its workman's working strength.
To sum up, the utility model discloses mainly have following beneficial effect:
the utility model discloses a be provided with the array annular in the casing and spout the circle, spout the circle water supply to the annular through the water pump, the realization is filtered the dust particle in the flue gas, prevent that it from following flue gas exhaust polluted environment, be provided with the cistern in the bottom of casing, through the cooperation of backup pad and filter screen in the cistern, the realization is separated water source and dust particle, and collect the dust particle through the backup pad, be used for subsequent use, prevent its waste, realize inside sprinkler's hydrologic cycle through drinking-water pipeline simultaneously, need not the manual work and carry out the continuation and add water.
Drawings

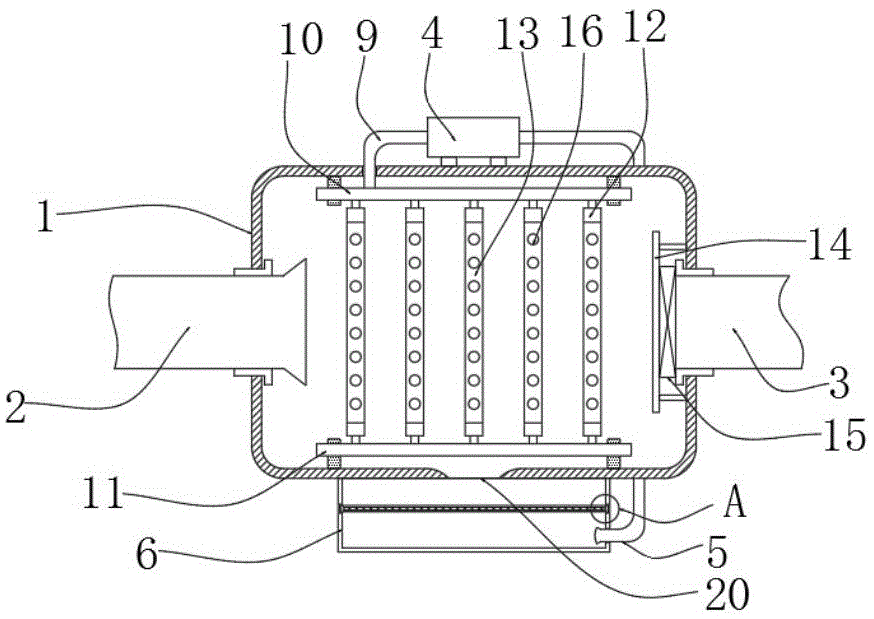

FIG. 1 is a main sectional view of the present invention;
FIG. 2 is a front view of the present invention;
FIG. 3 is a schematic structural view of the present invention;
fig. 4 is an enlarged view of a in fig. 1 according to the present invention.
In the figure: 1. a housing; 2. an air inlet; 3. an exhaust port; 4. a water pump; 5. a water pumping pipeline; 6. a reservoir; 7. a support plate; 8. filtering with a screen; 9. a water outlet pipeline; 10. a water storage tray; 11. a fixing plate; 12. annular spraying rings; 13. a mesopore; 14. a filter plate; 15. an exhaust fan; 16. a nozzle; 17. a hinge; 18. a shutter; 19. a chute; 20. and a through hole.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present invention, and should not be construed as limiting the present invention.
The following describes an embodiment of the present invention according to its overall structure.
The utility model provides a boiler flue convenient to laying dust recovery handles, as shown in fig. 1-4, including casing 1, the both ends of casing 1 are provided with air inlet 2 and gas vent 3 respectively, the top fixedly connected with water pump 4 of casing 1, the one end of water pump 4 is connected with the pipeline 5 that draws water, and the bottom through connection that the pipeline 5 that draws water extends to casing 1 has cistern 6, sliding connection has backup pad 7 in cistern 6, and be provided with filter screen 8 on the backup pad 7, through the cooperation of backup pad 7 and filter screen 8 in cistern 6, realize separating water source and dust particle, and collect dust particle through backup pad 7, be used for subsequent use, prevent its waste, the other end of water pump 4 is connected with outlet conduit 9, and outlet conduit 9 runs through and is connected with water storage disk 10 in casing 1, bottom fixedly connected with fixed plate 11 in the casing 1, the top of fixed plate 11 is provided with a plurality of sets of annular spraying rings 12, supply water to annular spraying rings 12 through water pump 4, realize filtering dust particle in the flue, prevent it from following the exhaust pollution environment, and the top of annular spraying rings 12 is provided with mesopore 13 in the annular spraying rings 12, the bottom of casing 1 is provided with the through the water circulation device that it need not to carry out water continuously to spray, the manual work, it need to carry out water circulation through the through-water installation.
Please refer to fig. 1, one side fixedly connected with filter 14 that is close to gas vent 3 in the casing 1, through the setting of filter 14, still carry a small amount of dust particles in preventing the flue gas, and carry out secondary filter to it, the one end of gas vent 3 is located and is provided with air discharge fan 15 in the casing 1, through the setting of air discharge fan 15, can accelerate the exhaust rate of gas vent 3 department flue gas, make its inside flue gas that newly gets into filter more completely, annular spout and be detachable connection between circle 12 and the water tray 10, through detachable connection between them, the later maintenance personnel of being convenient for maintain it, reduce its workman's working strength.
Referring to fig. 1 and 3, a plurality of nozzles 16 are disposed in the annular spraying ring 12, and the spraying area of the annular spraying ring 12 can be increased by the nozzles 16, so that the nozzles can be fully contacted with dust particles in the flue gas to filter the dust particles in the flue gas.
Referring to fig. 2, a shutter 18 is rotatably connected to an upper portion of a front end of the reservoir 6 through a hinge 17, and the shutter 18 can separately collect filtered dust particles and prevent the dust particles from falling to an outside of the reservoir 6.
Referring to fig. 1 and 4, sliding grooves 19 for sliding the supporting plate 7 are formed in two sides of the water reservoir 6, and the supporting plate 7 can slide out after the shutter 18 is opened through the sliding grooves 19, so that the dust particles on the supporting plate 7 can be conveniently collected by the worker.
The utility model discloses a theory of operation does: during the use, the flue gas passes through air inlet 2 and gets into casing 1 in, start water pump 4 this moment, pipeline 5 draws water through the one end of water pump 4, extract the water source in the cistern 6 of casing 1 bottom, spout the cooperation of circle 12 through outlet conduit 9 and annular, realize filtering the dust particle in the flue gas, prevent that it from following the flue gas exhaust and polluting the atmospheric environment, be provided with through-hole 20 in the bottom of casing 1, the water source that the circle 12 sprays through the annular is spouted and is got back to in cistern 6 again through-hole 20, sliding connection has backup pad 7 in the cistern 6, realize separating water source and dust particle through the effect of backup pad 7, be convenient for later stage manual work takes out the dust particle at backup pad 7 top, front end top at cistern 6 is connected with shutter 18 through hinge 17 rotation, realize blockking the isolation to the top of 6 through both cooperations, one side that is close to gas vent 3 in the casing 1 is provided with cistern 15 and filter 14 simultaneously, through the cooperation between the two, when making to filter remaining fractional dust particle in the flue gas, accelerate the exhaust fan 15 exhaust rate of discharging from gas vent 3.
Although embodiments of the present invention have been shown and described, it is intended that the present embodiments be illustrative only and not limiting to the invention, and that the particular features, structures, materials, or characteristics described may be combined in any suitable manner in one or more embodiments or examples, and that modifications, substitutions, variations, and the like, which are not inventive in light of the above teachings, may be made to the embodiments by those skilled in the art without departing from the principles and spirit of the present invention, but are to be construed as broadly as the following claims.
Claims (7)
1. The utility model provides a boiler flue convenient to laying dust recovery processing, includes casing (1), its characterized in that: the utility model discloses a water pump, including casing (1), the both ends of casing (1) are provided with air inlet (2) and gas vent (3) respectively, the top fixedly connected with water pump (4) of casing (1), the one end of water pump (4) is connected with water pumping pipeline (5), and water pumping pipeline (5) extend to the bottom through connection of casing (1) have cistern (6), sliding connection has backup pad (7) in cistern (6), and is provided with filter screen (8) on backup pad (7), the other end of water pump (4) is connected with outlet conduit (9), and outlet conduit (9) run through into casing (1) in-connection have water storage disk (10), bottom fixedly connected with fixed plate (11) in casing (1), the top of fixed plate (11) is provided with several groups annular and spouts circle (12), and the top that annular spouts circle (12) is connected with water storage disk (10), be provided with mesopore (13) in the annular spouts circle (12), bottom in casing (1) is provided with through-hole (20).
2. A boiler flue for facilitating dust collection and disposal according to claim 1, wherein: and a filter plate (14) is fixedly connected to one side of the shell (1) close to the exhaust port (3).
3. A boiler flue for facilitating dust collection and disposal according to claim 1, wherein: and a plurality of groups of nozzles (16) are arranged in the annular spraying ring (12).
4. A boiler flue for facilitating dust collection and disposal according to claim 1, wherein: and one end of the exhaust port (3) is positioned in the shell (1) and is internally provided with an exhaust fan (15).
5. A boiler flue for facilitating dust collection and disposal according to claim 1, wherein: the upper part of the front end of the water reservoir (6) is rotatably connected with a stop door (18) through a hinge (17).
6. A boiler flue for facilitating dust collection and disposal according to claim 1, wherein: and sliding grooves (19) for the supporting plate (7) to slide are formed in two sides in the water storage tank (6).
7. A boiler flue for facilitating dust collection and disposal according to claim 1, wherein: the annular spraying ring (12) is detachably connected with the water storage disc (10).
