Abstract
The utility model relates to a medicinal material washs technical field, and discloses a medicinal material belt cleaning device, including wasing the case and wasing the cage, the internal fixed surface who washs the case installs electric telescopic handle, electric telescopic handle's output fixed mounting has the backup pad, the outer fixed surface of drive shaft installs the cross linkage board. This medicinal material belt cleaning device, it shifts up to drive the backup pad through opening electric telescopic handle, it shifts up to drive the washing cage, it shifts left to move the second disc drive gangbar left, it shifts left to drive to scrape the plectane of getting, it shifts left to drive the flitch, the medicinal material is put in the flitch, it rotates to open the motor drive shaft, it rotates to drive the cross gangbar, it rotates the washing cage to drive, carry out the circulation rotation to the medicinal material of washing cage inside and wash, reach the abluent effect of circulation rotation, some medicinal materials have been solved and can not carry out high pressure cleaning to it, can lead to the medicinal material to damage when wasing, the problem of the waste that leads to the medicinal material.
Description
Technical Field
The utility model relates to a medicinal material washs technical field, specifically is a medicinal material belt cleaning device.
Background
The medicinal materials can be used as raw materials for pharmacy, particularly Chinese medicinal materials, namely Chinese medicinal raw materials which are not processed or prepared into finished products, the Chinese medicinal materials are Chinese traditional medicinal materials, chinese medicine culture is long-flowing and extensive, medicinal herbs need to be cleaned after the medicinal materials are picked, and the cleaned medicinal materials need to be aired, so that the medicinal materials are more convenient to store.
Current medicinal material belt cleaning device need place the medicinal material inside belt cleaning device, then uses high-pressure squirt to carry out high pressure cleaning to it, then reaches the abluent effect of medicinal material surface earth, but some medicinal materials can not carry out high pressure cleaning to it, and current high pressure cleaning mode can lead to the medicinal material to damage when wasing, leads to the waste of medicinal material.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a medicinal material belt cleaning device to some medicinal materials that mention in solving above-mentioned background art can not carry out high pressure cleaning to it, can lead to the medicinal material to damage when wasing, lead to the problem of the waste of medicinal material.
In order to achieve the above purpose, the utility model provides a following technical scheme: the utility model provides a medicinal material belt cleaning device, is including wasing the case and wasing the cage, the internal fixed surface who washs the case installs electric telescopic handle, electric telescopic handle's output fixed mounting has the backup pad, the top surface fixed surface of backup pad installs the motor, the top surface fixed surface of backup pad installs the buckler, the output fixed mounting of motor has the drive shaft, the internal surface activity of wasing the case is inserted and is equipped with U type shielding plate, the external fixed surface of drive shaft installs the cross linkage board.
Preferably, the cleaning cage includes first disc, round bar, scrapes gets plectane, gangbar, second disc and the flitch of falling, the fixed surface of cross gangbar installs four first discs, four the equal fixed mounting in surface of first disc has a plurality of round bar, and the surface movable sleeve of a plurality of round bar is equipped with scrapes gets the plectane, four scrape the equal fixed mounting in surface of getting the plectane has the gangbar, four the equal fixedly connected with second disc in surface of gangbar, four the equal fixed mounting in surface of second disc has the flitch of falling.
Preferably, an L-shaped support plate is fixedly mounted on the outer surface of the top of the cleaning box, a pulley is fixedly mounted on the outer surface of the L-shaped support plate, a U-shaped bearing plate is movably connected to the outer surface of the pulley, a sliding plate is movably connected to the outer surface of the L-shaped support plate, the U-shaped bearing plate can drive the sliding plate to move to the right by moving the U-shaped bearing plate to the right, the U-shaped bearing plate can move on the pulley, and the effect of conveniently cleaning and collecting medicinal materials is achieved.
Preferably, the outer surface of the driving shaft is movably connected with the inner surface of the U-shaped shielding plate, the inner surface of the cleaning box is movably connected with the outer surface of the supporting plate, the driving shaft is connected with the U-shaped shielding plate to achieve the effect of stably rotating the driving shaft, and the supporting plate in the cleaning box is used for supporting the motor and the waterproof cover.
Preferably, a plurality of the surface of pole scrapes the internal surface swing joint who gets the plectane with four respectively, a plurality of the surface of pole respectively with the internal surface looks adaptation of second disc, through the pole with scrape get the plectane link to each other and reach the effect that stable removal scraped and get the plectane, scrape and get the plectane and will collect the clearance to the medicinal material that washs, the pole links to each other with the second disc and comes to reach the effect that stable sealed washing cage, the medicinal material that washs in the cage when avoiding wasing drops.
Preferably, the outer surface of the U-shaped bearing plate is fixedly connected with the outer surface of the sliding plate, and the U-shaped bearing plate is connected with the sliding plate to achieve the effect of stably moving the U-shaped bearing plate.
Compared with the prior art, the beneficial effects of the utility model are that:
1. this medicinal material belt cleaning device, it shifts up to drive the backup pad through opening electric telescopic handle, it shifts up to drive the washing cage, it shifts left to move the second disc drive gangbar left, it shifts left to drive to scrape the plectane of getting, it shifts left to drive the flitch, the medicinal material is put in the flitch, it rotates to open the motor drive shaft, it rotates to drive the cross gangbar, it rotates the washing cage to drive, carry out the circulation rotation to the medicinal material of washing cage inside and wash, reach the abluent effect of circulation rotation, some medicinal materials have been solved and can not carry out high pressure cleaning to it, can lead to the medicinal material to damage when wasing, the problem of the waste that leads to the medicinal material.
2. This medicinal material belt cleaning device drives the sliding plate through moving U type loading board rightwards and removes, and the support U type loading board of L type backup pad moves the second disc left and drives the gangbar and move left, drives to scrape and gets the plectane and move left, scrapes and gets the plectane and will scrape the inside medicinal material of cleaning cage and get to reached and conveniently collected the effect of wasing the medicinal material.
Drawings

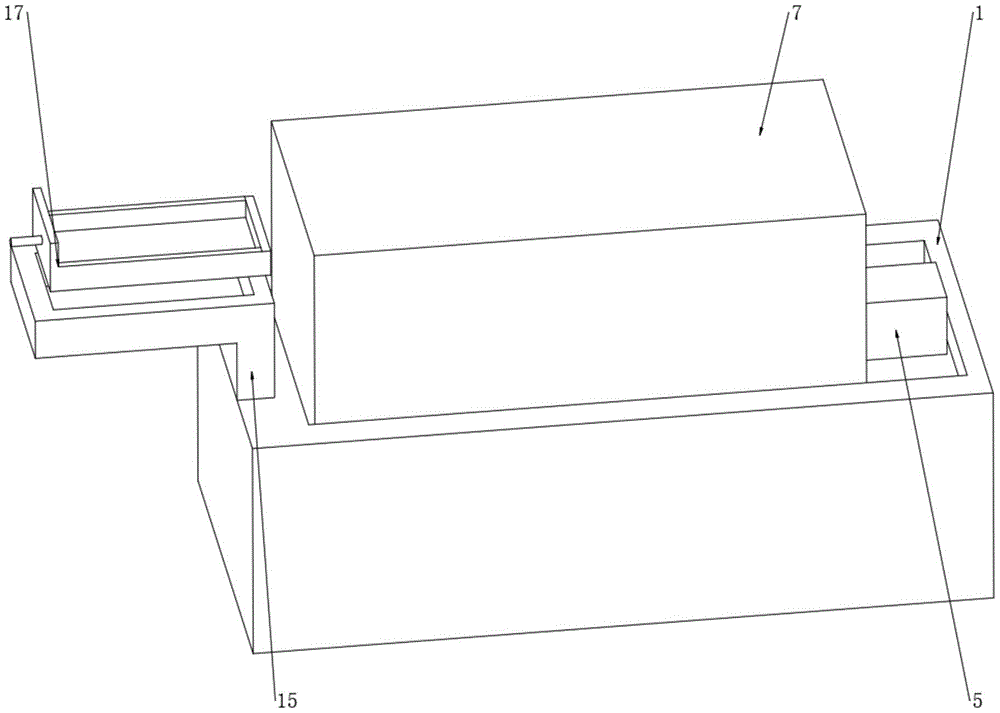

FIG. 1 is a perspective view of the present invention;
FIG. 2 is a perspective view of the cleaning cage of the present invention;
FIG. 3 is a schematic view of the front cross-section of the structure of the present invention;
fig. 4 is an enlarged schematic view of a position a in the structure diagram 3 of the present invention.
In the figure: 1. cleaning the tank; 2. an electric telescopic rod; 3. a support plate; 4. a motor; 5. a waterproof cover; 6. a drive shaft; 7. a U-shaped shielding plate; 8. a cross linkage plate; 9. a first disc; 10. a round bar; 11. scraping a circular plate; 12. a linkage rod; 13. a second disc; 14. material pouring plates; 15. an L-shaped support plate; 16. a pulley; 17. a U-shaped bearing plate; 18. a sliding plate; 19. and (6) cleaning the cage.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Please refer to fig. 1-4:
example 1: open electric telescopic handle 2 and drive backup pad 3 and move up, it moves up to drive washing cage 19, it moves left to move second disc 13 and drives gangbar 12 and move left, it moves left to drive to scrape gets plectane 11, it moves left to drive material pouring plate 14, the medicinal material is put in material pouring plate 14, it drives drive shaft 6 and rotates to open motor 4, it rotates to drive cross gangbar 8, it rotates to drive washing cage 19, carry out the circulation rotation washing to the medicinal material that washs cage 19 inside, reach the abluent effect of circulation rotation, it can not carry out high pressure cleaning to it to have solved some medicinal materials, can lead to the medicinal material to damage when wasing, lead to the extravagant problem of medicinal material.
Example 2: the U-shaped bearing plate 17 moving rightwards drives the sliding plate 18 to move rightwards, the U-shaped bearing plate 17 supported by the L-shaped support plate 15 moves leftwards, the second disc 13 moves leftwards to drive the linkage rod 12 to move leftwards, the scraping circular plate 11 is driven to move leftwards, and the scraping circular plate 11 can scrape medicinal materials inside the cleaning cage 19, so that the effect of conveniently collecting and cleaning the medicinal materials is achieved.
The working principle is as follows: in actual use of the medicinal material cleaning device, picked medicinal herbs are required to be placed into the cleaning device, the electric telescopic rod 2 is required to be opened at first, the electric telescopic rod 2 can drive the supporting plate 3 to move upwards, the supporting plate 3 can drive the motor 4 and the U-shaped shielding plate 7 to move upwards, then the cleaning device is opened, the U-shaped shielding plate 7 can drive the driving shaft 6 to move upwards, the driving shaft 6 can drive the cross-shaped shielding plate 8 to move upwards, the cross-shaped shielding plate 8 can drive the first disc 9 to move upwards, then the second disc 13 is moved leftwards, the second disc 13 can drive the linkage rod 12 to move leftwards, the linkage rod 12 can drive the scraping circular plate 11 to move leftwards, then the cleaning cage 19 is opened, then the second disc 13 can drive the falling plate 14 to move leftwards, unwashed medicinal materials are placed inside the falling plate 14, then the medicinal materials can enter the cleaning cage 19, then the electric telescopic rod 2 is reversely powered on, then the electric telescopic rod 2 can drive the supporting plate 3 to move downwards, the supporting plate 3 can drive the motor 4 and the U-shaped shielding plate 7 to move downwards, then the motor 4 can be opened, the motor 4 can drive the motor 6 to rotate, the driving shaft 6 to drive the driving the cross-shaped shielding plate 6 to rotate, the medicinal materials to rotate, the cleaning cage 19, the problem that the medicinal materials can be cleaned, and the cleaning cage 19, and the cleaning cage can be damaged when the cleaning effect of the cleaning cage is wasted cleaning cage 19, and the cleaning cage is solved, and the cleaning cage 8, and the cleaning cage can be rotated, and the cleaning effect of the cleaning cage is not rotated, and the cleaning cage 19.
When the washed medicinal material needs to be collected, the electric telescopic rod 2 is opened, the electric telescopic rod 2 drives the washing cage 19 to move upwards, the washing cage 19 drives the washed medicinal material to be far away from the inside of the washing box 1, then the U-shaped bearing plate 17 moves rightwards, the U-shaped bearing plate 17 drives the sliding plate 18 to move rightwards, the L-shaped support plate 15 is arranged to support the U-shaped bearing plate 17 conveniently, the pulley 16 is arranged to reduce friction, the second disc 13 moves leftwards, the second disc 13 can drive the linkage rod 12 to move leftwards, the linkage rod 12 can drive the scraping disc 11 to move leftwards, then the scraping disc 11 can scrape the medicinal material inside the washing cage 19, and therefore the effect of conveniently collecting and washing the medicinal material is achieved.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a medicinal material belt cleaning device, is including wasing case (1) and washing cage (19), its characterized in that: the utility model discloses a wash case, including washing case (1), electric telescopic handle (2) are installed to the internal fixed surface who washs case (1), the output fixed mounting of electric telescopic handle (2) has backup pad (3), the top external fixed surface of backup pad (3) installs motor (4), the top external fixed surface of backup pad (3) installs buckler (5), the output fixed mounting of motor (4) has drive shaft (6), the internal surface activity of wasing case (1) is inserted and is equipped with U type shielding plate (7), the external fixed surface of drive shaft (6) installs cross linkage board (8).
2. The medicinal material cleaning device according to claim 1, characterized in that: wash cage (19) including first disc (9), round bar (10), scrape get plectane (11), gangbar (12), second disc (13) and fall flitch (14), the outer fixed surface of cross gangbar (8) installs four first disc (9), four the equal fixed mounting in surface of first disc (9) has a plurality of round bar (10), and the outer movable sleeve of a plurality of round bar (10) is equipped with scrapes gets plectane (11), four the equal fixed mounting in surface of scraping and getting plectane (11) has gangbar (12), four the equal fixedly connected with second disc (13) of surface of gangbar (12), four the equal fixed mounting in surface of second disc (13) has material pouring plate (14).
3. The medicinal material cleaning device according to claim 1, wherein: the cleaning box is characterized in that an L-shaped support plate (15) is fixedly arranged on the outer surface of the top of the cleaning box (1), a pulley (16) is fixedly arranged on the outer surface of the L-shaped support plate (15), a U-shaped bearing plate (17) is movably connected to the outer surface of the pulley (16), and a sliding plate (18) is movably connected to the outer surface of the L-shaped support plate (15).
4. The medicinal material cleaning device according to claim 1, characterized in that: the outer surface of the driving shaft (6) is movably connected with the inner surface of the U-shaped shielding plate (7), and the inner surface of the cleaning box (1) is movably connected with the outer surface of the supporting plate (3).
5. The medicinal material cleaning device according to claim 2, characterized in that: the outer surfaces of the round rods (10) are movably connected with the inner surfaces of the four scraping round plates (11) respectively, and the outer surfaces of the round rods (10) are matched with the inner surface of the second round plate (13) respectively.
6. The medicinal material cleaning device according to claim 3, characterized in that: the outer surface of the U-shaped bearing plate (17) is fixedly connected with the outer surface of the sliding plate (18).
