CN217315064U - Waste disposal pulverizer - Google Patents
Waste disposal pulverizer Download PDFInfo
- Publication number
- CN217315064U CN217315064U CN202220076715.5U CN202220076715U CN217315064U CN 217315064 U CN217315064 U CN 217315064U CN 202220076715 U CN202220076715 U CN 202220076715U CN 217315064 U CN217315064 U CN 217315064U
- Authority
- CN
- China
- Prior art keywords
- crushing
- crusher
- material shifting
- hopper
- waste
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/50—Reuse, recycling or recovery technologies
- Y02W30/62—Plastics recycling; Rubber recycling
Landscapes
- Crushing And Pulverization Processes (AREA)
Abstract
The utility model discloses a waste treatment rubbing crusher mainly solves the problem that current rubbing crusher crushing inefficiency, crushing thing easily take place to splash. The crusher comprises a frame, a crushing hopper arranged on the frame, a crusher arranged on the frame and positioned below a discharge port of the crushing hopper, a crusher motor arranged on the frame and used for driving the crusher, and a material stirring device used for compacting and crushing crushed waste in the crushing hopper; the material shifting device comprises a material shifting speed reducing motor fixed on the rack and a material shifting mechanism fixedly connected with the material shifting speed reducing motor, positioned in the crushing hopper and rotationally connected with the crushing hopper. Through the design, the utility model discloses can effectively improve rubbing crusher's crushing efficiency, can also play the material that prevents when the discarded object is smashed and splash. The whole structure is simple, and the use is convenient. Therefore, the method is suitable for popularization and application.
Description
Technical Field
The utility model belongs to the technical field of waste treatment, specifically speaking relates to a waste treatment rubbing crusher.
Background
In industrial production and life, various wastes are inevitably generated, such as defective products in the production of non-woven fabrics, a large amount of masks which are discarded after being used, and because the wastes contain a large amount of fibers and organic matters, a large amount of crushed wastes are used for incineration power generation, so that solid waste pollution can be reduced, and simultaneously, renewable resources are effectively recycled. Therefore, the crushing process in the early stage is one of the most important procedures, the existing crusher is generally a feeding funnel, and the crusher is arranged below the feeding funnel, so that the waste is crushed by putting the waste into the feeding funnel, and the crushed waste is recycled.
However, a disadvantage of this type of crusher is that for some light waste, the waste may float in the crusher hopper during crushing, so that the crusher cannot be engaged with the waste quickly, and the crushing efficiency is low. In addition, when hard articles are crushed, the crushed articles can splash, and certain potential safety hazards exist.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a waste treatment rubbing crusher mainly solves the problem that current rubbing crusher crushing inefficiency, crushing thing easily take place to splash.
In order to achieve the above object, the utility model adopts the following technical scheme:
a waste treatment crusher comprises a frame, a crushing hopper arranged on the frame, a crusher arranged on the frame and positioned below a discharge port of the crushing hopper, a crusher motor arranged on the frame and used for driving the crusher, and a material stirring device used for compacting and crushing crushed waste in the crushing hopper; the material shifting device comprises a material shifting speed reducing motor fixed on the rack and a material shifting mechanism fixedly connected with the material shifting speed reducing motor, positioned in the crushing hopper and rotationally connected with the crushing hopper.
Further, in the present invention, the material-shifting mechanism includes a sleeve fixed on two opposite side walls of the crushing hopper, a material-shifting frame with two ends inserted into the sleeve and rotatably connected with the sleeve, and a material-shifting plate disposed on the material-shifting frame; the outer side of the material stirring frame, which is close to one end of the material stirring speed reducing motor, is rotationally connected with an output shaft of the material stirring speed reducing motor.
Further, in the present invention, the thickness of the material pulling plate is gradually reduced from the end contacting the waste to the other end.
Further, the utility model discloses in, be provided with the slope of the feeding of being convenient for on smashing the hopper.
Compared with the prior art, the utility model discloses following beneficial effect has:
the utility model discloses a rubbing crusher is through setting up the kickoff, and when rubbing crusher during operation, the kickoff speed reducer starts, drives and dials the work or material rest and rotates to make the kickoff form the extrusion to the discarded object that is smashing, extrude the discarded object to rubbing crusher's blade, make rubbing crusher's crushing effect better, and to the crushing material that produces easily and splash, the kickoff can also play certain effect of sheltering from to the material, avoids the material to splash, guarantee workman's safety.
Drawings

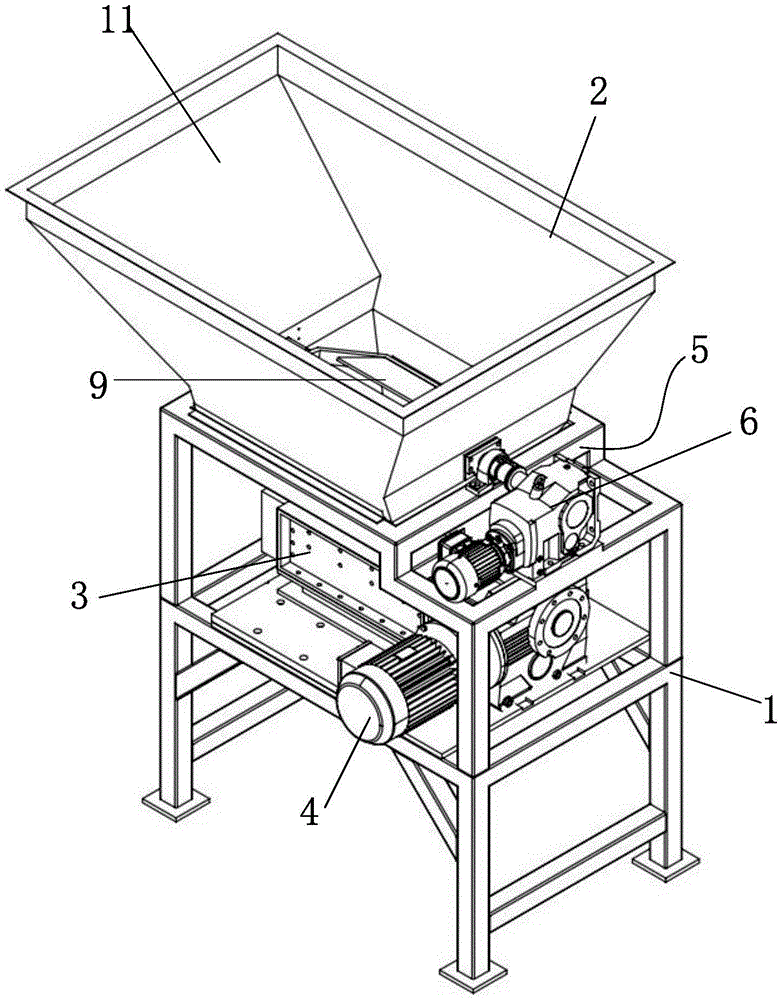

Fig. 1 is a schematic perspective view of the present invention.
Fig. 2 is a schematic side view of the present invention.
Fig. 3 is a schematic top view of the present invention.
Wherein, the names corresponding to the reference numbers are:
1-a frame, 2-a crushing hopper, 3-a crusher, 4-a crusher motor, 5-a material shifting device, 6-a material shifting speed reducing motor, 7-a material shifting mechanism, 8-a sleeve, 9-a material shifting frame, 10-a material shifting plate and 11-a slope.
Detailed Description
The present invention will be further described with reference to the following description and examples, which are not intended to limit the scope of the invention.
Examples
As shown in fig. 1 to 3, the utility model discloses a waste disposal crusher, which comprises a frame 1, a crushing hopper 2 arranged on the frame 1, a crusher 3 arranged on the frame 1 and positioned below a discharge port of the crushing hopper 2, a crusher motor 4 arranged on the frame 1 for driving the crusher 3, and a material shifting device 5 for compacting and crushing crushed waste in the crushing hopper 2; the material shifting device 5 comprises a material shifting speed reducing motor 6 fixed on the rack 1 and a material shifting mechanism 7 which is fixedly connected with the material shifting speed reducing motor 6, is positioned in the crushing hopper 2 and is rotationally connected with the crushing hopper. Wherein, a slope 11 which is convenient for feeding is arranged on the crushing hopper 2. When the waste is crushed, the waste is firstly added into the crushing hopper 2 manually or mechanically, the waste slides into the bottom of the crushing hopper along the slope 11 of the crushing hopper 2 and enters the crusher, the material shifting speed reducing motor 6 drives the material shifting mechanism 7 to rotate after being started, and the waste is buckled and pressed on blades of the crusher by the material shifting mechanism, so that the crushing efficiency of the waste is higher.
In this embodiment, the material shifting mechanism 7 includes a sleeve 8 fixed on two opposite side walls of the crushing hopper 2, a material shifting frame 9 with two ends inserted into the sleeve 8 and rotatably connected with the sleeve 8, and a material shifting plate 10 disposed on the material shifting frame 9; wherein, the outside that dials work or material rest 9 and be close to the one end of dialling material gear motor 6 is connected with dialling material gear motor's output shaft rotation. Wherein the thickness of the kick-out plate 10 becomes thinner gradually from one end contacting with the waste to the other end. Thus, when the material stirring plate rotates and light waste is crushed, the waste is extruded by utilizing the thicker side of the lower end of the material stirring plate 10; when the heavy and easily splashed waste is crushed, the kickoff plate can play a certain role in preventing the material from splashing when rotating to the horizontal position.
Therefore, through the above design, the utility model discloses a setting is dialled the material device, can effectively improve rubbing crusher's crushing efficiency, can also play the material that prevents when the discarded object is smashed and splash. The whole structure is simple, and the use is convenient. Therefore, compared with the prior art, the utility model has the substantive characteristics and progress.
The above embodiment is only one of the preferred embodiments of the present invention, and should not be used to limit the protection scope of the present invention, but all the insubstantial changes or modifications made in the spirit and the idea of the main design of the present invention, the technical problems solved by the embodiment are still consistent with the present invention, and all should be included in the protection scope of the present invention.
Claims (4)
1. A waste treatment crusher is characterized by comprising a rack (1), a crushing hopper (2) arranged on the rack (1), a crusher (3) arranged on the rack (1) and positioned below a discharge port of the crushing hopper (2), a crusher motor (4) arranged on the rack (1) and used for driving the crusher (3), and a material stirring device (5) used for compacting and crushing crushed waste in the crushing hopper (2); the material shifting device (5) comprises a material shifting speed reducing motor (6) fixed on the rack (1) and a material shifting mechanism (7) which is fixedly connected with the material shifting speed reducing motor (6), is positioned in the crushing hopper (2) and is rotationally connected with the crushing hopper.
2. A waste treatment shredder according to claim 1, characterised in that the kick-off mechanism (7) comprises a sleeve (8) fixed to two opposite side walls of the shredding hopper (2), a kick-off stand (9) with two ends inserted into the sleeve (8) and rotatably connected to the sleeve (8), and a kick-off plate (10) arranged on the kick-off stand (9); the outer side of one end, close to the material shifting speed reducing motor (6), of the material shifting frame (9) is rotatably connected with an output shaft of the material shifting speed reducing motor.
3. A waste disposal shredder according to claim 2, characterised in that the thickness of the said kick-out plate (10) tapers from the end in contact with the waste to the other end.
4. A waste disposal shredder according to claim 3, characterised in that the shredding hopper (2) is provided with ramps (11) to facilitate feeding.
