Abstract

The utility model relates to a digit control machine tool technical field discloses a digit control machine tool of adjustable cutter clamping direction, including the lathe main part, the upper portion of lathe main part is provided with the frame, the inboard upper portion of frame is rotated and is connected with first lead screw, the middle part threaded connection of first lead screw has the slider, the bottom of slider is provided with electric putter, electric putter's drive end fixedly connected with mounting panel, there is the connecting plate the bottom of mounting panel through four bolt threaded connection, the bottom of connecting plate is provided with the cutter main part, the both sides of mounting panel front and back end all are provided with first screw, all be provided with the second screw around the mounting panel both sides, the both ends at lathe main part top all are provided with the recess, the inside front end of recess all rotates and is connected with the second lead screw. The utility model discloses in, through the adjustment to cutter main part clamping direction, effectively enlarge the application range of cutter, improve the practicality of lathe main part.

Description

Numerical control machine tool capable of adjusting tool clamping direction
Technical Field
The utility model relates to a digit control machine tool technical field especially relates to a digit control machine tool of adjustable cutter clamping direction.
Background
The numerical control machine tool is a digital control machine tool for short, and is an automatic machine tool provided with a program control system, the control system can logically process a program specified by a control code or other symbolic instructions, decode the program, represent the decoded program by coded numbers, input the coded number into a numerical control device through an information carrier, send various control signals by the numerical control device through operation processing, control the action of the machine tool, automatically machine parts according to the shape and the size required by a drawing, and the numerical control machine tool can be used for cutting tools when machining workpieces.
At present, the direction of a cutter on a numerical control machine tool cannot be adjusted according to actual conditions in the clamping process, so that the application range of the cutter is reduced, and the practicability of the machine tool is reduced.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a numerical control machine tool capable of adjusting the tool clamping direction.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a digit control machine tool of adjustable cutter clamping direction, includes the lathe main part, the upper portion of lathe main part is provided with the frame, the inboard upper portion of frame is rotated and is connected with first lead screw, the middle part threaded connection of first lead screw has the slider, the bottom of slider is provided with electric putter, electric putter's drive end fixedly connected with mounting panel, there is the connecting plate bottom of mounting panel through four bolt threaded connection, the bottom of connecting plate is provided with the cutter main part, the both sides of rear end all are provided with first screw before the mounting panel, all be provided with the second screw around the mounting panel both sides, the both ends at lathe main part top all are provided with the recess, the inside front end of recess all rotates and is connected with the second lead screw.
As a further description of the above technical solution:
the bottom fixed connection of lathe main part is at the top of base, the equal fixedly connected with supporting legs in both ends of base bottom.
As a further description of the above technical solution:
the top of the sliding block is connected to the inner side of the top sliding groove in the frame in a sliding mode.
As a further description of the above technical solution:
the left end of the first lead screw is fixedly connected to the output end of the first motor, and the first motor is fixedly connected to the upper portion of the outer side of the frame.
As a further description of the above technical solution:
the rear end of the second screw rod is fixedly connected to the output end of the second motor, and the second motor is fixedly connected to the rear end of the machine tool main body.
As a further description of the above technical solution:
the lower parts of the frames are in threaded connection with the periphery of the second screw rod.
As a further description of the above technical solution:
the first screw hole and the second screw hole correspond to the bolt.
The utility model discloses following beneficial effect has:
the utility model discloses in, the bottom at the mounting panel is fixed to the cutter main part, the cutter main part is downward, can be to the processing of the article top in the lathe main part, rotate the bolt again, make connecting plate and cutter main part break away from the bottom of mounting panel, stick up the connecting plate afterwards, then through the bolt connecting plate threaded connection in the second screw on the left side of mounting panel or right side, make the cutter main part horizontal, can process the left side or the right side of article, the rethread bolt is to connecting plate threaded connection in the front end of mounting panel or the first screw of rear end, make the cutter main part can process the front end or the rear end of article, through the adjustment to cutter main part clamping direction, effectively enlarge the application range of cutter, the practicality of lathe main part is improved.
Drawings

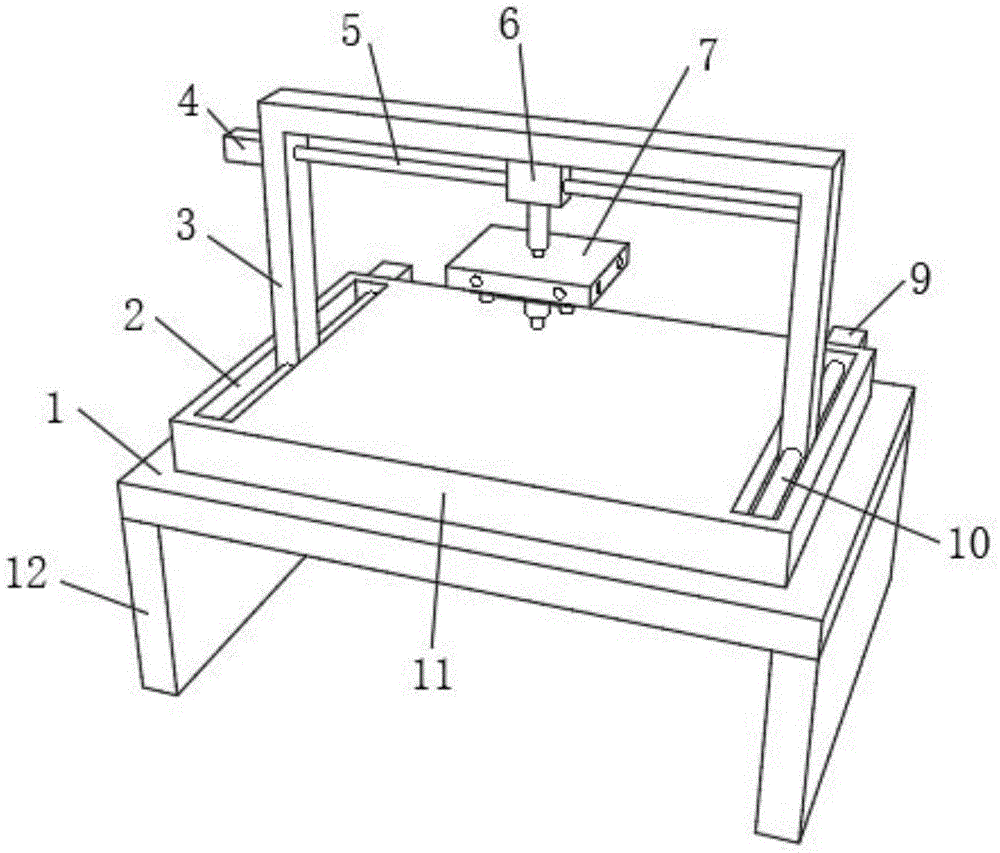

Fig. 1 is a front view of a numerically controlled machine tool capable of adjusting a tool clamping direction according to the present invention;
fig. 2 is a bottom structure view of the numerical control machine tool capable of adjusting the tool clamping direction according to the present invention;
fig. 3 is the utility model provides a mounting panel structure chart of digit control machine tool of adjustable cutter clamping direction.
Illustration of the drawings:
1. a base; 2. a groove; 3. a frame; 4. a first motor; 5. a first lead screw; 6. a slider; 7. mounting a plate; 8. a connecting plate; 9. a second motor; 10. a second lead screw; 11. a machine tool main body; 12. supporting legs; 13. a chute; 14. an electric push rod; 15. a first screw hole; 16. a second screw hole; 17. a bolt; 18. a tool body.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, the present invention provides an embodiment: a numerical control machine tool capable of adjusting the clamping direction of a cutter comprises a machine tool body 11, wherein a frame 3 is arranged on the upper portion of the machine tool body 11, a first lead screw 5 is rotatably connected to the upper portion of the inner side of the frame 3, a sliding block 6 is in threaded connection with the middle of the first lead screw 5, an electric push rod 14 is arranged at the bottom of the sliding block 6, a mounting plate 7 is fixedly connected to the driving end of the electric push rod 14, the electric push rod 14 can push the mounting plate 7 to move downwards, a connecting plate 8 is in threaded connection with the bottom of the mounting plate 7 through four bolts 17, a cutter body 18 is arranged at the bottom of the connecting plate 8, the mounting plate 7 moves downwards to push the cutter body 18 to move downwards, so that the cutter body 18 can process objects below, the cutter body 18 is fixed at the bottom of the mounting plate 7 through the four bolts 17 and the connecting plate 8, the cutter body 18 moves downwards to process the tops of the objects on the machine tool body 11, and first screw holes 15 are formed in two sides of the front end and the rear end of the mounting plate 7, all be provided with second screw 16 around mounting panel 7 both sides, through bolt 17 connecting plate 8 threaded connection in mounting panel 7's the left side or the second screw 16 on right side, make cutter main part 18 horizontal, can process the left side or the right side of article, rethread bolt 17 connecting plate 8 threaded connection in mounting panel 7's front end or the first screw 15 of rear end, make cutter main part 18 can process the front end or the rear end of article, through the adjustment to the 18 clamping direction of cutter main part, effectively enlarge the application range of cutter, improve machine tool main part 11's practicality, the both ends at machine tool main part 11 top all are provided with recess 2, the inside front end of recess 2 all rotates and is connected with second lead screw 10.
The bottom of a machine tool main body 11 is fixedly connected to the top of a base 1, two ends of the bottom of the base 1 are fixedly connected with supporting legs 12, the top of a sliding block 6 is slidably connected to the inner side of a top sliding groove 13 in a frame 3, the left end of a first lead screw 5 is fixedly connected to the output end of a first motor 4, the first motor 4 is fixedly connected to the upper part of the outer side of the frame 3, the first motor 4 drives the output end to drive the first lead screw 5 to rotate, so that the sliding block 6 drives a cutter main body 18 to move left and right, the proper machining interval of the cutter main body 18 is convenient to adjust, the rear end of a second lead screw 10 is fixedly connected to the output end of a second motor 9, the second motor 9 is fixedly connected to the rear end of the machine tool main body 11, the lower part of the frame 3 is in threaded connection with the periphery of the second lead screw 10, the second motor 9 drives the output end to drive the second lead screw 10, so that the frame 3 drives the cutter main body 18 to move back and forth, the tool body 18 is used for processing objects, and the first screw hole 15 and the second screw hole 16 correspond to the bolt 17.
The working principle is as follows: firstly, a cutter main body 18 is fixed at the bottom of a mounting plate 7 through four bolts 17 and a connecting plate 8, the cutter main body 18 faces downwards, the top of an object on a machine tool main body 11 can be machined, the bolts 17 are rotated again, the connecting plate 8 and the cutter main body 18 are separated from the bottom of the mounting plate 7, then the connecting plate 8 is erected, then the connecting plate 8 is in threaded connection in a second screw hole 16 on the left side or the right side of the mounting plate 7 through the bolts 17, the cutter main body 18 is transverse, the left side or the right side of the object can be machined, then the connecting plate 8 is in threaded connection in a first screw hole 15 at the front end or the rear end of the mounting plate 7 through the bolts 17, the front end or the rear end of the object can be machined through the cutter main body 18, the use range of a cutter is effectively expanded through the clamping adjustment of the cutter main body 18, and the practicability of the machine tool main body 11 is improved.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims (7)

1. The utility model provides a digit control machine tool of adjustable cutter clamping direction, includes lathe main part (11), its characterized in that: a frame (3) is arranged at the upper part of the machine tool main body (11), a first screw rod (5) is rotatably connected at the upper part of the inner side of the frame (3), the middle part of the first screw rod (5) is connected with a slide block (6) in a threaded manner, the bottom of the slide block (6) is provided with an electric push rod (14), the driving end of the electric push rod (14) is fixedly connected with a mounting plate (7), the bottom of the mounting plate (7) is connected with a connecting plate (8) through four bolts (17) in a threaded manner, a cutter main body (18) is arranged at the bottom of the connecting plate (8), first screw holes (15) are respectively arranged on two sides of the front end and the rear end of the mounting plate (7), the front and the back of two sides of the mounting plate (7) are respectively provided with a second screw hole (16), the two ends of the top of the machine tool main body (11) are provided with grooves (2), and the front ends inside the grooves (2) are connected with second screw rods (10) in a rotating mode.
2. The numerical control machine tool capable of adjusting the clamping direction of the cutter according to claim 1, is characterized in that: the bottom of the machine tool main body (11) is fixedly connected to the top of the base (1), and supporting legs (12) are fixedly connected to two ends of the bottom of the base (1).
3. The numerical control machine tool capable of adjusting the clamping direction of the cutter according to claim 1, is characterized in that: the top of the sliding block (6) is connected to the inner side of a top sliding groove (13) in the frame (3) in a sliding manner.
4. The numerical control machine tool capable of adjusting the clamping direction of the cutter according to claim 1, is characterized in that: the left end fixed connection of first lead screw (5) is in the output of first motor (4), first motor (4) fixed connection is on the upper portion in frame (3) outside.
5. The numerical control machine tool capable of adjusting the clamping direction of the cutter according to claim 1, is characterized in that: the rear end of the second screw rod (10) is fixedly connected to the output end of the second motor (9), and the second motor (9) is fixedly connected to the rear end of the machine tool main body (11).
6. The numerical control machine tool capable of adjusting the clamping direction of the cutter according to claim 1, is characterized in that: the lower parts of the frames (3) are in threaded connection with the periphery of the second screw rod (10).
7. The numerical control machine tool capable of adjusting the clamping direction of the cutter according to claim 1, is characterized in that: the first screw hole (15) and the second screw hole (16) correspond to a bolt (17).
