Abstract
The utility model discloses a bobbin paper unloading mechanism for a splitting machine, which comprises a frame and a rotating mechanism, wherein the rotating mechanism comprises a driving assembly, a transmission assembly and a swing arm assembly, the driving assembly drives the transmission assembly to move, the transmission assembly drives the swing arm assembly to rotate, the swing arm assembly comprises a swing arm body and a material carrying arm, the material carrying arm is provided with a material pushing mechanism, and the material pushing mechanism comprises a material pushing driving part and a material pushing transmission part; the material pushing transmission part comprises a transmission structure and a material pushing structure; the material pushing structure comprises a connecting seat and a pushing plate body, and the pushing plate body corresponds to the bobbin paper on the material loading arm. The utility model discloses the realization is to the automatic material work that pushes away of bobbin stock, and pushes away material structure can directly assemble to carrying on the material arm, and occupation space is few, pushes away the material action stability, guarantees to push away the integrality of material efficiency and bobbin stock.
Description
Technical Field
The utility model relates to a cutting machine technical field, concretely relates to disc paper shedding mechanism for cutting machine.
Background
The splitting machine is a mechanical device for splitting wide paper, mica tape or film into multiple narrow materials, is commonly used for paper making machinery, wire and cable mica tape and printing and packaging machinery, is mainly applied to splitting non-woven fabrics, mica tapes, paper, insulating materials and various film materials, and is particularly suitable for splitting narrow tapes.
When the splitting machine is applied to the papermaking field, in order to improve the efficiency, the splitting machine generally has two material collecting shafts, the effect of the material collecting shafts on the splitting machine is to wind the split paper roll into a plurality of rolls of reel materials, the wound finished bobbin paper needs to be discharged, the efficiency of the manual mode is too low, therefore, a material discharging frame of the splitting machine bobbin paper is disclosed in CN213474894U, the automatic discharging process is carried out, however, the discharging of the pulling type of the bobbin paper through a hydraulic trolley is easy, the surface damage condition is easy to occur in the using process, the accessories are complex, the occupied area is too large, and the improvement is still needed.
SUMMERY OF THE UTILITY MODEL
The utility model provides a weak point in order to avoid prior art to exist provides a disc paper shedding mechanism for cutting machine.
The utility model provides a technical problem adopt following technical scheme: a bobbin paper unloading mechanism for a splitting machine comprises a rack and a rotating mechanism, wherein the rotating mechanism comprises a driving assembly, a transmission assembly and a swing arm assembly, the driving assembly drives the transmission assembly to move, the transmission assembly drives the swing arm assembly to rotate, and the swing arm assembly comprises a swing arm body and a material carrying arm;
the pushing transmission part comprises a transmission structure and a pushing structure, the transmission structure comprises a transmission wheel set, a transmission rod body and a transmission seat, the pushing driving part drives the transmission wheel set to move, the transmission wheel set drives the transmission rod body to move, the transmission rod body is rotatably arranged in the material carrying arm and extends along the axial direction of the material carrying arm, and the transmission seat is arranged on the transmission rod body and makes reciprocating linear motion along with the transmission rod body;
the material pushing structure comprises a connecting seat and a push plate body, the connecting seat is connected with the transmission seat and protrudes to the outside of the material carrying arm, the push plate body is connected with the connecting seat, and the push plate body corresponds to the bobbin paper on the material carrying arm.
In several embodiments, the pushing driving part is arranged on the material loading arm, and an output shaft of the pushing driving part is arranged in parallel with an axis of the material loading arm.
The pushing driving part provides power.
In some embodiments, the transmission wheel set includes a driving wheel, a transmission wheel, and a transmission belt disposed on the driving wheel and the transmission wheel, the driving wheel is disposed on the output shaft, and the transmission wheel is disposed on the transmission rod body.
The power of the pushing driving part is transmitted to the transmission part by the transmission wheel set.
In several embodiments, the transmission rod body is a screw rod, and bearings are sleeved at two ends of the transmission rod body and are arranged in the material loading arm.
The linear motion process of the transmission seat is realized by the matching of the transmission rod body and the sliding seat.
In a plurality of embodiments, the material loading arm is provided with an opening, the opening is arranged along the axial direction of the material loading arm, and the connecting seat penetrates out of the opening and moves linearly along with the transmission seat along the opening.
Through the arrangement of the opening, the linear motion of the protruding material carrying arm part of the material pushing assembly is realized, the material pushing is realized, and the nesting of the bobbin paper is not influenced.
In several embodiments, the loading arm is provided with a through-hole through which the belt portion passes.
Through the setting of through-hole, the partial transmission structure of being convenient for inserts and carries the material arm cavity inside, realizes the transmission.
In several embodiments, a protective hood is provided on the pusher drive, which surrounds the drive wheel set outside the loading arm.
And the exposed part of the transmission structure is surrounded and protected by the protective cover.
In several embodiments, the driving assembly is a cylinder, the transmission assembly comprises a pull rod and a central shaft, the central shaft is rotatably arranged on the frame, the pull rod is arranged at one end of the central shaft and connected with the driving assembly, and the swing arm body is sleeved at the other end of the central shaft.
The 90-degree rotation process of the swing arm assembly is realized through the driving assembly and the transmission assembly, and the horizontal state and the vertical state are switched.
In several embodiments, the frame includes a rotation motor, a turn disc, and a main frame body, the rotation motor drives the turn disc to rotate, and the main frame body is disposed on the turn disc and rotates along with the turn disc.
Through the frame structure, the integral rotation process is realized, and the rotation to the unloading area for unloading is convenient.
The utility model discloses the realization is to the automatic material work that pushes away of bobbin stock, and pushes away material structure can directly assemble to carrying on the material arm, and occupation space is few, pushes away the material action stability, guarantees to push away the integrality of material efficiency and bobbin stock.
Drawings
The drawings described herein are for illustrative purposes only of selected embodiments and not all possible implementations, and are not to be considered limiting of the scope of the present disclosure.
Fig. 1 schematically shows a side view structure of a bobbin paper discharge mechanism for a slitter in the present embodiment;
fig. 2 schematically shows a front view structure of a bobbin paper discharge mechanism for a slitter in the present embodiment;
fig. 3 schematically shows an assembling structure of a pushing transmission part in the bobbin paper discharging mechanism for the slitter in the embodiment;

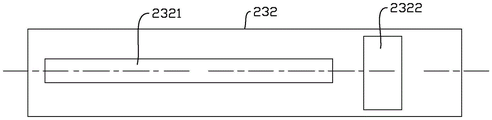

fig. 4 schematically shows the structure of the loading arm in the bobbin paper discharge mechanism for the slitter in the present embodiment.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be described in detail below with reference to the accompanying drawings, and the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention.
Therefore, the following detailed description of the embodiments of the present invention, which is provided in connection with the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention, and all other embodiments obtained by those of ordinary skill in the art without any inventive effort based on the embodiments of the present invention are within the scope of the invention.
Example 1
As shown in fig. 1, the utility model provides a bobbin paper discharge mechanism for cutting machine mainly includes frame 10 and rotary mechanism and pushing equipment 30, and rotary mechanism wherein includes drive assembly 210, drive assembly 220 and swing arm subassembly 230, drive assembly 210 drives the motion of drive assembly 220, drive assembly 220 drives swing arm subassembly 230 and rotates, swing arm subassembly 230 includes the swing arm body 231 and carries material arm 232, and drive assembly 210 is the cylinder, drive assembly 220 includes pull rod 221 and center pin 222, the rotatable setting of center pin 222 is on frame 10, pull rod 221 sets up and is connected at center pin 222 one end and with drive assembly 210, the other end at center pin 222 is established to swing arm body 231 cover.
The motion through cylinder drive pull rod 221 drives the rotation of center pin 222 then, drives the rotation of swing arm body 231 then, carries out the switching of the vertical and horizontal position of swing arm body 231, and fig. 1 is that swing arm body 231 is in vertical state, also is connecing the material state simultaneously, carries out connecing out of bobbin stock 1000 in the cutting machine, and fig. 2 then is that swing arm body is in the horizontal state, also is the state of unloading simultaneously, releases the unloading from the mechanism with bobbin stock 1000.
As shown in fig. 1 and 3, the material loading arms 232 are hollow and two material loading arms 232 are disposed at two ends of the swing arm body 231, the material pushing mechanism 30 includes a material pushing driving portion 300 and a material pushing transmission portion, the material pushing driving portion 300 is implemented by a servo motor, the material pushing driving portion 300 is disposed on the material loading arms 232, an output shaft of the material pushing driving portion 300 is disposed in parallel with an axis of the material loading arms 232, and the material pushing driving portion 300 provides power to drive the material pushing transmission portion to move, so as to perform material pushing and discharging actions.
The material pushing transmission part comprises a transmission structure and a material pushing structure, the transmission structure comprises a transmission wheel set 310, a transmission rod body 320 and a transmission seat 330, the material pushing driving part 300 drives the transmission wheel set 310 to move, the transmission wheel set 310 drives the transmission rod body 320 to move, the transmission rod body 320 is rotatably arranged in the material loading arm 232 and extends axially, the transmission rod body 320 and the material loading arm 232 are coaxially arranged, and the transmission seat 330 is arranged on the transmission rod body 320 and makes reciprocating linear motion along with the transmission rod body 320.
The driving wheel set 310 includes a driving wheel 311, a driving wheel 312 and a driving belt 313 arranged on the driving wheel 311 and the driving wheel 312, the driving wheel 311 is sleeved on an output shaft of the material pushing driving portion 300, the driving wheel 312 is fixedly sleeved on the driving rod body 320, the driving wheel 311 drives the driving wheel 312 to rotate through the driving belt 313, the driving rod body 320 is a screw rod, bearings 321 are sleeved at two ends of the driving rod body 320, the bearings 321 are arranged in the material carrying arms 232, and the driving wheel 312 drives the driving rod body 320 to rotate through the bearings.
The pushing structure comprises a connecting seat 340 and a pushing plate body 350, the connecting seat 340 is connected with a transmission seat 330 and protrudes to the outside of the material loading arm 232, the connecting seat 340 does not rotate and only makes linear motion, the transmission seat 330 and a transmission rod body 320 form a ball screw to be matched, the transmission seat 330 moves along the transmission rod body 320 to drive the connecting seat 340 to move, the pushing plate body 350 is connected with the connecting seat 340 protruding to the outside of the material loading arm 232, the vertical arrangement of the pushing plate body 350 corresponds to the side face of the bobbin paper positioned on the material loading arm 232, and the bobbin paper is pushed by the pushing plate body to move outwards.
As shown in fig. 4, at the same time, an elongated opening 2321 is disposed on the carrier arm 232, the opening 2321 is disposed along an axial direction of the carrier arm 232, and the connecting seat 340 passes through the opening 2321 and moves linearly along the opening 2321 with the transmission seat 330.
Moreover, a through hole 2322 is formed in the loading arm 232, the through hole 2322 and the opening 2321 are located on the same center line, the transmission belt 313 partially passes through the through hole 2322, the arrangement of the transmission belt 313 is facilitated through the through hole 2322, and partially enters the loading arm, and the other part is located outside the loading arm.
In order to protect the exposed transmission wheel set 310, a protective cover 301 is arranged on the pushing driving part 300, the protective cover 301 surrounds the transmission wheel set 310 outside the material carrying arm 232, a shell-shaped structure is adopted, one end of the protective cover is connected and sealed with the material carrying arm 232, the other end of the protective cover is connected and sealed with one end of an output shaft of the pushing driving part 300, and the protective cover is fixed by bolts or rivets.
In addition, in order to facilitate discharging in the discharging area, the frame 10 is configured to be composed of a rotating motor 101, a rotating disc 102 and a main frame body 103, the rotating motor 101 drives the rotating disc 102 to rotate, the main frame body 103 is arranged on the rotating disc 102 and rotates along with the rotating disc 102, the rotating motor 101 is vertically arranged at a position below the rotating disc 102, the rotating disc 102 is driven to rotate by the rotating motor 101, and the corresponding main frame body 103 is vertically arranged at a position right above the rotating disc, so that the rotating disc and the main frame body are coaxial.
Of course, a shaft 1031 may also be disposed inside the main frame 103, the output shaft of the rotating motor 101 passes through the rotating disc 102 and is connected to the shaft 1031, the shaft 1031 is fixedly connected to the main frame 103, the rotating motor 101 directly drives the shaft 1031 to further drive the main frame 103 to rotate, and the rotating disc 102 is fixed.
The utility model discloses when using, dock with the cutting machine earlier, the swing arm body at this moment is in vertical state, carry the material arm with the coil paper through two and connect to draw and hold, after accepting the completion, rotate the body frame body 103 through rotating motor 101, the year material arm that will ride on rotates to the district of unloading, then control drive assembly motion, the swing arm body takes place to rotate, become the horizontality by vertical state, then control pushes away the material drive part motion, release the coil paper from carrying the material arm and collect to the platform of unloading in the district, then return the normal position in proper order can.
All the modes described herein may be performed in any suitable order. The use of any and all examples, or exemplary language (e.g., "such as") provided herein, is intended merely to better illuminate the invention and does not pose a limitation on the scope of the invention unless otherwise claimed. No language in the specification should be construed as indicating any non-claimed element as essential to the practice of the invention.
The present invention has described preferred embodiments, including the best mode known to those of the present invention for carrying out the present invention. Of course, variations of these preferred embodiments will be apparent to those skilled in the art. The present invention contemplates that skilled artisans can use this variation as appropriate, and the present invention teaches that the present invention can be practiced in other ways than those specifically described herein. Accordingly, this invention includes all modifications encompassed within the spirit and scope of the invention as defined by the claims. Moreover, unless stated otherwise or clearly contradicted by context, the present disclosure includes any and all possible variations of the above-described elements.
Claims (9)
1. The bobbin paper unloading mechanism for the splitting machine comprises a rack and a rotating mechanism, wherein the rotating mechanism comprises a driving assembly, a transmission assembly and a swing arm assembly, the driving assembly drives the transmission assembly to move, the transmission assembly drives the swing arm assembly to rotate, and the swing arm assembly comprises a swing arm body and material carrying arms;
the pushing transmission part comprises a transmission structure and a pushing structure, the transmission structure comprises a transmission wheel set, a transmission rod body and a transmission seat, the pushing driving part drives the transmission wheel set to move, the transmission wheel set drives the transmission rod body to move, the transmission rod body is rotatably arranged in the material carrying arm and extends along the axial direction of the material carrying arm, and the transmission seat is arranged on the transmission rod body and makes reciprocating linear motion along with the transmission rod body;
the material pushing structure comprises a connecting seat and a push plate body, the connecting seat is connected with the transmission seat and protrudes to the outside of the material carrying arm, the push plate body is connected with the connecting seat, and the push plate body corresponds to the bobbin paper on the material carrying arm.
2. The bobbin discharging mechanism for the slitter according to claim 1, wherein the pushing driving portion is disposed on the loading arm, and an output shaft of the pushing driving portion is disposed parallel to an axis of the loading arm.
3. The disc paper discharging mechanism for the cutting machine as claimed in claim 2, wherein the transmission wheel set includes a driving wheel, a transmission wheel and a transmission belt disposed on the driving wheel and the transmission wheel, the driving wheel is disposed on the output shaft, and the transmission wheel is disposed on the transmission rod.
4. The bobbin paper discharging mechanism for the splitting machine as claimed in claim 3, wherein the transmission rod is a screw rod, and bearings are sleeved at two ends of the transmission rod and arranged in the loading arm.
5. The bobbin paper discharging mechanism for the splitting machine as claimed in claim 4, wherein the loading arm is provided with an opening, the opening is arranged along the axial direction of the loading arm, and the connecting seat penetrates through the opening and moves linearly along with the driving seat along the opening.
6. The bobbin discharging mechanism for a slitter according to claim 5, wherein the loading arm is provided with a through hole, and the belt portion passes through the through hole.
7. The bobbin discharging mechanism for the slitter according to claim 1, wherein a protective cover is provided on the pushing driving portion, and the protective cover surrounds a portion of the driving wheel set located outside the loading arm.
8. The bobbin paper discharging mechanism for the splitting machine as claimed in claim 1, wherein the driving assembly is a cylinder, the transmission assembly includes a pull rod and a central shaft, the central shaft is rotatably disposed on the frame, the pull rod is disposed at one end of the central shaft and connected to the driving assembly, and the swing arm body is sleeved at the other end of the central shaft.
9. The bobbin paper discharging mechanism for the slitter according to claim 8, wherein the frame comprises a rotating motor, a rotating disc and a main frame, the rotating motor drives the rotating disc to rotate, and the main frame is disposed on the rotating disc and rotates with the rotating disc.
