Abstract
The utility model relates to the technical field of food cleaning, in particular to a cleaning device for corn processing, which comprises a supporting leg, wherein the top of the supporting leg is fixedly connected with a box body, the top of the box body is fixedly connected with a receiving barrel, the outer surface of the box body is fixedly connected with a first filter screen, one side of the first filter screen is provided with a first motor, one side of the first motor is provided with a fan blade, the bottom of the box body is movably connected with a conveying shaft, the outer surface of the conveying shaft is provided with a conveying belt, the bottom of the box body is provided with a hydraulic rod, and the top of the hydraulic rod is fixedly connected with a lifting platform. The bottom of the box body is provided with a water outlet.
Description
Technical Field
The utility model relates to the technical field of food cleaning, in particular to a cleaning device for corn processing.
Background
The content of vitamin in the corn is very high, 5-10 times of that of rice and wheat, and the nutritive value of the special corn is higher than that of the common corn. The rich plant cellulose contained in corn has the characteristics of stimulating gastrointestinal peristalsis and accelerating excrement excretion, and can prevent and treat constipation, enteritis, intestinal cancer and the like; can restrict and block the absorption of excessive glucose, and has the function of inhibiting the increase of blood sugar after meal, and the corn processing in food processing factories is batch processing.
There are the following problems:
the traditional corn cleaning method is to manually clean corns in a water tank, and the cleaning mode has high labor intensity and low working efficiency and is difficult to ensure the cleaning quality of the corns.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art and provides a cleaning device for corn processing.
In order to achieve the purpose, the utility model adopts the following technical scheme: a cleaning device for corn processing comprises supporting legs, wherein the tops of the supporting legs are fixedly connected with a box body, the top of the box body is fixedly connected with a receiving barrel, the outer surface of the box body is fixedly connected with a first filtering net, one side of the first filtering net is provided with a first motor, one side of the first motor is provided with fan blades, the bottom of the box body is fixedly connected with a conveying shaft, the outer surface of the conveying shaft is provided with a conveying belt, the bottom of the box body is provided with a hydraulic rod, the top of the hydraulic rod is fixedly connected with a lifting table, the interior of the lifting table is provided with a second motor, one side of the second motor is connected with a second rotating shaft, one side of the second rotating shaft is connected with a brush rod, the inner wall of the box body is fixedly connected with a sliding plate, the inner wall of the box body is fixedly connected with a sliding rail, the interior of the sliding rail is provided with a second filtering net, and the inner wall of the box body is fixedly connected with a water inlet, the bottom of the box body is provided with a water outlet.
As a further description of the above technical solution:
the slide rail is cuboid in shape, and the inner diameter of the slide rail is matched with the outer diameter of the second filter screen.
As a further description of the above technical solution:
the number of the brush rods is a plurality of groups, and one side of each brush rod is provided with the inside of the lifting platform.
As a further description of the above technical solution:
the number of the hydraulic rods is a plurality of groups, and the bottoms of the hydraulic rods are fixedly connected with the bottom of the box body.
As a further description of the above technical solution:
the fan blade box is characterized in that a first motor is welded inside the box body, and a fan blade is welded at the tail end of a transmission shaft of the first motor.
As a further description of the above technical solution:
the supporting legs are cylindrical, the number of the supporting legs is a plurality of groups, and the supporting legs are distributed in an axisymmetric mode relative to the horizontal center line of the box body.
As a further description of the above technical solution:
the number of the water outlets is two groups, the two groups of water outlets are distributed in an axisymmetric manner about the horizontal center line of the box body, and the water outlets are fixedly connected to the bottom of the box body.
The utility model has the following beneficial effects: according to the corn cleaning machine, the hydraulic rod, the lifting platform, the second motor, the second rotating shaft, the conveying belt and the brush are arranged, the lifting platform is driven to move by the hydraulic rod, the lifting platform drives the second motor to move, the second motor drives the second rotating shaft to rotate, the second rotating shaft drives the brush to rotate, and the conveying shaft drives the conveying belt to move, so that the problem of unbalance during cleaning is solved, corn is cleaned and scrubbed, labor force is liberated, and working efficiency is high.
According to the utility model, the corn kernels can move left and right on the conveyor belt in the cleaning process through the cleaning mechanism, so that the corn kernels are fully contacted with the brush rod, and the cleanliness of the corn kernels can be effectively improved.
Drawings

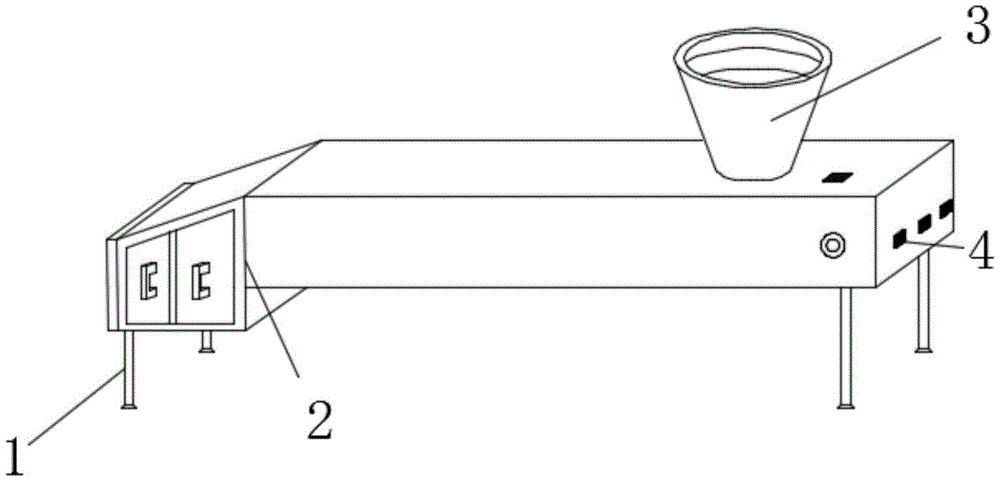

FIG. 1 is a schematic structural view of a main body of a cleaning device for corn processing according to the present invention;
FIG. 2 is a cross-sectional view of a feeding conveyor belt of a cleaning device for corn processing according to the present invention;
FIG. 3 is a sectional view of a second filter screen of the cleaning device for corn processing according to the present invention;
FIG. 4 is a schematic view of a movement structure of a cleaning device for corn processing according to the present invention;
FIG. 5 is a schematic enlarged view of the area A in FIG. 2 of a cleaning device for corn processing according to the present invention;
fig. 6 is a sectional view of a second motor of the cleaning device for corn processing according to the present invention.
Illustration of the drawings:
1. supporting legs; 2. a box body; 3. a material receiving barrel; 4. a first filter screen; 5. a first motor; 6. a fan blade; 7. a transfer shaft; 8. a conveyor belt; 9. a hydraulic lever; 10. a lifting platform; 11. a second motor; 12. a material sliding plate; 13. a second rotating shaft; 14. a slide rail; 15. a water inlet; 16. a water outlet; 17. a brush rod; 18. and a second filter screen.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in a specific case to those of ordinary skill in the art.
Referring to fig. 1-6, one embodiment provided by the present invention: a cleaning device for corn processing comprises a supporting leg 1, wherein the top of the supporting leg 1 is fixedly connected with a box body 2, the top of the box body 2 is fixedly connected with a receiving barrel 3, the receiving barrel 3 is arranged to achieve concentration during receiving and achieve the purpose of balancing during feeding, a first filter screen 4 is fixedly connected to the outer surface of the box body 2, the first filter screen 4 is arranged to maintain the work of a first motor 5 and achieve the purpose that the first motor 5 drives a fan blade 6, a first motor 5 is arranged on one side of the first filter screen 4, a fan blade 6 is arranged on one side of the first motor 5, a conveying shaft 7 is fixedly connected to the bottom of the box body 2, a conveying belt 8 is arranged on the outer surface of the conveying shaft 7, the conveying shaft 7 is arranged to achieve the movement of the conveying belt 8, the purpose that the conveying belt 8 drives corn is achieved through the movement of the conveying belt 8, and a hydraulic rod 9 is arranged at the bottom of the box body 2, the top fixedly connected with elevating platform 10 of hydraulic stem 9, the inside of elevating platform 10 is provided with two 11 motors, one side of two 11 motors is connected with two 13 pivots, one side of two 13 pivots is connected with brush pole 17, the inner wall fixedly connected with sliding plate 12 of box 2, through setting up sliding plate 12, be for the stable surface that drops at two 18 filter screens of maize on the conveyer belt 8, make the maize can not drop in the bottom of box 2, the inner wall fixedly connected with slide rail 14 of box 2, the inside of slide rail 14 is provided with two 18 filter screens, the inner wall fixedly connected with water inlet 15 of box 2, the bottom of box 2 sets up delivery port 16.
Furthermore, the slide rail 14 is cuboid, the inner diameter of the slide rail 14 is matched with the outer diameter of the second filter screen 18, and the slide rail 14 is arranged to control the movement of the second filter screen 18, so that the corn discharging purpose is realized.
Specifically, through setting up water inlet 15, the maize that drops on two 18 surfaces on the filter screen can be washed by water, and through setting up slide rail 14, two 18 can be at the inside activity of slide rail 14 to reach the purpose of the ejection of compact.
Furthermore, the number of the brush rods 17 is a plurality of groups, one side of each brush rod 17 is arranged in the lifting platform 10, the brush rods 17 are arranged in the lifting platform 10 to stabilize the brush rods 17, and the problem of unbalanced cleaning of the brush rods 17 during cleaning is solved through the stable effect of the brush rods 17.
Further, the quantity of hydraulic stem 9 is a plurality of groups, and the bottom of hydraulic stem 9 and the bottom fixed connection of box 2 set up hydraulic stem 9 and be for nimble height-adjusting, and stability is good to it is very convenient to operate.
Specifically, through setting up hydraulic stem 9 in the bottom of elevating platform 10, when the maize on 8 surfaces of conveyer belt is not of uniform size, the motion of hydraulic stem 9 drives elevating platform 10 and moves, has reached nimble effect, has solved the clean incomplete problem of time when clean.
Furthermore, the inside welding of box 2 has motor 5, and the one end welding of motor 5 transmission shaft has fan blade 6, and the rotation of motor 5 motion drive fan blade 6 to reach absorbent effect, the at utmost has reduced the inside dust that leaves of box 2.
Specifically, through setting up motor 5 and fan blade 6 in the inside of box 2, when brush-holder stud 17 work, the inside of box 2 can produce some dust battings, under the rotation of a 5 motion drive fan blades 6 of motor, can produce absorbent effect, has solved the inside problem of leaving the dust of box 2.
Furthermore, the shape of supporting leg 1 is the cylinder, and the total a plurality of groups of supporting leg 1, and supporting leg 1 is the axisymmetrical distribution about the horizontal central line of box 2, through setting up supporting leg 1, is in order to keep the stability of equipment.
Furthermore, the number of the water outlets 16 is two, the two water outlets 16 are axially symmetrically distributed about the horizontal center line of the box body 2, the water outlets 16 are fixedly connected to the bottom of the box body 2, and sewage can be discharged out of the box body 2 by arranging the water outlets 16.
The working principle and the process are as follows: the user puts the maize that waits to wash into receiving bucket 3 earlier, when the maize gets into conveyer belt 8, the switch of starting equipment, drive the motion that conveyer belt 8 advances through conveying axle 7, conveyer belt 8 can drive the maize and get into the below of brush-holder stud 17, through starting switch, motor two 11 can drive the rotation of pivot two 13, can drive the rotation of brush-holder stud 17 through the rotation of pivot two 13, thereby clean the maize through the rotation of brush-holder stud 17, in the clear process, can meet maize of not uniform size, through setting up hydraulic stem 9 and elevating platform 10, the motion of hydraulic stem 9 drives the motion of elevating platform 10, the problem of cleaning incomprehension when having solved clean size, can leave debris such as dust hair wadding when brush-holder stud 17 cleans the maize, through setting up motor one 5 and 6, the motion of motor one 5 can drive the motion of fan blade 6, thereby reach absorbent effect, through absorbent effect, some dust battings can the suction box 2 the outside, thereby reach the cleanness to box 2 inside, in brush pole 17 work, the maize can be brought into box 2's opposite side by conveyer belt 8, through having set up filter screen two 18 at box 2 opposite side, the maize can drop the surface at filter screen two 18, through setting up water inlet 15 and delivery port 16, water inlet 15 is intake and can be washed the maize on filter screen two 18 surfaces, through setting up delivery port 16, the inside water of box 2 can be discharged, after brush pole 17 is to the cleanness of maize, rethread washing's mode is to maize further cleanness, after accomplishing the maize is clean, through setting up slide rail 14, make filter screen two 18 can take out, thereby reach the mesh of the ejection of compact, also can clean filter screen two 18.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, those skilled in the art can still make modifications to the technical solutions described in the foregoing embodiments, or make equivalent substitutions and improvements to part of the technical features of the foregoing embodiments, and any modifications, equivalent substitutions and improvements made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. The utility model provides a belt cleaning device for corn processing, includes supporting leg (1), its characterized in that: the box body (2) is fixedly connected to the top of the supporting leg (1), the receiving barrel (3) is fixedly connected to the top of the box body (2), a first filter screen (4) is fixedly connected to the outer surface of the box body (2), a first motor (5) is arranged on one side of the first filter screen (4), fan blades (6) are arranged on one side of the first motor (5), a conveying shaft (7) is movably connected to the bottom of the box body (2), a conveying belt (8) is arranged on the outer surface of the conveying shaft (7), a hydraulic rod (9) is arranged on the bottom of the box body (2), a lifting table (10) is fixedly connected to the top of the hydraulic rod (9), a second motor (11) is arranged inside the lifting table (10), a second rotating shaft (13) is connected to one side of the second motor (11), and a brush rod (17) is connected to one side of the second rotating shaft (13), the inner wall fixedly connected with sliding plate (12) of box (2), the inner wall fixedly connected with slide rail (14) of box (2), the inside of slide rail (14) is provided with filter screen two (18), the inner wall fixedly connected with water inlet (15) of box (2), the bottom of box (2) sets up delivery port (16).
2. The cleaning device for corn processing according to claim 1, wherein: the slide rail (14) is cuboid in shape, and the inner diameter of the slide rail (14) is matched with the outer diameter of the second filter screen (18).
3. The cleaning device for corn processing according to claim 1, wherein: the number of the brush rods (17) is a plurality of groups, and the rotating parts of the brush rods (17) are arranged in the lifting platform (10).
4. The cleaning device for corn processing according to claim 1, wherein: the number of the hydraulic rods (9) is a plurality of groups, and the bottoms of the hydraulic rods (9) are fixedly connected with the bottom of the box body (2).
5. The cleaning device for corn processing according to claim 1, wherein: the fan is characterized in that a first motor (5) is welded inside the box body (2), and a fan blade (6) is welded at one end of the first motor (5).
6. The cleaning device for corn processing according to claim 1, wherein: the supporting legs (1) are cylindrical, the number of the supporting legs (1) is a plurality of groups, and the supporting legs (1) are distributed in an axisymmetric mode relative to the horizontal center line of the box body (2).
7. The cleaning device for corn processing according to claim 1, wherein: the number of the water outlets (16) is two, the two water outlets (16) are distributed in an axisymmetric manner about the horizontal center line of the box body (2), and the water outlets (16) are fixedly connected to the bottom of the box body (2).
