CN216997541U

CN216997541U - Stable carrying mechanism for articles

Info

Publication number: CN216997541U
Application number: CN202220596352.8U
Authority: CN
Inventors: 岳文娟; 李金明; 孙贤生; 吴岳峰
Original assignee: Anhui Huayin Mechanical and Electrical Co Ltd
Current assignee: Anhui Huayin Mechanical and Electrical Co Ltd
Priority date: 2022-03-18
Filing date: 2022-03-18
Publication date: 2022-07-19
Anticipated expiration: 2032-03-18

Abstract

The utility model discloses a stable carrying mechanism for articles, which comprises a vehicle body and a bearing platform, wheels are installed at the bottom of the vehicle body, and a folding jacking mechanism is arranged between the bearing platform and the vehicle body, which is used for supporting the bearing platform For lifting and lowering, the two sides of the upper end of the carrying platform are slidably connected with clamping plates through the slider, the bottom of the slider is fixed with a push plate, the outer side of the push plate is provided with a top plate, and the bottom of the top plate is connected to the vehicle body. The contact surface between the top plate and the push plate is inclined; the utility model moves down the carrying platform, so that the push plate slides along the inclined surface of the top plate, and the clamping plate clamps and fixes the articles on the carrying platform, which is convenient for When the car body moves between the shelves, the items are transported stably, reducing the situation of shaking and slipping. By moving up the carrying platform, the restriction of the top plate on the push plate is lifted, so as to lift the restriction on the items and push the items to the required height for rotation. Save, very convenient.

Description

Stable carrying mechanism for articles

Technical Field

The utility model relates to the technical field of warehousing, in particular to a stable article carrying mechanism.

Background

The logistics storage is that self-building or lease storeroom is utilized, the place, store, keep, load and unload the transport, the delivery goods, modern new technology has been used in a large number in the modern storage management, wherein adopt goods shelves to concentrate and place in the goods is stacked, the goods is carried and is stacked on storage goods shelves through the delivery vehicle in the special goods shelves, thereby both saving the place and raising the efficiency, present delivery mechanism is usually provided with at the top of delivery trolley, place the goods that will carry and transport on putting the thing dish and transport, there is article fixed insecurity, the condition of rocking easily or landing in the transportation, influence conveying efficiency and transportation quality.

SUMMERY OF THE UTILITY MODEL

The utility model mainly aims to provide a stable article carrying mechanism which can effectively solve the problems in the background technology.

In order to achieve the purpose, the utility model adopts the technical scheme that: the utility model provides a delivery mechanism is stabilized to article, includes automobile body and load-bearing platform, the wheel is installed to the bottom of automobile body, be provided with folding climbing mechanism between load-bearing platform and the automobile body for go up and down to load-bearing platform, there is the pinch-off blades in load-bearing platform's upper end both sides through slider sliding connection, the bottom of slider is fixed with the push pedal, the outside of push pedal is provided with the roof, the bottom of roof is connected with the automobile body, the roof sets up for the slope with the contact surface of push pedal.

Preferably, the number of the sliding blocks is at least two, and sliding grooves matched with the sliding blocks are formed in the bearing platform.

Preferably, a return spring is installed in the sliding groove, and two ends of the return spring are connected with the bearing platform and the sliding block respectively.

Preferably, the bottom of push pedal and the top of roof are the arc structure, the upper end of automobile body is provided with accomodates the groove.

Preferably, the folding jacking mechanism comprises two groups of folding rods, wherein two ends of each folding rod are respectively connected with the bearing platform and the vehicle body, and the middle parts of the folding rods are connected through connecting rods.

Preferably, the connecting rods on the two groups of folding rods are connected through a telescopic motor, and the wheels are Mecanum wheels.

Compared with the prior art, the utility model has the following beneficial effects:

1. this delivery mechanism is stabilized to article, through on placing load-bearing platform with article, move down through load-bearing platform, make the push pedal slide along the inclined plane of roof, load-bearing platform's both sides push pedal moves to the inboard this moment, thereby drive the pinch-off blades adduction at top, it is fixed with the article centre gripping on the load-bearing platform, article stable transportation when the automobile body of being convenient for removes between the goods shelves, reduce the condition of rocking and landing, shift up through load-bearing platform, remove the restriction of roof to the push pedal, thereby remove the restriction to article, and with article propelling movement highly the saving that highly needs, it is very convenient.

Drawings

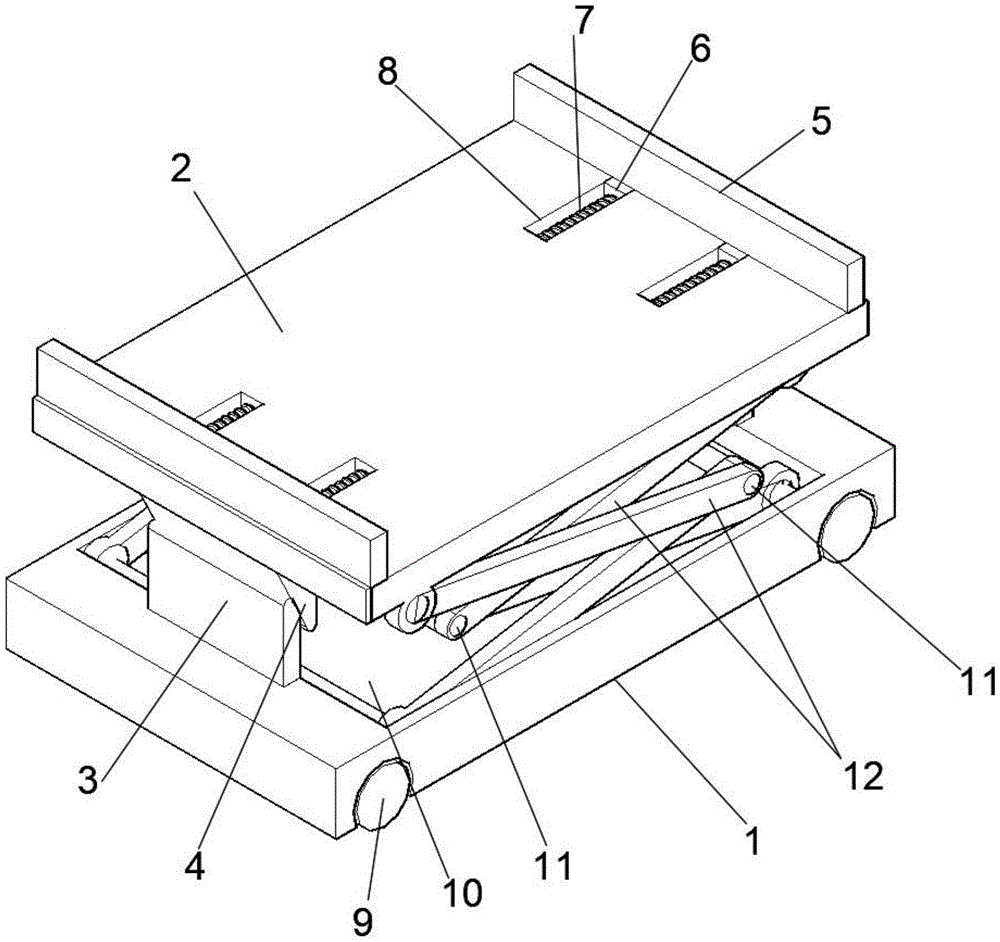

FIG. 1 is a first general structural diagram of the present invention;

FIG. 2 is a second overall view of the present invention;

fig. 3 is a front view of the present invention.

In the figure: 1. a vehicle body; 2. a load-bearing platform; 3. a top plate; 4. pushing the plate; 5. a clamping plate; 6. a slider; 7. a return spring; 8. a chute; 9. a wheel; 10. a receiving groove; 11. a connecting rod; 12. a folding bar; 13. a telescopic motor.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the description of the present application, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present application.

In the description of the present application, it should be noted that, unless otherwise specifically stated or limited, the terms "disposed," "mounted," "connected" and "connected" should be construed broadly, and may include, for example, a fixed connection, a detachable connection, an integral connection, a mechanical connection, an electrical connection, a direct connection, a connection through an intermediary, and a communication between two elements. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art according to specific circumstances.

As shown in fig. 1-3, a stable article carrying mechanism comprises a vehicle body 1 and a bearing platform 2, wheels 9 are installed at the bottom of the vehicle body 1, a folding jacking mechanism is arranged between the bearing platform 2 and the vehicle body 1 and used for lifting the bearing platform 2, clamping plates 5 are slidably connected to two sides of the upper end of the bearing platform 2 through sliders 6, a push plate 4 is fixed to the bottom of each slider 6, a top plate 3 is arranged on the outer side of each push plate 4, the bottom of each top plate 3 is connected with the vehicle body 1, and the contact surfaces of the top plates 3 and the push plates 4 are obliquely arranged.

Through on placing load-bearing platform with article, move down through load-bearing platform, make the push pedal slide along the inclined plane of roof, load-bearing platform's both sides push pedal removes to the inboard this moment, thereby drive the pinch-off blades adduction at top, it is fixed with the article centre gripping on the load-bearing platform, article stable transportation when the automobile body of being convenient for removes between the goods shelves, reduce the condition of rocking and landing, shift up through load-bearing platform, remove the restriction of roof to the push pedal, thereby remove the restriction to article, and with article propelling movement highly the transfer deposit of needs, it is very convenient.

As shown in fig. 1-2, in this embodiment, at least two sliding blocks 6 are provided, a sliding groove 8 matched with the sliding block 6 is formed on the bearing platform 2, a return spring 7 is installed in the sliding groove 8, and two ends of the return spring 7 are respectively connected with the bearing platform 2 and the sliding block 6.

Through setting up reset spring, when load-bearing platform shifts up, the roof is relieved spacing to the push pedal, and reset spring promotes the slider and moves outward to drive push pedal and pinch-off blades and move outward, thereby relieve spacing to article, and be convenient for carry out the centre gripping to next article and fix, convenient.

As shown in fig. 2-3, in this embodiment, the bottom of the push plate 4 and the top of the top plate 3 are both arc-shaped structures, the upper end of the vehicle body 1 is provided with a storage groove 10, the folding jacking mechanism includes two sets of folding rods 12, two ends of each set of folding rod 12 are respectively connected with the bearing platform 2 and the vehicle body 1, the middle parts of the folding rods 12 are connected through a connecting rod 11, the two sets of connecting rods 11 on the folding rods 12 are connected through a telescopic motor 13, and the wheels 9 are mecanum wheels.

Extension through flexible motor drives the connecting rod outline at both ends to control folding rod folds, reduces load-bearing platform's height, otherwise through the shrink of flexible motor, control load-bearing platform rises, can be through flexible control load-bearing platform's of flexible motor lift, and install mecanum wheel, utilize the steering that the characteristic control automobile body of mecanum wheel removed in a flexible way, be convenient for transport and remove.

While certain exemplary embodiments of the present invention have been described above by way of illustration only, it will be apparent to those of ordinary skill in the art that the described embodiments may be modified in various different ways without departing from the spirit and scope of the utility model. Accordingly, the drawings and description are illustrative in nature and should not be construed as limiting the scope of the utility model.

Claims

1. A stable carrying mechanism for articles, comprising a vehicle body and a bearing platform, characterized in that: a wheel is installed at the bottom of the vehicle body, and a folding jacking mechanism is arranged between the bearing platform and the vehicle body, for carrying The platform is lifted up and down, the upper end of the carrying platform is slidably connected with clamping plates on both sides through the slider, the bottom of the slider is fixed with a push plate, the outer side of the push plate is provided with a top plate, and the bottom of the top plate is connected to the vehicle. The body is connected, and the contact surface between the top plate and the push plate is inclined.

2 . The stable carrying mechanism for articles according to claim 1 , wherein at least two sliding blocks are provided, and a chute matching the sliding blocks is provided on the carrying platform. 3 .

3 . The stable carrying mechanism for articles according to claim 2 , wherein a return spring is installed in the chute, and two ends of the return spring are respectively connected to the bearing platform and the slider. 4 .

4 . The stable carrying mechanism for articles according to claim 1 , wherein the bottom of the push plate and the top of the top plate are arc structures, and the upper end of the vehicle body is provided with a receiving groove. 5 .

5 . The stable carrying mechanism for articles according to claim 1 , wherein the folding and jacking mechanism comprises two sets of folding rods, and two ends of each set of the folding rods are respectively connected to the carrying platform and the vehicle body. 6 . , the middle of the folding rod is connected by a connecting rod.

6 . The stable carrying mechanism for articles according to claim 5 , wherein the connecting rods on the two sets of folding rods are connected by a telescopic motor, and the wheels are Mecanum wheels. 7 .
