The utility model relates to a material receiving clamp with an adjustable splitting machine, which comprises a base, wherein a top seat is arranged above the base, the top surface of the top seat is provided with a connecting groove, and the top surface of the top seat is fixedly connected with two symmetrical guide rails through rivets; this cutting machine is received material and is used anchor clamps through adjustment mechanism and the fixture that are equipped with adjustable: on one hand, the motor drives the belt pulleys on two sides to rotate, the belt pulleys drive the two belts to move relatively, the belts drive the stand columns to move relatively, and the linear distance between the two chucks is changed, so that the reels with different lengths can be fixed conveniently; on the other hand, the chuck is fixed on the sliding sleeve, the sliding sleeve is fixed on the upright post through the adjusting bolt, and the heights of the sliding sleeve and the chuck can be adjusted, so that the winding drum can be adjusted to different heights to be fixed according to the material receiving requirement; this design is convenient for adjust the chuck, is convenient for fix not unidimensional reel.
Description
Technical Field
The utility model relates to the technical field of splitting machines, in particular to an adjustable material receiving clamp for a splitting machine.
Background
The splitting machine is a mechanical device for splitting wide paper, mica tapes or films into a plurality of narrow materials, is commonly used for paper making machinery, wire and cable mica tapes and printing and packaging machinery, and at present, the raw materials need to be collected after being split by the splitting machine; at the present stage, when material is received, two ends of a winding drum are fixed on a machine table through two oppositely arranged clamps, so that a cut material is wound on the winding drum, but the distance between the two clamps cannot be adjusted, and the winding drums with different lengths are not convenient to fix.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a material receiving clamp with an adjustable splitting machine, which aims to solve the problems in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme:
a material receiving clamp with an adjustable splitting machine comprises a base, wherein a top seat is arranged above the base, a connecting groove is formed in the top surface of the top seat, and two symmetrical guide rails are fixedly connected to the top surface of the top seat through rivets; two symmetrical connecting plates are arranged between the base and the top seat, an adjusting mechanism is arranged between the two connecting plates, and a clamping mechanism is arranged above the top seat; the adjusting mechanism comprises two symmetrical belts which are positioned between the two connecting plates, belt pulleys are arranged on two sides of each belt, the belts are wound around the belt pulleys on the two sides, and transmission shafts are coaxially keyed on the belt pulleys.
As a preferable technical scheme of the utility model, gears are coaxially and tightly welded on two adjacent transmission shafts, the two gears are meshed, the outer wall of one of the connecting plates is fixedly connected with a motor through a bolt, and an output shaft of the motor penetrates through the connecting plate and is coaxially and key-connected with one of the transmission shafts.
As a preferable technical scheme of the utility model, the clamping mechanism comprises two symmetrical upright columns, two symmetrical fixing holes are respectively formed in the positions, close to the bottom ends, of the upright columns, a plurality of through holes are respectively formed in one side wall of each upright column, a sliding sleeve in a shape like a Chinese character 'hui' is slidably connected to each upright column, a chuck is rotatably connected to one side wall of each sliding sleeve, an adjusting bolt is connected to the other side wall of each sliding sleeve in a threaded manner, and the tail end of each adjusting bolt is in plug-in fit with the corresponding through hole.
As a preferable technical scheme of the present invention, a slider is disposed below the upright, the fixing hole is fixedly connected with the slider through a bolt, two symmetrical sliding grooves are formed in the bottom surface of the slider, the sliding grooves are slidably connected with corresponding guide rails, a connecting block is fixedly connected to the bottom surface of the slider through a bolt, and the bottom end of the connecting block passes through the connecting groove and is fixedly connected with a corresponding belt through a rivet.
As a preferable technical scheme of the utility model, the size of the upright post is matched with the size of the sliding sleeve.
As a preferable technical scheme of the utility model, the cross section of the chuck is trapezoidal, and the outer wall of the chuck is provided with a plurality of anti-slip grooves.
As a preferable technical scheme of the utility model, the cross sections of the guide rail and the sliding groove are both trapezoidal.
Compared with the prior art, the utility model has the beneficial effects that: this cutting machine is received material and is used anchor clamps with adjustable have through adjustment mechanism and the fixture who is equipped with: on one hand, the motor drives the belt pulleys on two sides to rotate, the belt pulleys drive the two belts to move relatively, the belts drive the stand columns to move relatively, and the linear distance between the two chucks is changed, so that the reels with different lengths can be fixed conveniently; on the other hand, the chuck is fixed on the sliding sleeve, the sliding sleeve is fixed on the upright post through the adjusting bolt, and the heights of the sliding sleeve and the chuck can be adjusted, so that the winding drum can be adjusted to different heights to be fixed according to the material receiving requirement; this design is convenient for adjust the chuck, is convenient for fix not unidimensional reel.
Drawings

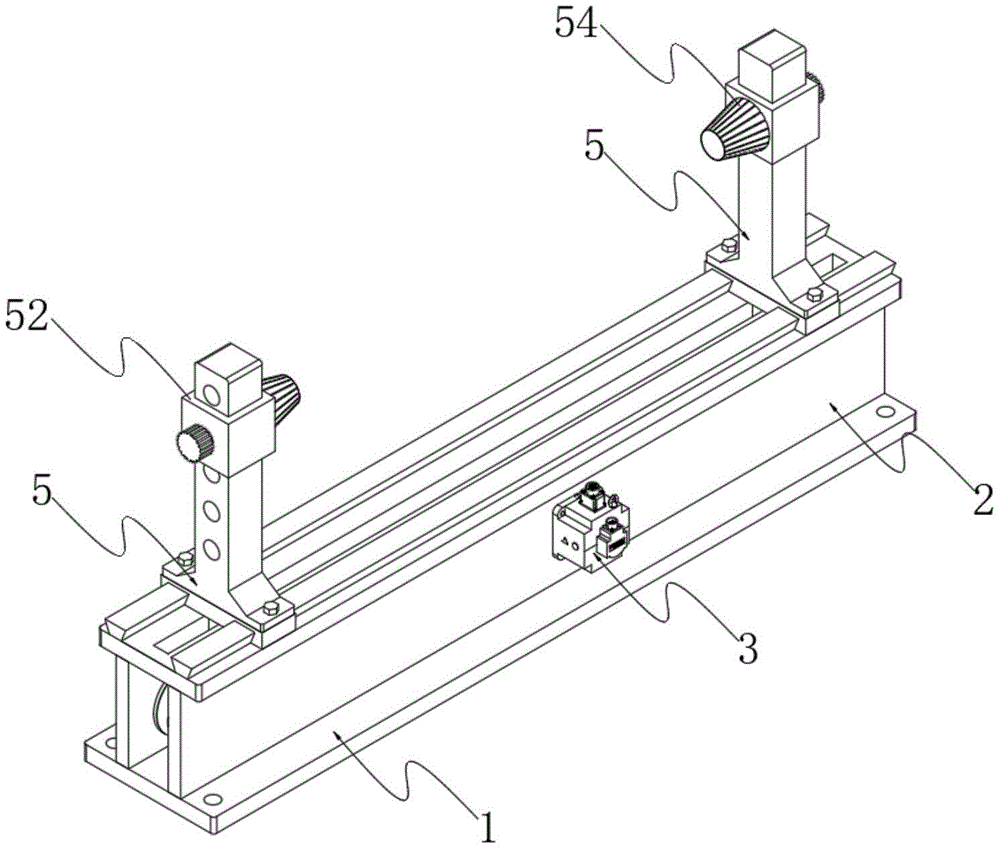

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of a portion of the structure of the present invention;
FIG. 3 is a schematic view of the adjusting mechanism of the present invention;
FIG. 4 is an exploded view of the clamping mechanism of the present invention;
FIG. 5 is a schematic view of a partially exploded structure of the clamping mechanism of the present invention;
FIG. 6 is a schematic view of a part of the structure of the clamping mechanism of the present invention.
In the figure:
1. a base;
2. a connecting plate;
3. an adjustment mechanism; 31. a belt pulley; 32. a belt; 33. a drive shaft; 34. a gear; 35. a motor;
4. a top seat; 41. connecting grooves; 42. a guide rail;
5. a clamping mechanism; 51. a column; 511. a fixing hole; 512. a through hole; 52. a sliding sleeve; 53. adjusting the bolt; 54. a chuck; 55. a slider; 551. a chute; 56. and (4) connecting the blocks.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the equipment or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.
Further, in the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.
The embodiment provides a technical scheme:
referring to fig. 1-2, a material collecting clamp with an adjustable splitting machine comprises a base 1, a top seat 4 is arranged above the base 1, a connecting groove 41 is arranged on the top surface of the top seat 4, and two symmetrical guide rails 42 are fixedly connected to the top surface of the top seat 4 through rivets; two symmetrical connecting plates 2 are arranged between the base 1 and the top seat 4.
In this embodiment, mounting hole 11 has all been seted up to base 1's four corners department, and the setting of mounting hole 11 is convenient for fix base 1, is convenient for carry out stable fixed to whole device.
In this embodiment, two connecting plates 2 all pass through the bolt respectively with base 1 and footstock 4 fixed connection, and the mode of bolt fastening not only makes connecting plate 2 and base 1 and the connection between the footstock 4 firm and stable, is convenient for carry out the dismouting to connecting plate 2 moreover.
Referring to fig. 3, an adjusting mechanism 3 is disposed between the two connecting plates 2. The adjusting mechanism 3 comprises two symmetrical belts 32 which are positioned between the two connecting plates 2, belt pulleys 31 are arranged on two sides of each belt 32, the belts 32 wind the belt pulleys 31 on the two sides, and transmission shafts 33 are coaxially keyed on the belt pulleys 31; the gears 34 are coaxially and tightly welded on the two adjacent transmission shafts 33, the two gears 34 are meshed with each other, the outer wall of one connecting plate 2 is fixedly connected with a motor 35 through bolts, and an output shaft of the motor 35 penetrates through the connecting plate 2 and is in coaxial key joint with one of the transmission shafts 33.
It should be added that, in this embodiment, two ends of the transmission shaft 33 are rotatably connected to the connection plates 2 at two sides through bearings, and the bearings support and support the transmission shaft 33 for rotation, so that the transmission shaft 33 supports the pulley 31 for continuous and stable rotation.
Referring to fig. 4-6, a clamping mechanism 5 is disposed above the top seat 4. The clamping mechanism 5 comprises two symmetrical upright posts 51, two symmetrical fixing holes 511 are formed in the upright posts 51 close to the bottom ends, a plurality of through holes 512 are formed in one side wall of each upright post 51, a sliding sleeve 52 in a shape like a Chinese character 'hui' is connected to each upright post 51 in a sliding mode, a chuck 54 is rotatably connected to one side wall of each sliding sleeve 52, an adjusting bolt 53 is connected to the other side wall of each sliding sleeve 52 in a threaded mode, and the tail end of each adjusting bolt 53 is in inserting fit with the corresponding through hole 512; a sliding block 55 is arranged below the upright post 51, the fixing hole 511 is fixedly connected with the sliding block 55 through a bolt, two symmetrical sliding grooves 551 are formed in the bottom surface of the sliding block 55, the sliding grooves 551 are slidably connected with the corresponding guide rails 42, the bottom surface of the sliding block 55 is fixedly connected with a connecting block 56 through a bolt, and the bottom end of the connecting block 56 penetrates through the connecting groove 41 and is fixedly connected with the corresponding belt 32 through a rivet.
In this embodiment, the size of the upright 51 is matched with the size of the sliding sleeve 52, and the design facilitates the sliding sleeve 52 to stably slide along the upright 51, thereby avoiding the sliding sleeve 52 from shaking and the like, ensuring the stability of the chuck 54, and facilitating the chuck 54 to stably clamp the winding drum.
In this embodiment, the cross-sectional shape of chuck 54 is trapezoidal, and has seted up a plurality of antiskid groove on the outer wall of chuck 54, and the chuck 54 of this design is convenient for insert to the both ends of the open-ended reel of equidimension, is convenient for fix the reel of equidimension not, and the setting in antiskid groove has increased the frictional force between chuck 54 and the reel, and the chuck 54 of being convenient for is better to carry out the centre gripping fixedly to the reel.
In this embodiment, the cross-sectional shapes of the guide rail 42 and the sliding groove 551 are both trapezoidal, and this design has a limiting effect on the movement of the slider 55, thereby avoiding the conditions of swing and the like caused by the movement of the slider 55, and ensuring the stability of the upright 51 and the collet 54 during the movement.
It should be noted that the motor 35 in the present embodiment is conventional in the art, and is not described herein again.
When the device is used, a user firstly turns on and off the adjusting bolts 53 on two sides, and pushes the sliding sleeve 52 to move upwards or downwards along the upright post 51, when the sliding sleeves 52 on two sides move to a proper same height, the user synchronously screws on the adjusting bolts 53, the tail ends of the adjusting bolts 53 are inserted into the corresponding through holes 512, the sliding sleeves 52 and the chucks 54 are fixed, then the user turns on the power supply of the motor 35, the output shaft of the motor 35 rotates to drive one of the gears 34 and one of the transmission shafts 33 to synchronously rotate, the transmission shafts 33 synchronously drive the belt pulleys 31 to rotate, because the two gears 34 are meshed with each other, the belt pulleys 31 on two sides synchronously rotate relatively, the belt 32 synchronously follows the belt pulley 31 to synchronously move relatively, at the moment, the belt 32 drives the connecting blocks 56 on two sides to synchronously move relatively, the sliding groove 551 slides along the guide rail 42, the two sliding blocks 55 synchronously move relatively and drive the two upright posts 51 to move, at this time, the two chucks 54 move inward synchronously, and simultaneously, the user aligns the two ends of the reel with the chucks 54 on the two sides, the two ends of the chucks 54 are gradually inserted into the two ends of the reel, and when the reel is fixed, the user stops the power supply of the motor 35, so that the installation of the reel is completed.
The foregoing shows and describes the general principles, essential features, and advantages of the utility model. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the preferred embodiments of the present invention are described in the above embodiments and the description, and are not intended to limit the present invention. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (8)
1. The utility model provides a material is received and is used anchor clamps with adjustable cutting machine, includes base (1), its characterized in that: a top seat (4) is arranged above the base (1), a connecting groove (41) is formed in the top surface of the top seat (4), and two symmetrical guide rails (42) are fixedly connected to the top surface of the top seat (4) through rivets; two symmetrical connecting plates (2) are arranged between the base (1) and the top seat (4), an adjusting mechanism (3) is arranged between the two connecting plates (2), and a clamping mechanism (5) is arranged above the top seat (4); adjustment mechanism (3) include two symmetrical and be located belt (32) of department between two connecting plates (2), the both sides of belt (32) all are equipped with belt pulley (31), belt (32) are walked around belt pulley (31) of both sides, all coaxial key joint has transmission shaft (33) on belt pulley (31).
2. The material collecting clamp with adjustable slitting machine of claim 1, which is characterized in that: all coaxial close welding has gear (34) on two adjacent transmission shaft (33), and two gear (34) mesh mutually, and one of them the outer wall of connecting plate (2) passes through bolt fixedly connected with motor (35), the output shaft of motor (35) passes connecting plate (2) and with one of them transmission shaft (33) coaxial key joint.
3. The material collecting clamp with adjustable slitting machine of claim 1, which is characterized in that: fixture (5) include two symmetrical stand (51), be close to bottom department on stand (51) and all set up two symmetrical fixed orificess (511), a plurality of through-holes (512) have all been seted up on a lateral wall of stand (51), equal sliding connection has sliding sleeve (52) that are back style of calligraphy on stand (51), it is connected with chuck (54) to rotate on a lateral wall of sliding sleeve (52), threaded connection has adjusting bolt (53) on another lateral wall of sliding sleeve (52), the end and the corresponding through-hole (512) grafting cooperation of adjusting bolt (53).
4. The material collecting clamp with adjustable slitting machine of claim 3, which is characterized in that: a sliding block (55) is arranged below the upright column (51), the fixing hole (511) is fixedly connected with the sliding block (55) through a bolt, two symmetrical sliding grooves (551) are formed in the bottom surface of the sliding block (55), the sliding grooves (551) are in sliding connection with the corresponding guide rails (42), a connecting block (56) is fixedly connected to the bottom surface of the sliding block (55) through a bolt, and the bottom end of the connecting block (56) penetrates through the connecting groove (41) and is fixedly connected with the corresponding belt (32) through a rivet.
5. The material collecting clamp with adjustable slitting machine of claim 3, which is characterized in that: the size of the upright post (51) is matched with that of the sliding sleeve (52).
6. The material collecting clamp with adjustable slitting machine of claim 3, which is characterized in that: the section of the clamping head (54) is trapezoidal, and a plurality of anti-skidding grooves are formed in the outer wall of the clamping head (54).
7. The material collecting clamp with adjustable slitting machine of claim 4, which is characterized in that: the cross sections of the guide rail (42) and the sliding groove (551) are trapezoidal.
8. The material collecting clamp with adjustable slitting machine of claim 1, which is characterized in that: the four corners of the base (1) are provided with mounting holes (11).
