CN216747650U

CN216747650U - A device for atmospheric pollution's environmental monitoring

Info

Publication number: CN216747650U
Application number: CN202220126870.3U
Authority: CN
Inventors: 梁静; 马振飞; 郭振华
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-01-18
Filing date: 2022-01-18
Publication date: 2022-06-14
Anticipated expiration: 2032-01-18

Abstract

The utility model discloses an environment monitoring device for atmospheric pollution, which comprises a base and an environment monitor, wherein the left side and the right side of the upper surface of the base are respectively and fixedly connected with a left side plate and a right side plate, the top ends of the left side plate and the right side plate are fixedly connected with a transverse plate, a support column is arranged below the transverse plate, the bottom end of the support column is fixedly connected with two fixed plates, a guide wheel is rotatably connected between the two fixed plates through a pin shaft, and the top end of the support column penetrates through the transverse plate and is fixedly connected with a mounting plate. According to the device for monitoring the environment of atmospheric pollution, the winding wheel is driven to rotate by rotating the rotating rod, the winding wheel can wind the steel wire rope and drive the supporting column to move upwards in the rotating process, and the supporting column drives the environment monitor to move through the mounting plate in the moving process, so that the height of the environment monitor is adjusted, air in different horizontal planes is monitored, and the accuracy of monitoring data is improved.

Description

A device for atmospheric pollution's environmental monitoring

Technical Field

The utility model relates to the field of environmental monitoring, in particular to the field of an environmental monitoring device for atmospheric pollution.

Background

The environmental monitoring is to track the change of environmental quality and determine the environmental quality level by detecting the content and the discharge of various substances which have influence on human beings and the environment, thereby providing a foundation and guarantee for the work of environmental management, pollution treatment and the like. In short, understanding the environmental level and monitoring the environment are the prerequisite for developing all the environmental tasks, and the environmental monitoring generally includes background investigation, scheme determination, point distribution optimization, on-site sampling, sample transportation, experimental analysis, data collection, analysis and synthesis, etc. In general, the process of obtaining information is planning-sampling-analyzing-integrating.

In the research process of atmospheric pollution, often can utilize environmental monitoring appearance to monitor the atmosphere, master the environmental aspect in different areas, however the monitor is generally fixed on the base, and its height can not be adjusted, can only monitor the atmosphere of fixed horizontal plane, leads to the monitoring data not accurate enough.

SUMMERY OF THE UTILITY MODEL

The utility model mainly aims to provide a device for monitoring the environment with atmospheric pollution, which can effectively solve the problems in the background technology.

In order to achieve the purpose, the utility model adopts the technical scheme that:

a device for monitoring the environment of atmospheric pollution comprises a base and an environment monitor, wherein the left side and the right side of the upper surface of the base are respectively and fixedly connected with a left side plate and a right side plate, the top ends of the left side plate and the right side plate are fixedly connected with a transverse plate, a support column is arranged below the transverse plate, the bottom end of the support column is fixedly connected with two fixed plates, a guide wheel is rotatably connected between the two fixed plates through a pin shaft, the top end of the support column penetrates through the transverse plate and is fixedly connected with a mounting plate, the support column is slidably connected with the transverse plate, the environment monitor is arranged on the upper surface of the mounting plate, the left side of the right side plate is fixedly connected with two supporting seats, a rotating rod is rotatably connected between the two supporting seats through a bearing, the outer surface of the rotating rod is fixedly connected with a winding wheel and a worm wheel, and the outer surface of the winding wheel is wound with a steel wire rope, the one end that wire rope kept away from the reel is walked around the leading wheel and with left side board fixed connection, the worm wheel meshing is connected with the worm, the worm passes through the bearing and rotates with the right side board to be connected, the right-hand member of worm runs through the right side of right side board, and it is rotatory to set up like this to drive the reel through rotating the bull stick, and the reel can twine wire rope and drive support column upward movement at rotatory in-process, and the support column drives environmental monitor upward movement through the mounting panel at the in-process that removes to highly adjusting environmental monitor monitors the air of different horizontal planes, improves monitoring data's accuracy.

The steel wire rope guide device is further improved in that a U-shaped baffle is arranged below the guide wheel and fixedly connected with the two fixing plates, so that the steel wire rope can better rotate on the guide wheel, and the steel wire rope is prevented from falling off from the guide wheel.

The utility model has the further improvement that the cross section of the supporting column is rectangular, the left side and the right side of the lower surface of the mounting plate are fixedly connected with reinforcing plates, and one end of each reinforcing plate, which is far away from the mounting plate, is fixedly connected with the supporting column, so that the structural strength between the mounting plate and the supporting column is improved.

The worm wheel is further improved in that a handle is fixedly connected to the right end of the worm, and an anti-slip sleeve is fixedly connected to the outer surface of the handle, so that the worm wheel can be conveniently rotated by rotating the handle.

The utility model has the further improvement that the left side and the right side of the supporting column are both provided with a plurality of positioning grooves, and the upper surface of the transverse plate is provided with a limiting component corresponding to the positioning grooves, so that the supporting column is supported by the limiting component, the stress condition of the worm wheel and the worm is reduced, and the service life of the worm wheel and the worm is prolonged.

The utility model is further improved in that the limiting assembly comprises a fixed box, a rotating shaft and a guide rod, the fixed box is fixedly connected to the upper surface of the transverse plate, the left end of the rotating shaft is rotatably connected with the inner wall of the left side of the fixed box through a bearing, the right end of the rotating shaft penetrates through the right side of the fixed box and is fixedly connected with a knob, the left side and the right side of the outer surface of the rotating shaft are respectively provided with left-handed threads and right-handed threads, the left end and the right end of the guide rod are respectively fixedly connected with the inner walls of the left side and the right side of the fixed box, the guide rod and the left side and the right side of the outer surface of the rotating shaft are both sleeved with movable rods, the movable rods are in threaded connection with the rotating shaft, the movable rods are in sliding connection with the guide rods, the back surface of the movable rods penetrates through the back surface of the fixed box and is fixedly connected with a clamping block, so that the rotating knob can drive the rotating shaft to rotate, and the two movable rods can be close to each other in the rotating process, the two movable rods can drive the clamping block to be clamped with the positioning groove in the supporting column in the process of approaching each other.

Compared with the prior art, the utility model has the following beneficial effects:

1. it is rotatory to drive the worm through rotating the handle, because the worm wheel is connected with the worm meshing, the worm can drive the bull stick rotation at rotatory in-process this moment, the bull stick can drive the reel rotatory at rotatory in-process, the reel can twine wire rope at rotatory in-process, because the leading wheel is passed through to the bottom of support column and wire rope contact, wire rope can drive the support column rebound at winding in-process this moment, the support column can drive the mounting panel at the in-process that removes and remove, the mounting panel can drive environmental monitoring appearance rebound at the in-process that removes, thereby highly adjusting environmental monitoring appearance, monitor the air of different horizontal planes, improve monitoring data's accuracy.

2. Can drive the pivot rotation through rotating the knob, because left-handed thread and right-handed thread have been seted up respectively to the left and right sides of pivot surface to guide bar and movable rod sliding connection, the pivot can drive two movable rods at rotatory in-process this moment and be close to each other, and two movable rods can drive the constant head tank joint on fixture block and the support column at the in-process that is close to each other, thereby reduce the atress condition of worm wheel and worm, improve its life.

Drawings

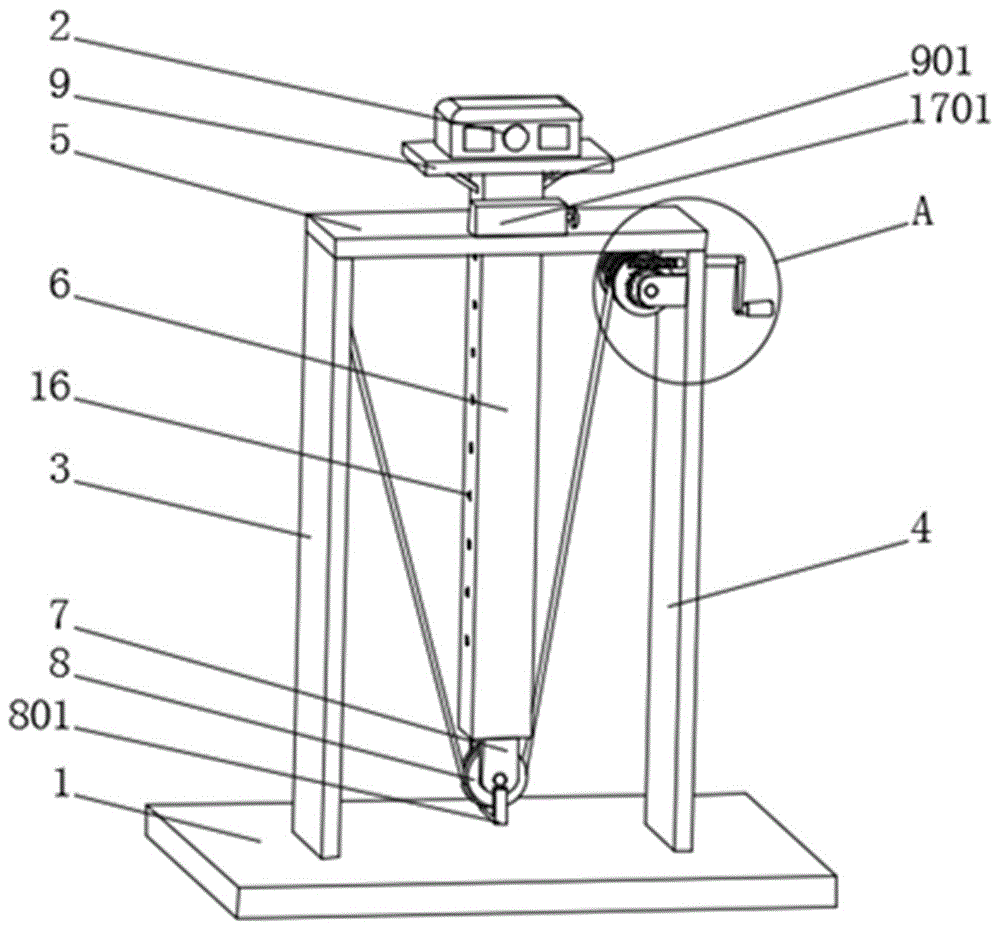

Fig. 1 is a schematic overall structure diagram of an apparatus for environmental monitoring of atmospheric pollution according to the present invention.

Fig. 2 is an enlarged schematic structural diagram of a device for environmental monitoring of atmospheric pollution in accordance with the present invention at a point a in fig. 1.

Fig. 3 is a schematic front view of an apparatus for environmental monitoring of atmospheric pollution according to the present invention.

Fig. 4 is a schematic structural diagram of a limiting component of the device for monitoring the environment with atmospheric pollution.

In the figure: 1. a base; 2. an environmental monitor; 3. a left side plate; 4. a right side plate; 5. a transverse plate; 6. a support column; 7. a fixing plate; 8. a guide wheel; 9. mounting a plate; 10. a supporting seat; 11. a rotating rod; 12. a winding wheel; 13. a worm gear; 14. a wire rope; 15. a worm; 801. a U-shaped baffle; 901. a reinforcing plate; 1501. a handle; 16. positioning a groove; 17. a limiting component; 1701. a fixed box; 1702. a rotating shaft; 1703. a guide bar; 1704. a knob; 1705. a movable rod; 1706. and (7) clamping blocks.

Detailed Description

In order to make the technical means, the original characteristics, the achieved objects and the functions of the present invention easy to understand, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate the orientation or the positional relationship based on the orientation or the positional relationship shown in the drawings, and are only for the convenience of describing the present invention and simplifying the description, but not for indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and thus not be construed as limiting the present invention. Furthermore, the terms "a," "an," "two," and "three" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. The utility model will be further illustrated with reference to specific embodiments.

Example 1

As shown in fig. 1-4, an environmental monitoring device for atmospheric pollution comprises a base 1 and an environmental monitor 2, wherein the left side and the right side of the upper surface of the base 1 are fixedly connected with a left side plate 3 and a right side plate 4 respectively, the top ends of the left side plate 3 and the right side plate 4 are fixedly connected with a transverse plate 5, a support column 6 is arranged below the transverse plate 5, the bottom end of the support column 6 is fixedly connected with two fixed plates 7, a guide wheel 8 is rotatably connected between the two fixed plates 7 through a pin shaft, the top end of the support column 6 penetrates through the transverse plate 5 and is fixedly connected with a mounting plate 9, the support column 6 is slidably connected with the transverse plate 5, the environmental monitor 2 is mounted on the upper surface of the mounting plate 9, the cross section of the support column 6 is rectangular, the left side and the right side of the lower surface of the mounting plate 9 are fixedly connected with reinforcing plates 901, one end of the reinforcing plate 901, which is far away from the mounting plate 9, is fixedly connected with two supporting seats 10 on the left side of the right side plate 4, the rotating rod 11 is rotatably connected between the two supporting seats 10 through a bearing, the outer surface of the rotating rod 11 is fixedly connected with a winding wheel 12 and a worm wheel 13, a steel wire rope 14 is wound on the outer surface of the winding wheel 12, one end, far away from the winding wheel 12, of the steel wire rope 14 is wound around a guide wheel 8 and fixedly connected with a left side plate 3, a U-shaped baffle 801 is arranged below the guide wheel 8, the U-shaped baffle 801 is fixedly connected with two fixing plates 7, the worm wheel 13 is meshed with a worm 15, the worm 15 is rotatably connected with a right side plate 4 through a bearing, the right end of the worm 15 penetrates through the right side of the right side plate 4, a handle 1501 is fixedly connected with the right end of the worm 15, and an anti-slip sleeve is fixedly connected with the outer surface of the handle 1501.

The embodiment can realize that: drive worm 15 rotatory through rotating handle 1501, because worm wheel 13 is connected with worm 15 meshing, worm 15 can drive bull stick 11 rotatory at rotatory in-process this moment, bull stick 11 can drive reel 12 rotatory at rotatory in-process, reel 12 can twine wire rope 14 at rotatory in-process, because 8 and wire rope 14 contacts are passed through to the bottom of support column 6, wire rope 14 can drive support column 6 rebound at the winding in-process this moment, support column 6 can drive mounting panel 9 removal at the in-process that removes, mounting panel 9 can drive environmental monitor 2 rebound at the in-process that removes, thereby adjust environmental monitor 2's height, monitor the air of different horizontal planes, improve the accuracy of monitoring data.

Example 2

As shown in fig. 1-4, an environmental monitoring device for atmospheric pollution comprises a base 1 and an environmental monitor 2, wherein the left side and the right side of the upper surface of the base 1 are respectively and fixedly connected with a left side plate 3 and a right side plate 4, the top ends of the left side plate 3 and the right side plate 4 are fixedly connected with a transverse plate 5, a support column 6 is arranged below the transverse plate 5, the bottom end of the support column 6 is fixedly connected with two fixing plates 7, a guide wheel 8 is rotatably connected between the two fixing plates 7 through a pin shaft, the top end of the support column 6 penetrates through the transverse plate 5 and is fixedly connected with a mounting plate 9, the support column 6 is slidably connected with the transverse plate 5, the environmental monitor 2 is mounted on the upper surface of the mounting plate 9, the cross section of the support column 6 is rectangular, reinforcing plates 901 are fixedly connected with the left side and the right side of the lower surface of the mounting plate 9, one end of the reinforcing plate 901, which is far away from the mounting plate 9, is fixedly connected with the support column 6, the left side of the right side plate 4 is fixedly connected with two support seats 10, a rotating rod 11 is rotatably connected between the two supporting seats 10 through a bearing, a winding wheel 12 and a worm wheel 13 are fixedly connected to the outer surface of the rotating rod 11, a steel wire rope 14 is wound on the outer surface of the winding wheel 12, one end, far away from the winding wheel 12, of the steel wire rope 14 bypasses a guide wheel 8 and is fixedly connected with a left side plate 3, a U-shaped baffle 801 is arranged below the guide wheel 8, the U-shaped baffle 801 is fixedly connected with two fixing plates 7, a worm 15 is meshed and connected with the worm wheel 13, the worm 15 is rotatably connected with a right side plate 4 through a bearing, the right end of the worm 15 penetrates through the right side of the right side plate 4, a handle 1501 is fixedly connected to the right end of the worm 15, an anti-slip sleeve is fixedly connected to the outer surface of the handle 1501, a plurality of positioning grooves 16 are arranged on the left side and the right side of a supporting column 6, a limiting assembly 17 corresponding to the positioning grooves 16 is arranged on the upper surface of a transverse plate 5, the limiting assembly 17 comprises a fixing box 1701, a rotating shaft 1702 and a guide rod 1703, fixed case 1701 fixed connection is at the upper surface of diaphragm 5, the left end of pivot 1702 is passed through the bearing and is rotated with the left side inner wall of fixed case 1701 and be connected, the right-hand member of pivot 1702 runs through the right side of fixed case 1701 and fixedly connected with knob 1704, left-hand thread and right-hand thread have been seted up respectively to the left and right sides of pivot 1702 surface, both ends respectively with the left and right sides inner wall fixed connection of fixed case 1701 about guide bar 1703, the left and right sides of guide bar 1703 and pivot 1702 surface all overlaps and is equipped with movable rod 1705, movable rod 1705 and pivot 1702 threaded connection, movable rod 1705 and guide bar 1703 sliding connection, the back of movable rod 1705 runs through the back of fixed case 1701 and fixedly connected with fixture block 1706.

The embodiment can realize that: can drive the pivot 1702 rotatoryly through rotating knob 1704, because left-handed screw and right-handed screw have been seted up respectively to the left and right sides of pivot 1702 surface, and guide bar 1703 and movable rod 1705 sliding connection, pivot 1702 can drive two movable rods 1705 at rotatory in-process this moment and be close to each other, two movable rods 1705 can drive fixture block 1706 and the constant head tank 16 joint on the support column 6 at the in-process that is close to each other, thereby reduce the atress condition of worm wheel 13 and worm 15, improve its life.

It should be noted that, when the device for monitoring the environment of atmospheric pollution is used, the rotating knob 1704 can drive the rotating shaft 1702 to rotate, because the left and right sides of the outer surface of the rotating shaft 1702 are respectively provided with the left-handed thread and the right-handed thread, and the guide bar 1703 is connected with the movable bar 1705 in a sliding manner, at this time, the rotating shaft 1702 can drive the two movable bars 1705 to move away from each other in the rotating process, the two movable bars 1705 can drive the fixture block 1706 to disengage from the positioning groove 16 on the supporting column 6 in the moving away process, so as to release the limitation on the supporting column 6, then the handle 1501 is rotated to drive the worm 15 to rotate, because the worm wheel 13 is meshed with the worm 15, at this time, the worm 15 can drive the rotating bar 11 to rotate in the rotating process, the rotating bar 11 can drive the winding wheel 12 to rotate in the rotating process, the winding wheel 12 can wind the steel wire rope 14, because 8 and 14 contacts of wire rope are passed through to the bottom of support column 6, wire rope 14 can drive support column 6 rebound at winding in-process this moment, support column 6 can drive mounting panel 9 removal at the in-process that removes, mounting panel 9 can drive environmental monitor 2 rebound at the in-process that removes, thereby highly adjusting environmental monitor 2, monitor the air of different horizontal planes, improve the accuracy of monitoring data, last reversal knob 1704 makes fixture block 1706 and the 16 joints of constant head tank on the support column 6, thereby reduce the atress condition of worm wheel 13 and worm 15, the service life thereof is prolonged.

The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a device for environmental monitoring of atmospheric pollution, includes base (1) and environmental monitor (2), its characterized in that: the environment monitoring device is characterized in that the left side and the right side of the upper surface of the base (1) are respectively fixedly connected with a left side plate (3) and a right side plate (4), the top ends of the left side plate (3) and the right side plate (4) are fixedly connected with a transverse plate (5), a supporting column (6) is arranged below the transverse plate (5), the bottom end of the supporting column (6) is fixedly connected with two fixing plates (7), two fixing plates (7) are rotatably connected with a guide wheel (8) through a pin shaft, the top end of the supporting column (6) penetrates through the transverse plate (5) and is fixedly connected with a mounting plate (9), the supporting column (6) is slidably connected with the transverse plate (5), the environment monitoring instrument (2) is mounted on the upper surface of the mounting plate (9), the left side of the right side plate (4) is fixedly connected with two supporting seats (10), and two supporting seats (10) are rotatably connected with a rotating rod (11) through a bearing, the outer fixed surface of bull stick (11) is connected with take-up pulley (12) and worm wheel (13), the surface winding of take-up pulley (12) has wire rope (14), wire rope (14) are kept away from one end of take-up pulley (12) and are walked around leading wheel (8) and with left side board (3) fixed connection, worm wheel (13) meshing is connected with worm (15), worm (15) are rotated through bearing and right side board (4) and are connected, the right-hand member of worm (15) runs through the right side of right side board (4).

2. A device for environmental monitoring of atmospheric pollution, as claimed in claim 1, characterized in that: a U-shaped baffle plate (801) is arranged below the guide wheel (8), and the U-shaped baffle plate (801) is fixedly connected with the two fixing plates (7).

3. A device for environmental monitoring of atmospheric pollution, as claimed in claim 1, characterized in that: the cross section of support column (6) is the rectangle, equal fixedly connected with reinforcing plate (901) in the left and right sides of mounting panel (9) lower surface, the one end and support column (6) fixed connection of mounting panel (9) are kept away from to reinforcing plate (901).

4. A device for environmental monitoring of atmospheric pollution, as claimed in claim 1, characterized in that: the right end of the worm (15) is fixedly connected with a handle (1501), and the outer surface of the handle (1501) is fixedly connected with an anti-skidding sleeve.

5. A device for environmental monitoring of atmospheric pollution, as claimed in claim 1, characterized in that: a plurality of constant head tanks (16) have all been seted up to the left and right sides of support column (6), the upper surface of diaphragm (5) is provided with spacing subassembly (17) corresponding with constant head tank (16).
