The utility model discloses an online atmosphere monitoring instrument, which comprises a base, wherein the top end of the base is fixedly connected with a quadrangular frame, the top end of the quadrangular frame is fixedly connected with a supporting column, the top end of the supporting column is fixedly connected with a first fixed plate, the top end of the first fixed plate is fixedly connected with a supporting rod, the two sides of the supporting rod are fixedly connected with a second fixed plate, a servo motor is fixedly connected between the second fixed plate and the first fixed plate, the front sides of the first fixed plate and the second fixed plate are fixedly connected with a display screen, the top rear side of the display screen is fixedly connected with a supporting platform, the top center of the supporting platform is rotatably connected with a threaded rod, data are transmitted to a server of a control center through an operator network by arranging a wireless transmission module and an antenna, and the data are recorded without manual timing to a destination when monitoring is carried out, the workload of workers is reduced, and the monitoring efficiency is improved.
Description
Technical Field
The utility model relates to an atmosphere monitoring field especially relates to an atmosphere on-line monitoring instrument.
Background
Atmospheric environmental monitoring is a process of determining the concentration of pollutants in the atmospheric environment, observing and analyzing the changes and the influence on the environment. The atmospheric pollution monitoring is to measure the kind and concentration of pollutants in the atmosphere and observe the time-space distribution and change rule of the pollutants.
The monitored molecular pollutants mainly comprise sulfur oxides, nitrogen oxides, carbon monoxide, ozone, halogenated hydrocarbons, hydrocarbons and the like; the particulate pollutants mainly comprise dust fall, total suspended particles, floating dust and acid sedimentation. The atmospheric quality monitoring is to perform point distribution sampling and analysis on main pollutants in the atmosphere of a certain area. Regular monitoring of a prescribed project is generally performed based on factors such as the size of a region, the distribution and intensity of atmospheric pollution sources, weather conditions, and the topography of the terrain.
When the existing atmosphere monitoring instrument monitors, data are copied and recorded manually on site, which is very troublesome, and the atmosphere monitoring instrument can only monitor the air quality at the same height, cannot monitor the air quality at different heights, and has certain limitation during monitoring.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing an atmosphere online monitoring instrument.
In order to achieve the above purpose, the utility model adopts the following technical scheme: an online atmosphere monitoring instrument comprises a base, wherein a four-corner bracket is fixedly connected to the top end of the base, a support column is fixedly connected to the top end of the four-corner bracket, a first fixing plate is fixedly connected to the top end of the support column, support rods are fixedly connected to two sides of the top end of the first fixing plate, a second fixing plate is fixedly connected to the top ends of the support rods on two sides, a servo motor is fixedly connected between the second fixing plate and the first fixing plate, a display screen is fixedly connected to the front sides of the first fixing plate and the second fixing plate, a support table is fixedly connected to the rear side of the top end of the display screen, a threaded rod is rotatably connected to the center of the top end of the support table, guide rods are fixedly connected to two sides of the top end of the support table, a moving block is slidably connected to the top ends of the guide rods on two sides, the center of the moving block is in threaded connection with the threaded rod, and a top plate is fixedly connected to the top end of the guide rods, the front side of the moving block is fixedly connected with an atmosphere monitoring device, the two sides of the top end of the atmosphere monitoring device are fixedly connected with antennas, and the center of the top end of the base is provided with a master control box.
As a further description of the above technical solution:
the display screen, the servo motor and the atmosphere monitoring device are electrically connected with the master control box.
As a further description of the above technical solution:
the atmosphere monitoring device is characterized in that a wireless transmission module is arranged inside the atmosphere monitoring device and electrically connected with the antenna.
As a further description of the above technical solution:
and the top end of the rotating shaft of the second fixing plate is fixedly connected with the threaded rod.
As a further description of the above technical solution:
the center of the supporting table is provided with a through hole, and the center of the second fixing plate is provided with a through hole.
As a further description of the above technical solution:
the moving block is provided with a through hole at the sliding connection part with the guide rod.
As a further description of the above technical solution:
and the threaded connection part of the moving block and the threaded rod is provided with a corresponding threaded hole.
The utility model discloses following beneficial effect has:
1. the utility model discloses a set up wireless transmission module and antenna, through operator's network with data transfer to control center's server, when surveing, need not the manual work and regularly goes to the destination and take notes data, reduced staff's work load, improve the efficiency of monitoring.
2. The utility model discloses a set up servo motor and threaded rod, servo motor drives the threaded rod and rotates, and the threaded rod carries out screw drive with the movable block and is connected, through screw drive's mode for atmospheric monitoring device's height can be adjusted, is carrying out atmospheric monitoring time measuring, can monitor the not atmospheric quality of co-altitude.
Drawings

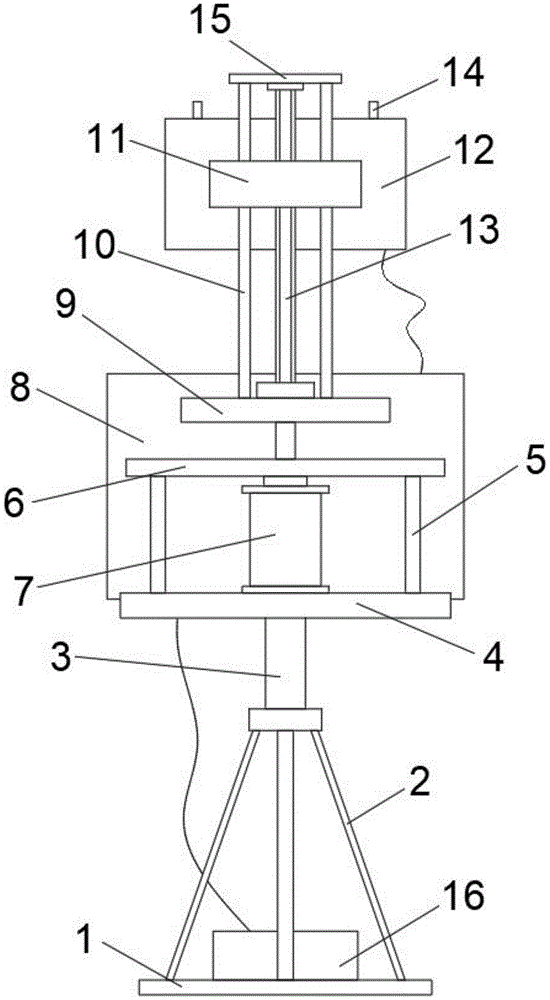

Fig. 1 is a rear view of an online atmosphere monitoring device according to the present invention;
fig. 2 is a front view of the online atmosphere monitoring instrument provided by the present invention.
Illustration of the drawings:
1. a base; 2. a four-corner bracket; 3. a support pillar; 4. a first fixing plate; 5. a support bar; 6. a second fixing plate; 7. a servo motor; 8. a display screen; 9. a support table; 10. a guide bar; 11. a moving block; 12. An atmospheric monitoring device; 13. a threaded rod; 14. an antenna; 15. a top plate; 16. and a master control box.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-2, the present invention provides an embodiment: an online atmosphere monitoring instrument comprises a base 1, wherein a quadrangular frame 2 is fixedly connected to the top end of the base 1, the whole instrument is supported by the quadrangular frame 2, a supporting column 3 is fixedly connected to the top end of the quadrangular frame 2, a first fixing plate 4 is fixedly connected to the top end of the supporting column 3, supporting rods 5 are fixedly connected to two sides of the top end of the first fixing plate 4, a second fixing plate 6 is fixedly connected to the top ends of the supporting rods 5, a servo motor 7 is fixedly connected between the second fixing plate 6 and the first fixing plate 4, the servo motor 7 drives a threaded rod 13 to rotate by arranging the servo motor 7 and the threaded rod 13, the threaded rod 13 is in threaded transmission connection with a moving block 11, the moving block 11 is driven to perform vertical linear motion by a threaded transmission mode, an atmosphere monitoring device 12 is driven by the moving block 11 to perform height adjustment, and during atmosphere monitoring, the air quality of different heights can be monitored, a display screen 8 is fixedly connected to the front sides of a first fixing plate 4 and a second fixing plate 6, a supporting platform 9 is fixedly connected to the rear side of the top end of the display screen 8, a threaded rod 13 is rotatably connected to the center of the top end of the supporting platform 9, guide rods 10 are fixedly connected to the two sides of the top end of the supporting platform 9, moving blocks 11 are slidably connected to the top ends of the guide rods 10, the center of each moving block 11 is in threaded connection with the threaded rod 13, a top plate 15 is fixedly connected to the top end of each guide rod 10, an air monitoring device 12 is fixedly connected to the front side of each moving block 11, antennas 14 are fixedly connected to the two sides of the top end of the air monitoring device 12, signals are received and sent through the external antennas 14, the signal strength is higher, a master control box 16 is arranged at the center of the top end of the base 1, the servo motor 7 is rotated through the master control box 16, and the display of the display screen 8 is controlled, power is supplied to the atmosphere monitoring device 12.
The display screen 8, the servo motor 7 and the atmosphere monitoring device 12 are electrically connected with the master control box 16. The atmosphere monitoring device 12 is provided therein with a wireless transmission module electrically connected to the antenna 14. The top end of the rotating shaft of the second fixing plate 6 is fixedly connected with the threaded rod 13. A through hole is arranged at the center of the supporting platform 9, and a through hole is arranged at the center of the second fixing plate 6. The moving block 11 is provided with a through hole at a sliding connection with the guide bar 10. The moving block 11 is provided with a corresponding threaded hole at the threaded connection with the threaded rod 13.
The working principle is as follows: by providing a wireless transmission module and antenna 14, data is transmitted to a server of the control center through the operator network, when monitoring, the data is not required to be recorded by manually timing to the destination, the workload of workers is reduced, the monitoring efficiency is improved, by arranging the servo motor 7 and the threaded rod 13, the servo motor 7 drives the threaded rod 13 to rotate, the threaded rod 13 is in threaded transmission connection with the moving block 11, the moving block 11 is driven to do linear motion up and down by a thread transmission mode, the atmosphere monitoring device 12 is driven to adjust the height by the moving block 11, when the atmosphere monitoring is carried out, the atmosphere quality at different heights can be monitored, one side of the display screen 8 is used for displaying current atmosphere data, and the other side of the display screen is used for displaying historical data, so that people nearby can visually know the current air quality conveniently.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (7)
1. The utility model provides an atmosphere on-line monitoring instrument, includes base (1), its characterized in that: the top end of the base (1) is fixedly connected with a four-corner bracket (2), the top end of the four-corner bracket (2) is fixedly connected with a support column (3), the top end of the support column (3) is fixedly connected with a first fixing plate (4), two sides of the top end of the first fixing plate (4) are fixedly connected with support rods (5), two sides of the top end of each support rod (5) are fixedly connected with a second fixing plate (6), a servo motor (7) is fixedly connected between each second fixing plate (6) and the corresponding first fixing plate (4), a display screen (8) is fixedly connected to the front sides of the first fixing plate (4) and the second fixing plate (6), a support table (9) is fixedly connected to the rear side of the top end of the display screen (8), a threaded rod (13) is rotatably connected to the center of the top end of the support table (9), and guide rods (10) are fixedly connected to the two sides of the top end of the support table (9), the top end of the guide rod (10) on the two sides is connected with a moving block (11) in a sliding mode, the center of the moving block (11) is in threaded connection with a threaded rod (13), the top end of the guide rod (10) is fixedly connected with a top plate (15), the front side of the moving block (11) is fixedly connected with an atmosphere monitoring device (12), the two sides of the top end of the atmosphere monitoring device (12) are fixedly connected with antennas (14), and the center of the top end of the base (1) is provided with a master control box (16).
2. An on-line atmosphere monitoring instrument according to claim 1, wherein: the display screen (8), the servo motor (7) and the atmosphere monitoring device (12) are electrically connected with the master control box (16).
3. An on-line atmosphere monitoring instrument according to claim 1, wherein: the atmosphere monitoring device (12) is internally provided with a wireless transmission module, and the wireless transmission module is electrically connected with the antenna (14).
4. An on-line atmosphere monitoring instrument according to claim 1, wherein: the top end of the rotating shaft of the second fixing plate (6) is fixedly connected with the threaded rod (13).
5. An on-line atmosphere monitoring instrument according to claim 1, wherein: the center of the supporting platform (9) is provided with a through hole, and the center of the second fixing plate (6) is provided with a through hole.
6. An on-line atmosphere monitoring instrument according to claim 1, wherein: the moving block (11) is provided with a through hole at the sliding connection part with the guide rod (10).
7. An on-line atmosphere monitoring instrument according to claim 1, wherein: and the moving block (11) is provided with a corresponding threaded hole at the threaded connection part with the threaded rod (13).
