Abstract

The utility model discloses an environment-friendly construction waste crushing equipment, comprising: a device box, the top of the device box is provided with a feeding port; a motor, the motor is fixedly installed on the front side of the device box, and the output end of the motor is extend to the inside of the device box; dust box, the dust box is fixedly connected to the right side of the fixing frame; dust bag, the dust bag is fixedly connected to the outside of the connection block; exhaust fan, the exhaust fan is installed on the device box On the right side of the top, and the intake end of the exhaust fan extends to the inside of the dust box; an electric telescopic rod, the electric telescopic rod is vertically installed on the top of the fixed frame, and the movable rod of the electric telescopic rod runs through the interior of the fixed frame. The environmentally friendly construction waste crushing equipment does not need to manually pour the construction waste into the crushing equipment, which saves a lot of manpower, and facilitates the collection of a large amount of dust generated during the crushing process without causing harm to the human body.

Description

An environmentally friendly construction waste crushing equipment

technical field

The utility model relates to the technical field of construction, in particular to an environment-friendly construction waste crushing device.

Background technique

With the continuous advancement of urbanization, more and more buildings are being constructed. The construction waste brought by it has always been difficult to solve. Large construction wastes still have certain hidden safety hazards. These construction wastes are generally buried or disposed of, resulting in a waste of resources; therefore, a construction waste is needed. Garbage crushing equipment, which shreds, reintegrates and utilizes some construction waste to avoid the waste of a lot of resources.

At present, the commonly used environmental protection construction waste crushing equipment has the following defects. It requires manpower to pour the construction waste into the crushing equipment, which consumes a lot of manpower, and generates a lot of dust during the crushing process, which is inconvenient to clean up the dust, and easily causes harm to the human body. , therefore, we propose an environmentally friendly construction waste crushing equipment in order to solve the problems raised above.

Utility model content

The purpose of this utility model is to provide an environmentally friendly construction waste crushing equipment, in order to solve the current commonly used environmental protection construction waste crushing equipment proposed by the above-mentioned background technology, the construction waste needs to be poured into the crushing equipment by manpower, which consumes a lot of manpower, and A large amount of dust is generated during the crushing process, which is inconvenient to clean up, and it is easy to cause harm to the human body.

In order to achieve the above purpose, the utility model provides the following technical solutions: an environmentally friendly construction waste crushing equipment, comprising:

a device box, the top of the device box is provided with a feeding port;

a motor, the motor is fixedly installed on the front side of the device box, and the output end of the motor extends to the inside of the device box;

a dust removal box, the dust removal box is fixedly connected to the right side of the fixing frame;

a dust bag, the dust bag is fixedly connected to the outside of the connecting block;

an exhaust fan, the exhaust fan is installed on the right side of the top of the device box, and the intake end of the exhaust fan extends to the inside of the dust box;

an electric telescopic rod, the electric telescopic rod is vertically installed on the top of the fixed frame, and the movable rod of the electric telescopic rod runs through the interior of the fixed frame;

The collection box is fixedly connected to the movable end of the electric telescopic rod.

Preferably, a pulverizing roller is fixedly connected to the output end of the motor, and toothed discs are fixedly connected to the front sides of the left and right pulverizing rollers;

Wherein, the single grinding rollers are connected by transmission through toothed disc meshing.

Preferably, a fixing frame is fixedly connected to the top of the device box, and a connecting plate is fixedly connected to the inner right side of the fixing frame;

Wherein, the inside of the connecting plate is a mesh structure.

Preferably, a connection block is threadedly connected to the inside of the dust box, and a cover plate is rotatably installed on the top of the dust box.

Preferably, a limit frame is slidably installed on the inside of the cover plate, and the outer side of the limit frame is connected with a spring that resets it to the left;

Wherein, the connection between the limit frame and the dust box is a snap connection.

Preferably, a discharge port is opened on the left side of the top of the collection box, and a baffle plate is rotatably installed on the inner right side of the collection box;

Wherein, the inner bottom side of the collection box (15) is in an inclined structure, and the right side of the collection box (15) and the left side of the device box (1) are closely fitted.

Compared with the prior art, the beneficial effects of the present utility model are: the environmentally friendly construction waste crushing equipment does not need to pour the construction waste into the crushing equipment by manpower, saves a lot of manpower, and is convenient for a large amount of dust generated during the crushing process. The collection will not cause harm to the human body;

The construction waste is placed inside the collection box, and the collection box is moved upward by the electric telescopic rod. When the collection box moves to the top of the device box, the garbage slides to the right and enters the inside of the device box, and the garbage is pulverized by the pulverizing roller. The garbage is discharged through the discharge port on the right side of the device box, which is convenient for the staff to collect, and the exhaust fan is turned on, so that the dust enters the inside of the dust bag through the connecting plate for collection.

Description of drawings

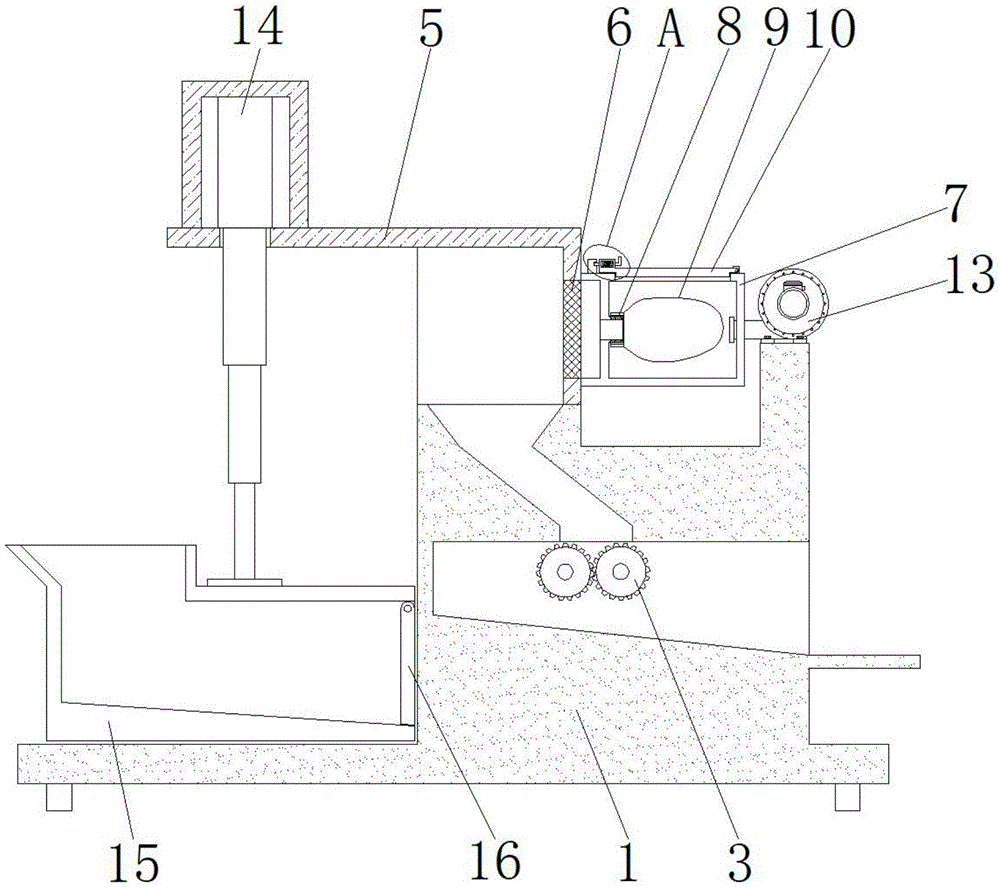

Fig. 1 is the front cutaway structure schematic diagram of the utility model;

Fig. 2 is the top view sectional view of the connection between the pulverizing roller and the toothed disc of the utility model;

Figure 3 is a schematic view of the cross-sectional structure of the connection side of the collecting box and the baffle plate of the present invention;

FIG. 4 is an enlarged schematic view of the structure at A in FIG. 1 of the present utility model.

In the figure: 1. device box; 2. motor; 3. crushing roller; 4. toothed plate; 5. fixed frame; 6. connecting plate; 7. dust removal box; 8. connecting block; 9. dust removal bag; 10. cover plate; 11, limit frame; 12, spring; 13, exhaust fan; 14, electric telescopic rod; 15, collection box; 16, baffle.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-4, the present utility model provides a technical solution: an environmentally friendly construction waste crushing equipment, including:

The device box 1, the top of the device box 1 is provided with a feeding port;

Motor 2, the motor 2 is fixedly installed on the front side of the device box 1, and the output end of the motor 2 extends to the inside of the device box 1;

The dust removal box 7, the dust removal box 7 is fixedly connected to the right side of the fixing frame 5;

The dust bag 9, the dust bag 9 is fixedly connected to the outside of the connection block 8;

The exhaust fan 13, the exhaust fan 13 is installed on the right side of the top of the device box 1, and the intake end of the exhaust fan 13 extends to the interior of the dust removal box 7;

The electric telescopic rod 14, the electric telescopic rod 14 is vertically installed on the top of the fixed frame 5, and the movable rod of the electric telescopic rod 14 runs through the interior of the fixed frame 5;

The collection box 15 is fixedly connected to the movable end of the electric telescopic rod 14 .

The output end of the motor 2 is fixedly connected with a pulverizing roller 3, and the front sides of the left and right pulverizing rollers 3 are fixedly connected with a toothed disc 4;

Among them, the individual pulverizing rollers 3 are connected by transmission through the toothed disk 4, and the left pulverizing roller 3 is driven to rotate by the motor 2, so that the left pulverizing roller 3 drives the right pulverizing roller 3 to rotate through the toothed disk 4.

The top of the device box 1 is fixedly connected with a fixing frame 5, and the inner right side of the fixing frame 5 is fixedly connected with a connecting plate 6;

The interior of the connecting plate 6 is a mesh structure, and the dust entering the dust removal box 7 is filtered through the connecting plate 6 to prevent large objects from entering the interior of the dust removal box 7 .

When using the environmentally friendly construction waste crushing equipment, the construction waste is placed inside the collection box 15 as shown in Figure 1, Figure 2 and Figure 3, and the collection box 15 is driven upward by the electric telescopic rod 14, and the bottom of the collection box 15 is inclined The baffle 16 is rotatably installed on the inner right side of the collection box 15. When the collection box 15 moves to the top of the device box 1, the garbage moves to the right and pushes the baffle 16 to open to the right, so that the construction waste is moved into the device box 1. Inside, the construction waste is pulverized by the pulverizing roller 3, and the pulverized garbage is discharged through the right side of the device box 1;

As shown in Figures 1 and 4, a large amount of dust is generated when the construction waste enters the inside of the device box 1, the exhaust fan 13 is turned on, the dust is filtered through the connecting plate 6 and then enters the inside of the dust box 7, and the dust is collected by the dust bag 9, and the limit frame 11 The reset is performed by the spring 12. When cleaning is required, the limit frame 11 is pulled to the right to separate the limit frame 11 from the dust box 7, so that the cover plate 10 is rotated and opened by external force, and the connection between the connection block 8 and the dust box 7 is connected. The method is screw connection. By rotating the connecting block 8 to separate it from the dust box 7, it is convenient for the staff to remove the dust bag 9 for cleaning. This is the entire working process of the environmentally friendly construction waste crushing equipment.

Contents not described in detail in this specification belong to the prior art known to those skilled in the art. The standard parts used in the utility model can be purchased from the market, the special-shaped parts can be customized according to the description in the specification and the drawings, and the specific connection method of each part adopts the mature bolts, rivets, welding in the prior art. and other conventional means, the machinery, parts and equipment all adopt the conventional models in the prior art, and the circuit connection adopts the conventional connection manner in the prior art, which will not be described in detail here.

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principle of the present invention, any modifications, equivalent replacements, improvements, etc. made should be included within the protection scope of the present invention.

Claims (6)

1. an environmentally friendly construction waste crushing equipment, is characterized in that, comprises: a device box (1), the top of the device box (1) is provided with a feeding port; a motor (2), the motor (2) is fixedly mounted on the front side of the device box (1), and the output end of the motor (2) extends into the interior of the device box (1); a dust removal box (7), the dust removal box (7) is fixedly connected to the right side of the fixing frame (5); a dust bag (9), the dust bag (9) is fixedly connected to the outside of the connecting block (8); an exhaust fan (13), the exhaust fan (13) is installed on the right side of the top of the device box (1), and the intake end of the exhaust fan (13) extends to the interior of the dust removal box (7); an electric telescopic rod (14), the electric telescopic rod (14) is vertically installed on the top of the fixed frame (5), and the movable rod of the electric telescopic rod (14) penetrates the interior of the fixed frame (5); A collection box (15) is fixedly connected to the movable end of the electric telescopic rod (14). 2. An environmentally friendly construction waste crushing equipment according to claim 1, characterized in that: the output end of the motor (2) is fixedly connected with a crushing roller (3), and the front sides of the left and right crushing rollers (3) Both are fixedly connected with a toothed disc (4); Wherein, the single pieces of the pulverizing rollers (3) are connected by transmission through the meshing of the toothed discs (4). 3. An environmentally friendly construction waste crushing equipment according to claim 1, characterized in that: the top of the device box (1) is fixedly connected with a fixing frame (5), and the inner right side of the fixing frame (5) A connecting plate (6) is fixedly connected; Wherein, the inside of the connecting plate (6) is a mesh structure. 4. An environmentally friendly construction waste crushing equipment according to claim 1, characterized in that: a connecting block (8) is threadedly connected to the inside of the dust removal box (7), and the top of the dust removal box (7) is rotatably installed There is a cover plate (10). 5. An environmentally friendly construction waste crushing equipment according to claim 4, characterized in that: a limit frame (11) is slidably installed in the interior of the cover plate (10), and a limit frame (11) is installed outside the limit frame (11). A spring (12) for restoring it to the left is connected; Wherein, the connection between the limit frame (11) and the dust box (7) is a snap connection. 6. An environmentally friendly construction waste crushing equipment according to claim 1, characterized in that: the top left side of the collection box (15) is provided with a discharge port, and the inner right side of the collection box (15) rotates A baffle (16) is installed; Wherein, the inner bottom side of the collection box (15) is in an inclined structure, and the right side of the collection box (15) and the left side of the device box (1) are closely fitted.
