CN216256091U - Wood wardrobe convenient to adjusting partition

Info

Publication number: CN216256091U
Application number: CN202122474792.4U
Authority: CN
Inventors: 莫惠明
Original assignee: Zhejiang Moxia Industrial Co ltd
Current assignee: Zhejiang Moxia Industrial Co ltd
Priority date: 2021-10-14
Filing date: 2021-10-14
Publication date: 2022-04-12
Anticipated expiration: 2031-10-14

Abstract

The utility model relates to the technical field of wardrobe furniture, and discloses a solid wood wardrobe convenient for adjusting partition plates, which comprises a wardrobe body and a using device, wherein the using device comprises a storage placing plate, a first partition plate, a first wardrobe door, a second wardrobe door, an installation lock handle, a second partition plate, a hanging clothes rod, a first sliding wardrobe plate, a second sliding wardrobe plate and a sliding handle, the storage placing plate is arranged inside the wardrobe body, the storage placing plate, the first partition plate groove, the first partition plate, the first wardrobe door, the second wardrobe door and the installation lock handle are arranged, the storage placing plate is used, the first partition plate groove is formed in the top of the inner wall of the wardrobe body and the top of the storage placing plate, the number of the first partition plate grooves is three, so that the first partition plate can be conveniently adjusted according to the size of furniture articles, and the first wardrobe door, the second wardrobe door and the sliding handle are used, The installation lock handle is convenient for protect the furniture articles, avoids the furniture articles from falling down, and achieves the effect of convenient use.

Description

Wood wardrobe convenient to adjusting partition

Technical Field

The utility model relates to the technical field of wardrobe furniture, in particular to a solid wood wardrobe with a partition convenient to adjust.

Background

Along with the gradual improvement of the life quality of people, people have requirements on the quality of furniture articles and more requirements on the convenience of furniture. The wardrobe is generally divided into two doors and three doors as cabinet furniture for storing clothes and bedding, and is one of the indispensable furniture in family life. In order to meet the living requirements of modern people, the occupied space is reduced, and the utilization rate of rooms is improved. For further saving space, the cabinet door of the wardrobe adopts a sliding door, so that the space in front of the wardrobe is saved, parts for connecting the wardrobe body and the cabinet door are reduced, the utilization rate of the parts and the consumable rate of the wardrobe are reduced, and the life quality of people is improved.

However, most of the wardrobes in the prior art are fixedly provided with storage cavities, and corresponding household articles can only be stored in the storage cavities with certain specifications and sizes, and if the household articles are too large, the size of the storage cavity in the wardrobes cannot be properly adjusted according to actual user demands, so that the user experience is low, and the convenience of the wardrobes is low.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a solid wood wardrobe with a partition convenient to adjust, and the purpose of convenient use is achieved.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a wood wardrobe convenient to adjust baffle, includes wardrobe body and operative installations, operative installations places board, first baffle, first wardrobe door, second wardrobe door, installation lock handle, second baffle, hangs the clothing pole, first slip wardrobe board, second slip wardrobe board and slip hand (hold) including the storing, the storing is placed the board and is set up the inside at the wardrobe body, the outer wall that the board was placed to the storing and the inner wall fixed mounting of wardrobe body, first baffle groove has all been seted up at the top that the board was placed to the storing and the inner wall top of wardrobe body, the storing is placed the bottom of board and the inner wall bottom of wardrobe body and has all been seted up second baffle groove, first slide rail groove, second slide rail groove have been seted up to the inner wall bottom of wardrobe body.

Preferably, the top of board and the inner wall top of wardrobe body are placed to the storing between a clothing, the outer wall of first baffle and the inner wall sliding connection in first baffle groove are placed board, first baffle through using the storing, are convenient for separate into the wardrobe body and hold the chamber.

Preferably, the first wardrobe door is openly installed through hinge with the left side of wardrobe body, the second wardrobe door is openly installed through hinge with the right side of wardrobe body, the quantity of installation lock handle is two, the installation lock handle sets up respectively in the front of first wardrobe door, second wardrobe door, the installation lock handle, through using first wardrobe door, second wardrobe door, the protection furniture articles for use of being convenient for, avoids having furniture articles for use to drop.

Preferably, the bottom of board and the inner wall bottom of wardrobe body are placed in the storing and form one and put between the thing, the outer wall of second baffle and the inner wall sliding connection in second baffle groove are convenient for separate into the wardrobe body and hold the chamber through using the second baffle.

Preferably, a shelving room is formed between the right side of the second partition plate and the right side of the inner wall of the wardrobe body, drawer sliding grooves are formed in the right side of the second partition plate and the right side of the inner wall of the wardrobe body, and the drawer sliding grooves are used, so that the drawer can be replaced according to the size of a drawer and the accommodating degree of articles to be placed.

Preferably, one end of the hanging clothes rod is fixedly connected with the inner wall of the wardrobe body, a hanging groove is formed in the outer wall of the hanging clothes rod, and the hanging clothes rod is provided with the hanging groove, so that clothes can be hung conveniently.

Preferably, the outer wall of first slip wardrobe board and the inner wall sliding connection in first slide rail groove, the outer wall of second slip wardrobe board and the inner wall sliding connection in second slide rail groove, the slip hand (hold) sets up in the front of first slip wardrobe board, through using first slip wardrobe board, second slip wardrobe board and slip hand (hold), has the advantage of two-way opening door, improves user's experience degree, has still improved the convenience that article were accomodate.

The utility model provides a solid wood wardrobe with a partition convenient to adjust. The method has the following beneficial effects:

(1) according to the wardrobe, the storage placing plate, the first partition plate groove, the first partition plate, the first wardrobe door, the second wardrobe door and the mounting lock handle are arranged, the storage placing plate is used, the first partition plate grooves are formed in the top of the inner wall of the wardrobe body and the top of the storage placing plate, the number of the first partition plate grooves is three, the first partition plate can be conveniently moved according to the size of furniture articles, the furniture articles can be conveniently protected by using the first wardrobe door, the second wardrobe door and the mounting lock handle, the furniture articles are prevented from falling down, and the effect of convenience in use is achieved.

(2) According to the utility model, the second partition plate groove, the second partition plate, the drawer sliding groove, the hanging clothes rod, the first sliding rail groove, the second sliding rail groove, the first sliding wardrobe plate, the second sliding wardrobe plate and the sliding handle are arranged, the second partition plate groove is formed in the bottom of the inner wall of the wardrobe body and the bottom of the storage placing plate, the number of the second partition plate grooves is two, so that the second partition plate can be conveniently adjusted according to the size of furniture articles, the distance of the drawer sliding groove can be simultaneously adjusted, the drawer can be conveniently replaced, the hanging clothes rod is arranged, the hanging groove is formed in the hanging clothes rod, the clothes can be conveniently hung, the first sliding wardrobe plate, the second sliding wardrobe plate and the sliding handle are used, the advantage of bidirectional door opening is achieved, the user experience degree is improved, the article storage convenience is improved, and the use convenience effect is achieved.

Drawings

FIG. 1 is a perspective view of the present invention;

FIG. 2 is a front view of the present invention;

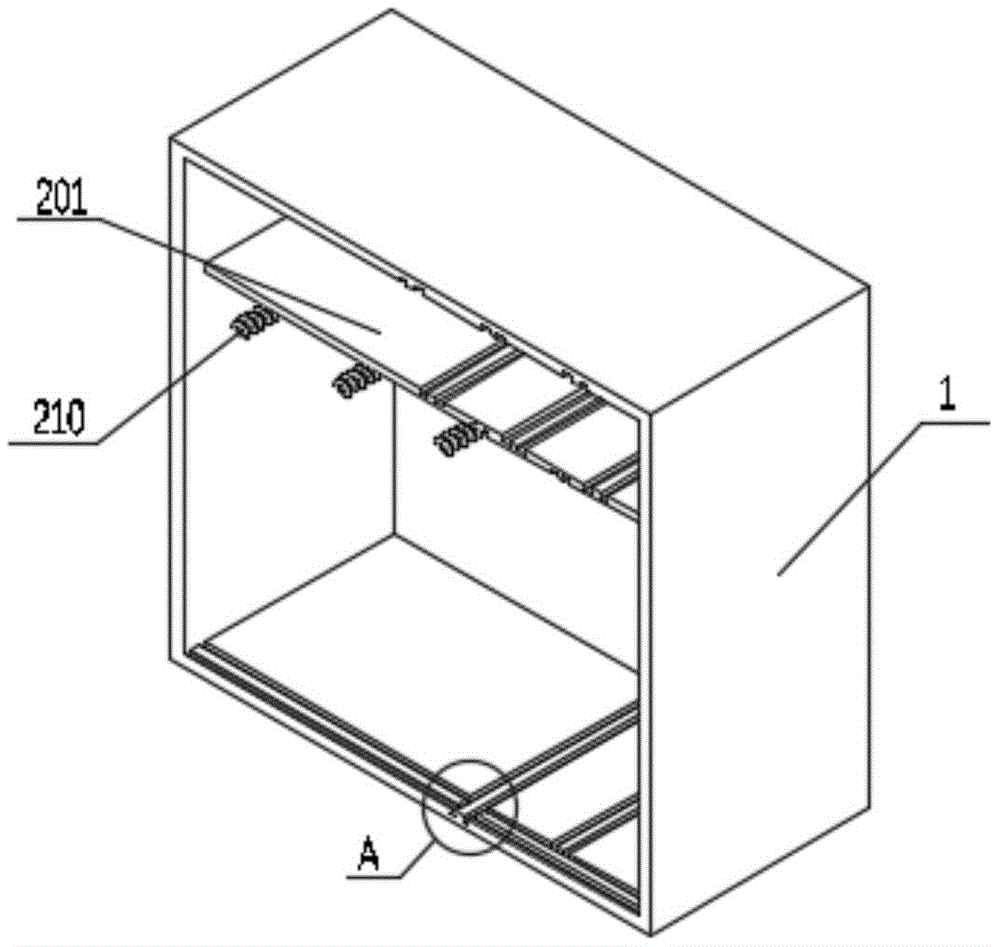

FIG. 3 is an internal structural view of the present invention;

fig. 4 is an enlarged view of a in fig. 1 according to the present invention.

In the figure: 1 wardrobe body, 2 using devices, 201 storage placing plates, 202 first partition plate grooves, 203 first partition plates, 204 first wardrobe doors, 205 second wardrobe doors, 206 mounting lock handles, 207 second partition plate grooves, 208 second partition plates, 209 drawer sliding grooves, 210 hanging clothes rods, 211 first sliding rail grooves, 212 second sliding rail grooves, 213 first sliding wardrobe plates, 214 second sliding wardrobe plates and 215 sliding handles.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are illustrative and intended to be illustrative of the utility model and are not to be construed as limiting the utility model.

In the description of the present invention, it is to be understood that the terms "central," "longitudinal," "lateral," "length," "width," "thickness," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," "clockwise," "counterclockwise," "axial," "radial," "circumferential," and the like are used in the orientations and positional relationships indicated in the drawings for convenience in describing the utility model and to simplify the description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are therefore not to be considered limiting of the utility model.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," "secured," and the like are to be construed broadly and can, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.

As shown in fig. 1 to 4, the present invention provides a technical solution: a solid wood wardrobe convenient for partition adjustment comprises a wardrobe body 1 and a using device 2, wherein the using device 2 comprises a storage placing plate 201, a first partition groove 202, a first partition 203, a first wardrobe door 204, a second wardrobe door 205, an installation lock handle 206, a second partition groove 207, a second partition 208, a drawer sliding groove 209, a hanging clothes rod 210, a first sliding rail groove 211, a second sliding rail groove 212, a first sliding wardrobe plate 213, a second sliding wardrobe plate 214 and a sliding handle 215, the storage placing plate 201 is arranged inside the wardrobe body 1, the outer wall of the storage placing plate 201 is fixedly installed with the inner wall of the wardrobe body 1, a clothes room is formed between the top of the storage placing plate 201 and the top of the inner wall of the wardrobe body 1, the top of the storage placing plate 201 and the top of the inner wall of the wardrobe body 1 are both provided with the first partition groove 202, the outer wall of the first partition 203 is connected with the inner wall of the first partition groove 202 in a sliding manner, the first wardrobe door 204 is hinged with the left front side of the wardrobe body 1 through a hinge, the second wardrobe door 205 is hinged with the right front side of the wardrobe body 1 through a hinge, the number of the mounting lock handles 206 is two, the mounting lock handles 206 are respectively arranged on the front sides of the first wardrobe door 204 and the second wardrobe door 205, the storage placing plate 201, the first partition plate groove 202, the first partition plate 203, the first wardrobe door 204, the second wardrobe door 205 and the mounting lock handles 206 are arranged, the storage placing plate 201 is used, the first partition plate groove 202 is formed in the top of the inner wall of the wardrobe body 1 and the top of the storage placing plate 201, the number of the first partition plate 202 is three, so that the first partition plate 203 can be conveniently adjusted according to the size of furniture articles, the furniture articles can be conveniently protected and prevented from falling, the effect of convenient use is achieved, a storage compartment is formed between the bottom of the storage placing plate 201 and the bottom of the inner wall of the wardrobe body 1, a second partition plate groove 207 is formed between the bottom of the storage placing plate 201 and the bottom of the inner wall of the wardrobe body 1, the outer wall of the second partition plate 208 is connected with the inner wall of the second partition plate groove 207 in a sliding manner, a compartment is formed between the right side of the second partition plate 208 and the right side of the inner wall of the wardrobe body 1, drawer sliding grooves 209 are formed between the right side of the second partition plate 208 and the right side of the inner wall of the wardrobe body 1, one end of the hanging clothes rod 210 is fixedly connected with the inner wall of the wardrobe body 1, a hanging groove is formed on the outer wall of the hanging clothes rod 210, a first sliding rail groove 211 and a second sliding rail groove 212 are formed on the bottom of the inner wall of the wardrobe body 1, the outer wall of the first sliding wardrobe plate 213 is connected with the inner wall of the first sliding rail groove 211 in a sliding manner, the outer wall of the second sliding cabinet plate 214 is connected with the inner wall of the second sliding rail groove 212 in a sliding manner, the sliding handle 215 is arranged on the front surface of the first sliding wardrobe plate 213, the second clapboard groove 207, the second clapboard 208, the drawer sliding groove 209, the hanging wardrobe rod 210, the first sliding rail groove 211, the second sliding rail groove 212, the first sliding wardrobe plate 213, the second sliding wardrobe plate 214 and the sliding handle 215 are arranged, the second clapboard groove 207 is arranged at the bottom of the inner wall of the wardrobe body 1 and the bottom of the storage placing plate 201, the number of the second clapboard grooves 207 is two, so that the second clapboard 208 can be conveniently adjusted according to the size of the furniture articles, meanwhile, the distance of the drawer sliding groove 209 can be adjusted, the drawer can be conveniently replaced, the hanging wardrobe rod 210 is arranged, the hanging groove is arranged on the hanging wardrobe rod 210, the clothes can be conveniently hung, the two-way door opening advantage is realized by using the first sliding wardrobe plate 213, the second sliding wardrobe plate 214 and the sliding handle 215, the user experience degree is improved, still improved the convenience that article were accomodate, reached the effect of convenient to use.

When in use, by using the storage placing plate 201, the first partition plate grooves 202 are formed in the top of the inner wall of the wardrobe body 1 and the top of the storage placing plate 201, the number of the first partition plate grooves 202 is three, so that the first partition plates 203 can be conveniently moved according to the size of furniture articles, by using the first wardrobe door 204, the second wardrobe door 205 and the installation lock handle 206, the furniture articles can be conveniently protected, and the furniture articles can be prevented from falling down, by forming the second partition plate grooves 207 in the bottom of the inner wall of the wardrobe body 1 and the bottom of the storage placing plate 201, the number of the second partition plate grooves 207 is two, so that the second partition plates 208 can be conveniently moved according to the size of the furniture articles, and meanwhile, the distance of the drawer sliding grooves 209 can be adjusted, so that the drawer can be conveniently replaced, by arranging the hanging rod 210 and forming the hanging grooves in the hanging rod 210, so that the clothes can be conveniently hung, by using the first sliding wardrobe plates 213, and the second partition plates can be conveniently hung on the clothes, Second slip wardrobe board 214 and slip hand (hold) 215 have the advantage that two-way opened the door, improve user's experience degree, still improved the convenience that article were accomodate.

To sum up, place board 201 through setting up the storing, first baffle groove 202, first baffle 203, first wardrobe door 204, second wardrobe door 205, the installation lock is 206, place board 201 through using the storing, and place first baffle groove 202 at the inner wall top of wardrobe body 1 and the storing top of board 201, first baffle groove 202 quantity is three, thereby be convenient for hold size according to furniture articles for use and transfer first baffle 203, through using first wardrobe door 204, second wardrobe door 205, the installation lock is 206, be convenient for protect furniture articles for use, avoid having furniture articles for use to drop, the effect of being convenient for to use has been reached.

By providing the second barrier groove 207, the second barrier 208, the drawer sliding groove 209, the hanging rod 210, the first rail groove 211, the second rail groove 212, the first sliding wardrobe plate 213, the second sliding wardrobe plate 214, and the sliding handle 215, the bottom of the inner wall of the wardrobe body 1 and the bottom of the storage placing plate 201 are provided with two second clapboard grooves 207, thereby facilitating the adjustment of the second partition plate 208 according to the size of the furniture article, and simultaneously adjusting the distance of the drawer sliding groove 209, facilitating the replacement of the drawer, by arranging the hanging rod 210 and arranging the hanging groove on the hanging rod 210, the clothes can be hung conveniently, through using first slip wardrobe board 213, second slip wardrobe board 214 and slip hand (hold) 215, have the advantage of two-way opening the door, improve user's experience degree, still improved the convenience that article were accomodate, reached the effect of convenient to use.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the utility model. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a wood wardrobe convenient to adjust baffle, includes wardrobe body (1) and operative installations (2), its characterized in that: the using device (2) comprises a storage placing plate (201), a first partition plate (203), a first wardrobe door (204), a second wardrobe door (205), an installation lock handle (206), a second partition plate (208), a hanging clothes rod (210), a first sliding wardrobe plate (213), a second sliding wardrobe plate (214) and a sliding handle (215), wherein the storage placing plate (201) is arranged inside a wardrobe body (1), the outer wall of the storage placing plate (201) is fixedly installed with the inner wall of the wardrobe body (1), the top of the storage placing plate (201) and the top of the inner wall of the wardrobe body (1) are both provided with first partition plate grooves (202), the bottom of the storage placing plate (201) and the bottom of the inner wall of the wardrobe body (1) are both provided with second partition plate grooves (207), and the bottom of the inner wall of the wardrobe body (1) is provided with first sliding rail grooves (211), A second slide rail groove (212).

2. The solid wood wardrobe convenient to adjust partition plates of claim 1, characterized in that: the top of the storage placing plate (201) and the top of the inner wall of the wardrobe body (1) form a clothes room, and the outer wall of the first partition plate (203) is connected with the inner wall of the first partition plate groove (202) in a sliding mode.

3. The solid wood wardrobe convenient to adjust partition plates of claim 1, characterized in that: the wardrobe is characterized in that the first wardrobe door (204) is hinged to the left side of the wardrobe body (1) through hinges, the second wardrobe door (205) is hinged to the right side of the wardrobe body (1) through hinges, the number of the installation locks (206) is two, and the installation locks (206) are arranged on the front sides of the first wardrobe door (204) and the second wardrobe door (205) respectively.

4. The solid wood wardrobe convenient to adjust partition plates of claim 1, characterized in that: the bottom of the storage placing plate (201) and the bottom of the inner wall of the wardrobe body (1) form a storage room, and the outer wall of the second partition plate (208) is connected with the inner wall of the second partition plate groove (207) in a sliding mode.

5. The solid wood wardrobe convenient to adjust partition plates of claim 1, characterized in that: a holding room is formed between the right side of the second partition plate (208) and the right side of the inner wall of the wardrobe body (1), and drawer sliding grooves (209) are formed in the right side of the second partition plate (208) and the right side of the inner wall of the wardrobe body (1).

6. The solid wood wardrobe convenient to adjust partition plates of claim 1, characterized in that: one end of the hanging clothes rod (210) is fixedly connected with the inner wall of the wardrobe body (1), and a hanging groove is formed in the outer wall of the hanging clothes rod (210).

7. The solid wood wardrobe convenient to adjust partition plates of claim 1, characterized in that: the outer wall of first slip wardrobe board (213) and the inner wall sliding connection of first slide rail groove (211), the outer wall of second slip wardrobe board (214) and the inner wall sliding connection of second slide rail groove (212), slip hand (215) set up in the front of first slip wardrobe board (213).
