Abstract
一种家用式多功能床头柜，包括第一固定件，第一固定件的内部活动连接有第二固定件，并且第一固定件和第二固定件的内部活动连接有第三固定件和第四固定件，第三固定件和第四固定件的内部活动连接有第五固定件和第六固定件，第二固定件和第四固定件的两侧通过卡孔分别卡接有第一卡杆和第二卡杆，第一固定件、第三固定件和第五固定件的正面均开设有限位孔，并且限位孔的内部卡接有限位杆。本实用新型能够对床头柜内部空间大小进行快速方便的调节，且能够方便的对床头柜的高度进行调节，更好的满足了使用者对于床头柜的使用需求，且便于使用者在床头柜不用时进行收纳，实用性强，使用效果好。
A household multifunctional bedside table comprises a first fixing piece, a second fixing piece is movably connected inside the first fixing piece, and a third fixing piece and a fourth fixing piece are movably connected inside the first fixing piece and the second fixing piece A fixing piece, a fifth fixing piece and a sixth fixing piece are movably connected inside the third fixing piece and the fourth fixing piece, and the first clamping rods are respectively clamped on both sides of the second fixing piece and the fourth fixing piece through the clamping holes and the second clamping rod, the front faces of the first fixing piece, the third fixing piece and the fifth fixing piece are all provided with limit holes, and the limit rods are clamped inside the limit holes. The utility model can quickly and conveniently adjust the size of the inner space of the bedside table, and can conveniently adjust the height of the bedside table, which better satisfies the user's use requirements for the bedside table, and is convenient for the user to store the bedside table when it is not in use. Strong practicability and good use effect.
Description
Technical Field
The utility model relates to a household articles field especially relates to a domestic formula multifunctional bedside cupboard.
Background
The bedside table is one of household articles, and is mainly arranged in bedrooms, dormitories, sickrooms, hotels and other rooms with beds for storing and taking articles for life and study.
The bedside cupboard is comparatively general in the use of our daily life, but current bedside cupboard is difficult to adjust the inner space size, and is difficult to highly adjusting the bedside cupboard, is difficult to better satisfy the user to the user demand of bedside cupboard, and the bedside cupboard is not time-consuming area big, and the not convenient to use person is not time-consuming at the bedside cupboard and is accomodate.
SUMMERY OF THE UTILITY MODEL
Objects of the invention
For solving the technical problem that exists among the background art, the utility model provides a domestic formula multifunctional bedside cupboard can carry out quick convenient regulation to bedside cupboard inner space size, and can be convenient highly adjust the bedside cupboard, better satisfied the user demand of user to the bedside cupboard, and convenient to use person accomodates at the bedside cupboard time spent not.
(II) technical scheme
The utility model provides a domestic formula multifunctional bedside cupboard, including first mounting, the inside swing joint of first mounting has the second mounting, and the inside swing joint of first mounting and second mounting has third mounting and fourth mounting, the inside swing joint of third mounting and fourth mounting has fifth mounting and sixth mounting, the both sides of second mounting and fourth mounting have first kelly and second kelly through calorie hole difference joint, first mounting, spacing hole has all been seted up in the front of third mounting and fifth mounting, and the inside joint in spacing hole has the gag lever post.
Preferably, one side of the first fixing piece, one side of the third fixing piece and one side of the fifth fixing piece are all arranged in an unclosed mode, and the tops of the first fixing piece, the second fixing piece, the third fixing piece, the fourth fixing piece, the fifth fixing piece and the sixth fixing piece are all arranged in an unclosed mode.
Preferably, one end of the first clamping rod penetrates through the first fixing piece and the second fixing piece and extends to the inside of the third fixing piece and the fourth fixing piece, and one end of the second clamping rod penetrates through the third fixing piece and the fourth fixing piece and extends to the inside of the fifth fixing piece and the sixth fixing piece.
Preferably, the number of the limiting holes is several, and the limiting holes are matched with the limiting rods.
Preferably, one side of the fourth fixing member penetrates through the third fixing member and extends to the inside of the third fixing member, and one side of the sixth fixing member penetrates through the fifth fixing member and extends to the inside of the fifth fixing member.
Preferably, one end of each of the three limiting rods respectively penetrates through the first fixing piece, the third fixing piece and the fifth fixing piece and extends into the second fixing piece, the fourth fixing piece and the sixth fixing piece.
Preferably, the bottoms of the first fixing piece and the second fixing piece are fixedly connected with rubber pads, and the backs of the first fixing piece, the second fixing piece, the third fixing piece, the fourth fixing piece, the fifth fixing piece and the sixth fixing piece are hinged to the box door through hinges.
Compared with the prior art, the above technical scheme of the utility model following profitable technological effect has: the utility model discloses a first mounting, the second mounting, the third mounting, the fourth mounting, the fifth mounting, the sixth mounting, the card hole, first kelly, the second kelly, spacing hole, the setting of gag lever post and rubber pad, can carry out quick convenient regulation to bedside cupboard inner space size, and can be convenient highly adjust the bedside cupboard, better user demand to the bedside cupboard has been satisfied to the user, and convenient to use person accomodates at the bedside cupboard time spent not, therefore, the clothes hanger is strong in practicability, the excellent use effect.
Drawings

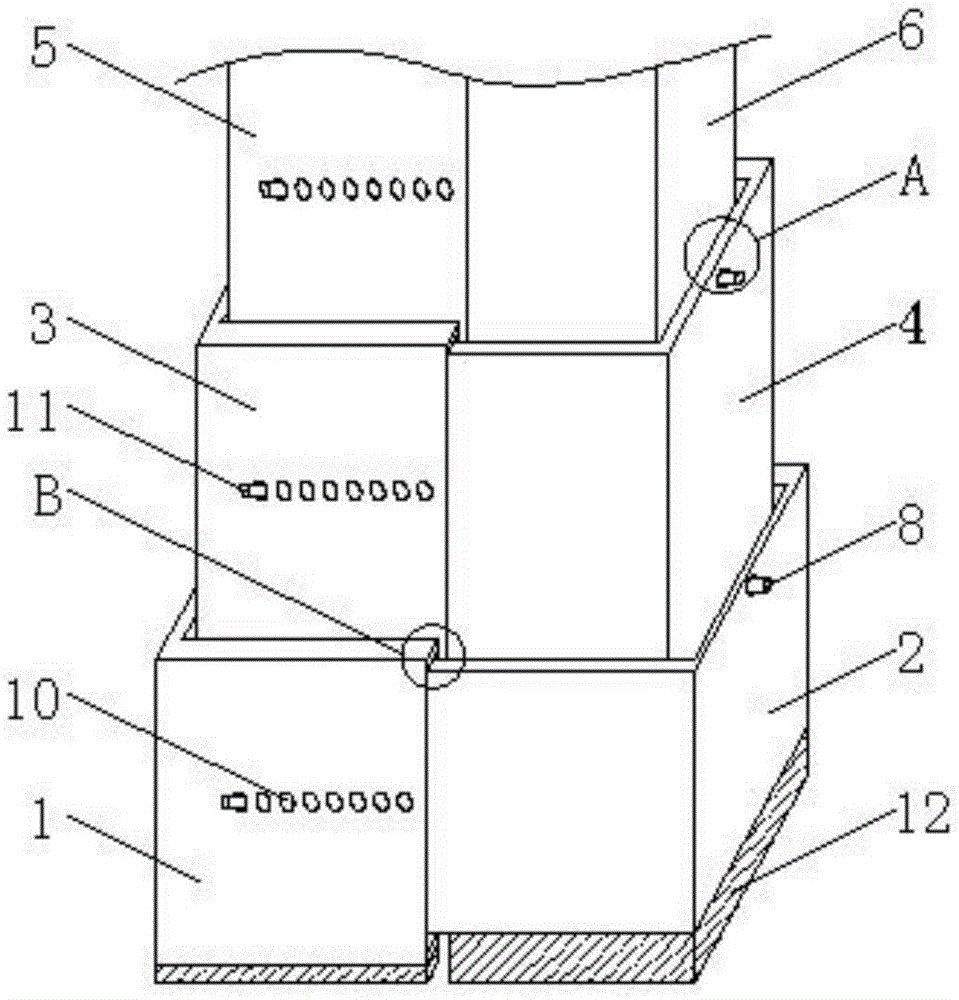

Fig. 1 is a schematic structural view of a household multifunctional bedside table.
Fig. 2 is a front view of a first fixing member structure of a household multifunctional bedside table.
Fig. 3 is a partial enlarged view of a position a in fig. 1 of the household multifunctional bedside table of the present invention.
Fig. 4 is a partial enlarged view of a portion B in fig. 1 of the household multifunctional bedside table of the present invention.
Reference numerals: 1. a first fixing member; 2. a second fixing member; 3. a third fixing member; 4. a fourth fixing member; 5. a fifth fixing member; 6. a sixth fixing member; 7. a clamping hole; 8. a first clamping rod; 9. a second clamping rod; 10. a limiting hole; 11. a limiting rod; 12. and (7) a rubber pad.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention will be described in detail with reference to the accompanying drawings. It should be understood that the description is intended to be illustrative only and is not intended to limit the scope of the present invention. Moreover, in the following description, descriptions of well-known structures and techniques are omitted so as to not unnecessarily obscure the concepts of the present invention.
As shown in fig. 1-4, the utility model provides a domestic formula multifunctional bedside cupboard, including first mounting 1, the inside swing joint of first mounting 1 has second mounting 2, and the inside swing joint of first mounting 1 and second mounting 2 has third mounting 3 and fourth mounting 4, the inside swing joint of third mounting 3 and fourth mounting 4 has fifth mounting 5 and sixth mounting 6, the both sides of second mounting 2 and fourth mounting 4 are passed through card hole 7 and are respectively the joint have first kelly 8 and second kelly 9, spacing hole 10 has all been seted up in the front of first mounting 1, third mounting 3 and fifth mounting 5, and the inside joint of spacing hole 10 has gag lever post 11.
In the present invention, the second fixing member 2 can be fixed at different positions by pulling the second fixing member 2 from the inside of the first fixing member 1 to one side, inserting the stopper rod 11 into the second fixing member 2 through the stopper holes 10 at different positions, thereby adjusting the inner spaces of the first fixing member 1 and the second fixing member 2 to different sizes, the fourth fixing member 4 can be fixed at different positions by pulling the fourth fixing member 4 from the inside of the third fixing member 3 to one side, inserting the stopper rod 11 into the fourth fixing member 4 through the stopper holes 10 at different positions, thereby adjusting the inner spaces of the third fixing member 3 and the fourth fixing member 4 to different sizes, the sixth fixing member 6 can be fixed at different positions by pulling the sixth fixing member 6 from the inside of the fifth fixing member 5 to one side, inserting the stopper rod 11 into the sixth fixing member 6 through the stopper holes 10 at different positions, thereby adjusting the inner spaces of the fifth fixing piece 5 and the sixth fixing piece 6 to different sizes, thereby adjusting the size of the inner space of the whole bedside cabinet, the first clamping rod 8 is inserted into the third fixing piece 3 and the fourth fixing piece 4 through the clamping hole 7 for supporting, the second clamping rod 9 is inserted into the fifth fixing piece 5 and the sixth fixing piece 6 through the clamping hole 7 for supporting, the height of the bedside cupboard can be adjusted through the combination of the first fixing piece 1, the second fixing piece 2, the third fixing piece 3, the fourth fixing piece 4, the fifth fixing piece 5 and the sixth fixing piece 6, when the bedside table is not used, the first clamping rod 8 and the second clamping rod 9 are pulled out, the fifth fixing piece 5 and the sixth fixing piece 6 fall to the inside of the third fixing piece 3 and the fourth fixing piece 4 under the action of gravity, and the third fixing piece 3 and the fourth fixing piece 4 fall to the inside of the first fixing piece 1 and the second fixing piece 2 under the action of gravity.
In an alternative embodiment, one side of each of the first fixing member 1, the third fixing member 3 and the fifth fixing member 5 is not closed, and the top of each of the first fixing member 1, the second fixing member 2, the third fixing member 3, the fourth fixing member 4, the fifth fixing member 5 and the sixth fixing member 6 is not closed.
It should be noted that, openings matched with the second fixing member 2, the fourth fixing member 4, and the sixth fixing member 6 are respectively formed at one side of the first fixing member 1, the third fixing member 3, and the fifth fixing member 5, so that the second fixing member 2, the fourth fixing member 4, and the sixth fixing member 6 can be pulled out or retracted.
In an alternative embodiment, one end of the first catching bar 8 penetrates the first fixing member 1 and the second fixing member 2 and extends to the inside of the third fixing member 3 and the fourth fixing member 4, and one end of the second catching bar 9 penetrates the third fixing member 3 and the fourth fixing member 4 and extends to the inside of the fifth fixing member 5 and the sixth fixing member 6.
It should be noted that the third fixing member 3 and the fourth fixing member 4 can be supported by the first clamping rod 8, and the fifth fixing member 5 and the sixth fixing member 6 can be supported by the second clamping rod 9.
In an alternative embodiment, the number of the limiting holes 10 is several, and the limiting holes 10 are matched with the limiting rods 11.
It should be noted that the second fixing member 2, the fourth fixing member 4 and the sixth fixing member 6 can be better limited and fixed by matching the limiting hole 10 with the limiting rod 11.
In an alternative embodiment, one side of the fourth fixing member 4 penetrates the third fixing member 3 and extends to the inside of the third fixing member 3, and one side of the sixth fixing member 6 penetrates the fifth fixing member 5 and extends to the inside of the fifth fixing member 5.
It should be noted that, one side of the fourth fixing member 4 penetrates through the third fixing member 3 and extends into the third fixing member 3, and one side of the sixth fixing member 6 penetrates through the fifth fixing member 5 and extends into the fifth fixing member 5, so that the positions of the fourth fixing member 4 and the sixth fixing member 6 can be adjusted, and the size of the internal space of the bedside cupboard can be adjusted.
In an alternative embodiment, one end of each of the three limiting rods 11 extends through the first fixing member 1, the third fixing member 3 and the fifth fixing member 5 and extends into the second fixing member 2, the fourth fixing member 4 and the sixth fixing member 6.
It should be noted that the front surfaces of the second fixing member 2, the fourth fixing member 4 and the sixth fixing member 6 are all provided with holes matched with the limiting rods 11.
In an alternative embodiment, a rubber pad 12 is fixedly connected to the bottom of each of the first fixing member 1 and the second fixing member 2, the size of the inner space of the bedside cupboard can be quickly and conveniently adjusted through the arrangement of the first fixing piece 1, the second fixing piece 2, the third fixing piece 3, the fourth fixing piece 4, the fifth fixing piece 5, the sixth fixing piece 6, the clamping hole 7, the first clamping rod 8, the second clamping rod 9, the limiting hole 10, the limiting rod 11 and the rubber pad 12, and can conveniently adjust the height of the bedside cabinet, better meet the use requirements of users on the bedside cabinet, and the person of being convenient for accomodate when the bedside cupboard is not used, and the practicality is strong, excellent in use effect, and the back of first mounting 1, second mounting 2, third mounting 3, fourth mounting 4, fifth mounting 5 and sixth mounting 6 all articulates through the hinge has the chamber door.
It should be noted that the friction can be increased by the arrangement of the rubber pad 12, so as to increase the stability of the bedside table.
It is to be understood that the above-described embodiments of the present invention are merely illustrative of or explaining the principles of the invention and are not to be construed as limiting the invention. Therefore, any modification, equivalent replacement, improvement and the like made without departing from the spirit and scope of the present invention should be included in the protection scope of the present invention. Further, it is intended that the appended claims cover all such variations and modifications as fall within the scope and boundaries of the appended claims or the equivalents of such scope and boundaries.
Claims (7)
1. The utility model provides a multi-functional bedside cupboard of domestic formula, a serial communication port, including first mounting (1), the inside swing joint of first mounting (1) has second mounting (2), and the inside swing joint of first mounting (1) and second mounting (2) has third mounting (3) and fourth mounting (4), the inside swing joint of third mounting (3) and fourth mounting (4) has fifth mounting (5) and sixth mounting (6), the both sides of second mounting (2) and fourth mounting (4) are passed through card hole (7) and are blocked respectively first kelly (8) and second kelly (9), spacing hole (10) have all been seted up in the front of first mounting (1), third mounting (3) and fifth mounting (5), and the inside joint of spacing hole (10) has gag lever post (11).
2. A household multifunctional bedside cabinet according to claim 1, wherein one side of the first fixing member (1), the third fixing member (3) and the fifth fixing member (5) is disposed in an unclosed manner, and the top of the first fixing member (1), the second fixing member (2), the third fixing member (3), the fourth fixing member (4), the fifth fixing member (5) and the sixth fixing member (6) is disposed in an unclosed manner.
3. A household-type multifunctional bedside cabinet according to claim 1, wherein one end of the first catch rod (8) penetrates the first fixing member (1) and the second fixing member (2) and extends to the inside of the third fixing member (3) and the fourth fixing member (4), and one end of the second catch rod (9) penetrates the third fixing member (3) and the fourth fixing member (4) and extends to the inside of the fifth fixing member (5) and the sixth fixing member (6).
4. The household multifunctional bedside table as claimed in claim 1, wherein the number of the limiting holes (10) is several, and the limiting holes (10) are adapted to the limiting rods (11).
5. A household-type multifunctional bedside cabinet according to claim 1, wherein one side of the fourth fixing member (4) penetrates the third fixing member (3) and extends to the inside of the third fixing member (3), and one side of the sixth fixing member (6) penetrates the fifth fixing member (5) and extends to the inside of the fifth fixing member (5).
6. A household-type multifunctional bedside cabinet according to claim 1, wherein one end of each of the three position-limiting rods (11) penetrates through the first fixing member (1), the third fixing member (3) and the fifth fixing member (5) and extends to the inside of the second fixing member (2), the fourth fixing member (4) and the sixth fixing member (6).
7. The household multifunctional bedside cabinet for children according to claim 1, wherein rubber pads (12) are fixedly connected to the bottoms of the first fixing member (1) and the second fixing member (2), and the back surfaces of the first fixing member (1), the second fixing member (2), the third fixing member (3), the fourth fixing member (4), the fifth fixing member (5) and the sixth fixing member (6) are hinged to a cabinet door through hinges.
