CN213720684U - A kind of furniture integral wardrobe that can be independently layered

Info

Publication number: CN213720684U
Application number: CN202022463418.XU
Authority: CN
Inventors: 杜生建; 周炫
Original assignee: Bijie Modern Furniture Co ltd
Current assignee: Bijie Modern Furniture Co ltd
Priority date: 2020-10-29
Filing date: 2020-10-29
Publication date: 2021-07-20
Anticipated expiration: 2030-10-29

Abstract

The utility model relates to the technical field of integral wardrobes, in particular to an integral wardrobe for furniture that can be independently layered, comprising a wardrobe, the bottom of the wardrobe is fixedly connected with an inner wardrobe, the right side of the inner wardrobe is provided with a placing box, and the inner wardrobe is The top of the wardrobe is fixedly connected with a storage table, the top of the coat cabinet is fixedly connected with a locker, the left side of the locker is fixedly connected with a support table, the left bottom of the wardrobe is fixed with a quilt cabinet, and the support table is connected with the quilt cabinet. There are two partitions in between. The self-layered furniture integral wardrobe effectively distinguishes the placement of various types of clothing through the provided cloakroom, inner wardrobe, storage table and other structures, and is set through the set partitions and internal storage boxes. , which solves the problem that the traditional wardrobe is relatively fixed, and the user does not have independent layering.

Description

Furniture integral wardrobe capable of being automatically layered

Technical Field

The utility model relates to a whole wardrobe technical field specifically is a can be independently the whole wardrobe of furniture of layering.

Background

The integral wardrobe is also named as a wall wardrobe/a custom wardrobe/a clothes and hat room and the like, and becomes one of the essential furniture in European and American families in the past 80 years. In China, although the development of the integral wardrobe is still in the initial stage, along with the continuous improvement of the living standard of people, people know the decoration more and more, and the integral wardrobe also becomes an essential important component in modern home decoration more and more. The integral wardrobe can be customized, has the characteristics of environmental protection, fashion, profession and the like, is expected to become a consumption hotspot of family wardrobes in the next few years, is different from commonly purchased plate-type furniture in the manufacturing process, firstly, a designer can have close contact and communication with a user to know the hobbies and the home style of the user, and then, the reasonable integral wardrobe is designed by door-to-door measurement. During the period, a designer can provide a computer effect picture, and after the user is satisfied, the whole wardrobe is manufactured by the assembly line according to the drawing;

the existing furniture integral wardrobe is relatively fixed in layering, users do not have the independent layering right, the using effect of users is not ideal, the common wardrobe is single, layering arrangement is lacked, and therefore the furniture integral wardrobe capable of being layered independently is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a can be independently the whole wardrobe of furniture of layering to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

the utility model provides a can be from whole wardrobe of furniture of layering, includes the clothing cabinet, wardrobe in the bottom fixedly connected with of clothing cabinet, the right side of interior wardrobe is equipped with places the case, place the case with underwear cabinet fixed connection, the top fixedly connected with of interior wardrobe puts the thing platform, put the height of thing platform with the height of clothing cabinet equals, the top fixedly connected with locker of clothing cabinet, the bottom area of locker with the top area of clothing cabinet equals, the left side fixedly connected with brace table of locker, just the brace table is located the left side top of clothing cabinet, the left side bottom fixedly connected with bedding cabinet of clothing cabinet, the brace table with be equipped with two baffles between the bedding cabinet, baffle fixed connection in the surface of clothing cabinet.

Preferably, the inner side of the top of the clothes and hat cabinet is fixedly connected with fixing rods, the fixing rods are provided with two fixing rods which are respectively located on the left side and the right side of the clothes and hat cabinet, clothes hangers are evenly distributed in the fixing rods at equal intervals, and the number of the clothes hangers is three.

Preferably, the front surface of the wardrobe is hinged with two wardrobe doors through hinges, and the middle surfaces of the wardrobe doors are fixedly connected with handles.

Preferably, the left side of the inside of the inner wardrobe is slidably connected with two storage boxes, the two storage boxes are respectively located on the upper side and the lower side of the inner wardrobe, the right side of the inside of the inner wardrobe is provided with four sock storage boxes, and the sock storage boxes are slidably connected with the inside of the inner wardrobe.

Preferably, the object placing table is composed of three fan-shaped plates, and the fan-shaped plates are fixedly connected to the surface of the object placing table.

Preferably, the inside of locker is equipped with two collection boxes, collection box sliding connection in the inside of locker, and two the equal fixedly connected with handle in surface of collection box.

Preferably, sliding rails are arranged on two sides of the inside of the bedding cabinet, and a drawing plate is connected to the inside of each sliding rail in a sliding mode.

Compared with the prior art, the beneficial effects of the utility model are that: this can independently whole wardrobe of layering has effectively distinguished placing of all kinds of clothings through the coat and hat cabinet, interior wardrobe, the thing platform isotructure that is equipped with, and through setting up such as the baffle that sets up and the storing box of inside, it is comparatively fixed to have solved traditional wardrobe layering, and the user of service does not have the problem of independently layering.

Drawings

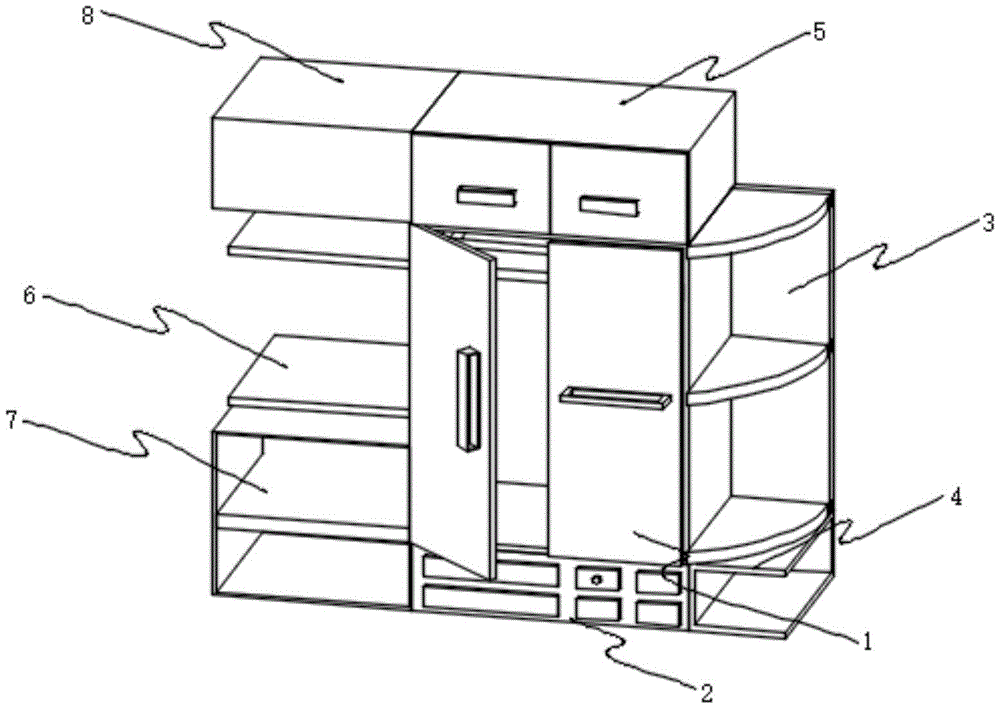

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the structure of the underwear cabinet of the present invention;

FIG. 3 is a schematic view of the structure of the wardrobe;

fig. 4 is a schematic structural view of the object placing table of the present invention;

FIG. 5 is a schematic view of a storage cabinet according to the present invention;

fig. 6 is a schematic structural view of the bedding cabinet of the present invention.

In the figure: 1. a clothes and hat cabinet; 2. an inner wardrobe; 3. a placing table; 4. placing a box; 5. a storage cabinet; 6. a partition plate; 7. a bedding cabinet; 8. a support table; 10. a cabinet door; 11. a handle; 12. fixing the rod; 13. a hanger; 20. a sock storage box; 21. a storage box; 30. a sector plate; 50. a collection box; 51. a handle; 70. a slide rail; 71. and a drawing plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

Referring to fig. 1-6, the present invention provides a technical solution:

a furniture integral wardrobe capable of being layered independently comprises a clothes and hat cabinet 1, wherein the bottom of the clothes and hat cabinet 1 is fixedly connected with an inner wardrobe 2, the right side of the inner wardrobe 2 is provided with a placing box 4, the placing box 4 is fixedly connected with the inner wardrobe 2, the top of the inner wardrobe 2 is fixedly connected with a placing platform 3, the height of the placing platform 3 is equal to that of the clothes and hat cabinet 1, the top of the clothes and hat cabinet 1 is fixedly connected with a storage cabinet 5, the bottom area of the storage cabinet 5 is equal to that of the top of the clothes and hat cabinet 1, the left side of the storage cabinet 5 is fixedly connected with a supporting platform 8, the supporting platform 8 is positioned at the top of the left side of the clothes and hat cabinet 1, the bottom of the left side of the clothes and hat cabinet 1 is fixedly connected with a quilt cabinet 7, two partition plates 6 are arranged between the supporting platform 8 and the quilt cabinet 7, the partition plates 6 are fixedly connected to the surface of the clothes and hat cabinet 1, and a user can independently place articles to be placed on the partition plates 6 through the partition plates 6, is convenient for storage and taking.

In this embodiment, the fixing rods 12 are fixedly connected to the inner side of the top of the clothes and hat cabinet 1, the fixing rods 12 are provided with two fixing rods and located on the left side and the right side of the clothes and hat cabinet 1 respectively, the clothes hangers 13 which are evenly distributed at equal intervals are arranged inside the fixing rods 12, the clothes hangers 13 are provided with three fixing rods, and an operator can hang clothes on the clothes hangers 13 to store the clothes inside the clothes and hat cabinet 1.

In addition, the front surface of the wardrobe 1 is hinged with a cabinet door 10 through a hinge, the cabinet door 10 is provided with two, the middle surface of the cabinet door 10 is fixedly connected with a handle 11, and a user can open the cabinet door 10 through the handle 11 to store the clothes in the wardrobe 1.

Further, the inside left side sliding connection of underwear cabinet 2 has storing box 21, and storing box 21 is provided with two, and is located the upper and lower both sides of interior wardrobe 2 respectively, and the inside right side of underwear cabinet 2 is provided with four and stores up socks case 20, stores up socks case 20 and interior wardrobe 2's inside sliding connection, and the user of service can independently select to deposit smallclothes clothing in interior wardrobe 2.

Specifically, put thing platform 3 and constitute by three sector plate 30, sector plate 30 fixed connection is in putting the surface of thing platform 3, and the user of service can place article to on sector plate 30.

It should be noted that two collecting boxes 50 are disposed inside the storage cabinet 5, the collecting boxes 50 are slidably connected inside the storage cabinet 5, and a handle 51 is fixedly connected to the surface of each collecting box 50, so that when there is an article to be stored for a long time, an operator can put the article into the storage cabinet 5.

Besides, the sliding rails 70 are arranged on two sides of the inside of the bedding cabinet 7, the sliding rails 70 are connected with the drawing plate 71 in a sliding manner, and a user can draw the drawing plate 71 to place large articles such as bedding and the like on the drawing plate 71 so as to take out the large articles.

It should be noted that the present invention relates to circuits, electronic components and modules, and is well within the skill of those in the art, and is fully within the scope of the present invention as embodied and broadly described herein.

The whole wardrobe of furniture that can independently stratify of this embodiment is when using, and the user person at first settles this whole wardrobe in the bedroom to make a corner of brace table 8 tightly support bedroom top wall angle department, user of service accessible wardrobe 1 deposits the clothing this moment, and stores the smallclothes clothing through interior wardrobe 2 that is equipped with, and can place decorative article on baffle 6 and sector plate 30, and user of service can independently carry out the layering to this whole wardrobe and use.

The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. A furniture integral wardrobe that can be independently layered, comprising a coat cabinet (1), characterized in that: the bottom of the coat cabinet (1) is fixedly connected with an inner wardrobe (2), and the inner wardrobe (2) ) is provided with a placing box (4) on the right side, the placing box (4) is fixedly connected with the inner wardrobe (2), and a storage platform (3) is fixedly connected to the top of the inner wardrobe (2). The height of the storage table (3) is equal to the height of the wardrobe (1), the top of the wardrobe (1) is fixedly connected with a locker (5), and the bottom of the locker (5) The area is equal to the top area of the coat cabinet (1), a support table (8) is fixedly connected to the left side of the locker (5), and the support table (8) is located in the coat cabinet ( 1), the left bottom of the coat cabinet (1) is fixedly connected with a quilt cabinet (7), and two partitions are provided between the support table (8) and the quilt cabinet (7). A plate (6), the partition plate (6) is fixedly connected to the surface of the wardrobe (1).

2. The furniture integral wardrobe that can be independently layered according to claim 1, characterized in that: a fixing rod (12) is fixedly connected to the inner side of the top of the wardrobe (1), and the fixing rod (12) is provided with There are two and are located on the left and right sides of the coat cabinet (1) respectively, the interior of the fixing rod (12) is provided with uniformly spaced coat hangers (13), and three coat hangers (13) are provided.

3. The furniture integral wardrobe that can be independently layered according to claim 1, characterized in that: the front surface of the wardrobe (1) is hinged with a cabinet door (10) through a hinge, and the cabinet door (10) ) is provided with two, and the middle surface of the cabinet door (10) is fixedly connected with a handle (11).

4. The furniture integral wardrobe that can be independently layered according to claim 1, characterized in that: a storage box (21) is slidably connected to the inner left side of the inner wardrobe (2), and the storage box (21) ) are provided with two, and are respectively located on the upper and lower sides of the inner wardrobe (2), the inner right side of the inner wardrobe (2) is provided with four sock storage boxes (20), the socks storage boxes (20) ) is slidably connected with the interior of the inner wardrobe (2).

5. The furniture integral wardrobe that can be independently layered according to claim 1, characterized in that: the storage table (3) is composed of three fan-shaped boards (30), and the fan-shaped boards (30) are fixedly connected to the the surface of the storage table (3).

6. The furniture integral wardrobe that can be independently layered according to claim 1, characterized in that: the storage cabinet (5) is provided with two collection boxes (50) inside, and the collection boxes (50) slide It is connected to the interior of the storage cabinet (5), and the surfaces of the two collection boxes (50) are fixedly connected with handles (51).

7. The self-layered furniture integral wardrobe according to claim 1, characterized in that: sliding rails (70) are provided on both sides of the inner side of the quilt cabinet (7), and the inner side of the sliding rail (70) is provided with sliding rails (70). A drawer plate (71) is slidably connected.
