Abstract
The utility model discloses a simple movable hanging basket which comprises a parapet body and a square steel frame, wherein the square steel frame is placed at the upper end of the parapet body, the lower end of the square steel frame is provided with a movable supporting structure, and one side of the square steel frame is provided with a hoisting structure; the mobile support structure comprises: the four-wheel brake device comprises four mounting seats, four universal wheels, four brakes, a balancing weight and a telescopic supporting component; the removal bearing structure that the present case adopted, built-in flexible supporting component can adjust the support according to the height of parapet body, prevent that square steel frame from taking place the skew, through four built-in universal wheels and four brake cooperations, can carry out position control and fixed to square steel frame, and then effectual solved current hanging flower basket move take time to waste work and influence the field time limit for a project, the crane cost is too big, 8 less individuals need be done to the manual work basket that moves, the great technical problem of intensity of labour.
Description
Technical Field
The utility model relates to the technical field of constructional engineering, in particular to a simple movable hanging basket.
Background
The hanging basket is used and moved in construction and maintenance of each building site outer wall in the field of building engineering, the hanging basket is generally used after a tower crane is dismantled on a roof, the on-site hanging basket is moved, time and labor are wasted, the on-site construction period is influenced, particularly, the garage is backfilled to complete the height around a building, if a crane is too large in cost, if the basket is manually moved, 8 persons are needed to be reduced, the labor intensity is high, in view of the above, deep research is carried out on the problems, and the scheme is generated.
Disclosure of Invention
In order to achieve the purpose, the utility model is realized by the following technical scheme: a simple movable hanging basket comprises a parapet body and a square steel frame, wherein the square steel frame is placed at the upper end of the parapet body, a movable supporting structure is arranged at the lower end of the square steel frame, and a hoisting structure is arranged on one side of the square steel frame;
the mobile support structure comprises: the four-wheel brake device comprises four mounting seats, four universal wheels, four brakes, a balancing weight and a telescopic supporting component;
four mount pads are installed respectively in square steel frame lower extreme four corners department, and four universal wheels are installed respectively in four are the mount pads, and four brakes are installed respectively on four universal wheels, and the balancing weight is installed in square steel frame one side lower extreme, and flexible supporting component installs in square steel frame opposite side lower extreme, and the laminating of flexible supporting component bottom and parapet body upper end.
Further, the telescopic support assembly comprises: two hydraulic telescopic rods and two supporting blocks;
two hydraulic telescoping rod all install in square steel frame one side lower extreme, and two supporting shoes are installed respectively in two hydraulic telescoping rod flexible ends, and two supporting shoe lower extremes all laminate with parapet body upper end.
Further, hoisting structure includes: the hanging basket comprises two connecting blocks, two steel wire ropes and a hanging basket body;
two connecting blocks are installed respectively in square steel frame one side upper end, and two steel wire rope one end are connected with two connecting blocks respectively, and the hanging flower basket body is connected with two steel wire rope other ends respectively.
Furthermore, a fixing block for fixing the balancing weight is arranged at the joint of the balancing weight and the square steel frame.
Furthermore, a movable handle convenient to move is arranged at the upper end of one side of the square steel frame.
Furthermore, the lower end of the supporting block is provided with an anti-skid pad with an anti-skid function.
Advantageous effects
According to the movable support structure adopted by the utility model, the built-in telescopic support component can be adjusted and supported according to the height of the parapet body, so that the square steel frame is prevented from deviating, and the position of the square steel frame can be adjusted and fixed by matching the built-in four universal wheels and four brakes, so that the technical problems that the field construction period is influenced by time and labor consumed when the conventional hanging basket is moved, the cost of a crane is overlarge, 8 persons are needed to be reduced when the hanging basket is moved manually, and the labor intensity is higher are solved effectively.
Drawings

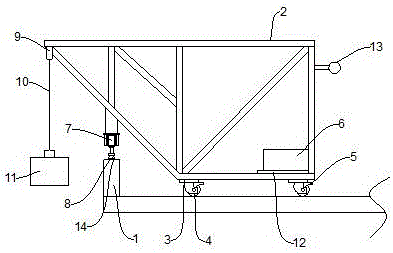

FIG. 1 is a schematic front view of a simple and movable basket according to the present invention;
fig. 2 is a schematic side view of a simple and movable basket according to the present invention.
In the figure: 1. parapet body, 2, square steel frame, 3, mount pad, 4, universal wheel, 5, brake, 6, balancing weight, 7, hydraulic telescoping rod, 8, supporting shoe, 9, connecting block, 10, steel wire rope, 11, hanging flower basket body, 12, fixed block, 13, removal handle, 14, slipmat.
Detailed Description
All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example (b): referring to fig. 1-2, the present invention provides a technical solution: a simple and movable hanging basket comprises a parapet body 1 and a square steel frame 2, wherein the square steel frame 2 is placed at the upper end of the parapet body 1, a movable supporting structure is arranged at the lower end of the square steel frame 2, and a hoisting structure is arranged on one side of the square steel frame 2;
it should be noted that, when needs use hanging flower basket body 11, install the removal bearing structure work at square steel frame 2 lower extreme through the drive by the staff, support square steel frame 2 in parapet body 1 upper end, support fixedly to square steel frame 2, realize the hoist and mount to the material through hoisting structure, when needs move square steel frame 2, the bearing structure is removed in the backdrive, make square steel frame 2 can carry out position control through removing bearing structure.
In a specific implementation, the mobile support structure comprises: the four-wheel-type brake device comprises four mounting seats 3, four universal wheels 4, four brakes 5, a balancing weight 6 and a telescopic supporting component;
four mount pads 3 are installed respectively in 2 lower extreme four corners departments of square steel frame, and four universal wheels 4 are installed respectively in four are mount pads 3, and four brakes 5 are installed respectively on four universal wheels 4, and balancing weight 6 is installed in 2 one side lower extremes of square steel frame, and flexible supporting component installs in 2 opposite side lower extremes of square steel frame, and the laminating of flexible supporting component bottom and parapet body 1 upper end.
It should be noted that, when needs support other side steel frame 2, remove other side steel frame 2 by the staff, through installing four universal wheels at 3 lower extremes of four mount pads, guarantee square steel frame 2's removal effect, when removing to the assigned position, fix four universal wheels 4 through four brakes 5, the flexible supporting component work of rethread drive, support 2 one end of square steel frame on parapet body 1, prevent through the balancing weight 6 of installing in 2 one sides of square steel frame that square steel frame 2 from taking place to turn on one's side.
In the specific implementation process, the telescopic support component comprises: two hydraulic telescopic rods 7 and two supporting blocks 8;
two hydraulic telescoping rod 7 are all installed in 2 one side lower extremes of square steel frame, and two supporting shoes 8 are installed respectively in 7 flexible ends of two hydraulic telescoping rod, and 8 lower extremes of two supporting shoes all laminate with parapet body 1 upper end.
It should be noted that, when the square steel frame 2 needs to be supported, the worker drives the two hydraulic telescopic rods 7 to work, and the two support blocks 8 are pushed by the two hydraulic telescopic rods 7 to move downwards until the lower ends of the two support blocks 8 contact with the upper end of the parapet body 1.
In the specific implementation process, the hoisting structure comprises: two connecting blocks 9, two steel wire ropes 10 and a hanging basket body 11;
two connecting blocks 9 are respectively installed in square steel frame 2 one side upper end, and two steel wire rope 10 one end are connected with two connecting blocks 9 respectively, and hanging flower basket body 11 is connected with two steel wire rope 10 other ends respectively.
It should be noted that, when the material is needed to be hoisted, the worker connects one end of the steel wire rope 10 to the two connecting blocks 9, and then connects the hanging basket body 11 to the lower ends of the two steel wire ropes 10, and the purpose of hoisting the material is achieved by driving the motor in the falling rail body.
In the specific implementation process, furthermore, a fixing block 12 for fixing the counterweight block 6 is arranged at the joint of the counterweight block 6 and the square steel frame 2.
In the specific implementation process, furthermore, a movable handle 13 which is convenient to move is arranged at the upper end of one side of the square steel frame 2.
In the specific implementation process, further, the lower end of the supporting block 8 is provided with an anti-skid mat 14 with an anti-skid function.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. A simple movable hanging basket comprises a parapet body and a square steel frame, and is characterized in that the square steel frame is placed at the upper end of the parapet body, a movable supporting structure is arranged at the lower end of the square steel frame, and a hoisting structure is arranged on one side of the square steel frame;
the mobile support structure comprises: the four-wheel brake device comprises four mounting seats, four universal wheels, four brakes, a balancing weight and a telescopic supporting component;
four mount pads are installed respectively in square steel frame lower extreme four corners department, and four universal wheels are installed respectively in four are the mount pads, and four brakes are installed respectively on four universal wheels, and the balancing weight is installed in square steel frame one side lower extreme, and flexible supporting component installs in square steel frame opposite side lower extreme, and the laminating of flexible supporting component bottom and parapet body upper end.
2. A simple movable gondola according to claim 1 characterized in that the telescopic support assembly comprises: two hydraulic telescopic rods and two supporting blocks;
two hydraulic telescoping rod all install in square steel frame one side lower extreme, and two supporting shoes are installed respectively in two hydraulic telescoping rod flexible ends, and two supporting shoe lower extremes all laminate with parapet body upper end.
3. A simple and easy portable hanging flower basket according to claim 1, characterized by, hoisting structure includes: the hanging basket comprises two connecting blocks, two steel wire ropes and a hanging basket body;
two connecting blocks are installed respectively in square steel frame one side upper end, and two steel wire rope one end are connected with two connecting blocks respectively, and the hanging flower basket body is connected with two steel wire rope other ends respectively.
4. The simple and movable hanging basket according to claim 1, wherein a fixing block for fixing the balancing weight is provided at the joint of the balancing weight and the square steel frame.
5. The simple and movable hanging basket according to claim 1, wherein the square steel frame is provided with a movable handle at the upper end of one side for convenient movement.
6. The simple and movable hanging basket according to claim 2, wherein the lower end of the supporting block is provided with a non-slip mat with a non-slip function.
