CN216148530U - Infant massage auxiliary assembly - Google Patents
Infant massage auxiliary assembly Download PDFInfo
- Publication number
- CN216148530U CN216148530U CN202122091846.9U CN202122091846U CN216148530U CN 216148530 U CN216148530 U CN 216148530U CN 202122091846 U CN202122091846 U CN 202122091846U CN 216148530 U CN216148530 U CN 216148530U
- Authority
- CN
- China
- Prior art keywords
- massage
- fixedly connected
- supporting
- infant
- mounting
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Massaging Devices (AREA)
Abstract
The utility model discloses infant massage auxiliary equipment which comprises a supporting top plate and connecting columns, wherein the two sides of the lower surface of the supporting top plate are fixedly connected with the connecting columns, the bottoms of the connecting columns are provided with clamping plates, the surfaces of the connecting columns are connected with sleeve blocks in a sliding mode, an equipment box is fixedly connected between the sleeve blocks, an adjusting mechanism is arranged between the upper surface of the equipment box and the supporting top plate, a driving part is arranged inside the equipment box, the bottom of the driving part is fixedly connected with a supporting sleeve rod, the bottom of the supporting sleeve rod is fixedly connected with a mounting plate, the two sides of the lower surface of the mounting plate are fixedly connected with mounting frames, and massage balls are arranged at the bottoms of the mounting frames. According to the utility model, through the arrangement of the driving part, the massage balls and the massage roller, when the massage is carried out, the driving part can drive the massage balls and the massage roller to transversely reciprocate, so that the massage can be carried out on the body of a patient in a reciprocating manner, the manual massage can be effectively replaced, and the labor force of medical staff is reduced.
Description
Technical Field
The utility model relates to the technical field of physiotherapy massage equipment, in particular to infant massage auxiliary equipment.
Background
Tuina is a commonly used treatment method in the treatment of diseases in traditional Chinese medicine, and long-term clinical experiments prove that tuina has good treatment effect on some chronic pain diseases, and traditional Chinese medicine tuina does not treat both symptoms and root causes as in western medicine, can effectively cure diseases radically in long-term tuina treatment, has poor resistance of children, is easy to cause respiratory system diseases or form allergic constitution without attention, and therefore needs to be carried out for health care to improve resistance, and is one of the health care forms of children.
Infant massage is one of many children's health care, but traditional massage all is that operating personnel utilizes hand direct contact with children's skin, acts on corresponding acupuncture point through operator's control dynamics, reaches amazing acupuncture point, plays the effect of health care, and long-time massage back, medical staff's finger can be stiff, and it is not very good to massage effect when consuming great physical power, therefore, we have proposed an infant massage auxiliary assembly.
SUMMERY OF THE UTILITY MODEL
The present invention is directed to an infant tuina assisting device to solve the above problems in the prior art.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides an infant's massage auxiliary assembly, includes roof support and spliced pole, the equal fixedly connected with spliced pole in both sides of roof support lower surface, the bottom of spliced pole is equipped with the grip block, the sliding surface of spliced pole is connected with the cover block, fixedly connected with equipment box between the cover block, be equipped with adjustment mechanism between the upper surface of equipment box and the roof support, the inside of equipment box is equipped with the drive division, the bottom fixedly connected with support loop bar of drive division, support the bottom fixedly connected with mounting panel of loop bar, the equal fixedly connected with mounting bracket in both sides of mounting panel lower surface, the bottom of mounting bracket is equipped with the massage ball, be equipped with the support column between the mounting bracket, it is connected with the massage roller to rotate between the support column, be equipped with first spring between massage roller and the support column.
Preferably, adjustment mechanism includes dead lever, adjustable ring and threaded rod, the bottom and the equipment box fixed connection of dead lever, the top of dead lever is rotated and is connected with the adjustable ring, the inner wall threaded connection of adjustable ring has the threaded rod, the top and the roof fixed connection that supports of threaded rod.
Preferably, the drive division includes driving motor, drive gear, loose ring, tooth and spacing slide, driving motor's output fixedly connected with drive gear, the spacing slide of interior roof fixedly connected with of equipment box, the bottom sliding connection of spacing slide has the loose ring, the inner wall fixedly connected with tooth of loose ring, tooth meshes with drive gear mutually.
Preferably, the support sleeve rod comprises a first connecting rod, a second connecting rod and a second spring, the first connecting rod is fixedly connected with the mounting plate, the second connecting rod is fixedly connected with the driving part, the bottom of the second connecting rod is inserted into the top of the first connecting rod, and the inner bottom wall of the first connecting rod is provided with the second spring.
Preferably, a connecting plate is arranged between the clamping plate and the connecting column, a sliding groove is formed in the bottom of the connecting plate and is connected with the clamping plate in a sliding mode, a fixing bolt is connected to the bottom of the clamping plate in a threaded mode, and a top plate is connected to the top of the fixing bolt in a rotating mode.
Preferably, the two sides of the lower surface of the mounting plate are fixedly provided with baking lamps, and the lower surface of each baking lamp is provided with a protective net.
Preferably, the number of massage balls is a plurality of, a plurality of the material of massage balls and massage roller is the silica gel material.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the utility model, through the arrangement of the driving part, the massage balls and the massage roller, when the massage is carried out, the driving part can drive the massage balls and the massage roller to transversely reciprocate, so that the massage can be carried out on the body of a patient in a reciprocating manner, the manual massage can be effectively replaced, and the labor force of medical staff is reduced.
2. According to the utility model, through the arrangement of the clamping plate and the adjusting mechanism, when the device is used, the height of the equipment box can be adjusted through the adjusting mechanism part, so that the device is suitable for patients with different body types, the device can be disassembled or the position of the device can be adjusted through the clamping plate, and the device is convenient for personnel to use.
Drawings

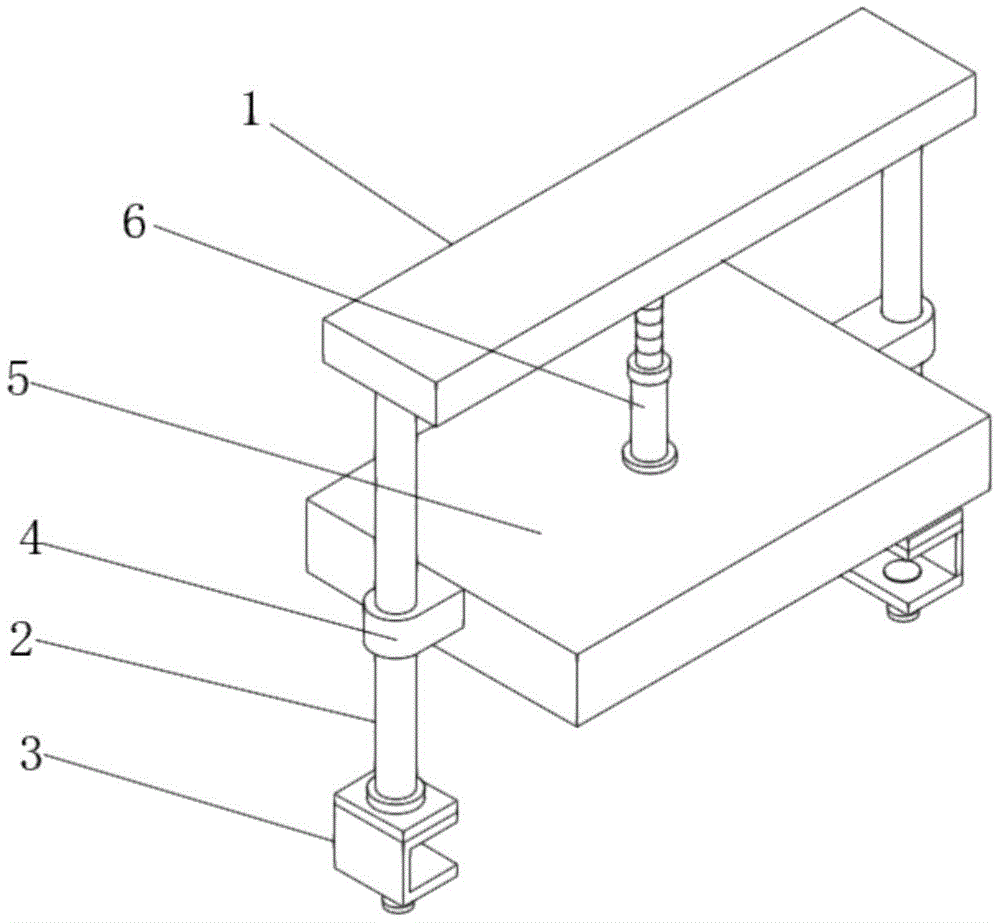

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic diagram of the overall front view structure of the present invention;
FIG. 3 is a schematic side sectional view of the equipment cabinet of the present invention;
FIG. 4 is a schematic structural view of a front cross section of the equipment cabinet of the present invention;
FIG. 5 is a bottom view of the mounting plate of the present invention;
FIG. 6 is a schematic view of the structure of the support post and the massage roller of the present invention;
FIG. 7 is a schematic view of the structure of the support bar of the present invention;
FIG. 8 is a schematic structural diagram of a clamping plate according to the present invention.
In the figure: 1. supporting a top plate; 2. connecting columns; 3. a clamping plate; 4. sleeving blocks; 5. an equipment box; 6. an adjustment mechanism; 601. fixing the rod; 602. an adjusting ring; 603. a threaded rod; 7. a drive section; 701. a drive motor; 702. a transmission gear; 703. a movable ring; 704. teeth; 705. a limiting slide way; 8. supporting the loop bar; 801. a first connecting rod; 802. a second connecting rod; 803. a second spring; 9. mounting a plate; 10. a mounting frame; 11. a massage ball; 12. a support pillar; 13. a massage roller; 14. a connecting plate; 15. baking a lamp; 16. a first spring.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-8, an embodiment of the present invention: an infant massage auxiliary device comprises a supporting top plate 1 and a connecting column 2, wherein the two sides of the lower surface of the supporting top plate 1 are fixedly connected with the connecting column 2, the bottom of the connecting column 2 is provided with a clamping plate 3, a connecting plate 14 is arranged between the clamping plate 3 and the connecting column 2, the bottom of the connecting plate 14 is provided with a chute, the chute is in sliding connection with the clamping plate 3, the bottom of the clamping plate 3 is in threaded connection with a fixing bolt, the top of the fixing bolt is rotatably connected with a top plate, the surface of the connecting column 2 is in sliding connection with a sleeve block 4, an equipment box 5 is fixedly connected between the sleeve blocks 4, an adjusting mechanism 6 is arranged between the upper surface of the equipment box 5 and the supporting top plate 1, the adjusting mechanism 6 comprises a fixing rod 601, an adjusting ring 602 and a threaded rod 603, the bottom of the fixing rod 601 is fixedly connected with the equipment box 5, the top of the fixing rod 601 is rotatably connected with the adjusting ring 602, and the threaded rod 603 is in threaded connection with the inner wall of the adjusting ring 602, the top of the threaded rod 603 is fixedly connected with the supporting top plate 1, through the arrangement of the clamping plate 3 and the adjusting mechanism 6, when in use, the height of the equipment box 5 can be adjusted through the adjusting mechanism 6, so as to be adapted to patients with different body types, the device can be disassembled or the position of the device can be adjusted through the clamping plate 3, thereby being convenient for personnel to use, a driving part 7 is arranged inside the equipment box 5, the driving part 7 comprises a driving motor 701, a transmission gear 702, a movable ring 703, teeth 704 and a limiting slide 705, the output end of the driving motor 701 is fixedly connected with the transmission gear 702, the inner top wall of the equipment box 5 is fixedly connected with the limiting slide 705, the bottom of the limiting slide 705 is slidably connected with the movable ring 703, the inner wall of the movable ring is fixedly connected with the teeth 704, the teeth 704 are meshed with the transmission gear 702, and the bottom of the driving part 7 is fixedly connected with the supporting sleeve rod 8, the support loop bar 8 comprises a first connecting bar 801, a second connecting bar 802 and a second spring 803, the first connecting bar 801 is fixedly connected with a mounting plate 9, the second connecting bar 802 is fixedly connected with a driving part 7, the bottom of the second connecting bar 802 is inserted into the top of the first connecting bar 801, the inner bottom wall of the first connecting bar 801 is provided with the second spring 803, the bottom of the support loop bar 8 is fixedly connected with the mounting plate 9, both sides of the lower surface of the mounting plate 9 are fixedly provided with a baking lamp 15, the lower surface of the baking lamp 15 is provided with a protective net, both sides of the lower surface of the mounting plate 9 are fixedly connected with mounting frames 10, the bottom of the mounting frame 10 is provided with massage balls 11, support columns 12 are arranged between the mounting frames 10, massage rollers 13 are rotatably connected between the support columns 12, the number of the massage balls 11 is several, the materials of the massage balls 11 and the massage rollers 13 are all silica gel materials, through the driving part 7, the arrangement of the massage balls 11 and the massage rollers 13, when massaging, the driving part 7 can drive the massage ball 11 and the massage roller 13 to do horizontal reciprocating motion, so that the patient can be pressed on the body of the patient in a reciprocating way, the manual massaging can be effectively replaced, the labor force of medical staff is reduced, and the first spring 16 is arranged between the massage roller 13 and the supporting column 12.
The working principle is as follows: when in use, a person can fix the device to two sides of a bed through the clamping plates 3 on two sides of the device, after the fixation is finished, the adjusting ring 602 can be rotated to rotate the threaded rod 603 out of the fixing rod 601, so that the equipment box 5 descends, when the device descends, the massage ball 11 and the massage roller 13 can be pressed on the body of a patient, after the device is pressed, the first spring 16 and the second spring 803 can effectively reduce the downward pressure applied to the patient by the massage ball 11 and the massage roller 13, so as to avoid discomfort caused to the person due to excessive downward pressure, then the driving part 7 can be opened, so that the driving motor 701 drives the transmission gear 702 to rotate, when the transmission gear 702 rotates, the movable ring 703 meshed with the transmission gear 702 can perform transverse reciprocating motion, when the movable ring 703 displaces, the massage roller 13 and the massage ball 11 at the bottom can perform reciprocating motion on the body of the patient to perform massage, when in winter, the person can open the baking lamp 15 at the bottom of the equipment box 5, the temperature below the equipment box 5 is increased, and the comfort of the patient is improved.
In summary, the present invention provides the driving unit 7, the massage balls 11 and the massage roller 13, so that the driving unit 7 can drive the massage balls 11 and the massage roller 13 to perform a transverse reciprocating motion during massage, so as to perform reciprocating pressing on the body of a patient, thereby effectively replacing manual massage, reducing the labor force of medical staff, and the height of the equipment box 5 can be adjusted by the adjusting mechanism 6 through the clamping plate 3 and the adjusting mechanism 6 during use, so as to adapt to patients with different body types, and the device can be detached or the position of the device can be adjusted through the clamping plate 3, thereby facilitating the use of the device.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (7)
1. The utility model provides an infant's auxiliary assembly of massaging, includes supporting roof (1) and spliced pole (2), its characterized in that: the massage table is characterized in that connecting columns (2) are fixedly connected to the two sides of the lower surface of the supporting top plate (1), a clamping plate (3) is arranged at the bottom of each connecting column (2), sleeve blocks (4) are connected to the surface of each connecting column (2) in a sliding mode, equipment boxes (5) are fixedly connected between the sleeve blocks (4), adjusting mechanisms (6) are arranged between the upper surfaces of the equipment boxes (5) and the supporting top plate (1), driving portions (7) are arranged inside the equipment boxes (5), supporting sleeve rods (8) are fixedly connected to the bottoms of the driving portions (7), mounting plates (9) are fixedly connected to the bottoms of the supporting sleeve rods (8), mounting frames (10) are fixedly connected to the two sides of the lower surface of each mounting plate (9), massage balls (11) are arranged at the bottoms of the mounting frames (10), and supporting columns (12) are arranged between the mounting frames (10), the massage roller is characterized in that a massage roller (13) is rotatably connected between the support columns (12), and a first spring (16) is arranged between the massage roller (13) and the support columns (12).
2. The infant massage aid of claim 1, wherein: adjustment mechanism (6) are including dead lever (601), adjustable ring (602) and threaded rod (603), the bottom and equipment box (5) fixed connection of dead lever (601), the top of dead lever (601) is rotated and is connected with adjustable ring (602), the inner wall threaded connection of adjustable ring (602) has threaded rod (603), the top and the roof of supporting (1) fixed connection of threaded rod (603).
3. The infant massage aid of claim 1, wherein: the driving part (7) comprises a driving motor (701), a transmission gear (702), a movable ring (703), teeth (704) and a limiting slide way (705), the output end of the driving motor (701) is fixedly connected with the transmission gear (702), the inner top wall of the equipment box (5) is fixedly connected with the limiting slide way (705), the bottom of the limiting slide way (705) is slidably connected with the movable ring (703), the inner wall of the movable ring (703) is fixedly connected with the teeth (704), and the teeth (704) are meshed with the transmission gear (702).
4. The infant massage aid of claim 1, wherein: the supporting sleeve rod (8) comprises a first connecting rod (801), a second connecting rod (802) and a second spring (803), the first connecting rod (801) is fixedly connected with the mounting plate (9), the second connecting rod (802) is fixedly connected with the driving part (7), the bottom of the second connecting rod (802) is inserted into the top of the first connecting rod (801), and the inner bottom wall of the first connecting rod (801) is provided with the second spring (803).
5. The infant massage aid of claim 1, wherein: be equipped with connecting plate (14) between grip block (3) and spliced pole (2), the spout has been seted up to the bottom of connecting plate (14), spout and grip block (3) sliding connection, the bottom threaded connection of grip block (3) has fixing bolt, fixing bolt's top is rotated and is connected with the roof.
6. The infant massage aid of claim 1, wherein: the both sides of mounting panel (9) lower surface are equal fixed mounting have roast lamp (15), the lower surface of roast lamp (15) is equipped with the protection network.
7. The infant massage aid of claim 1, wherein: the quantity of massage ball (11) is a plurality of, a plurality of the material of massage ball (11) and massage roller (13) is the silica gel material.
