Abstract
The utility model discloses a grinding device for a revolving body joint line, which belongs to the field of automation equipment and comprises a support, wherein a revolving support frame is arranged on one side of the support, a revolving speed reducing motor is arranged at the bottom of the revolving support frame, the revolving speed reducing motor can drive the revolving support frame to rotate on the support, a three-jaw chuck is arranged on the revolving support frame, and a revolving body is clamped on the three-jaw chuck; a swingable vertical plate is arranged on the other side of the support, a grinding main shaft is arranged on one side, close to the rotary support frame, of the vertical plate, a grinding wheel is arranged on the grinding main shaft, and the height of the grinding wheel is the same as that of a joint line of the rotary body; the air cylinder support is arranged on the other side of the vertical plate, an air cylinder is hinged to the air cylinder support, the end portion of the air cylinder is hinged to the vertical plate, and the air cylinder can drive the vertical plate to swing. According to the utility model, the automatic high-precision grinding of the revolving body joint line can be realized through the structure, the labor intensity is reduced, and the grinding efficiency is improved.
Description
Technical Field
The utility model relates to the field of automation equipment, in particular to a grinding device for a revolving body joint line.
Background
To two solid of revolution compound dies welding backs, need polish to the compound die line department, traditional mode is the manual work and polishes, along with automatic horizontally promotion, this polishing has adopted semi-automatization means at present, be about to the solid of revolution after the welding sets up on rotatable three-jaw chuck, drive the solid of revolution through rotatable three-jaw chuck and rotate, the workman takes grinding device to polish, efficiency has promoted half so almost, yet intensity of labour and efficiency are still very low, and the manual work power control of polishing is inaccurate, the product quality and the precision of polishing out are uneven.
In view of the problems in the prior art, the utility model designs and manufactures a revolving body joint line grinding device by combining years of design and use experience of related fields and assisting with over-strong professional knowledge, so as to overcome the defects.
SUMMERY OF THE UTILITY MODEL
For the problems in the prior art, the grinding device for the revolving body joint line provided by the utility model can realize automatic high-precision grinding of the revolving body joint line, reduce the labor intensity and improve the grinding efficiency.
In order to achieve the purpose, the technical scheme adopted by the utility model is as follows: a revolving body joint line grinding device comprises a support, wherein a revolving support frame is arranged on one side of the support, a revolving speed reduction motor is arranged at the bottom of the revolving support frame, the revolving speed reduction motor can drive the revolving support frame to rotate on the support, a three-jaw chuck is arranged on the revolving support frame, and a revolving body is clamped on the three-jaw chuck;
a swingable vertical plate is arranged on the other side of the support, a grinding main shaft is arranged on one side, close to the rotary support frame, of the vertical plate, a grinding wheel is arranged on the grinding main shaft, and the height of the grinding wheel is the same as that of a joint line of the rotary body;
the air cylinder support is arranged on the other side of the vertical plate, an air cylinder is hinged to the air cylinder support, the end portion of the air cylinder is hinged to the vertical plate, and the air cylinder can drive the vertical plate to swing.
Preferably, the rotary support frame is detachably provided with a height base plate, and the three-jaw chuck is detachably arranged on the height base plate.
Preferably, the support is further provided with a swing support frame, and the swing support frame is provided with a swing rotating shaft;
two bearing seats are arranged on the vertical plate and connected with the swing rotating shaft, and the vertical plate can swing around the swing rotating shaft.
Preferably, the bracket is further provided with a positioning support frame, the positioning support frame is provided with a hydraulic buffer, the hydraulic buffer is arranged on the side of the vertical plate close to the rotary support frame, and the hydraulic buffer can limit the swing angle of the vertical plate.
Preferably, a space is arranged between the vertical plate and the support.
Preferably, the position of the positioning support frame is adjustable.
Preferably, the rotating speed of the grinding wheel is greater than that of the rotary support frame.
The utility model discloses an useful part lies in:
(1) the utility model utilizes the rotary speed reducing motor and the three-jaw chuck to realize the clamping and the rotation of the rotary body, thereby facilitating the polishing of the joint line of the rotary body; and the automatic grinding is realized by combining the movable grinding main shaft and the grinding wheel.
(2) According to the utility model, the grinding spindle and the grinding wheel are arranged on the vertical plate capable of swinging, the air cylinder is utilized to drive the vertical plate to swing, so that the grinding wheel is contacted with the revolving body at the joint line, compared with the mode that the air cylinder directly drives the grinding wheel to approach, the torque borne by the air cylinder is greatly reduced, the service life of the air cylinder is prolonged, and meanwhile, a part of force is borne by the swinging rotating shaft, so that the stability of the grinding process is improved.
(3) The utility model can reasonably position the extending distance of the cylinder by using the hydraulic buffer, thereby ensuring the swing angle of the vertical plate and the grinding size of the grinding wheel.
Drawings

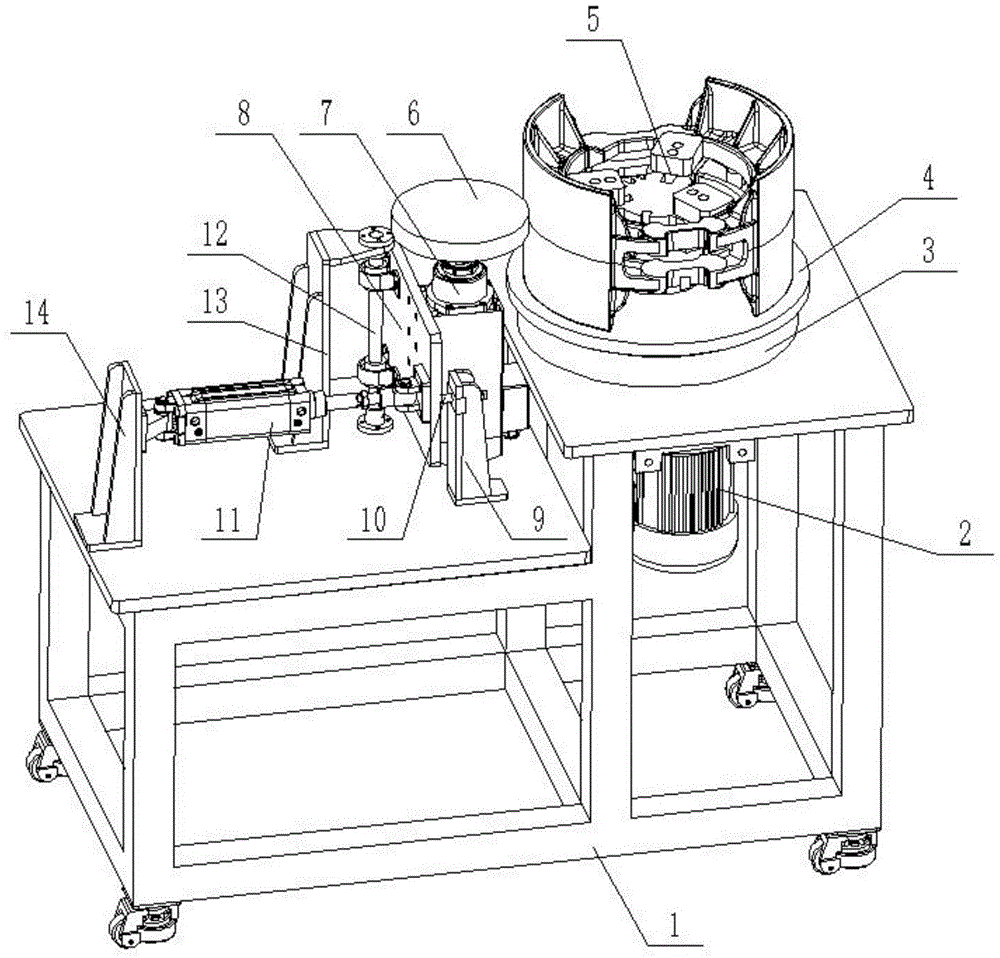

Fig. 1 is a schematic structural view of a revolving body joint line grinding device.
In the figure: the grinding machine comprises a support 1, a rotary speed reducing motor 2, a rotary support frame 3, a height cushion plate 4, a three-jaw chuck 5, a grinding wheel 6, a grinding spindle 7, a vertical plate 8, a positioning support frame 9, a hydraulic buffer 10, an air cylinder 11, a swing rotating shaft 12, a swing support frame 13 and an air cylinder support 14.
Detailed Description
In order to facilitate understanding for those skilled in the art, the present invention will be further described with reference to the accompanying drawings.
As shown in fig. 1, a revolving body joint line grinding device comprises a support 1, a revolving support frame 3 is arranged on one side of the support 1, a revolving speed reduction motor 2 is arranged at the bottom of the revolving support frame 3, the revolving speed reduction motor 2 can drive the revolving support frame 3 to rotate on the support 1, a three-jaw chuck 5 is arranged on the revolving support frame 3, a revolving body is clamped on the three-jaw chuck 5, the revolving body is clamped and rotated by the revolving speed reduction motor 2 and the three-jaw chuck 5, and grinding at the revolving body joint line is facilitated.
The other side of the bracket 1 is provided with a vertical plate 8 capable of swinging, and the concrete structure is as follows: the support 1 is further provided with a swing support frame 13, the swing support frame 13 is provided with a swing rotating shaft 12, the vertical plate 8 is provided with two bearing seats connected with the swing rotating shaft 12, the vertical plate 8 can swing around the swing rotating shaft 12, and a space is formed between the vertical plate 8 and the support 1.
According to the utility model, the grinding spindle 7 is arranged on one side, close to the rotary support frame 3, of the vertical plate 8, the grinding wheel 6 is arranged on the grinding spindle 7, the height of the grinding wheel 6 is the same as the height of a joint line of the rotary body, the cylinder support 14 is arranged on the other side of the vertical plate 8, the cylinder 11 is hinged to the cylinder support 14, the end part of the cylinder 11 is hinged to the vertical plate 8, the cylinder 11 can drive the vertical plate 8 to swing, and further drive the grinding wheel 6 to swing.
Because the extending distance of the air cylinder 11 is not controlled, the grinding depth of the grinding wheel 6 can be influenced, the bracket 1 is also provided with the positioning support frame 9, the position of the positioning support frame 9 can be adjusted, the positioning support frame 9 is provided with the hydraulic buffer 10, the hydraulic buffer 10 is arranged on the side of the vertical plate 8 close to the rotary support frame 3, and the hydraulic buffer 10 can limit the swing angle of the vertical plate 8 so as to limit the grinding size of the grinding wheel 6.
Detailed working process of the utility model
Firstly, fixing two welded revolving bodies on a revolving support frame 3 through a three-jaw chuck 5, and if the height of a joint line of the revolving bodies is not uniform with the height of a grinding wheel 6, adjusting the height through a detachable height backing plate 4; starting a rotary speed reducing motor 2 and a grinding spindle 7; then the cylinder 11 extends out, the vertical plate 8 swings around the swing rotating shaft 12, the vertical plate 8 is in contact with the hydraulic buffer 10, the hydraulic buffer 10 limits the swing angle of the vertical plate 8, and at the moment, the grinding wheel 6 is also in contact with the revolving body of the revolving support frame 3 to grind the joint line of the revolving body.
It should be understood that these examples are for illustrative purposes only and are not intended to limit the scope of the present invention. Further, it should also be understood that various alterations, modifications and/or variations can be made to the present invention by those skilled in the art after reading the technical content of the present invention, and all such equivalents fall within the protective scope defined by the claims of the present application.
Claims (7)
1. A revolving body joint line grinding device is characterized in that: the rotary support comprises a support, wherein a rotary support frame is arranged on one side of the support, a rotary speed reducing motor is arranged at the bottom of the rotary support frame, the rotary speed reducing motor can drive the rotary support frame to rotate on the support, a three-jaw chuck is arranged on the rotary support frame, and a rotary body is clamped on the three-jaw chuck;
a swingable vertical plate is arranged on the other side of the support, a grinding main shaft is arranged on one side, close to the rotary support frame, of the vertical plate, a grinding wheel is arranged on the grinding main shaft, and the height of the grinding wheel is the same as that of a joint line of the rotary body;
the air cylinder support is arranged on the other side of the vertical plate, an air cylinder is hinged to the air cylinder support, the end portion of the air cylinder is hinged to the vertical plate, and the air cylinder can drive the vertical plate to swing.
2. The revolving body joint line grinding device according to claim 1, characterized in that: the rotary support frame is detachably provided with a height base plate, and the three-jaw chuck is detachably arranged on the height base plate.
3. The revolving body joint line grinding device according to claim 1, characterized in that: the support is also provided with a swing support frame, and a swing rotating shaft is arranged on the swing support frame;
two bearing seats are arranged on the vertical plate and connected with the swing rotating shaft, and the vertical plate can swing around the swing rotating shaft.
4. The revolving body joint line grinding device according to claim 1, characterized in that: the support is further provided with a positioning support frame, the positioning support frame is provided with a hydraulic buffer, the hydraulic buffer is arranged on the side of the vertical plate close to the rotary support frame, and the hydraulic buffer can limit the swing angle of the vertical plate.
5. The revolving body joint line grinding device according to claim 1, characterized in that: and a space is arranged between the vertical plate and the bracket.
6. The revolving body joint line grinding device according to claim 4, wherein: the position of the positioning support frame is adjustable.
7. The revolving body joint line grinding device according to claim 1, characterized in that: the rotating speed of the grinding wheel is greater than that of the rotary support frame.
