CN215239919U

CN215239919U - Grinding device for machining automobile parts

Info

Publication number: CN215239919U
Application number: CN202120659270.9U
Authority: CN
Inventors: 周维军
Original assignee: Dongguan Weicheng Auto Parts Manufacturing Co ltd
Current assignee: Dongguan Weicheng Auto Parts Manufacturing Co ltd
Priority date: 2021-03-31
Filing date: 2021-03-31
Publication date: 2021-12-21
Anticipated expiration: 2031-03-31

Abstract

The utility model discloses a grinding device of auto-parts processing usefulness relates to auto-parts technical field that polishes. The utility model discloses a bottom plate, carousel and limiting plate, the fixed top that sets up at the bottom plate in lower part of carousel, the bottom fixed mounting of limiting plate is in the top of carousel. The utility model discloses a set up fixed cover of hydraulic pressure mechanism, hydraulic stem, right angle, annular, press from both sides tight fixedly to the auto-parts periphery for auto-parts is polishing man-hour, and more stability presss from both sides tight back, is difficult to take place to rock, and square accessory and circular article all can stably press from both sides tightly, and the fixed cover of annular can carry out the split according to the condition and use. Set up the carousel and can make the carousel rotate through first motor and first pivot, the fourth motor drives the wheel of polishing simultaneously and rotates and polish, makes the polisher can carry out diversified polishing to the article according to the requirement of polishing to the accessory, and is rotatory steady, regulates and control its rotation angle and rotation rate through the controller.

Description

Grinding device for machining automobile parts

Technical Field

The utility model belongs to the technical field of auto-parts polishes, especially relate to a grinding device of auto-parts processing usefulness.

Background

With the rapid development of the economic level and the development of science and technology in China, automobiles on streets have become a necessary transportation means in daily life. The automobile is driven by power and is mainly used for carrying personnel and goods and towing the personnel and the goods. The automobile brings convenience to our life, the automobile is assembled by automobile parts, the outer surfaces of a plurality of automobile parts need to be polished, but the existing polishing device has the following problems: firstly, the clamping degree is not high, so that the deviation is easily caused, and the polishing quality is influenced; secondly, the scraps cannot be processed in time, so that the polishing efficiency is influenced. In order to solve the problems, the polishing device for machining the automobile parts is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a grinding device of auto-parts processing usefulness to current problem has been solved: the existing grinding device is not high in clamping degree, deviation is easily caused, grinding quality is affected, and meanwhile scraps cannot be timely processed, so that grinding efficiency is affected.

In order to solve the technical problem, the utility model discloses a realize through following technical scheme:

the utility model relates to a grinding device of auto-parts processing usefulness, including bottom plate, carousel and limiting plate, the fixed top that sets up at the bottom plate in lower part of carousel, the bottom fixed mounting of limiting plate is in the top of carousel.

Further, the fixed spout that is provided with in front end both sides of limiting plate, the inside of spout is provided with the litter, just the rear end and the inside sliding connection of spout of litter, the outer end of litter is provided with hydraulic pressure mechanism, just the inboard upper end of hydraulic pressure mechanism and the outside fixed connection of litter, the inboard below of hydraulic pressure mechanism is provided with the hydraulic stem, just the rear end of hydraulic stem and the inboard fixed connection of hydraulic pressure mechanism, the front end fixed mounting of hydraulic stem has the fixed cover of right angle, the inboard of the fixed cover of right angle is provided with the fixed cover of annular, just the rear side of the fixed cover of annular and the front end swing joint of the fixed cover of right angle.

Further, the upper end of carousel is provided with the fourth motor, just the bottom surface of fourth motor and the upper end fixed connection of carousel, the front end of fourth motor is provided with the second pivot, just the rear end of second pivot is rotated with the front end of fourth motor and is connected, the front end of second pivot is provided with the wheel of polishing, just the middle part of the wheel of polishing and the front end fixed connection of second pivot.

Further, the upper end of bottom plate is provided with first motor, just the bottom of first motor and the upper end middle part fixed connection of bottom plate, the upper end of first motor is provided with first pivot, just the bottom of first pivot is rotated with the upper end of first motor and is connected, the upper end of first pivot is provided with the carousel, just the bottom of carousel and the upper end fixed connection of first pivot.

Furthermore, the middle part of the upper end of the rotary table is provided with a material receiving hole, the lower end of the material receiving hole is fixedly connected with the inner part of the upper end of the rotary table, the bottom end of the rotary table is provided with a collecting box, and the upper end of the collecting box is fixedly connected with the bottom end of the rotary table.

Further, the upper end of limiting plate is provided with the third motor, just the bottom surface of third motor and the upper end fixed connection of limiting plate, the lower extreme rear portion of limiting plate is provided with the lifter plate, just the upper end of lifter plate and the rear end bottom fixed connection of limiting plate, the lower extreme of lifter plate is provided with the second motor, just the upper end of second motor and the bottom fixed connection of lifter plate.

Further, the left side of bottom plate is provided with the controller, just the rear end of controller and the lateral part fixed connection of bottom plate, the upper end of bottom plate is provided with the second motor, just the lower extreme of second motor and the inside fixed connection of bottom plate rear end.

Further, the bottom plate bottom is provided with the support column, just the upper end of support column and the bottom fixed connection of bottom plate, the bottom of support column is provided with the directive wheel, just the upper end of directive wheel and the bottom fixed connection of support column.

The utility model discloses following beneficial effect has:

1. the utility model discloses a set up fixed cover of hydraulic pressure mechanism, hydraulic stem, right angle, annular, press from both sides tight fixedly to the auto-parts periphery for auto-parts is polishing man-hour, and more stability presss from both sides tight back, is difficult to take place to rock, and square accessory and circular article all can stably press from both sides tightly, and the fixed cover of annular can carry out the split according to the condition and use.

2. The utility model discloses a set up the carousel and can make the carousel rotate through first motor and first pivot, the fourth motor drives the wheel of polishing simultaneously and rotates and polish, makes the polisher can carry out diversified polishing to the article according to the requirement of polishing to the accessory, and is rotatory steady, regulates and control its rotation angle and rotation rate through the controller.

Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

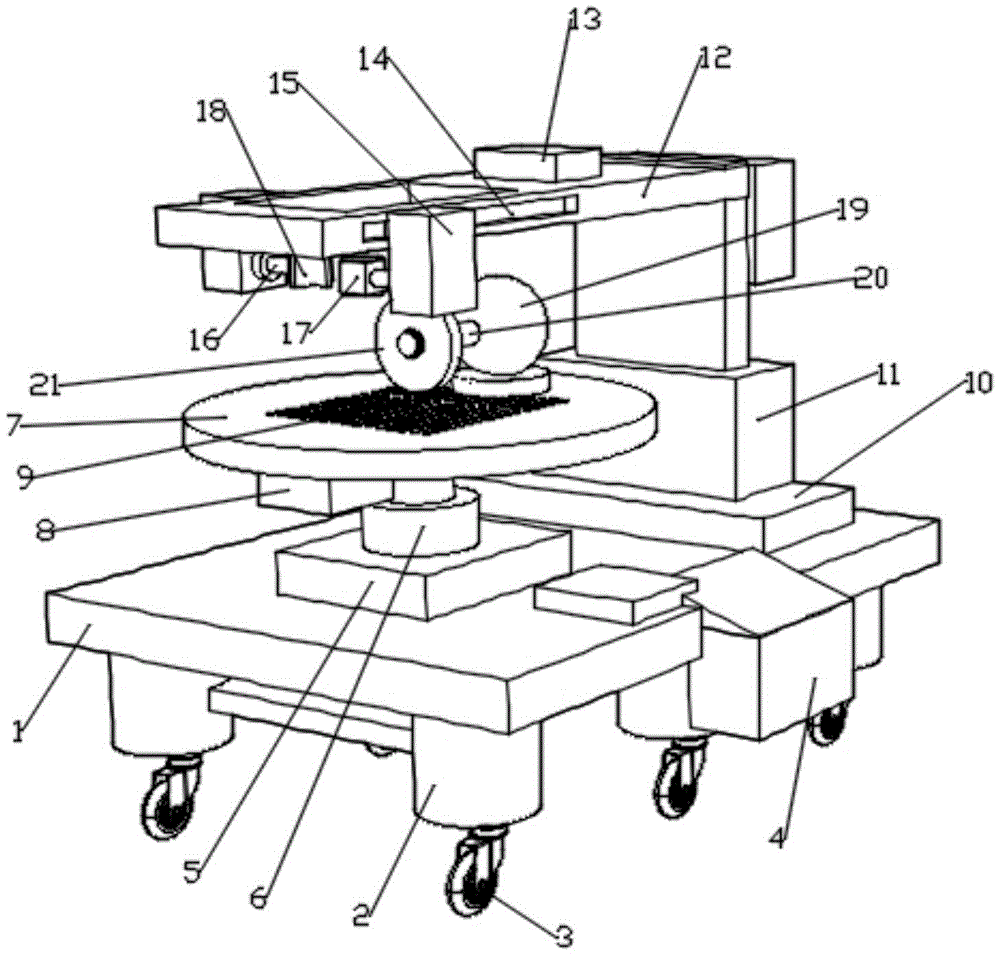

FIG. 1 is a schematic view of the overall structure of the polishing device for machining automobile parts of the present invention;

FIG. 2 is a side view of the overall structure of the polishing device for machining automobile parts;

FIG. 3 is an enlarged plan view of a fixing mechanism in the polishing device for machining automobile parts of the present invention;

figure 4 is the utility model discloses grinding device's that auto-parts processing was used overall structure front view.

In the drawings, the components represented by the respective reference numerals are listed below:

1. a base plate; 2. a support pillar; 3. a steering wheel; 4. a controller; 5. a first motor; 6. a first rotating shaft; 7. a turntable; 8. a collection box; 9. a material receiving hole; 10. a second motor; 11. a lifting plate; 12. a limiting plate; 13. a third motor; 14. a chute; 15. a hydraulic mechanism; 16. a hydraulic lever; 17. a right-angle fixing sleeve; 18. an annular fixing sleeve; 19. a fourth motor; 20. a second rotating shaft; 21. grinding the wheel; 22. and (4) sliding the rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention relates to a polishing device for processing auto parts, which comprises a bottom plate 1, a turntable 7 and a limiting plate 12, wherein the lower portion of the turntable 7 is fixed above the bottom plate 1, and the bottom end of the limiting plate 12 is fixed above the turntable 7. The two sides of the front end of the limit plate 12 are fixedly provided with sliding chutes 14, the inside of the sliding chute 14 is provided with a sliding rod 22, the rear end of the sliding rod 22 is connected with the inside of the sliding chute 14 in a sliding manner, the outer end of the sliding rod 22 is provided with a hydraulic mechanism 15, the upper end of the inner side of the hydraulic mechanism 15 is fixedly connected with the outside of the sliding rod 22, the hydraulic rod 16 is arranged below the inner side of the hydraulic mechanism 15, the rear end of the hydraulic rod 16 is fixedly connected with the inner side of the hydraulic mechanism 15, the front end of the hydraulic rod 16 is fixedly provided with a right-angle fixing sleeve 17, the inner side of the right-angle fixing sleeve 17 is provided with an annular fixing sleeve 18, and the rear side of the annular fixing sleeve 18 is movably connected with the front end of the right-angle fixing sleeve 17. The upper end of carousel 7 is provided with fourth motor 19, and the bottom surface of fourth motor 19 and the upper end fixed connection of carousel 7, the front end of fourth motor 19 is provided with second pivot 20, and the rear end of second pivot 20 rotates with the front end of fourth motor 19 to be connected, the front end of second pivot 20 is provided with polishes wheel 21, and the middle part of polishing wheel 21 and the front end fixed connection of second pivot 20, press from both sides to press from both sides tight fixed to auto-parts periphery, make auto-parts when polishing man-hour, more stable, press from both sides tight back, be difficult to take place to rock, square accessory and circular article all can stably press from both sides tightly, annular fixed cover 18 can carry out the split according to the condition and use.

The upper end of bottom plate 1 is provided with first motor 5, and the bottom of first motor 5 and the upper end middle part fixed connection of bottom plate 1, and the upper end of first motor 5 is provided with first pivot 6, and the bottom of first pivot 6 rotates with the upper end of first motor 5 to be connected, and the upper end of first pivot 6 is provided with carousel 7, and the bottom of carousel 7 and the upper end fixed connection of first pivot 6. The upper end middle part of carousel 7 is provided with receipts material hole 9, and receives the inside fixed connection in lower extreme and the upper end of carousel 7 of material hole 9, and the bottom of carousel 7 is provided with collects box 8, and collects the upper end of box 8 and the bottom fixed connection of carousel 7. The upper end of limiting plate 12 is provided with third motor 13, and the bottom surface of third motor 13 and the upper end fixed connection of limiting plate 12, the lower extreme rear portion of limiting plate 12 is provided with lifter plate 11, and the upper end of lifter plate 11 and the rear end bottom fixed connection of limiting plate 12, the lower extreme of lifter plate 11 is provided with second motor 10, and the upper end of second motor 10 and the bottom fixed connection of lifter plate 11, carousel 7 can make carousel 7 rotate through first motor 5 and first pivot 6, fourth motor 19 drives wheel 21 and rotates simultaneously and polish, make the polisher can carry out diversified polishing to the article according to the requirement of polishing to the accessory, it is rotatory steady, regulate and control its rotation angle and rotation speed through controller 4.

The left side of bottom plate 1 is provided with controller 4, and the rear end of controller 4 and the lateral part fixed connection of bottom plate 1, and the upper end of bottom plate 1 is provided with second motor 10, and the lower extreme of second motor 10 and the inside fixed connection of bottom plate 1 rear end. The bottom of the bottom plate 1 is provided with a supporting column 2, the upper end of the supporting column 2 is fixedly connected with the bottom of the bottom plate 1, the bottom of the supporting column 2 is provided with a steering wheel 3, the upper end of the steering wheel 3 is fixedly connected with the bottom of the supporting column 2, the device can be driven to move rapidly, labor pressure is relieved, and work efficiency is improved.

One specific application of this embodiment is: when in use, firstly, the external power supply of the device is turned on, firstly, the sliding chutes 14 are fixedly arranged on the two sides of the front end of the limit plate 12, the rear end of the sliding rod 22 is connected with the inner part of the sliding chute 14 in a sliding way, the outer end of the sliding rod 22 is provided with the hydraulic mechanism 15, the rear end of the hydraulic rod 16 is fixedly connected with the inner side of the hydraulic mechanism 15, the front end of the hydraulic rod 16 is fixedly provided with the right-angle fixed sleeve 17, then the inner side of the right-angle fixed sleeve 17 is provided with an annular fixed sleeve 18 which can be detached according to the use condition, the bottom surface of a fourth motor 19 is fixedly connected with the upper end of the turntable 7, the front end of the fourth motor 19 is provided with a second rotating shaft 20, the periphery of the automobile accessory is clamped and fixed, so that the automobile accessory is more stable during polishing, and after being clamped, the square accessory and the round object can be stably clamped, and the annular fixing sleeve 18 can be detached according to the condition. The bottom of first motor 5 and the upper end middle part fixed connection of bottom plate 1, the upper end of first motor 5 is provided with first pivot 6, the bottom of carousel 7 and the upper end fixed connection of first pivot 6. The middle part of the upper end of the rotary disc 7 is provided with a material receiving hole 9, and the upper end of the collecting box 8 is fixedly connected with the bottom end of the rotary disc 7. Limiting plate 12's upper end is provided with third motor 13, and the upper end of lifter plate 11 and limiting plate 12's rear end bottom fixed connection, carousel 7 can make carousel 7 rotate through first motor 5 and first pivot 6, and fourth motor 19 drives grinding wheel 21 and rotates simultaneously and polish, makes the polisher can carry out diversified polishing to the article according to the requirement of polishing to the accessory, and is rotatory steady, regulates and control its rotation angle and rotation rate through controller 4. The upper end of support column 2 and the bottom fixed connection of bottom plate 1, the upper end of directive wheel 3 and the bottom fixed connection of support column 2 can drive the device and carry out the quick travel, alleviate artifical work pressure, improve work efficiency.

In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims

1. The utility model provides a grinding device of auto-parts processing usefulness, includes bottom plate (1), carousel (7) and limiting plate (12), its characterized in that: the lower part of the rotary table (7) is fixedly arranged above the bottom plate (1), and the bottom end of the limiting plate (12) is fixedly arranged above the rotary table (7).

2. The polishing apparatus for automobile accessory processing according to claim 1, sliding grooves (14) are fixedly arranged on two sides of the front end of the limiting plate (12), a sliding rod (22) is arranged inside the sliding grooves (14), the rear end of the sliding rod (22) is connected with the inside of the sliding groove (14) in a sliding way, the outer end of the sliding rod (22) is provided with a hydraulic mechanism (15), and the upper end of the inner side of the hydraulic mechanism (15) is fixedly connected with the outside of the slide rod (22), a hydraulic rod (16) is arranged below the inner side of the hydraulic mechanism (15), and the rear end of the hydraulic rod (16) is fixedly connected with the inner side of the hydraulic mechanism (15), a right-angle fixing sleeve (17) is fixedly arranged at the front end of the hydraulic rod (16), the inner side of the right-angle fixed sleeve (17) is provided with an annular fixed sleeve (18), and the rear side of the annular fixed sleeve (18) is movably connected with the front end of the right-angle fixed sleeve (17).

3. The grinding device for machining the automobile accessories is characterized in that a fourth motor (19) is arranged at the upper end of the rotary table (7), the bottom surface of the fourth motor (19) is fixedly connected with the upper end of the rotary table (7), a second rotating shaft (20) is arranged at the front end of the fourth motor (19), the rear end of the second rotating shaft (20) is rotatably connected with the front end of the fourth motor (19), a grinding wheel (21) is arranged at the front end of the second rotating shaft (20), and the middle of the grinding wheel (21) is fixedly connected with the front end of the second rotating shaft (20).

4. The grinding device for machining the automobile accessories is characterized in that a first motor (5) is arranged at the upper end of the base plate (1), the bottom end of the first motor (5) is fixedly connected with the middle of the upper end of the base plate (1), a first rotating shaft (6) is arranged at the upper end of the first motor (5), the bottom end of the first rotating shaft (6) is rotatably connected with the upper end of the first motor (5), a rotating disc (7) is arranged at the upper end of the first rotating shaft (6), and the bottom end of the rotating disc (7) is fixedly connected with the upper end of the first rotating shaft (6).

5. The grinding device for machining the automobile accessories is characterized in that a material receiving hole (9) is formed in the middle of the upper end of the rotary table (7), the lower end of the material receiving hole (9) is fixedly connected with the inner portion of the upper end of the rotary table (7), a collecting box (8) is arranged at the bottom end of the rotary table (7), and the upper end of the collecting box (8) is fixedly connected with the bottom end of the rotary table (7).

6. The grinding device for machining automobile accessories according to claim 1, wherein a third motor (13) is arranged at the upper end of the limiting plate (12), the bottom surface of the third motor (13) is fixedly connected with the upper end of the limiting plate (12), a lifting plate (11) is arranged at the rear part of the lower end of the limiting plate (12), the upper end of the lifting plate (11) is fixedly connected with the bottom part of the rear end of the limiting plate (12), a second motor (10) is arranged at the lower end of the lifting plate (11), and the upper end of the second motor (10) is fixedly connected with the bottom end of the lifting plate (11).

7. The grinding device for machining the automobile accessories is characterized in that a controller (4) is arranged on the left side of the base plate (1), the rear end of the controller (4) is fixedly connected with the side portion of the base plate (1), a second motor (10) is arranged at the upper end of the base plate (1), and the lower end of the second motor (10) is fixedly connected with the inner portion of the rear end of the base plate (1).

8. The grinding device for machining the automobile accessories is characterized in that a supporting column (2) is arranged at the bottom end of the bottom plate (1), the upper end of the supporting column (2) is fixedly connected with the bottom end of the bottom plate (1), a steering wheel (3) is arranged at the bottom end of the supporting column (2), and the upper end of the steering wheel (3) is fixedly connected with the bottom end of the supporting column (2).
