Special sleeping bag of orthopedics old patient

Technical Field

The utility model belongs to the technical field of sleeping bags, and particularly relates to a sleeping bag special for orthopedic elderly patients.

Background

Along with the aging of society, old fracture patient is more and more, and restlessness appears easily after the old person's fracture operation, and various pipes that the patient often pulled out on one's body when restlessness or sleep appear, tear incision dressing and even scratch incision, bring the degree of difficulty for treatment and nursing, increase the misery for patient, adopt sedative and restraint strap to restless patient usually in clinic, but the effect is unsatisfactory, unexpected tube drawing and tear incision incident and take place occasionally.

Disclosure of Invention

The utility model aims to provide a sleeping bag special for an orthopedic elderly patient, and aims to solve the problems that in the prior art, patients often pull various catheters from the body, tear incision dressings, even scratch incisions and slip off drainage tubes.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a special sleeping bag of orthopedics old patient, includes upper bag and lower floor's bag, first bidirectional zipper has been made up to the both sides of upper bag and lower floor's bag, the second bidirectional zipper has been made up to upper bag and lower floor's bag bottom, disjunctor sleeve has been made up to the both sides of upper bag, two the frenulum has been made up to the one end avris of disjunctor sleeve, the bottom of lower floor's bag is provided with fixed interlude mechanism, the protection cotton piece has been made up to the both sides of upper bag one end.

Preferably, one end of the side of the lace is provided with a plurality of button holes, and a button is sewn on the side of one of the button holes.

Preferably, an integrated pillowcase is arranged inside one end of the lower bag.

Preferably, the inserting mechanism comprises a plurality of groups of invisible small holes formed at the bottom end of the lower bag, and a fixing band is arranged at the side of the lower bag at the bottom end of each invisible small hole.

Preferably, the down feather cotton is filled in the upper layer bag and the lower layer bag, and the outer layers of the upper layer bag and the lower layer bag are both made of pure cotton fabric.

Preferably, the side of the upper bag is sewn with a plurality of sub magic tapes, one side of the lower bag is sewn with a plurality of female magic tapes, and the sub magic tapes are connected with the female magic tapes.

Compared with the prior art, the utility model has the beneficial effects that:

a plurality of invisible pores opened at the bottom of the lower bag are convenient for inserting catheters with different functions, fixing bands at the sides of the invisible pores to prevent accidental slippage of the catheters, and simultaneously, tying bands and matching buttons and button holes are arranged at one ends of the two connected sleeves, so that the wrist of a patient can be wound and fixed, and when the patient sleeps in restless or night, both hands of the patient stretch into the sleeves, and incision dressings and various catheters are torn when the patient sleeps in restless or night.

Drawings

The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate embodiments of the utility model and together with the description serve to explain the principles of the utility model and not to limit the utility model. In the drawings:

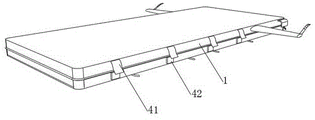

FIG. 1 is a schematic structural view of example 1 of the present invention;

FIG. 2 is a schematic view of a structure of a hidden pinhole according to embodiment 1 of the present invention;

fig. 3 is a schematic structural view of a fastening band according to embodiment 1 of the present invention;

FIG. 4 is a schematic view of the connected sleeve structure of embodiment 1 of the present invention;

fig. 5 is a schematic structural view of a female magic tape in embodiment 2 of the present invention.

In the figure: 1. an upper bag; 11. a first two-way zipper; 12. a second two-way zipper; 13. a connected sleeve; 14. a tie strap; 141. a buttonhole; 142. a button; 2. a lower layer bag; 21. an integrated pillowcase; 3. an inserting mechanism; 31. invisible pores; 32. fixing belts; 4. a sub-magic tape; 41. female magic subsides.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Example 1

Referring to fig. 1-4, the present invention provides the following technical solutions:

the utility model provides a special sleeping bag of orthopedics old patient, includes upper bag 1 and lower floor's bag 2, first bidirectional zipper 11 has been made up to the both sides of upper bag 1 and lower floor's bag 2, second bidirectional zipper 12 has been made up to upper bag 1 and lower floor's bag 2 bottom, disjunctor sleeve 13 has been made up to the both sides of upper bag 1, frenulum 14 has been made up to the one end avris of two disjunctor sleeves 13, the bottom of lower floor's bag 2 is provided with fixed interlude mechanism 3, the cotton piece of protection has been made up to the both sides of upper bag 1 one end.

During the specific use, through mutually supporting of the first two-way zip fastener 11 and the second two-way zip fastener 12 that set up, be convenient for open upper bag 1 and lower floor's bag 2 and make things convenient for patient to lie into, be convenient for the observation of wound and treatment and operation such as change of dressings, make things convenient for patient to carry out the function exercise simultaneously, shoulder pull head department protection cotton piece, increase shoulder comfort, and divide into upper bag 1 and lower floor's bag 2 with the sleeping bag, be convenient for daily change and washing, stretch into disjunctor sleeve 13 with both hands when making things convenient for patient's restlessness or sleep in, frenulum 14 through the avris is in wrist department, the elasticity is adjusted according to the patient's moderate degree, tear incision dressing and various pipes when avoiding patient's restlessness or sleep.

A plurality of button holes 141 are formed at one end of the side of the fastening band 14, and a button 142 is sewn at the side of one of the button holes 141.

When the adjustable fixing device is used specifically, the proper fixing degree can be adjusted through the button holes 141 and the buttons 142 on the lace 14 according to the comfort of a patient.

An integrated pillowcase 21 is arranged inside one end of the lower layer bag 2.

When in specific use, the integrated pillowcase 21 is convenient for the head of a patient to lean on.

The inserting mechanism 3 comprises a plurality of groups of invisible small holes 31 arranged at the bottom end of the lower layer bag 2, and a fixing belt 32 is arranged at the side of the lower layer bag 2 at the bottom end of each invisible small hole 31.

When the sandwiched sleeping bag is used specifically, 1.5cm invisible small holes 31 are respectively designed at the positions of 30cm, 60cm, 80cm and 120cm of the lower layer of the sandwiched sleeping bag, tying belts 14 are respectively sewn below the 8 small holes, a thoracic drainage tube at 30cm can penetrate out of the positions, an abdominal drainage tube is penetrated at 60cm, a urethral catheter and a hip drainage tube are penetrated at 80cm, a calf drainage tube is penetrated at 120cm, and the drainage tube is fixed by a fixing belt 32 after penetrating out of the small holes so as to prevent the catheter from slipping accidentally.

The inner parts of the upper layer bag 1 and the lower layer bag 2 are filled with down cotton, and the upper layer bag 1 and the lower layer bag 2 are both made of pure cotton fabric.

During the specific use, fill the feather cotton through the upper bag 1 that sets up and 2 inside of lower floor's bag and be convenient for keep warm, promote the comfort level that the patient used through the pure cotton surface fabric simultaneously.

The upper layer bag 1 and the lower layer bag 2 are 225cm in length and 100cm in width, the two sleeves are 70cm in length and 3cm in length and 25cm in width of the plurality of ties 14, the plurality of groups of invisible small holes 31 formed in the bottom of the lower layer bag 2 are respectively 30cm, 60cm, 80cm and 120cm at the end of the lower layer bag 2, and the diameter of the invisible small holes 31 is 1.5 cm.

When in specific use, the catheter inserted into the body of a patient is inserted into the invisible small hole 31 at the designated position according to different parts, passes through the invisible small hole and is fixed at the bottom of the lower layer bag 2.

The working principle is as follows: the sleeping bag is designed according to the body types of different elderly patients, the length of the sleeping bag is 225cm, the width of the sleeping bag is 100cm, the down feather cotton is filled in the upper layer bag 1 and the lower layer bag 2, and the fabric used outside is pure cotton fabric, so that the sleeping bag is convenient for warming the elderly patients, and meanwhile, the use comfort level is improved;

when an old patient enters the sleeping bag, the sleeping bag can be opened through the first bidirectional zippers 11 on the two sides of the sleeping bag and the second bidirectional zippers 12 at the bottom of the sleeping bag, the patient can conveniently lie in the sleeping bag, meanwhile, the daily medical staff can conveniently observe the injury of the patient and change medicines and the like, the patient can conveniently carry out functional exercise, the protective cotton blocks at the shoulder pull heads are protected, the comfortable sensation of the shoulders of the patient is increased, and the upper layer bag 1 and the lower layer bag 2 are designed to be layered and are convenient to change and clean;

the head end of the lower layer bag 2 is provided with an integrated pillowcase 21 for facilitating sleeping of a patient, the positions, 30cm away from the edges, of two sides of the shoulder of the upper layer bag 1 are provided with arm connected sleeves 13, the sleeves are 70cm long, the tail ends of the sleeves are embedded, fingers are not exposed, the sleeves are connected with the sleeping bag in a wider tightness degree, a lacing 14 on one side of each connected sleeve 13 is provided with a button hole 141 and a button 142 for adjusting the tightness degree, two hands of a restless patient or during sleeping can be inserted into the sleeves, the lacing 14 is tied at the wrist and is proper in tightness degree, and the situation that incision dressings and various catheters are torn when the patient is restless or sleeps is avoided;

different drainage tubes can be inserted conveniently through the invisible small holes 31 of 1.5cm at the positions of 30cm, 60cm, 80cm and 120cm arranged at different intervals on the lower layer bag 2, the thoracic drainage tube at the position of 30cm can penetrate out of the invisible small holes, the abdominal drainage tube at the position of 60cm is penetrated through the abdominal drainage tube at the position of 80cm, the urethral catheter and the hip drainage tube are penetrated through the position of 120cm, the calf drainage tube is penetrated through the position of 120cm, and the drainage tube is fixed by the fixing belt 32 after penetrating out of the small holes, so that the catheter is prevented from slipping accidentally.

Example 2

Referring to fig. 5, a plurality of sub hook and loop fasteners 4 are sewn on the side of the upper bag 1, a plurality of female hook and loop fasteners 41 are sewn on one side of the lower bag 2, and the sub hook and loop fasteners 4 are connected to the female hook and loop fasteners 41.

When specifically using, be convenient for paste fixedly upper bag 1 and lower floor's bag 2 through the son magic subsides 4 and the female magic subsides 41 that set up.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the utility model. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims (6)

1. The utility model provides a special sleeping bag of orthopedics old patient, includes upper bag (1) and lower floor's bag (2), its characterized in that, first bidirectional zipper (11) have been made to the both sides of upper bag (1) and lower floor's bag (2), second bidirectional zipper (12) have been made to upper bag (1) and lower floor's bag (2) bottom, disjunctor sleeve section of thick bamboo (13) have been made to the both sides of upper bag (1), two frenulum (14) have been made to the one end avris of disjunctor sleeve section of thick bamboo (13), the bottom of lower floor's bag (2) is provided with fixed interlude mechanism (3), the protection cotton piece has been made to the both sides of upper bag (1) one end.

2. The sleeping bag special for the orthopedic elderly patients as claimed in claim 1, wherein: a plurality of button holes (141) are formed in one end of the side of the lace (14), and a button (142) is sewn on the side of one of the button holes (141).

3. The sleeping bag special for the orthopedic elderly patients as claimed in claim 1, wherein: an integrated pillowcase (21) is arranged inside one end of the lower layer bag (2).

4. The sleeping bag special for the orthopedic elderly patients as claimed in claim 1, wherein: the inserting mechanism (3) comprises a plurality of groups of invisible small holes (31) formed at the bottom end of the lower bag (2), and a fixing belt (32) is arranged on the side of the lower bag (2) at the bottom end of each invisible small hole (31).

5. The sleeping bag special for the orthopedic elderly patients as claimed in claim 1, wherein: the down feather cotton is filled in the upper layer bag (1) and the lower layer bag (2), and the upper layer bag (1) and the lower layer bag (2) are both made of pure cotton fabric.

6. The sleeping bag special for the orthopedic elderly patients as claimed in claim 1, wherein: a plurality of sub-magic tapes (4) are sewn at the side of the upper layer bag (1), a plurality of female magic tapes (41) are sewn at one side of the lower layer bag (2), and the sub-magic tapes (4) are connected with the female magic tapes (41) in a sticking manner.
