Even detachable restraint gloves of sleeve

Technical Field

The utility model relates to the technical field of medical supplies, in particular to a detachable constraint glove with sleeves.

Background

The patient can easily pull out the respiratory tract, the nasogastric tube, the urinary catheter and the venous access tube by himself under the conditions of cognitive disorder, unconsciousness, dysphoria and poor compliance. The restraint strap is a device for protecting the safety of patients, is used for restraining the behaviors of patients with self-injury or personal injury risks due to psychological or physiological factors, ensures the safety of the patients and other personnel, and is the most commonly used method for preventing accidental extubation in clinic. Traditional wrist protective restraint strap is made up by a rectangle broadcloth cotton pad, during the use earlier with cotton pad encircleing parcel patient's wrist, make double-set knot after crossing the winding with two nylon fixing bands on the cotton pad, then tie the fixing band in the bed edge, in clinical work, because restless patient's hand often can unconsciously scratch, the health can move to the next door of hand again, because the flexibility of finger activity, it unties restraint strap by oneself to take place patient often, leads to unexpected extubation.

In the prior art, patent application No. 201820355147.6 discloses a slip-resistant restraining glove, but has the following disadvantages: under the condition of using the restraint strap, the patient can still utilize one hand or two hands to restrain the gloves to reach the head and neck pipeline under the condition of raising the head and lifting the chest, and pull out the pipeline; the restraint glove and the sleeve extend to the middle and rear parts of the arm, so that the nursing staff can not observe the condition of restraining the venous access of the arm and can not carry out transfusion operation under the condition of restraint; the use is troublesome each time, the fixed point is many, can not simply restrain under the condition that the patient accompanies, sleeps.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a to the not enough of prior art, the utility model provides a even detachable restraint gloves of sleeve has solved the problem of proposing among the above-mentioned background art.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: including preventing grabbing the board, prevent grabbing the board and be located the back of gloves, its positive fixedly connected with ventilative net has the infusion seam on the ventilative net, prevent the first soft body of one side fixedly connected with of grabbing the board, the first locking area of one side fixedly connected with of first soft body surface, the first magic of the positive fixedly connected with of first soft body surface pastes female area, the first magic of the first soft body surface back fixedly connected with pastes sub-area. One side of the soft body is fixedly connected with a connecting band, one side of the connecting band is fixedly connected with a zipper strip, the inside of the zipper strip is connected with a zipper in a sliding manner, one side of the zipper strip is fixedly connected with a hand sleeve, the hand sleeve extends to about 7cm from the upper arm, the middle of the front surface of the outer surface of the hand sleeve is slotted, one side of the slot is fixed by a male hidden button, the other side of the slot is fixed by a female hidden button, one side of the hand sleeve is fixedly connected with a second soft body, the front surface of the outer surface of the second soft body is fixed with a second magic tape, the back surface of the outer surface of the second soft body is fixedly connected with a second magic tape, and one side of the second soft body is fixedly connected with a second locking tape.

Optionally, the number of the male hidden buttons is 4, and the distance between every two male hidden buttons is 7 cm.

Optionally, the number of the female hidden buttons is 4, the distance between every two female hidden buttons is 7cm, and the 4 female hidden buttons are matched with the 4 male hidden buttons in pairs.

Optionally, the first soft body and the second soft body are both made of foam.

Optionally, the breathable net is made of nylon.

Optionally, the hand oversleeve is made of soft cloth, a lining is arranged inside the hand oversleeve, and the lining is made of ninety-three percent cotton and spandex.

(III) advantageous effects

The utility model provides a link detachable restraint gloves of sleeve possesses following beneficial effect:

1. this detachable restraint gloves of even sleeve, through the setting of infusion seam on ventilative net, the nursing staff can need not to relieve the restraint gloves venous transfusion on the back of the hand of patient, this detachable restraint gloves of even sleeve, the setting of hidden discount cracks through the arm sleeve, make the nursing staff can carry out infusion operation under the condition that uses even sleeve formula restraint gloves to the patient of central vein catheterization of peripheral venipuncture, need not to untie restraint gloves, this detachable restraint gloves of even sleeve, through the setting of even sleeve and second magic subsides and second locking band, make the second magic subsides around the upper arm and glue tightly, second locking band is in the bedrail, even sleeve formula restraint gloves are difficult for the slippage and struggle to take off, patient can not lift and lift the head through both hands and lift the chest mode and make hand and neck portion contact and lead to the tube drawing.

2. The detachable constraint glove with the connected sleeves has the advantages that through the arrangement of the zipper strips, a doctor and a patient can separate the sleeves of the hands and the patients as required through the zipper, only the front constraint glove is used under the permission of the patient, the first magic tape is tightly adhered to the glove opening, the first locking tape is tightly fastened or tied to the bed head, then through the arrangement of the first flexible body, the patient can effectively prevent the arm friction when using the detachable constraint glove with the connected sleeves, the comfort level of the patient is improved, through the arrangement of the first flexible body, the detachable constraint glove with the connected sleeves, after the patient wears the detachable constraint glove with the connected sleeves, the first magic tape and the second magic tape can be used for winding the first flexible body and the second flexible body, then through the arrangement of the first magic tape and the second magic tape on the back, the purpose of better fastening effect can be achieved, meanwhile, through the arrangement of the first flexible body and the second flexible body, when the patient uses the first magic tape and the second magic tape, the compression on limbs is reduced, and the comfort level is improved.

Drawings

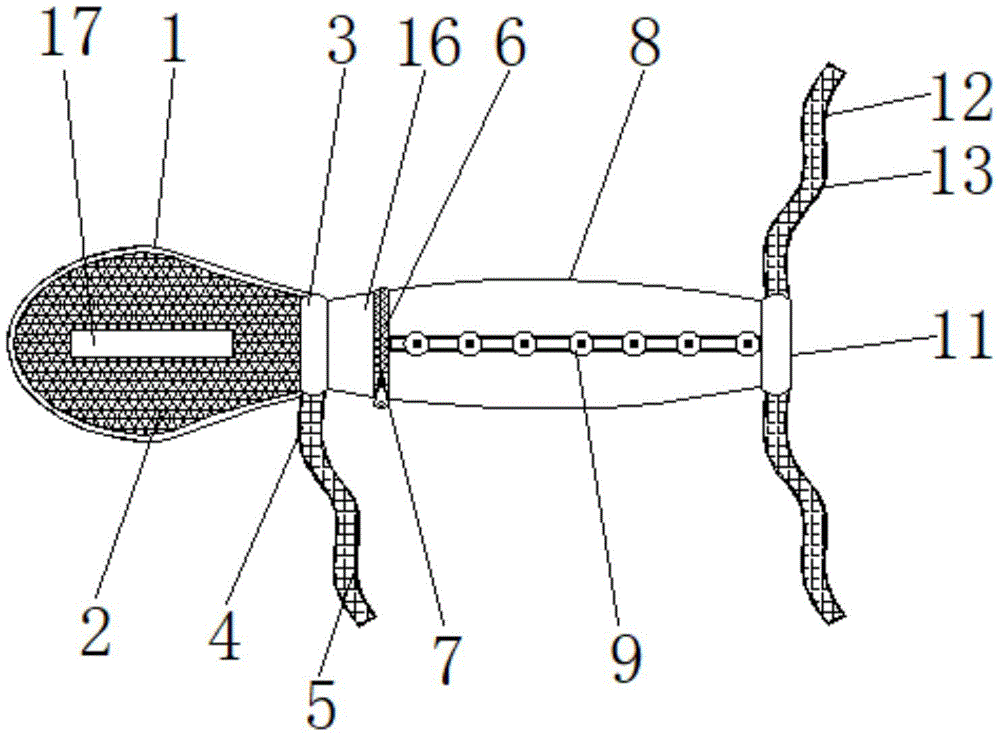

FIG. 1 is a schematic view of a first embodiment of the present invention;

fig. 2 is a schematic diagram of a second structural configuration of the present invention;

fig. 3 is a schematic view of the rear view structure of the present invention.

In the figure: 1. a catch prevention plate; 2. a breathable net; 3. a first soft body; 4. a first locking band; 5. a first magic tape female tape; 6. a zipper strip; 7. a zipper; 8. a hand sleeve; 9. a button; 10. a button seam; 11. A second soft body; 12. a second locking band; 13. a second hook and loop fastener tape; 14. a second hook and loop fastener tape; 15. a first magic tape; 16. a connecting belt; 17. and (6) sewing the infusion.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1 to 3, the present invention provides a technical solution: a sleeve-connected detachable constraint glove comprises a grabbing-preventing plate 1, wherein a breathable net 2 is fixedly connected to the front side of the grabbing-preventing plate 1, an infusion seam 17 is formed in the breathable net 2, infusion is performed on the back of a hand through the infusion seam, a first soft body 3 is fixedly connected to one side of the grabbing-preventing plate 1, the first soft body 3 and a second soft body 11 are both made of foam, the breathable net 2 is made of nylon, a hand sleeve 8 is made of soft cloth, a lining is arranged inside the hand sleeve 8, and a first locking belt 4 is fixedly connected to one side of the outer surface of the first soft body 3, so that after a patient wears the sleeve-connected detachable constraint glove, the first soft body 3 and the second soft body 11 can be subjected to tightness pasting treatment by a first magic pasting belt 15 and a second magic pasting belt 14 on the first magic pasting belt 5 and a second magic pasting belt 13 in the front side, and the purpose of better fastening effect is achieved, one side of the soft body 3 is fixedly connected with a connecting band 16, one side of the connecting band 16 is fixedly connected with a zipper strip 6, the arrangement of the zipper strip 6 ensures that doctors and patients can connect the hand sleeves 8 together through the zipper 7 when needed in the use process, the fixation of the second locking band 11 on the bed fence prevents the restraint glove from slipping and the contact of the hand and the head and neck part, the risk of accidental tube drawing is avoided, the practicability is increased, then the arrangement of the first soft body 3 and the second soft body 11 ensures that the arm friction can be effectively prevented when the patients use, the comfort level of the patients is increased, the zipper 7 is slidably connected inside the zipper strip 6, the hand sleeves 8 are fixedly connected with one side of the zipper strip 6, the hand sleeves 8 extend to the upper arm, the outer surface of the hand sleeves 8 is slotted for 35cm, the male hidden buttons 9 are fixedly connected, and the number of the male hidden buttons 9 is 4, the interval 7cm between two liang of public hidden discount 9, the quantity of female hidden discount 10 is 4, two liang of looks adaptations of female hidden discount 10 and public hidden discount 9, through slotting, the nursing staff can carry out venous transfusion through the central vein catheterization of periphery vein puncture on the arm, the material of first soft body 3 and the soft body 11 of second is the foam, the material of ventilative net 2 is nylon, the material of hand oversleeve 8 is soft cloth, the inside of hand oversleeve 8 is provided with the inside lining, the inside lining material is cotton ninety three percent, three percent spandex.

As an optimal technical solution of the utility model: one side of the hand sleeve 8 is fixedly connected with a second soft body 11, one side of the outer surface of the second soft body 11 is fixedly connected with a second locking belt 12, and the front side of the second soft body 11 is fixedly connected with a second magic tape female tape 13.

In conclusion, when the detachable linked-sleeve restraining glove is used, a nursing person can perform infusion operation on a patient with a central venous cannula punctured through peripheral veins under the condition of using the detachable linked-sleeve restraining glove without releasing the restraining glove through the arrangement of the infusion seam 17 on the air permeable net, the detachable linked-sleeve restraining glove can perform infusion operation on the patient without releasing the restraining glove through the arrangement of the hidden buckle of the seam of the sleeve 8, the detachable linked-sleeve restraining glove can enable the second magic tape to be tightly adhered around the upper arm through the arrangement of the linked-sleeve and the second locking tape 5 and the second locking tape 12, the second locking tape 12 is tied on the bed fence, the linked-sleeve restraining glove is not easy to slip and break off, the patient can not enable the hand to be contacted with the head and neck part to cause tube drawing through the arrangement of the zipper strip 6 through the arrangement of the linked-sleeve restraining glove and the head and chest lifting manner, the gloves can be separated by the zipper 7 when needed by the doctor and the patient in the using process, the first magic tape is tightly adhered to the glove opening under the permission of the patient, the first locking belt 4 is fastened or tied to the bed head, then the first flexible soft body 3 is arranged, so that the arm friction of the patient can be effectively prevented when the patient uses the gloves, the comfort level of the patient is increased, the sleeve-connected detachable constraint glove can enable the first magic tape 14 and the second magic tape 13 to wind the first flexible soft body 3 and the second flexible soft body 11 after the patient wears the sleeve-connected detachable constraint glove, then the first magic tape 15 and the second magic tape 14 on the back side are loosened, so that the purpose of better fastening effect is achieved, and meanwhile, through the arrangement of the first flexible soft body 11 and the second flexible soft body 11, when the patient uses the first magic tape and the second magic tape, the compression on limbs is reduced, and the comfort level is improved.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like, indicate the orientation or positional relationship indicated based on the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

In the present invention, unless otherwise expressly stated or limited, the terms "disposed," "mounted," "connected," "secured," and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; they may be mechanically coupled, directly coupled, or indirectly coupled through intervening agents, both internally and/or in any other manner known to those skilled in the art. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

It is noted that in the present disclosure, unless otherwise explicitly specified or limited, a first feature "on" or "under" a second feature may be directly contacting the first and second features or indirectly contacting the first and second features through an intermediate. Also, a first feature "on," "over," and "above" a second feature may be directly or diagonally above the second feature, or may simply indicate that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature may be directly under or obliquely under the first feature, or may simply mean that the first feature is at a lesser elevation than the second feature.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a detachable restraint gloves of even sleeve, is including preventing grabbing board (1), its characterized in that: the glove is characterized in that the anti-grabbing plate (1) is located on the back of the glove, the front of the anti-grabbing plate is fixedly connected with a breathable net (2), an infusion seam (17) is formed in the breathable net, one side of the anti-grabbing plate (1) is fixedly connected with a first soft body (3), one side of the outer surface of the first soft body (3) is fixedly connected with a first locking belt (4), the front of the outer surface of the first soft body (3) is fixedly connected with a first magic tape female tape (5), the back of the outer surface of the first soft body (3) is fixedly connected with a first magic tape male tape (15), one side of the soft body (3) is fixedly connected with a connecting belt (16), one side of the connecting belt (16) is fixedly connected with a zipper strip (6), the inner part of the zipper strip (6) is slidably connected with a zipper (7), one side of the zipper strip (6) is fixedly connected with a glove sleeve (8), and the glove, the middle of the front surface of the hand sleeve (8) is slotted, one side of the slot is fixed by 4 male hidden buttons (9), the other side of the slot is fixed by 4 female hidden buttons (10), one side of the hand sleeve (8) is fixedly connected with a second soft body (11), a second magic tape female tape (13) is fixed on the front surface of the second soft body (11), the back surface of the second soft body (11) is fixedly connected with a second magic tape male tape (14), and one side of the second soft body (11) is fixedly connected with a second locking tape (12).

2. The detachable-sleeved restraining glove of claim 1, wherein: the number of the male hidden buttons (9) is 4, and the distance between every two male hidden buttons (9) is 7 cm.

3. The detachable-sleeved restraining glove of claim 1, wherein: the number of the female hidden buttons (10) is 4, the distance between every two female hidden buttons (10) is 7cm, and every two female hidden buttons (10) of 4 are matched with every two male hidden buttons (9) of 4.

4. The detachable-sleeved restraining glove of claim 1, wherein: the first soft body (3) and the second soft body (11) are both made of foam.

5. The detachable-sleeved restraining glove of claim 1, wherein: the breathable net (2) is made of nylon.

6. The detachable-sleeved restraining glove of claim 1, wherein: the hand oversleeve (8) is made of soft cloth, a lining is arranged inside the hand oversleeve (8), and the lining is made of ninety-three percent cotton and three percent spandex.
