Abstract
The utility model discloses a multi-station milker disinfection device, which is characterized in that: including the bottom plate, bottom plate fixed connection mounting panel, mounting panel below fixed connection electric putter, couple of electric putter's end installation, the couple below is equipped with the disinfection carousel, power device is connected through the pivot in disinfection carousel below, power device can drive the disinfection carousel and rotate, power device fixed connection bottom plate, be equipped with 4 sectorial studio on the disinfection carousel, all be equipped with the opening on every studio, 4 studios are disinfection room, decontamination room, purge chamber and drying chamber respectively. The utility model has the advantages that: the utility model provides a multi-station milker disinfection device which is provided with a rotatable disinfection rotary table, wherein the disinfection rotary table is divided into 4 working chambers, each working chamber has an independent working function, and milkers can be disinfected efficiently and thoroughly.
Description
Technical Field
The utility model relates to the technical field of milking equipment, in particular to a multi-station milker disinfection device.
Background
At present, domestic farm milks milk, mainly use manual operation as owner or semi-automatic operation, no matter manual operation or semi-automatic operation all need use milker to milk, milking machine work efficiency among the prior art is high, make contributions for social development, milking machine during operation can be fast with the animal arrive on milking machine, time saving and labor saving, the workman directly overlaps the suction nozzle on the animal nipple, milk with milker, need disinfect to milker after milking, all manually take disinfectant kettle to milker to spout the antiseptic solution among the prior art, then dry by oneself again, this kind of disinfection mode can't carry out thorough and perfect clearance to milker, and the time of consuming, easily milk the efficiency that influences.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art and provides a multi-station milker disinfection device.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a multistation milker degassing unit which characterized in that: comprises a bottom plate, a mounting plate, an electric push rod, a hook, a power device, a rotating shaft, a disinfection turntable, a disinfection chamber, a decontamination chamber, a cleaning chamber, a drying chamber and an opening;
bottom plate fixed connection mounting panel, mounting panel below fixed connection electric putter, couple of electric putter's end installation, the couple below is equipped with the disinfection carousel, power device is connected through the pivot in disinfection carousel below, power device can drive the disinfection carousel and rotate, power device fixed connection bottom plate, be equipped with 4 sectorial studio on the disinfection carousel, all be equipped with the opening on every studio, 4 studio is disinfection room, decontamination room, purge chamber and drying chamber respectively.
Preferably, the disinfection chamber is filled with a disinfection solution and communicated with the first liquid outlet pipe.
Preferably, a first motor is installed at the bottom of the decontamination chamber, the first motor is connected with a decontamination barrel, and bristles are arranged on the side wall and the bottom of the decontamination barrel.
Preferably, water is filled in the cleaning chamber, and the cleaning chamber is communicated with the second liquid outlet pipe.
Preferably, a second motor is installed at the bottom of the drying chamber, the second motor is connected with a disc, and two dryers are symmetrically installed on the disc.
Preferably, a baffle is installed on the side wall of the electric push rod.
The utility model has the beneficial effects that: the utility model provides a multi-station milker disinfection device which is provided with a rotatable disinfection rotary table, wherein the disinfection rotary table is divided into 4 working chambers, each working chamber has an independent working function, and milkers can be disinfected efficiently and thoroughly.
Drawings

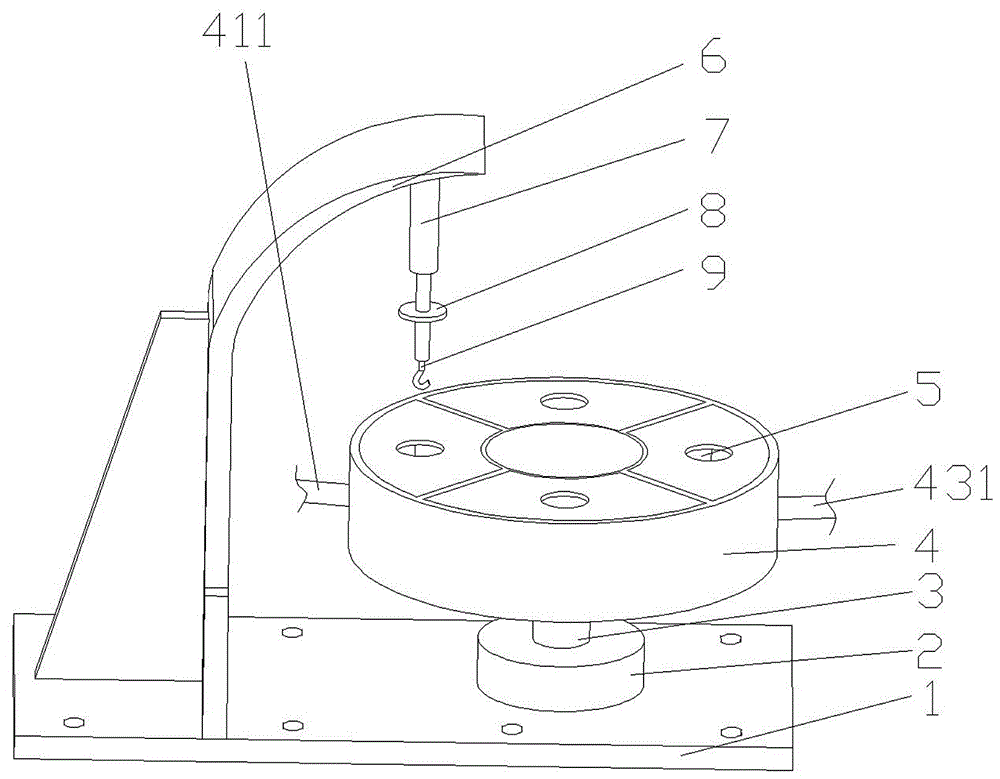

FIG. 1 is a schematic diagram of the basic structure of the present invention;
FIG. 2 is a top view of the sterilization carousel;
FIG. 3 is a cross-sectional view of the sterilization chamber;
FIG. 4 is a cross-sectional view of the decontamination chamber;
FIG. 5 is a cross-sectional view of the cleaning chamber;
fig. 6 is a sectional view of the drying chamber.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the equipment or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.
As shown in fig. 1, the utility model comprises a bottom plate 1, a mounting plate 6, an electric push rod 7, a hook 9, a power device 2, a rotating shaft 3, a disinfection rotating disc 4, a disinfection chamber 41, a decontamination chamber 42, a cleaning chamber 43, a drying chamber 44 and an opening 5;
bottom plate 1 fixed connection mounting panel 6, reinforcing plate 10 of back installation of mounting panel 6, mounting panel 6 is the arch, the position below fixed connection electric putter 7 that mounting panel 6 stretches out, baffle 8 of the side wall mounting of electric putter 7 piston rod, couple 9 of the end installation of piston rod, couple 9 is used for placing milker, couple 9 below is equipped with disinfection carousel 4, disinfection carousel 4 below is connected power device 2 through pivot 3, the motor is equipped with in the power device 2, and the motor is not shown in the picture, power device 2 can drive disinfection carousel 4 and rotate, 2 fixed connection bottom plates of power device 1.
As shown in fig. 2, 4 fan-shaped working chambers are arranged on the disinfection rotary disc 4, each working chamber is provided with an opening 5, the diameter of the opening 5 is slightly larger than that of the baffle 8, the baffle 8 is used for staying at the opening 5 to isolate the inside of the working chamber from the outside, and the 4 working chambers are respectively a disinfection chamber 41, a decontamination chamber 42, a cleaning chamber 43 and a drying chamber 44.
As shown in fig. 3, the sterilizing chamber 41 is filled with sterilizing liquid, the sterilizing chamber 41 is communicated with the first liquid outlet pipe 411, the milking machine finishes immersion cleaning in the sterilizing chamber 41, the sterilizing liquid is discharged from the first liquid outlet pipe 411 after being unusable, and then the sterilizing liquid is poured into the corresponding opening 5 again.
As shown in fig. 4, a first motor 421 is installed at the bottom of the decontamination chamber 42, the first motor 421 is connected to a decontamination barrel 422, bristles 423 are arranged on the side wall and the bottom of the decontamination barrel 422, when the milker is located in the decontamination barrel 422, the first motor 421 is started and drives the decontamination barrel 422 to rotate, and the bristles on the wall and the bottom of the decontamination barrel can remove dirt which is difficult to remove on the milker.
As shown in fig. 5, the cleaning chamber 43 is filled with water, the cleaning chamber 43 is communicated with the second liquid outlet pipe 431, the milking machine cleans residual disinfectant in the cleaning chamber 43, the water in the cleaning chamber becomes dirty and is discharged from the second liquid outlet pipe 431, and then clean water is poured into the cleaning chamber from the corresponding opening 5 again.
As shown in fig. 6, a second motor 441 is installed at the bottom of the drying chamber 44, the second motor 441 is connected to the disc 442, two dryers 443 are symmetrically installed on the disc 442, when the milking machine is located in the drying chamber 44, the second motor 441 is started to drive the disc 442 to start, and the two dryers 443 on the disc 442 dry the milking machine.
The working principle is as follows: when the device is used, firstly, the milking device is hung at the position of the hook 9, the power device 2 sequentially rotates the openings 5 of the sterilizing chamber 41, the decontamination chamber 42, the cleaning chamber 43 and the drying chamber 44 to be right below the hook 9 and stays for a period of time, the electric push rod 7 descends, the milking device firstly enters the sterilizing chamber 41 until the baffle 5 shields the corresponding opening 5, ascends after immersion cleaning, then enters the next working chamber under the driving of the electric push rod 7, and the steps of immersion cleaning, decontamination, rinsing and drying of the milking device are repeated in this way until the processes of immersion cleaning, decontamination, rinsing and drying of the milking device are completed.
The foregoing shows and describes the general principles, essential features, and advantages of the utility model. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the preferred embodiments of the present invention are described in the above embodiments and the description, and are not intended to limit the present invention. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a multistation milker degassing unit which characterized in that: comprises a bottom plate (1), a mounting plate (6), an electric push rod (7), a hook (9), a power device (2), a rotating shaft (3), a disinfection turntable (4), a disinfection chamber (41), a decontamination chamber (42), a cleaning chamber (43), a drying chamber (44) and an opening (5);
bottom plate (1) fixed connection mounting panel (6), mounting panel (6) below fixed connection electric putter (7), couple (9) of end installation of electric putter (7), couple (9) below is equipped with disinfection carousel (4), power device (2) are connected through pivot (3) in disinfection carousel (4) below, power device (2) can drive disinfection carousel (4) and rotate, power device (2) fixed connection bottom plate (1), be equipped with 4 sectorial studio on disinfection carousel (4), all be equipped with opening (5) on every studio, 4 studio is disinfection room (41), decontamination room (42), purge chamber (43) and drying chamber (44) respectively.
2. The multi-station milker disinfection unit of claim 1, wherein: the disinfection chamber (41) is internally provided with disinfectant, and the disinfection chamber (41) is communicated with the first liquid outlet pipe (411).
3. The multi-station milker disinfection unit of claim 1, wherein: the decontamination chamber (42) bottom installation first motor (421), decontamination bucket (422) is connected in first motor (421), the lateral wall and the bottom of decontamination bucket (422) all are equipped with brush hair (423).
4. The multi-station milker disinfection unit of claim 1, wherein: water is filled in the cleaning chamber (43), and the cleaning chamber (43) is communicated with the second liquid outlet pipe (431).
5. The multi-station milker disinfection unit of claim 1, wherein: the bottom of the drying chamber (44) is provided with a second motor (441), the second motor (441) is connected with a disc (442), and two dryers (443) are symmetrically arranged on the disc (442).
6. The multi-station milker disinfection unit of claim 1, wherein: a baffle (8) is installed on the side wall of the electric push rod (7).
