Abstract
A novel building electricity meter distribution box comprises a body, a fixed layer, movable wheels, grid blocks, fixed blocks, clamping frames, fixed blocks and limiting columns, wherein the body is in a rectangular cavity shape, the movable wheels are fixedly arranged at the bottom of the body and symmetrically connected with the fixed layer through bolts, a plurality of grid blocks are fixedly arranged on the left inner wall and the right inner wall in the body, the clamping frames are penetrated on the grid blocks, every two clamping frames are symmetrically arranged and are horizontally arranged on the grid blocks, a spring is fixedly arranged between every two symmetrical clamping frames, the springs are penetrated on the grid blocks, the fixed blocks are symmetrically arranged on the clamping frames, the fixed blocks are in a horizontal fixed plate shape, the fixed blocks and the clamping frames are in an integrated structure and are vertically symmetrical, clamping joints are fixedly connected on the horizontal fixed plates through bolt rods, the clamping joints are in a rectangular shape, and a rubber layer is fixedly stuck on the end surface of the clamping joint.
Description
Technical Field
The utility model relates to the technical field of power distribution, in particular to a novel building electricity meter distribution box.
Background
Current building block terminal all is independent box structure, and when the distribution installation, complex operation, and dismantle after components and parts damage and change the trouble, the unicity of distribution box structure in the past is low to distribution installer work efficiency, and components and parts are fixed inconvenient. Therefore, the applicant designs a novel building electric meter distribution box through long-term practice, thereby meeting the use requirement.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a novel building electric meter distribution box to solve the problems in the background technology.
The purpose of the utility model is realized by the following technical scheme: a novel building electricity meter distribution box comprises a body, a fixed layer, movable wheels, grid blocks, a first fixed block, clamping frames, a second fixed block and springs, wherein the body is in a rectangular cavity shape, the movable wheels are fixedly arranged at the bottom of the body and are symmetrical, the fixed layer is symmetrically connected to the left side and the right side of the body through bolt fixing, the grid blocks are fixedly arranged on the left inner wall and the right inner wall in the body, the clamping frames are connected to the grid blocks in a penetrating manner, every two clamping frames are symmetrically arranged and are provided with a plurality of horizontal arrangement on the grid blocks, the springs are fixedly arranged between every two symmetrical clamping frames, the springs are connected to the grid blocks in a penetrating manner, the second fixed blocks are symmetrically arranged on the upper portion and the lower portion of each clamping frame, the second fixed blocks are in a horizontal fixed plate shape, the second fixed blocks and the clamping frames are in an integrated structure and are mutually symmetrical up and down, clamping joints are fixedly connected to the horizontal fixed plates through bolt rods, the clamping joint is rectangular and is positioned on the end face of the clamping joint and fixedly pasted with a rubber layer.
Furthermore, the check keep off and be cylindrical rod body structure, and be located the check and keep off and have worn to connect first fixed block, first fixed block is located between the card frame.
Furthermore, the clamping frame is rectangular plate-shaped, the upper part and the lower part of the clamping frame are both designed to be telescopic structures and are fixed through bolts, and a circular through hole is fixedly formed in the center of the clamping frame.
Further, the first fixing block is a rectangular block, and a bolt hole is fixedly formed in the rear end of the first fixing block.
Furthermore, the rear end face of the body is fixedly provided with a rectangular hole, the rectangular holes are arranged from top to bottom, and the rectangular holes correspond to the grids.
Furthermore, a limiting column is matched in the bolt hole at the rear end of the first fixing block, and the tail end of the limiting column is clamped at the edge of the rectangular hole.
Furthermore, the spacing post is cylindric, and for the extending structure design.
Furthermore, the front end face of the body is connected with a side opening door through a hinge, a rectangular manhole is arranged on the side opening door, and the manhole corresponds to the first fixing block in position.
Furthermore, the fixed layer is a rubber layer, and a plurality of fixed layers are arranged at intervals from front to back.
Furthermore, the clamping frame on each grid block is clamped and fixed by a semicircular sleeve.
Compared with the prior art, the utility model has the beneficial effects that: this novel simple structure, the equipment is convenient, convenient to use, and the installation is dismantled conveniently, the maintenance of being convenient for.
Drawings
FIG. 1 is an overall front view of the present invention;
FIG. 2 is a rear view of the present invention;
FIG. 3 is a schematic diagram of a block of the present invention;
FIG. 4 is a schematic view of a spacing post according to the present invention;

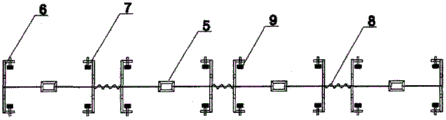

FIG. 5 is a schematic view of the connection between the clip frame and the spring according to the present invention;
FIG. 6 is a schematic view of the engagement and connection of the clip frame of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative efforts based on the embodiments of the present invention belong to the protection scope of the present invention.
As shown in fig. 1-6, a novel building electricity meter distribution box comprises a body 1, a fixed layer 2, a movable wheel 3, a grid 4, a first fixed block 5, a clamping frame 6, a second fixed block 7 and springs 8, wherein the body 1 is in a rectangular cavity shape, the movable wheels 3 are fixedly arranged at the bottom of the body 1 symmetrically, the fixed layer 2 is fixedly and symmetrically connected at the left side and the right side of the body 1 through bolts, a plurality of grids 4 are fixedly arranged on the left inner wall and the right inner wall in the body 1, the clamping frames 6 are connected on the grids 4 in a penetrating manner, every two clamping frames 6 are symmetrically arranged, the clamping frames 6 are horizontally arranged on the grids 4, the springs 8 are fixedly arranged between every two symmetrical clamping frames 6, the springs 8 are connected on the grids 4 in a penetrating manner, the clamping frames 6 are vertically and symmetrically provided with the second fixed blocks 7, the second fixed blocks 7 are in a horizontally fixed plate shape, the second fixing block 7 and the clamping frame 6 are of an integral structure and are symmetrical up and down, a clamping joint 9 is fixedly connected to the horizontal fixing plate through a bolt rod, the clamping joint 9 is rectangular, and a rubber layer is fixedly adhered to the end face of the clamping joint 9.
In this embodiment, the grid 4 is a cylindrical rod structure, and a first fixing block 5 is connected to the grid 4 in a penetrating manner, and the first fixing block 5 is located between the clamping frames 6.
The grid blocks play a role in supporting the clamping frame, and the fixing blocks which are positioned on the grid blocks and connected in series can slide on the grid blocks.
In this embodiment, the clamping frame 6 is rectangular plate-shaped, the upper part and the lower part of the clamping frame 6 are both designed to be telescopic structures, and are fixed through bolts, and a circular through hole is fixedly formed in the center position of the clamping frame 6.
Wait that fixed components and parts are fixed in between the card frame, fix through the card frame, components and parts do the support through the fixed block and carry out the bolt and fix.
The clamping frame adopts a telescopic structure design, and the size of the clamping frame required can be adjusted through the movement of the clamping frame on the grid block when the clamping frame is used.
In this embodiment, the first fixing block 5 is a rectangular block, and a bolt hole is fixed at the rear end of the first fixing block 5.
The fixed block adopts rectangular block or trapezoidal block structure concatenation to keep off at the check, and can wait the components and parts of installation through the bolt fastening at the terminal surface of fixed block, keeps off the slide adjusting position on the check through the fixed block.
In this embodiment, the rear end face of the body 1 is fixedly provided with a rectangular hole, the rectangular hole is provided with a plurality of rectangular holes from top to bottom, and the rectangular holes correspond to the grid blocks 4.
Through setting up the rectangular hole and being convenient for when using fixed through the spacing post of rectangular hole cooperation, through spacing post joint in rectangular hole edge, make the check keep off and block the frame and do not play.
In this embodiment, a limiting post is fitted in the bolt hole at the rear end of the first fixing block 5, and the end of the limiting post is clamped at the edge of the rectangular hole.
The tail end of the limiting column is fixed with a rectangular clamping plate, and the clamping plate is fixed with the body clamping position through a bolt.
In this embodiment, the limiting column is cylindrical and is designed to be a telescopic structure.
In this embodiment, the front end face of the body 1 is connected with a side opening door through a hinge, the side opening door is provided with a rectangular manhole, and the manhole corresponds to the 5 positions of the first fixing block.
In this embodiment, the fixing layer 2 is a rubber layer, and a plurality of fixing layers are arranged at intervals from front to back.
In this embodiment, the clamping frame 6 on each block 4 is clamped and fixed by a semicircular sleeve, and the upper and lower clamping frames are fixed by the semicircular sleeves, and each semicircular sleeve is in a semicircular hoop shape.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (10)
1. A novel building electricity meter distribution box is characterized by comprising a body (1), a fixed layer (2), moving wheels (3), grid blocks (4), a first fixed block (5), clamping frames (6), a second fixed block (7) and springs (8), wherein the body (1) is in a rectangular cavity shape, the bottom of the body (1) is fixedly provided with the symmetrical moving wheels (3), the left side and the right side of the body (1) are fixedly and symmetrically connected with the fixed layer (2) through bolts, the left inner wall and the right inner wall of the body (1) are fixedly provided with the grid blocks (4), the clamping frames (6) are connected on the grid blocks (4) in a penetrating manner, every two clamping frames (6) are symmetrically arranged, the clamping frames (6) are arranged on the grid blocks (4) in a plurality of horizontal arrangement, the springs (8) are fixedly arranged between every two symmetrical clamping frames (6), and the springs (8) are connected on the grid blocks (4) in a penetrating manner, card frame (6) longitudinal symmetry is equipped with second fixed block (7), and second fixed block (7) are the fixed platelike of level, and second fixed block (7) and card frame (6) structure as an organic whole, and mutual symmetry from top to bottom, lie in horizontal fixed plate and go up through bolt bar fixedly connected with joint (9), joint (9) are the rectangle form, and lie in fixed paste on joint (9) terminal surface and have the rubber layer.
2. The novel building electricity meter distribution box according to claim 1, characterized in that the grid (4) is of a cylindrical rod structure, a first fixing block (5) is connected to the grid (4) in a penetrating manner, and the first fixing block (5) is located between the clamping frames (6).
3. The novel building electricity meter distribution box according to claim 1, wherein the clamping frame (6) is rectangular plate-shaped, the clamping frame (6) is of a telescopic structure design from top to bottom and is fixed through bolts, and a circular through hole is fixed at the center of the clamping frame (6).
4. The novel building electricity meter distribution box according to claim 1, wherein the first fixing block (5) is a rectangular block, and a bolt hole is formed in the rear end of the first fixing block (5).
5. The novel building electricity meter distribution box according to claim 1, characterized in that a rectangular hole is fixedly formed in the rear end face of the body (1), a plurality of rectangular holes are formed in the rectangular hole from top to bottom, and the rectangular holes correspond to the grid blocks (4).
6. The novel building electricity meter distribution box according to claim 1, wherein a limiting column is fitted in a bolt hole at the rear end of the first fixing block (5), and the tail end of the limiting column is clamped at the edge of a rectangular hole.
7. The novel building electric meter distribution box according to claim 6, wherein the limiting column is cylindrical and is designed to be of a telescopic structure.
8. The novel building electricity meter distribution box according to claim 1, characterized in that the front end face of the body (1) is connected with a side opening door through a hinge, the side opening door is provided with a rectangular manhole, and the manhole corresponds to the first fixing block (5).
9. The novel building electric meter distribution box according to claim 1, characterized in that the fixed layer (2) is a rubber layer, and a plurality of fixed layers are arranged from front to back at intervals.
10. A novel building electricity meter distribution box according to claim 1, characterized in that the clamping frame (6) on each of said bars (4) is clamped by a semicircular sleeve.
