The utility model discloses a grinding machine cutting fluid purification sludge recovery device, which belongs to the technical field of cutting fluid purification and sludge recovery and comprises a box body, wherein a water inlet is formed in the upper end of one side of the box body, a water outlet is formed in one end of the bottom of the box body, a purification recovery assembly is arranged inside the box body, a water guide plate is obliquely arranged inside the box body, a magnetic block is arranged at the bottom of the water guide plate, and a water leakage hole is formed in the lower end of the water guide plate. According to the utility model, the magnetic block is arranged at the bottom of the water guide plate, and under the adsorption action of the magnetic block, the material mud in the cutting fluid is adsorbed and precipitated on the water guide plate, so that the cutting fluid is purified, and the cutting fluid purifying device has the characteristics of simple structure and convenience in operation; the upper end of the box body is of an open structure, and the mounting blocks corresponding to the water guide plates are arranged on the inner wall of the box body, so that the water guide plates are convenient to disassemble and assemble, the water guide plates are convenient to take out of the box body regularly, mud adsorbed on the water guide plates is shoveled, and the recovery of the mud is realized.
Description
Technical Field
The utility model belongs to the technical field of cutting fluid purification and material mud recovery, and particularly relates to a grinding machine cutting fluid purification material mud recovery device.
Background
The existing grinding machine cutting fluid purifying and recovering device mainly has two main types: 1. a filter, which utilizes the principle that the particles of the material mud are larger than water molecules, utilizes a permeable material to filter the material mud, and replaces filter paper (automatically or manually) after reaching a certain amount; 2. magnetic filtration, utilize the paramagnetic characteristic of material mud granule, utilize the inside magnet of roller bearing, with material mud and separation of water, through soft rolling wringing moisture simultaneously, then utilize the scraper blade to scrape into the material mud and retrieve the magazine.
The existing magnetic roller structure can solve the purification and recovery of strong paramagnetic materials such as iron, but when solving weak paramagnetic materials such as hard alloy, the magnetism is weak, and the materials can not be effectively separated, and on the other hand, the materials cannot be effectively scraped off after soft rolling because the materials such as the hard alloy are less in mud, so that the recovery rate of the mud is extremely low, the hardness of the hard alloy powder is high, the abrasion of a roller is very serious, and the recovery rate is further reduced after the abrasion is increased until the recovery rate is ineffective.
SUMMERY OF THE UTILITY MODEL
To solve the problems set forth in the background art described above. The utility model provides a grinding machine cutting fluid purified sludge recovery device which has the characteristics of effectively purifying cutting fluid and efficiently recovering weak paramagnetic materials such as hard alloy and the like.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a grinding machine cutting fluid purifies mud recovery unit, includes the box, and the upper end of box one side is equipped with the water inlet, and the one end of bottom half is equipped with the outlet, and the inside of box is equipped with purifies retrieves the subassembly, purifies to retrieve the subassembly and includes water guide plate and magnetic path, and the magnetic path is the strong magnetic block of tombarthite, and wherein, the slope of water guide plate sets up in the inside of box, and the bottom of water guide plate is equipped with the magnetic path, and the lower extreme of water guide plate is equipped with the hole that leaks.
In order to conveniently disassemble and assemble the water guide plate, the water guide plate is conveniently taken out of the box body regularly, the material mud adsorbed on the water guide plate is shoveled, the material mud is recycled, and furthermore, the upper end of the box body is of an open structure. The inner wall of the box body is provided with an installation block corresponding to the water guide plate. The water guide plate is placed on the mounting block.
In order to carry out slow flow on the cutting fluid, under the adsorption action of the magnetic block, the material mud in the cutting fluid is adsorbed and precipitated on the water guide plate, the purification effect on the cutting fluid is improved, and furthermore, a plurality of parallel water baffle plates are arranged above the water guide plate.
In order to further improve the purifying effect to the cutting fluid, further, purify and retrieve the subassembly and be equipped with a plurality of, and a plurality of purifies to retrieve the subassembly and from last to the slope setting in proper order down. The water leakage holes of the water guide plates are arranged at the lower ends.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the utility model, the magnetic block is arranged at the bottom of the water guide plate, and under the adsorption action of the magnetic block, the material mud in the cutting fluid is adsorbed and precipitated on the water guide plate, so that the cutting fluid is purified, and the cutting fluid purifying device has the characteristics of simple structure and convenience in operation;
2. the upper end of the box body is of an open structure, the inner wall of the box body is provided with the mounting block corresponding to the water guide plate, and the water guide plate is placed on the mounting block, so that the water guide plate is convenient to disassemble and assemble, the water guide plate is convenient to take out of the box body regularly, the material mud adsorbed on the water guide plate is shoveled, and the recovery of the material mud is realized;
3. the water guide plate is provided with a plurality of parallel water baffle plates, and cutting fluid is slowly flowed through the water baffle plates, so that under the adsorption action of the magnetic blocks, material mud in the cutting fluid is adsorbed and precipitated on the water guide plates, and the purification effect of the cutting fluid is improved.
Drawings
The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate embodiments of the utility model and together with the description serve to explain the principles of the utility model and not to limit the utility model. In the drawings:

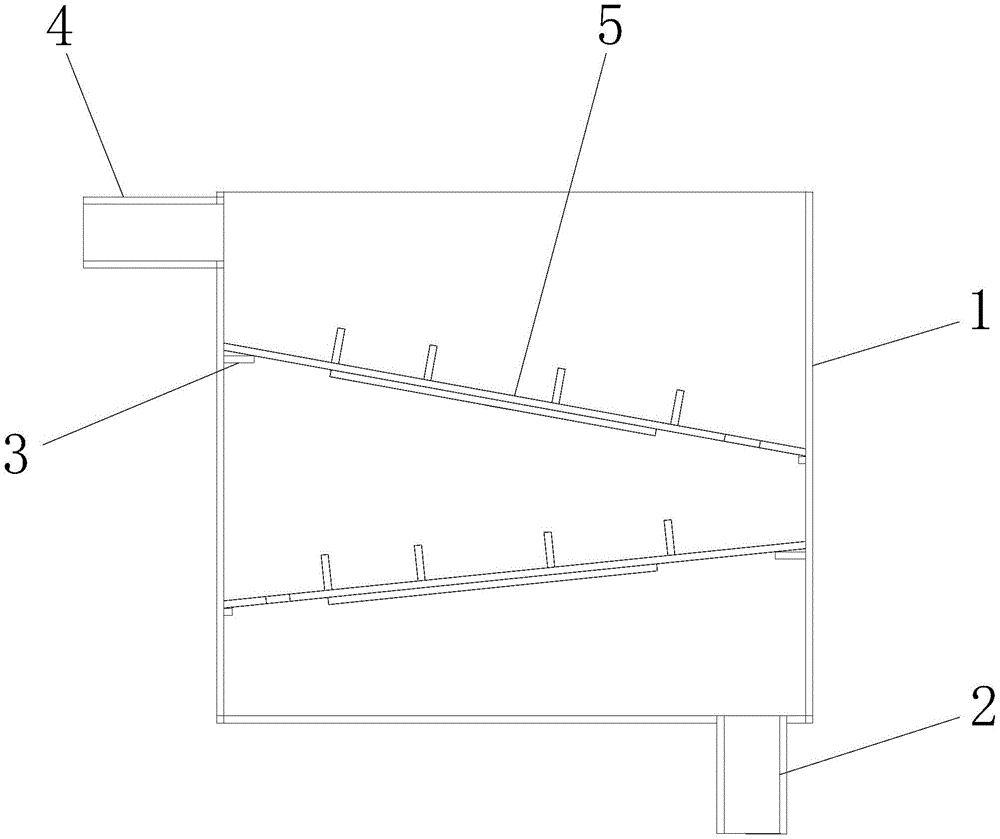

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the purification and recovery assembly of the present invention;
in the figure: 1. a box body; 2. a water outlet; 3. mounting blocks; 4. a water inlet; 5. a purification recovery assembly; 51. a water guide plate; 52. a water baffle; 53. a water leakage hole; 54. a magnetic block.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example 1
Referring to fig. 1-2, the present invention provides the following technical solutions: the utility model provides a grinding machine cutting fluid purifies material mud recovery unit, including box 1, the upper end of 1 one side of box is equipped with water inlet 4, the one end of 1 bottom of box is equipped with outlet 2, the inside of box 1 is equipped with purifies retrieves subassembly 5, it includes water deflector 51 and magnetic path 54 to purify to retrieve subassembly 5, wherein, the slope of water deflector 51 sets up in the inside of box 1, the bottom of water deflector 51 is equipped with magnetic path 54, magnetic path 54 is the strong magnetic path of tombarthite, the lower extreme of water deflector 51 is equipped with the hole of leaking 53.
Specifically, the upper end of the box body 1 is of an opening structure; the inner wall of the box body 1 is provided with a mounting block 3 corresponding to the water guide plate 51; the water guide panel 51 is placed on the mounting block 3.
Through adopting above-mentioned technical scheme, conveniently carry out the dismouting to water deflector 51 to be convenient for regularly take out water deflector 51 from box 1, the adsorbed material mud on the water deflector 51 is scraped to the shovel, realizes the recovery to the material mud.
Specifically, a plurality of water baffles 52 are arranged in parallel above the water guide plate 51.
By adopting the technical scheme, the cutting fluid is slowly flowed through the water baffle 52, so that under the adsorption action of the magnetic block 54, the material mud in the cutting fluid is adsorbed and precipitated on the water guide plate 51, and the purification effect on the cutting fluid is improved.
Example 2
The present embodiment is different from embodiment 1 in that: specifically, purify and retrieve subassembly 5 and be equipped with a plurality of, and a plurality of purifies and retrieves subassembly 5 from last to the slope setting in proper order down. The water leakage holes 53 of the plurality of water guide plates 51 are located at the lower end, and preferably two water guide plates are arranged in the embodiment.
By adopting the technical scheme, the purification effect on the cutting fluid is further improved.
In conclusion, the magnetic block 54 is arranged at the bottom of the water guide plate 51, and under the adsorption action of the magnetic block 54, the material mud in the cutting fluid is adsorbed and precipitated on the water guide plate 51, so that the cutting fluid is purified, and the cutting fluid purifying device has the characteristics of simple structure and convenience in operation; the upper end of the box body 1 is of an open structure, the mounting block 3 corresponding to the water guide plate 51 is arranged on the inner wall of the box body 1, and the water guide plate 51 is placed on the mounting block 3, so that the water guide plate 51 is convenient to disassemble and assemble, the water guide plate 51 is convenient to take out of the box body 1 regularly, the material mud adsorbed on the water guide plate 51 is shoveled, and the recovery of the material mud is realized; a plurality of water baffles 52 which are parallel are arranged above the water guide plate 51, and the cutting fluid is slowly flowed through the water baffles 52, so that the material mud in the cutting fluid is adsorbed and precipitated on the water guide plate 51 under the adsorption action of the magnetic blocks 54, and the purification effect of the cutting fluid is improved.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the utility model. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (8)
1. The utility model provides a grinding machine cutting fluid purifies material mud recovery unit, includes the box, its characterized in that: the upper end of box one side is equipped with the water inlet, and the one end of bottom half is equipped with the outlet, and the inside of box is equipped with purifies retrieves the subassembly, purifies and retrieves the subassembly and includes water guide plate and magnetic path, and wherein, the slope of water guide plate sets up in the inside of box, and the bottom of water guide plate is equipped with the magnetic path, and the lower extreme of water guide plate is equipped with the hole that leaks.
2. The grinding machine cutting fluid purification sludge recovery device of claim 1, wherein: the upper end of the box body is of an opening structure.
3. The grinding machine cutting fluid purification sludge recovery device of claim 1, wherein: and the inner wall of the box body is provided with an installation block corresponding to the water guide plate.
4. The grinding machine cutting fluid purification sludge recovery device of claim 3, wherein: the water guide plate is placed on the mounting block.
5. The grinding machine cutting fluid purification sludge recovery device of claim 1, wherein: a plurality of parallel water baffles are arranged above the water guide plate.
6. The grinding machine cutting fluid purification sludge recovery device of claim 1, wherein: the purification recovery assembly is provided with a plurality of which is arranged from top to bottom in an inclined manner.
7. The grinding machine cutting fluid purification sludge recovery device of claim 6, wherein: the water leakage holes of the water guide plates are arranged at the lower ends.
8. The grinding machine cutting fluid purification sludge recovery device of claim 1, wherein: the magnetic block is a rare earth strong magnetic block.
