CN215686679U

CN215686679U - Glass electric cooker

Info

Publication number: CN215686679U
Application number: CN202121521178.2U
Authority: CN
Inventors: 何卫雄; 谭兆明; 邹剑虹
Original assignee: Guangdong Shunde Zhenxin Electric Appliance Technology Co ltd
Current assignee: Guangdong Shunde Zhenxin Electric Appliance Technology Co ltd
Priority date: 2021-07-05
Filing date: 2021-07-05
Publication date: 2022-02-01
Anticipated expiration: 2031-07-05

Abstract

The utility model provides a glass electric cooker which comprises an outer shell, a control panel, an inner container, a base and a cooker cover assembly, wherein the inner container is placed in the outer shell, the cooker cover assembly is used for covering the inner container, a heat conducting fin is arranged at the bottom of the inner container, a heating plate is arranged below the heat conducting fin, the inner container is matched with the heating plate through the heat conducting fin, the heat conducting fin is arranged at the bottom of the inner container, and the heating plate is directly arranged below the heat conducting fin; the side walls of the shell and the inner container are made of transparent materials, so that the cooking condition of food in the cooker can be conveniently observed, the appearance is attractive and novel, and the requirements of users on the electric cooker with high color value are met.

Description

Glass electric cooker

Technical Field

The utility model relates to the technical field of household appliances, in particular to a glass electric cooker.

Background

The electric cooker is a common cooking household appliance for most families and mainly comprises a shell, an inner container and a cooker cover, and the current electric cooker has the following problems: the cooking condition of the inner part of the electric cooker after the upper cover is closed can not be directly observed, and the cooking is mainly carried out according to experience or reference specifications; or the steam scald is easily caused by observing through the transparent window on the upper cover, but most of the exhaust holes of the electric cooker are also arranged on the upper cover. Meanwhile, along with the improvement of the living standard of people, people also put forward higher demands on the time for cooking food and the color value of the electric cooker, and the conventional electric cooker can not meet the demands.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a glass electric cooker, wherein the bottom of an inner container is provided with a heat conducting fin, and an outer shell and the side wall of the inner container are both made of transparent materials, so that the glass electric cooker aims to solve one of the technical problems in the prior art.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a glass electric rice cooker, includes shell body, control panel, place in inner bag, base in the shell body and be used for the lid to close the a kind of deep pot lid subassembly of inner bag, be equipped with in the base and be used for the heating plate of inner bag, the heating plate with locate control panel electric connection on the shell body lateral wall, its characterized in that: the inner bag bottom is equipped with the conducting strip, the heating plate set up in the conducting strip below, the inner bag passes through the conducting strip with the heating plate cooperation.

Further, the inner container comprises a side wall and the heat conducting fins, and the heat conducting fins are fixedly connected with the side wall.

Further, the side wall is made of a transparent glass material.

Furthermore, the outer shell is made of transparent plastic or glass materials, and an installation cavity for installing the control panel is formed in the side wall of the outer shell.

Further, the connection of the heat-conducting fin and the side wall may be a screw seal or an adhesive connection.

Further, the heating plate is supported by a supporting seat arranged in the base, and the heating plate is fixed in the base through a fastening piece.

Further, a lifting handle and a pressure release valve which are convenient to open are fixedly arranged at the top of the cooker cover assembly.

Compared with the prior art, the heating plate is directly arranged below the heat-conducting fins, so that the heating area of the bottom of the inner container is ensured, the time for cooking food can be shortened, and the use experience of a user during cooking food is improved; the side walls of the shell and the inner container are made of transparent materials, so that the cooking condition of food in the cooker can be conveniently observed, the appearance is attractive and novel, and the requirements of users on the electric cooker with high color value are met.

Drawings

The above and/or additional aspects and advantages of the present invention will become apparent and readily appreciated from the following description of the embodiments, taken in conjunction with the accompanying drawings of which:

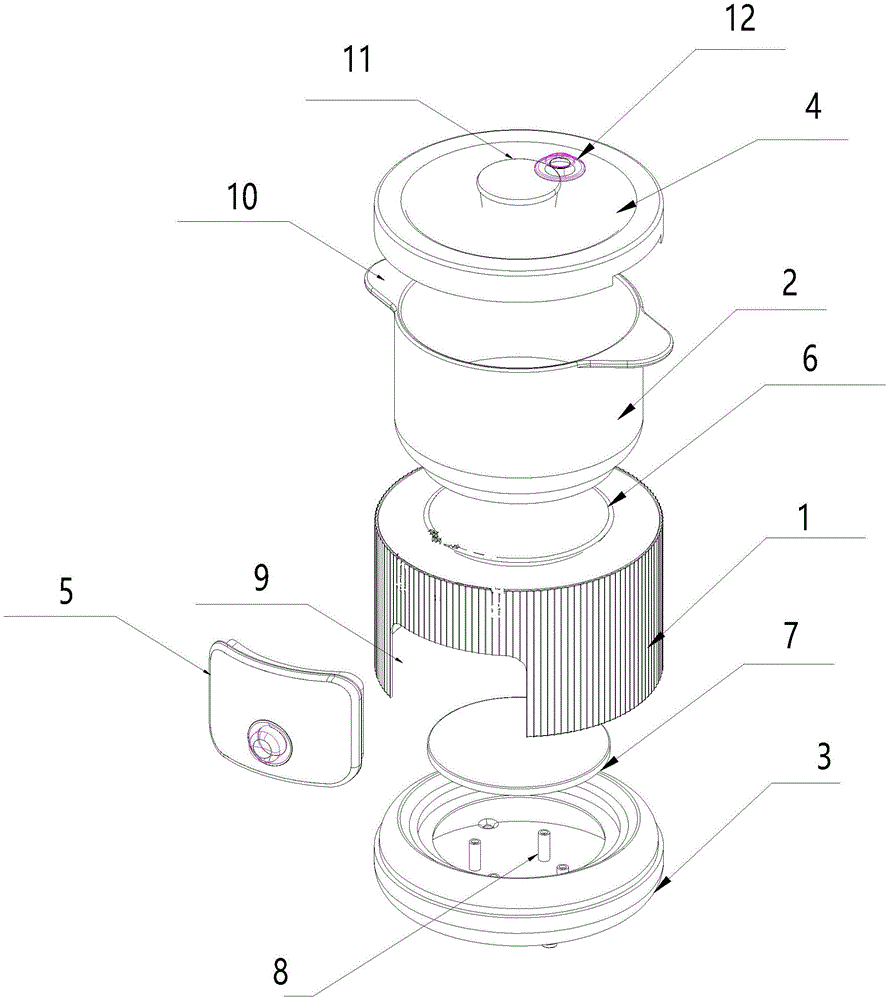

FIG. 1 is an exploded view of a glass rice cooker according to an embodiment of the present invention;

FIG. 2 is a schematic cross-sectional view of a glass electric cooker according to an embodiment of the present invention;

FIG. 3 is a schematic front view of a glass electric cooker according to an embodiment of the present invention.

Reference numerals: 1. outer shell 2, inner container 3, base 4, cooker cover assembly 5, control panel 6, conducting strip 7, heating plate 8, supporting seat 9, mounting cavity 10, handle 11, lifting handle 12, relief valve 13 and fastener

Detailed Description

Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the accompanying drawings are illustrative only for the purpose of explaining the present invention, and are not to be construed as limiting the present invention.

The glass electric cooker according to the embodiment of the present invention will be described with reference to the accompanying drawings.

As shown in fig. 1 and 2, the glass electric cooker provided by some embodiments of the present invention includes an outer casing 1, a control panel 5, an inner container 2 placed in the outer casing 1, a base 4, and a cooker cover assembly 5 for covering the inner container 2, wherein a heating plate 7 for heating the inner container 2 is provided in the base 4, and the heating plate 7 is electrically connected to the control panel 5 provided on the side wall of the outer casing 1; the bottom of the inner container 2 is provided with a heat conducting strip 6, the heating plate 7 is arranged below the heat conducting strip 6, and the inner container 2 is matched with the heating plate 7 through the heat conducting strip 6 7. The heating plate 7 and the heat conducting strip 6 can be directly abutted and can also be selected to have a certain spacing distance so as to ensure the heating effect.

The glass electric cooker provided by the embodiment of the utility model has the advantages that the inner container 2 comprises the inner container side wall and the heat conducting fins 6, and the heat conducting fins 6 are fixedly connected with the inner container side wall, and the connection can be threaded sealing or adhesive connection. Heating plate 7 directly sets up in conducting strip 6 below, and the metal material that conducting strip 6 optional heat conduction speed is fast is for example aluminium, so can shorten the time of culinary art food, promotes user's use and experiences.

Furthermore, the side wall of the inner container 2 and the outer shell 1 are both made of transparent materials, wherein the side wall of the inner container 2 is made of transparent glass materials, the material of the outer shell 1 can be transparent plastic materials or glass materials, and the cooking condition of food in the cooker can be conveniently observed through the selection of the materials, so that the novel and attractive appearance characteristic of the novel and attractive appearance is realized, and the requirement of a user on the appearance of a product is met. Simultaneously the inner bag 2 alternative sets up two handles 10, and the inner bag is hung on outer casing 1 through handle 10, also takes out inner bag 2 from outer casing 1 after facilitating the use.

Further, as shown in fig. 2 and 3, fig. 3 is a schematic front view of an embodiment of the glass electric cooker of the present invention, a mounting cavity 9 for mounting a control panel 5 is provided on a side wall of the outer casing 1, and a temperature adjusting knob, a function selecting key, a display panel, etc. are optionally provided on the control panel, which is convenient to operate.

Further, heating plate 7 is supported by supporting seat 9, and supporting seat 9 sets up in base 4, fixes heating plate 7 in base 4 through the dual function of supporting seat 9 and fastener 13, does not influence the heating effect because of the heating plate removes when guaranteeing the heating, guarantees safe in utilizationly.

Further, in some embodiments of the present invention, the glass electric cooker comprises a cooker cover assembly 5 for covering the inner container 2, a handle 11 and a pressure release valve 12 are fixedly arranged at the top of the cooker cover assembly 5, after the glass electric cooker cooks food, the pressure release valve 12 is opened to discharge steam in the cooker, and the cooker cover assembly 5 is opened through the handle 11, so that the cooker cover assembly 5 can be conveniently and safely opened to prevent the cooker from being scalded by high-temperature steam.

In summary, the glass electric cooker provided by the embodiment of the utility model has the advantages that the heat-conducting fins 6 are arranged at the bottom of the inner container 2, and the heating plate 7 is directly arranged below the heat-conducting fins 6, so that the heating area of the bottom of the inner container 2 is ensured, the food cooking time can be shortened, and the use experience of a user in cooking food is improved; the side walls of the outer shell 1 and the inner container 2 are made of transparent materials, so that the cooking condition of food in the cooker can be conveniently observed, the appearance is attractive and novel, and the requirements of users on the electric cooker with high color value are met.

In the description herein, references to the description of the term "one embodiment," "some embodiments," "an example," "a specific example," or "some examples," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the utility model. In this specification, the schematic representations of the terms used above are not necessarily intended to refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, various embodiments or examples and features of different embodiments or examples described in this specification can be combined and combined by one skilled in the art without contradiction.

While embodiments of the utility model have been shown and described, it will be understood by those of ordinary skill in the art that: various changes, modifications, substitutions and alterations can be made to the embodiments without departing from the principles and spirit of the utility model, the scope of which is defined by the claims and their equivalents.

Claims

1. The utility model provides a glass electric rice cooker, includes shell body, control panel, place in inner bag, base in the shell body and be used for the lid to close the a kind of deep pot lid subassembly of inner bag, be equipped with in the base and be used for the heating plate of inner bag, the heating plate with locate control panel electric connection on the shell body lateral wall, its characterized in that: the inner bag bottom is equipped with the conducting strip, the heating plate set up in the conducting strip below, the inner bag passes through the conducting strip with the heating plate cooperation.

2. The glass rice cooker as claimed in claim 1, wherein: the inner container comprises a side wall and the heat conducting fins, and the heat conducting fins are fixedly connected with the side wall.

3. The glass rice cooker as claimed in claim 2, wherein: the side walls are made of a transparent glass material.

4. The glass rice cooker as claimed in claim 1, wherein: the shell body is made of transparent plastic or glass materials, and an installation cavity for installing the control panel is formed in the side wall of the shell body.

5. The glass rice cooker as claimed in claim 2, wherein: the connection of the heat-conducting fin and the side wall can be thread sealing or adhesive connection.

6. The glass rice cooker as claimed in claim 1, wherein: the heating plate is supported by a supporting seat arranged in the base, and the heating plate is fixed in the base through a fastening piece.

7. The glass rice cooker as claimed in claim 1, wherein: the top of the cooker cover component is fixedly provided with a lifting handle and a pressure release valve which are convenient to open.
