The utility model provides a heat-insulating environment-friendly aerated brick, which comprises a brick body, wherein a first clamping groove and a second clamping groove are arranged in the brick body, two ends of the first clamping groove and the second clamping groove penetrate through the front wall surface and the rear wall surface of the brick body, one side of the first clamping groove extends to the side wall of the brick body, and the other side of the first clamping groove extends to a position beyond the center of the brick body; the second clamping groove is positioned below the first clamping groove, one side of the second clamping groove, which is far away from the first clamping groove, extends to the side wall of the brick body, and the other side of the second clamping groove extends to a position exceeding the center of the brick body and extends to the lower part of the first clamping groove, so that an overlapping area is formed on one side of the first clamping groove and one side of the second clamping groove, which is close to the center of the brick body; the first clamping groove and the second clamping groove are filled with heat insulation layers; the heat insulation structure has a novel structure, provides a good heat insulation function, can reduce the use of materials and reduce the production cost.
Description
Technical Field
The utility model relates to the field of aerated bricks, in particular to a heat-insulating environment-friendly aerated brick.
Background
With the increasing requirements of various buildings, various functions of building materials are relatively increased, wherein the aerated brick is a common building material, and the heat insulation performance is more required, so that the aerated brick with the heat insulation function is also more required; however, the existing heat-insulating aerated brick is intended to be improved on the basis of the material of the aerated brick, so that the corresponding material meeting the functionality is naturally relatively expensive, and under the condition of the same volume, the cost of the aerated brick made of the heat-insulating material is obviously higher, so that the market price is obviously increased, and therefore the improvement is needed.
SUMMERY OF THE UTILITY MODEL
In order to overcome the defects of the prior art, the utility model aims to provide the heat-insulating environment-friendly aerated brick which is novel in structure, provides a good heat-insulating function, can reduce the use of materials and reduces the production cost.
In order to achieve the purpose, the utility model adopts the following technical scheme:
the utility model provides a heat-insulating environment-friendly aerated brick, which comprises a brick body, wherein a first clamping groove and a second clamping groove are arranged in the brick body, two ends of the first clamping groove and the second clamping groove penetrate through the front wall surface and the rear wall surface of the brick body, one side of the first clamping groove extends to the side wall of the brick body, and the other side of the first clamping groove extends to a position beyond the center of the brick body; the second clamping groove is positioned below the first clamping groove, one side of the second clamping groove, which is far away from the first clamping groove, extends to the side wall of the brick body, and the other side of the second clamping groove extends to a position exceeding the center of the brick body and extends to the lower part of the first clamping groove, so that an overlapping area is formed on one side of the first clamping groove and one side of the second clamping groove, which is close to the center of the brick body; the first clamping groove and the second clamping groove are filled with heat insulation layers.
In a preferred technical scheme of the utility model, the heat insulation layer is a light aggregate concrete layer with heat insulation function.
In a preferred technical scheme of the utility model, one side of the first clamping groove is provided with a first slotted hole, the first slotted hole is positioned above the second clamping groove, and two ends of the first slotted hole penetrate through the front wall surface and the rear wall surface of the brick body; and a second slotted hole is formed in one side of the second clamping groove, is positioned below the first clamping groove, and penetrates through the front wall surface and the rear wall surface of the brick body at two ends.
In a preferred technical scheme of the utility model, a plurality of strip-shaped grooves are uniformly arranged at intervals on the groove walls of the first clamping groove and the second clamping groove, and the strip-shaped grooves extend to the front wall surface and the rear wall surface of the brick body.
In a preferred technical scheme of the utility model, a plurality of counter bores are arranged on the groove walls of the first clamping groove and the second clamping groove, and the plurality of counter bores are distributed in a rectangular array.
The utility model has the beneficial effects that:
the utility model provides a heat-insulating environment-friendly aerated brick which is novel in structure, and the design of a first clamping groove and a second clamping groove can be used for providing a filling position of a heat-insulating layer, so that the heat-insulating layer is arranged under the condition that the volume of a brick body is not increased; in addition, the first clamping groove and the second clamping groove are arranged in a staggered manner, so that the staggered arrangement of the two heat insulation layers is realized, and an integral heat insulation area is formed by the overlapping area, so that the heat insulation effect of the whole surface can be ensured, the structural strength of the brick body can be ensured, and the brick body is prevented from being easily damaged in a layered manner; and the design of the whole structure combines the heat insulation material and the traditional brick body manufacturing material, so that the use of the heat insulation material can be reduced, and the production cost is reduced.
Drawings

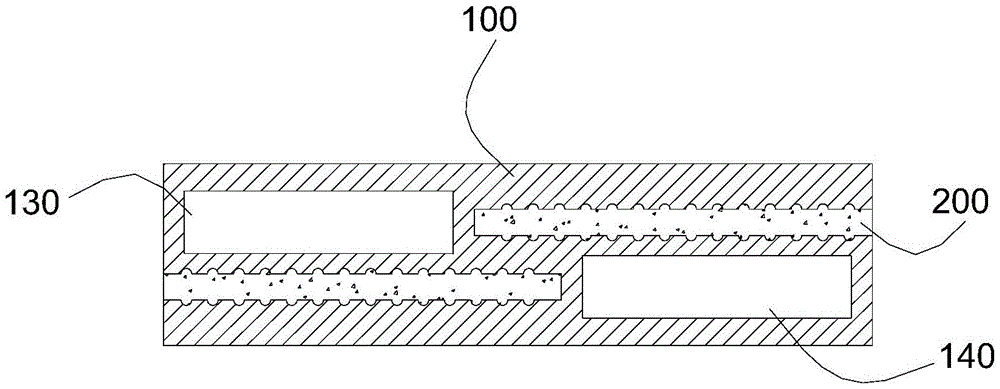

FIG. 1 is a schematic cross-sectional front view of an environment-friendly heat-insulating aerated brick provided in an embodiment of the present invention;
FIG. 2 is a schematic front cross-sectional view of a brick provided in example 1;
FIG. 3 is a schematic top cross-sectional view of the brick provided in example 1;
FIG. 4 is a schematic front cross-sectional view of a brick provided in example 2;
FIG. 5 is a schematic top cross-sectional view of a brick provided in example 2;
in the figure:
100. a brick body; 110. a first clamping groove; 120. a second clamping groove; 130. a first slot; 140. a second slot; 150. a strip-shaped groove; 160. a counter bore; 200. an insulating layer.
Detailed Description
The technical scheme of the utility model is further explained by the specific implementation mode in combination with the attached drawings.
As shown in fig. 1, the embodiment of the present invention discloses a heat-insulating environment-friendly aerated brick, which includes a brick body 100, wherein a first clamping groove 110 and a second clamping groove 120 are arranged in the brick body 100, two ends of the first clamping groove 110 and the second clamping groove 120 penetrate through front and rear wall surfaces of the brick body 100, one side of the first clamping groove 110 extends to a side wall of the brick body 100, and the other side extends to a position beyond a center of the brick body 100; the second clamping groove 120 is located below the first clamping groove 110, one side of the second clamping groove 120, which is far away from the first clamping groove 110, extends to the side wall of the brick body 100, and the other side extends to a position beyond the center of the brick body 100 and extends to the lower side of the first clamping groove 110, so that an overlapping area is formed on one side of the first clamping groove 110 and one side of the second clamping groove 120, which are close to the center of the brick body 100; the first and second clamping grooves 110 and 120 are filled with a thermal insulation layer 200.
The heat-insulating environment-friendly aerated brick is novel in structure, the first clamping groove and the second clamping groove can be designed to provide a filling position for a heat-insulating layer, and the heat-insulating layer is arranged under the condition that the volume of a brick body is not increased; in addition, the first clamping groove and the second clamping groove are arranged in a staggered manner, so that the staggered arrangement of the two heat insulation layers is realized, and an integral heat insulation area is formed by the overlapping area, so that the heat insulation effect of the whole surface can be ensured, the structural strength of the brick body can be ensured, and the brick body is prevented from being easily damaged in a layered manner; and the design of the whole structure combines the heat insulation material and the traditional brick body manufacturing material, so that the use of the heat insulation material can be reduced, and the production cost is reduced.
Further, the heat insulation layer 200 is a light aggregate concrete layer with heat insulation function, and the light aggregate concrete is also called light concrete which is prepared by light coarse aggregate (ceramsite), common sand, cement and water and is used for the structure with the strength grade of LC15-LC 60; the lightweight aggregate concrete has the characteristics of light dead weight, high strength, heat preservation, heat insulation, shock resistance, impermeability and the like, and compared with common concrete with the same grade, the lightweight aggregate concrete can reduce the dead weight by more than 20-30 percent, but the price of the material is relatively higher, and if the whole brick body is made of the material, the manufacturing cost is inevitably higher; therefore, the design of the first clamping groove and the second clamping groove, and the filling of the materials can realize the whole heat insulation effect under the condition of reducing the materials, thereby effectively reducing the production cost.
Furthermore, a first slot 130 is disposed on one side of the first clamping slot 110, the first slot 130 is located above the second clamping slot 120, and two ends of the first slot 130 penetrate through the front and rear wall surfaces of the brick body 100; a second slot 140 is formed in one side of the second clamping groove 120, the second slot 140 is located below the first clamping groove 110, and two ends of the second slot 140 penetrate through the front and rear wall surfaces of the brick body 100; the design of the first slotted hole and the second slotted hole can further reduce the whole weight and materials of the brick body, and the hollow interval is adopted to reduce heat transfer media, so that the heat insulation effect can be further improved.
Further, as shown in fig. 2 and 3, a plurality of strip grooves 150 are uniformly spaced on the groove walls of the first clamping groove 110 and the second clamping groove 120, and the strip grooves 150 extend to the front and rear wall surfaces of the brick body 100.
Further, as shown in fig. 4 and 5, a plurality of counter bores 160 are disposed on the groove walls of the first clamping groove 110 and the second clamping groove 120, and the plurality of counter bores 160 are distributed in a rectangular array; similarly, the structural design can increase the connecting area between the first clamping groove and the heat insulation layer and the connecting area between the second clamping groove and the heat insulation layer, and increase the filling area, so that the heat insulation layer is better fixed in the first clamping groove or the second clamping groove.
While the utility model has been described with reference to a preferred embodiment, it will be understood by those skilled in the art that various changes may be made and equivalents may be substituted for elements thereof without departing from the spirit and scope of the utility model. The present invention is not to be limited by the specific embodiments disclosed herein, and other embodiments that fall within the scope of the claims of the present application are intended to be within the scope of the present invention.
Claims (5)
1. A heat-insulating environment-friendly aerated brick is characterized in that:
the brick comprises a brick body, wherein a first clamping groove and a second clamping groove are arranged in the brick body, two ends of the first clamping groove and the second clamping groove penetrate through the front wall surface and the rear wall surface of the brick body, one side of the first clamping groove extends to the side wall of the brick body, and the other side of the first clamping groove extends to a position exceeding the center of the brick body; the second clamping groove is positioned below the first clamping groove, one side of the second clamping groove, which is far away from the first clamping groove, extends to the side wall of the brick body, and the other side of the second clamping groove extends to a position exceeding the center of the brick body and extends to the lower part of the first clamping groove, so that an overlapping area is formed on one side of the first clamping groove and one side of the second clamping groove, which is close to the center of the brick body; the first clamping groove and the second clamping groove are filled with heat insulation layers.
2. The heat-insulating environment-friendly aerated brick according to claim 1, characterized in that:
the heat insulation layer is a light aggregate concrete layer with heat insulation function.
3. The heat-insulating environment-friendly aerated brick according to claim 1, characterized in that:
a first slotted hole is formed in one side of the first clamping groove, the first slotted hole is positioned above the second clamping groove, and two ends of the first slotted hole penetrate through the front wall surface and the rear wall surface of the brick body;
and a second slotted hole is formed in one side of the second clamping groove, is positioned below the first clamping groove, and penetrates through the front wall surface and the rear wall surface of the brick body at two ends.
4. The heat-insulating environment-friendly aerated brick according to claim 1, characterized in that:
the groove walls of the first clamping groove and the second clamping groove are provided with a plurality of strip-shaped grooves which are uniformly arranged at intervals and extend to the front wall surface and the rear wall surface of the brick body.
5. The heat-insulating environment-friendly aerated brick according to claim 1, characterized in that:
the groove walls of the first clamping groove and the second clamping groove are provided with a plurality of counter bores, and the plurality of counter bores are distributed in a rectangular array.
