CN215194063U

CN215194063U - Disinfection and sterilization equipment

Info

Publication number: CN215194063U
Application number: CN202121465183.6U
Authority: CN
Inventors: 赵丽春; 杨宏伟; 赵东波
Original assignee: Gansu Shengdi Agricultural Development Co ltd
Current assignee: Gansu Shengdi Agricultural Development Co ltd
Priority date: 2021-06-30
Filing date: 2021-06-30
Publication date: 2021-12-17
Anticipated expiration: 2031-06-30

Abstract

The utility model discloses a disinfection and sterilization device, which comprises a fixed base and an ejection mechanism. A vertical plate is fixedly installed at one end of the top of the fixed base, and an ejection mechanism is fixedly installed at the other end of the top of the fixed base. The ejection mechanism includes two first A servo motor, two first motor boxes, two first threaded columns, a lifting block, two connecting rods and two push plates, and the first servo motors are fixedly installed inside the two first motor boxes. A new type of disinfection and sterilization equipment, two first servo motors drive the first threaded column to rotate, the lifting block slides up and down and simultaneously drives the push plate to move up and down, and the two push plates push the sterilized objects to move up, reducing the number of users and the disinfection box. The contact area of the disinfectant can reduce health risks. The transparent disinfection plate rotates in the disinfection box, so that the object and the disinfectant are fully stirred, and the sterilization lamp illuminates the disinfection light, which improves the disinfection performance of the disinfectant in contact with the transparent disinfection plate, and the disinfection effect is good. .

Description

Disinfection and sterilization equipment

Technical Field

The utility model relates to a disinfection equipment technical field specifically is a disinfection equipment.

Background

The disinfection and sterilization equipment is a machine which operates by a mechanical principle so as to generate physical or chemical disinfection elements to act on toxic substances to achieve the disinfection purpose, and is widely applied to the fields of medical treatment and daily life, however, the disinfection and sterilization equipment has the following defects when in use: the disinfection equipment cannot thoroughly clean the objects, the objects cannot achieve the complete disinfection and sterilization effects, meanwhile, the users take the disinfected objects to contact with the disinfection solution, bacteria are remained in the disinfection solution, and health hidden troubles exist after the users contact.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a disinfection and isolation equipment to the disinfection and isolation equipment who proposes among the above-mentioned background of solution washs the article not thoroughly, and the article reaches not disinfection and isolation's effect completely, and the article after the disinfection of user's taking simultaneously contacts with the antiseptic solution, remains the bacterium in the antiseptic solution, has the problem of healthy hidden danger after the user contacts.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a disinfection and sterilization equipment, including unable adjustment base and ejection mechanism, the one end fixed mounting at unable adjustment base top has the riser, the other end fixed mounting at unable adjustment base top has ejection mechanism, ejection mechanism includes two first servo motor, two first motor casees, two first screw thread posts, the elevator, two connecting rods and two push pedals, the equal fixed mounting in inside of two first motor casees has first servo motor, first motor case fixed mounting is all passed to two first servo motor's output, sliding connection has the elevator between two first screw thread posts, the equal fixed mounting in both ends of elevator has the connecting rod, the equal fixed mounting in top of two connecting rods has the push pedal, one side fixed mounting of riser has control panel, two first servo motor all with control panel electric connection.

As a preferred technical scheme of the utility model, the bottom of two first motor casees all with the other end fixed connection at unable adjustment base top, the equal fixed mounting in one side of unable adjustment base and two first motor case junctions has the backup pad, the top of two backup pads is fixed mounting respectively at the both ends of disinfect box bottom, the fixed intercommunication in one side of disinfect box has the discharge pipe, the middle part fixed mounting of discharge pipe has electronic valve, electronic valve and control panel electric connection.

As a preferred technical scheme of the utility model, the top of two first screw thread posts is all rotated and is connected in the bottom of disinfect box, and two push pedals correspond the setting with the both ends of disinfect box inner wall bottom.

As a preferred technical scheme of the utility model, the top fixed mounting of riser opposite side has the roof, and the displacement groove has been seted up to the bottom of roof, and one side fixed mounting in displacement groove has second servo motor, and second servo motor's output fixed mounting has second screw thread post, and the middle part threaded connection of second screw thread post has the slider with displacement groove sliding connection, and the bottom fixed mounting of slider has the mounting panel, second servo motor and control panel electric connection.

As a preferred technical scheme of the utility model, the bottom fixed mounting of mounting panel has the second motor case, and the inside fixed mounting of second motor case has third servo motor, and third servo motor's output fixed mounting has the connecting plate, and the bottom fixed mounting of connecting plate has the pneumatic cylinder, and the one end fixed mounting of pneumatic cylinder has transparent disinfection board, and the inside fixed mounting of transparent disinfection board has the sterilamp, and third servo motor, pneumatic cylinder and sterilamp all with control panel electric connection.

Compared with the prior art, the beneficial effects of the utility model are that: two first servo motor drive first screw thread post and rotate, the lift piece slides from top to bottom and drives the push pedal simultaneously and reciprocates, two push pedals promote that the article of disinfection completion shifts up, reduce user and disinfection liquid area of contact in the disinfect box, reduce healthy hidden danger, transparent disinfection board is at the disinfect box internal rotation for article and antiseptic solution intensive mixing, the sterilamp shines out disinfection light, the disinfection performance of the antiseptic solution of improvement and transparent disinfection board contact, disinfection effect is good.

Drawings

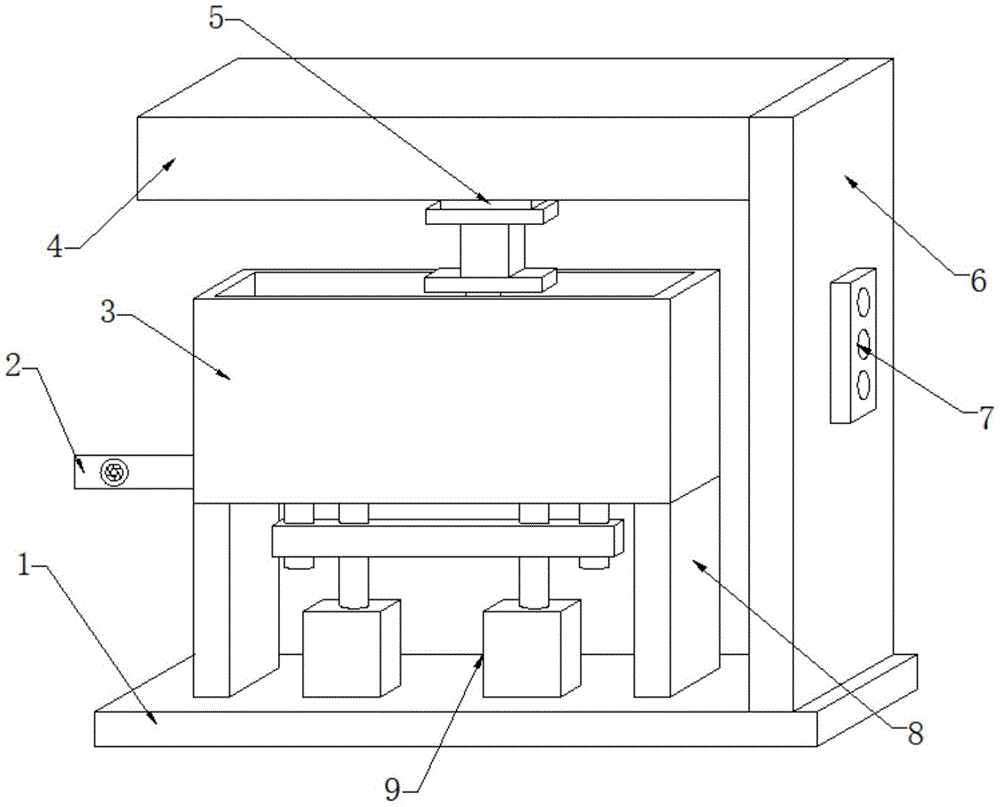

Fig. 1 is a perspective view of the present invention;

FIG. 2 is a schematic structural view of the present invention;

FIG. 3 is a schematic structural view of the mounting plate and the motor case of the present invention;

fig. 4 is a schematic structural view of the ejection mechanism of the present invention;

fig. 5 is a schematic structural view of the top plate of the present invention.

In the figure: 1. a fixed base; 2. a discharge pipe; 3. a sterilizing box; 4. a top plate; 5. a slider; 6. a vertical plate; 7. a control panel; 8. a support plate; 9. an ejection mechanism; 91. a first servo motor; 92. a first motor case; 93. a first threaded post; 94. a lifting block; 95. a connecting rod; 96. pushing the plate; 10. a sterilizing lamp; 11. an electronic valve; 12. mounting a plate; 13. a second motor case; 14. a connecting plate; 15. a hydraulic cylinder; 16. a transparent disinfection plate; 17. a second threaded post; 18. a second servo motor; 19. and a third servo motor.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the utility model provides a disinfection and sterilization device, which comprises a fixed base 1 and an ejection mechanism 9, wherein a vertical plate 6 is fixedly installed at one end of the top of the fixed base 1, the ejection mechanism 9 is fixedly installed at the other end of the top of the fixed base 1, the ejection mechanism 9 comprises two first servo motors 91, two first motor boxes 92, two first threaded columns 93, a lifting block 94, two connecting rods 95 and two push plates 96, the first servo motors 91 are fixedly installed inside the two first motor boxes 92, the first threaded columns 93 are fixedly installed at the output ends of the two first servo motors 91 through the first motor boxes 92, the lifting block 94 is slidably connected between the two first threaded columns 93, the connecting rods 95 are fixedly installed at both ends of the lifting block 94, the push plates 96 are fixedly installed at the tops of the two connecting rods 95, a control panel 7 is fixedly installed at one side of the vertical plate 6, two first servo motor 91 all with control panel 7 electric connection, two first servo motor 91 of control panel 7 control start, two first servo motor 91 drive first screw post 93 and rotate, the lifter 94 slides from top to bottom and drives push pedal 96 and reciprocate simultaneously.

Preferably, the bottom of two first motor casees 92 all with the other end fixed connection at unable adjustment base 1 top, the equal fixed mounting in one side of unable adjustment base 1 and two first motor case 92 junctions has backup pad 8, the top of two backup pads 8 is fixed mounting respectively at the both ends of disinfect box 3 bottom, the fixed intercommunication in one side of disinfect box 3 has discharge pipe 2, the middle part fixed mounting of discharge pipe 2 has electronic valve 11, electronic valve 11 and control panel 7 electric connection, control panel 7 control electronic valve 11 starts, after the disinfection, the antiseptic solution that uses up in the disinfect box 3 is discharged from discharge pipe 2.

Preferably, the top of two first threaded columns 93 all rotates the bottom of connecting at disinfect box 3, and two push plates 96 correspond the setting with the both ends of 3 inner wall bottoms of disinfect box, and disinfect box 3 plays limiting displacement to elevator 94, avoids elevator 94 to take place the slippage phenomenon, and two push plates 96 promote the article from the top of 3 inner walls of disinfect box.

Preferably, the top fixed mounting of 6 opposite sides on riser has roof 4, the displacement groove has been seted up to the bottom of roof 4, one side fixed mounting in displacement groove has second servo motor 18, second servo motor 18's output fixed mounting has second screw thread post 17, the middle part threaded connection of second screw thread post 17 has slider 5 with displacement groove sliding connection, slider 5's bottom fixed mounting has mounting panel 12, second servo motor 18 and control panel 7 electric connection, control panel 7 controls second servo motor 18 and starts, second servo motor 18 drives second screw thread post 17 and rotates, slider 5 removes for the displacement groove, slider 5 drives the removal about transparent disinfection board 16.

Preferably, a second motor box 13 is fixedly installed at the bottom of the mounting plate 12, a third servo motor 19 is fixedly installed inside the second motor box 13, a connecting plate 14 is fixedly installed at the output end of the third servo motor 19, a hydraulic cylinder 15 is fixedly installed at the bottom of the connecting plate 14, a transparent disinfection plate 16 is fixedly installed at one end of the hydraulic cylinder 15, a disinfection lamp 10 is fixedly installed inside the transparent disinfection plate 16, the third servo motor 19, the hydraulic cylinder 15 and the disinfection lamp 10 are all electrically connected with the control panel 7, the control panel 7 controls the third servo motor 19, the hydraulic cylinder 15 and the disinfection lamp 10 to be started, the third servo motor 19 drives the connecting plate 14 to rotate, the transparent disinfection plate 16 rotates in the disinfection box 3, so that objects and disinfection liquid are fully stirred, the hydraulic cylinder 15 drives the transparent disinfection plate 16 to move up and down, the stirring height of the transparent disinfection plate 16 is adjusted, and the disinfection lamp light is irradiated by the disinfection lamp light, the sterilizing performance of the sterilizing liquid in contact with the transparent sterilizing plate 16 is improved.

When in specific use, the utility model relates to a disinfection and sterilization equipment, the user injects the antiseptic solution into disinfection box 3, and place the article to be disinfected, control panel 7 controls second servo motor 18 to start, second servo motor 18 drives second screw post 17 to rotate, slider 5 moves about relative to the displacement tank, slider 5 drives transparent disinfection board 16 to move about, control panel 7 controls third servo motor 19, pneumatic cylinder 15 and sterilamp 10 start, third servo motor 19 drives connecting plate 14 to rotate, transparent disinfection board 16 rotates in disinfection box 3, make the article fully stir with the antiseptic solution, pneumatic cylinder 15 drives transparent disinfection board 16 to move up and down, adjust the stirring height of transparent disinfection board 16, sterilamp 10 shines the disinfection light, improve the disinfection performance of the antiseptic solution that contacts with transparent disinfection board 16, control panel 7 controls electronic valve 11 to start, after the disinfection, the antiseptic solution that uses up in disinfect box 3 is discharged from discharge pipe 2, two first servo motor 91 of control panel 7 control start, two first servo motor 91 drive first screw thread post 93 and rotate, the lifter 94 slides from top to bottom and drives push pedal 96 and reciprocate simultaneously, disinfect box 3 plays limiting displacement to lifter 94, avoid lifter 94 to take place the slippage phenomenon, two push pedal 96 promote the article from the top of 3 inner walls of disinfect box.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims

1. The utility model provides a disinfection and sterilization equipment, includes unable adjustment base (1) and ejection mechanism (9), its characterized in that: a vertical plate (6) is fixedly installed at one end of the top of the fixed base (1), an ejection mechanism (9) is fixedly installed at the other end of the top of the fixed base (1), the ejection mechanism (9) comprises two first servo motors (91), two first motor boxes (92), two first threaded columns (93), a lifting block (94), two connecting rods (95) and two push plates (96), the first servo motors (91) are fixedly installed inside the two first motor boxes (92), the first threaded columns (93) are fixedly installed at the output ends of the two first servo motors (91) through the first motor boxes (92), the lifting block (94) is connected between the two first threaded columns (93) in a sliding mode, the connecting rods (95) are fixedly installed at the two ends of the lifting block (94), the push plates (96) are fixedly installed at the tops of the two connecting rods (95), a control panel (7) is fixedly installed on one side of the vertical plate (6), the two first servo motors (91) are electrically connected with the control panel (7).

2. A sterilization apparatus according to claim 1, wherein: the bottom of two first motor case (92) all with the other end fixed connection at unable adjustment base (1) top, the equal fixed mounting in one side of unable adjustment base (1) and two first motor case (92) junctions has backup pad (8), the top of two backup pads (8) is fixed mounting respectively at the both ends of disinfect box (3) bottom, the fixed intercommunication in one side of disinfect box (3) has discharge pipe (2), the middle part fixed mounting of discharge pipe (2) has electronic valve (11), electronic valve (11) and control panel (7) electric connection.

3. A sterilization apparatus according to claim 2, wherein: the tops of the two first threaded columns (93) are rotatably connected to the bottom of the disinfection box (3), and the two push plates (96) are arranged at the two ends of the bottom of the inner wall of the disinfection box (3) correspondingly.

4. A sterilization apparatus according to claim 1, wherein: top fixed mounting of riser (6) opposite side has roof (4), the displacement groove has been seted up to the bottom of roof (4), one side fixed mounting in displacement groove has second servo motor (18), the output fixed mounting of second servo motor (18) has second screw thread post (17), the middle part threaded connection of second screw thread post (17) has slider (5) with displacement groove sliding connection, the bottom fixed mounting of slider (5) has mounting panel (12), second servo motor (18) and control panel (7) electric connection.

5. A disinfection apparatus as claimed in claim 4, characterized in that: the bottom fixed mounting of mounting panel (12) has second motor case (13), the inside fixed mounting of second motor case (13) has third servo motor (19), the output fixed mounting of third servo motor (19) has connecting plate (14), the bottom fixed mounting of connecting plate (14) has pneumatic cylinder (15), the one end fixed mounting of pneumatic cylinder (15) has transparent disinfection board (16), the inside fixed mounting of transparent disinfection board (16) has sterilamp (10), third servo motor (19), pneumatic cylinder (15) and sterilamp (10) all with control panel (7) electric connection.
