Animal doctor uses apparatus degassing unit
Technical Field
The utility model relates to an apparatus degassing unit relates to apparatus disinfection technical field, concretely relates to animal doctor uses apparatus degassing unit.
Background
The disinfection effect is usually achieved by adopting a chemical method during disinfection, and the disinfectant is widely applied to various fields of human life and production as an important veterinary practical technology.
The following problems exist in the prior art:
1. when a veterinarian uses the disinfection device to disinfect medical instruments, disinfection is mostly carried out by directly washing with disinfectant fluid, and incomplete disinfection is easy to occur during disinfection, so that the use efficiency of equipment is reduced, and the practicability is reduced;
2. when disinfecting to the apparatus, generally adopt directly to place the apparatus in degassing unit, when the disinfection, the condition that drops takes place easily for take after the disinfection needs extravagant plenty of time, lead to the utilization efficiency of equipment to reduce, the problem that use cost increases.
SUMMERY OF THE UTILITY MODEL
The utility model provides an appliance disinfection device for veterinarians, which aims to have the capability of omnibearing disinfection and solves the problems that disinfection is carried out by directly washing with disinfectant fluid, incomplete disinfection is easy to occur during disinfection, the use efficiency of equipment is reduced and the practicability is reduced; wherein another kind of purpose is in order to solve directly to place the apparatus in degassing unit, when the disinfection, the condition that drops takes place easily for taking after the disinfection needs extravagant a large amount of time, leads to the utilization efficiency of equipment to reduce, the problem that use cost increases, in order to reach the utilization efficiency of improve equipment, reduces use cost's effect.
In order to solve the technical problem, the utility model discloses the technical scheme who adopts is:
the utility model provides an animal doctor uses apparatus degassing unit, includes the base, the top fixedly connected with elevating gear of base, elevating gear's positive fixedly connected with drying device, the last fixed surface of base is connected with degassing unit, degassing unit is including the disinfection bucket, the bottom surface of disinfection bucket and the last fixed surface of base are connected, the last fixed surface of base is connected with the riser, drying device is including the stoving case, the back of stoving case and elevating gear's positive fixed connection.
The utility model discloses technical scheme's further improvement lies in: the upper surface swing joint of disinfection bucket has the bung, the top fixedly connected with connecting box of bung, the inner chamber side fixedly connected with driving motor of connecting box, the bottom of driving motor's output shaft runs through the bung and with the interior outer surface swing joint of bung, fixedly connected with clamping device on driving motor's the output shaft.
The utility model discloses technical scheme's further improvement lies in: clamping device is including the fishplate bar, the upper surface of fishplate bar and the bottom fixed connection of driving motor's output shaft, the bottom surface one end fixedly connected with threading board of fishplate bar, the bottom surface other end fixedly connected with curb plate of fishplate bar, the inner chamber top fixedly connected with screw thread seat of threading board, the inside swing joint of screw thread seat has the threaded rod, the bottom of threaded rod extend to the outside of threading board and with the inside and outside surface swing joint of threading board, the bottom fixedly connected with of threaded rod changes the handle, the top of changeing the handle and the bottom swing joint of threading board, swing joint has the clamp plate on the surface of threaded rod, the top fixedly connected with briquetting of clamp plate, the inboard swing joint of the one end of clamp plate and curb plate.
The utility model discloses technical scheme's further improvement lies in: the side fixedly connected with ventilation fan of stoving case, the ventilation hole has been seted up in the left side of ventilation fan, the right side swing joint of ventilation fan has the dust removal filter screen, the inner chamber bottom fixedly connected with ultraviolet germicidal lamp of stoving case, the ultraviolet germicidal lamp sets up about the central line symmetry of stoving case.
The utility model discloses technical scheme's further improvement lies in: the side of clamp plate swing joint has the gyro wheel, the spout has been seted up to the inboard of curb plate, the surface of gyro wheel and the inner wall sliding connection of spout.
The utility model discloses technical scheme's further improvement lies in: the upper surface of the upper connecting plate is fixedly connected with a connecting rod, the top of the connecting rod is movably connected with a ball, a rolling groove is formed in the bottom surface of the barrel cover, and the outer surface of the ball is movably connected with the inner wall of the rolling groove.
The utility model discloses technical scheme's further improvement lies in: the lifting device comprises a lifting column, the bottom of the lifting column is fixedly connected with the upper surface of a vertical plate, the top of the lifting column is fixedly connected with a top plate, the front of the top plate is fixedly connected with the back of a drying box, a movable plate is movably connected to the outer surface of the lifting column, a connecting plate is fixedly connected to the front of the movable plate, the bottom surface of the connecting plate is fixedly connected with the top of the connecting box, a moving groove is formed in the back of the drying box, and the inner wall of the moving groove is connected with the outer surface of the connecting plate in a sliding mode.
Owing to adopted above-mentioned technical scheme, the utility model discloses relative prior art, the technological progress who gains is:
1. the utility model provides an animal doctor uses apparatus degassing unit, adopt the disinfection bucket, driving motor, clamping device, the cooperation of ventilation fan and sterilamp, cooperation through driving motor and clamping device, make the apparatus all-round disinfection in the disinfection bucket, it dries to recycle the antiseptic solution on the ventilation fan with the apparatus, cooperate sterilamp to carry out sterilamp to the apparatus simultaneously, reach comprehensive sterile purpose, the direct washing of adopted disinfectant is disinfected, the incomplete condition of disinfection appears easily when the disinfection, the availability factor that leads to equipment reduces, the problem that the practicality reduces, thereby the availability factor and the effect of practicality of improve equipment have been reached.
2. The utility model provides an animal doctor uses apparatus degassing unit, adopt the threaded rod, pressing plates, change the cooperation of handle and briquetting, through changeing the cooperation with the threaded rod, control pressing plate's lift, match different apparatus, it presss from both sides the apparatus with the briquetting to recycle the clamp plate, disinfect, avoided directly placing the apparatus in degassing unit, when disinfecting, the condition that drops takes place easily, make taking after the disinfection need waste a large amount of time, lead to the utilization efficiency reduction of equipment, the problem that use cost increases, thereby the utilization efficiency of improve equipment has been reached, reduce use cost's effect.
Drawings

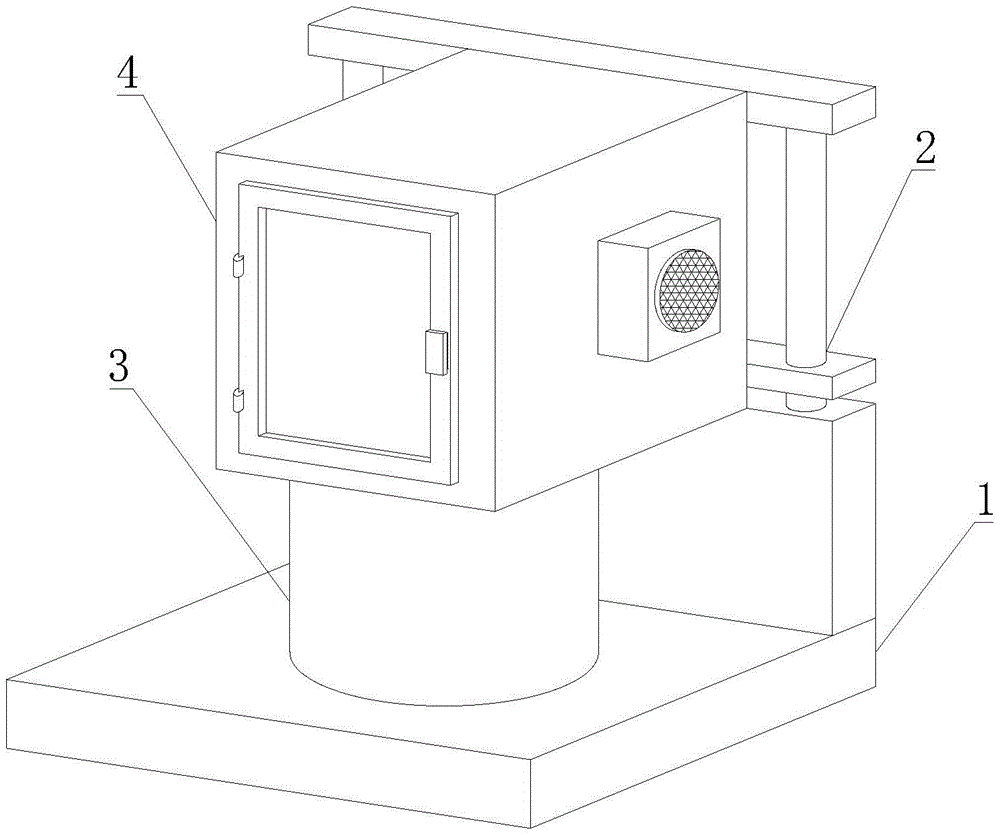

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the lifting device and the disinfection device of the present invention;
FIG. 3 is a schematic sectional view of the structural disinfection device of the present invention;
fig. 4 is a schematic cross-sectional view of the structural clamping device of the present invention;
fig. 5 is a schematic sectional view of the structure drying device of the present invention.
In the figure: 1. a base; 11. a vertical plate; 2. a lifting device; 21. a movable plate; 22. a lifting column; 23. a top plate; 24. a connecting plate; 3. a sterilizing device; 31. a sterilizing barrel; 32. a barrel cover; 33. a connecting box; 34. a drive motor; 35. a clamping device; 351. an upper connecting plate; 352. a connecting rod; 3521. a ball bearing; 353. a side plate; 3531. a chute; 354. a thread plate; 3541. a threaded seat; 3542. a threaded rod; 3543. pressing a plate; 35431. briquetting; 35432. a roller; 3544. turning a handle; 4. a drying device; 41. a drying box; 411. a moving groove; 42. a ventilating fan; 421. a vent hole; 43. a dust removal filter screen; 44. an ultraviolet sterilizing lamp.
Detailed Description
The present invention will be described in further detail with reference to the following examples:
example 1
As shown in fig. 1-5, the utility model provides an apparatus sterilizing device for veterinarian, which comprises a base 1, a lifting device 2 is fixedly connected to the top of the base 1, a drying device 4 is fixedly connected to the front of the lifting device 2, a sterilizing device 3 is fixedly connected to the upper surface of the base 1, the sterilizing device 3 comprises a sterilizing barrel 31, the bottom surface of the sterilizing barrel 31 is fixedly connected to the upper surface of the base 1, a vertical plate 11 is fixedly connected to the upper surface of the base 1, the drying device 4 comprises a drying box 41, the back surface of the drying box 41 is fixedly connected to the front of the lifting device 2, a barrel cover 32 is movably connected to the upper surface of the sterilizing barrel 31, a connecting box 33 is fixedly connected to the top of the barrel cover 32, a driving motor 34 is fixedly connected to the inner cavity side surface of the connecting box 33, the bottom end of the output shaft of the driving motor 34 penetrates through the barrel cover 32 and is movably connected to the inner surface and the outer surface of the barrel cover 32, fixedly connected with clamping device 35 on driving motor 34's the output shaft, the side fixedly connected with ventilation fan 42 of stoving case 41, ventilation hole 421 has been seted up to ventilation fan 42's left side, and ventilation fan 42's right side swing joint has dust removal filter screen 43, and the inner chamber bottom fixedly connected with ultraviolet sterilamp 44 of stoving case 41, ultraviolet sterilamp 44 set up about the central line symmetry of stoving case 41.
In this embodiment, adopt disinfection bucket 31, driving motor 34, clamping device 35, ventilation fan 42 and ultraviolet sterilamp 44's cooperation, cooperation through driving motor 34 and clamping device 35, utilize the rotation of driving motor 34's output shaft, it rotates to drive clamping device 35, make the all-round disinfection of apparatus in disinfection bucket 31, recycle ventilation fan 42 and dry the antiseptic solution on the apparatus, cooperation ultraviolet sterilamp 44 carries out ultraviolet sterilization to the apparatus simultaneously, reach the mesh of comprehensive disinfection, avoided adopting the disinfectant directly to wash and disinfect, the incomplete condition of disinfection appears easily when the disinfection, lead to the availability factor of equipment to reduce, the problem of practicality reduction, thereby the effect of improve equipment's availability factor and practicality has been reached.
Example 2
As shown in fig. 1-5, on the basis of embodiment 1, the utility model provides a technical solution: preferably, the clamping device 35 includes an upper connecting plate 351, an upper surface of the upper connecting plate 351 is fixedly connected with a bottom of an output shaft of the driving motor 34, one end of a bottom surface of the upper connecting plate 351 is fixedly connected with a threaded plate 354, the other end of the bottom surface of the upper connecting plate 351 is fixedly connected with a side plate 353, a threaded seat 3541 is fixedly connected with a top of an inner cavity of the threaded plate 354, a threaded rod 3542 is movably connected with an inner portion of the threaded seat 3541, a bottom of the threaded rod 3542 extends to an outer portion of the threaded plate 354 and is movably connected with inner and outer surfaces of the threaded plate 354, a rotating handle 3544 is fixedly connected with a bottom of the rotating handle 3544, a pressing plate 3543 is movably connected with an outer surface of the threaded rod 3542, a pressing block 35431 is fixedly connected with a top of the pressing plate 3543, one end of the pressing plate 3543 is movably connected with an inner side of the side plate 353, a roller 35432 is movably connected with a side surface of the pressing plate 3543, a sliding groove 3531 is formed in an inner side of the side plate 353, the surface of gyro wheel 35432 and spout 3531's inner wall sliding connection, adopt threaded rod 3542, clamp plate 3543, the cooperation of commentaries on classics 3544 and briquetting 35431, change through rotating and drive threaded rod 3542 and rotate 3544, the lift of control clamp plate 3543, match not unidimensional apparatus, it presss from both sides the apparatus with briquetting 35431 to recycle clamp plate 3543, disinfect, avoided directly placing the apparatus in degassing unit, when disinfecting, the condition of dropping takes place easily, make taking after the disinfection need waste a large amount of time, lead to the utilization efficiency of equipment to reduce, use cost increases's problem, thereby reach improve equipment's utilization efficiency, reduce use cost's effect.
Example 3
As shown in fig. 1-5, on the basis of embodiment 1, the utility model provides a technical solution: preferably, the upper surface of the upper connecting plate 351 is fixedly connected with a connecting rod 352, the top of the connecting rod 352 is movably connected with a ball 3521, the bottom surface of the barrel cover 32 is provided with a rolling groove, the outer surface of the ball 3521 is movably connected with the inner wall of the rolling groove, the stability of the clamping device 35 during rotation is enhanced through the design of the connecting rod 352, the rotation is more labor-saving through the cooperation of the ball 3521, the lifting device 2 comprises a lifting column 22, the bottom of the lifting column 22 is fixedly connected with the upper surface of a vertical plate 11, the top of the lifting column 22 is fixedly connected with a top plate 23, the front surface of the top plate 23 is fixedly connected with the back surface of the drying box 41, the outer surface of the lifting column 22 is movably connected with a movable plate 21, the front surface of the movable plate 21 is fixedly connected with a connecting plate 24, the bottom surface of the connecting plate 24 is fixedly connected with the top of the connecting box 33, the back surface of the drying box 41 is provided with a moving groove 411, the inner wall of the moving groove 411 is slidably connected with the outer surface of the connecting plate 24, through the rising of fly leaf 21 on lift post 22, cooperation connecting plate 24 and connecting box 33's fixed connection for clamping device 35 breaks away from disinfection bucket 31, gets into drying device 4, dries and ultraviolet sterilization, makes the use of equipment more comprehensive, and is convenient, makes the practicality and the functional further promotion of equipment.
The operation of the veterinary instrument sterilization device will be described in detail below.
As shown in fig. 1-5, when in use, firstly, the instrument is placed on the pressing block 35431, then the screw rod 3542 is driven to rotate by rotating the rotating handle 3544, the lifting of the pressing block 3543 is controlled, then the instrument is clamped by the pressing block 3543 and the pressing block 35431, then the movable plate 21 is controlled to descend, so that the clamping device 35 enters the disinfection barrel 31, then the driving motor 34 is started, then the clamping device 35 is driven to rotate by the rotation of the output shaft of the driving motor 34, so that the instrument is disinfected in all directions in the disinfection barrel 31, then the lifting of the movable plate 21 on the lifting column 22 is matched with the fixed connection of the connecting plate 24 and the connecting box 33, so that the clamping device 35 is separated from the disinfection barrel 31 and enters the drying device 4, then the disinfection solution on the instrument is dried by the ventilating fan 42, and the instrument is sterilized by ultraviolet rays by the ultraviolet sterilizing lamp 44, thereby achieving the purpose of comprehensive disinfection, after sterilization, the user can take out the apparatus from the drying box 41 for use.
The present invention has been described in detail with reference to the above general description, but it will be apparent to one of ordinary skill in the art that modifications and improvements can be made to the invention. Therefore, modifications or improvements without departing from the spirit of the invention are within the scope of the invention.
