The utility model discloses a surgical instrument disinfection cabinet for cardiovascular medicine, which relates to the technical field of disinfection equipment and comprises a cabinet body, a disinfection mechanism and a linkage mechanism, wherein a limiting groove is formed in one end of the bottom end in the cabinet body, a transmission screw rod penetrating to the top end of the cabinet body is arranged in the limiting groove, and a motor is arranged at the top end of the transmission screw rod. Through setting up drive bevel gear, driven bevel gear, two-way lead screw, remove seat and shifting chute, realize the starter motor, when driving transmission lead screw pivoted, make drive bevel gear drive driven bevel gear and rotate, make two-way lead screw rotate, thereby make and remove the seat and drive the shower nozzle and remove, when removing the seat and remove the one end to the spread groove, motor antiport drives and removes seat antiport, so reciprocal circulation washs the sterile water, the realization evenly sprays aseptic distilled water to surgical instruments, the cleaning efficiency is improved.
Description
Technical Field
The utility model relates to the technical field of disinfection equipment, in particular to a surgical instrument disinfection cabinet for cardiovascular medicine.
Background
The medical instruments refer to instruments, equipment, appliances, in-vitro diagnostic reagents and calibrators, materials and other similar or related articles directly or indirectly applied to the human body, and include required computer software for the purpose of disease diagnosis, prevention, monitoring, treatment or relief, injury diagnosis, monitoring, treatment, relief or function compensation, and physiological structure or physiological process detection, substitution, regulation or support, so that the disinfection device of the surgical instruments after the operation is particularly important for ensuring the next use of the medical instruments.
According to the Chinese patent number: CN211024289U discloses an apparatus degassing unit for cardiovascular internal medicine, including sterilizer, supporting legs, disinfectant box, the valve that wastes discharge, sterilamp, the cage structure is soaked to the apparatus, lift swivel mount structure, control box, touch-control display screen, central processing unit, switch, observation window, handle lock and protection cabinet door. According to the utility model, the disinfectant is put into the disinfectant box, and the instruments to be disinfected are inserted into the inner side of the instrument restraint band, so that the restraint and fixation effects are achieved; closing the protection cabinet door, controlling the lifting rod to descend by operating the touch display screen, immersing the placing box into the disinfectant of the disinfectant box, starting the rotation of the rotating motor by the touch display screen to drive the placing box to rotate, and playing a role in disinfecting instruments by using the disinfectant box; after the liquid disinfection finishes, will place the case and mention, start the further disinfection of disinfecting of sterilamp, increase the disinfection mode, improve disinfection efficiency, conveniently control the disinfection process.
However, the above-mentioned patent publication has a problem that after the surgical instruments are sterilized, the sterilizing liquid remains on the surgical instruments, which seriously affects the use of the surgical instruments.
SUMMERY OF THE UTILITY MODEL
The utility model aims to: in order to solve the problem of residual disinfectant, a surgical instrument disinfection cabinet for cardiovascular medicine is provided.
In order to achieve the purpose, the utility model provides the following technical scheme: a surgical instrument disinfection cabinet for cardiovascular medicine comprises a cabinet body, a disinfection mechanism and a linkage mechanism, wherein a limiting groove is formed in one end of the bottom end of the interior of the cabinet body, a transmission screw rod penetrating to the top end of the cabinet body is arranged in the limiting groove, and a motor is arranged at the top end of the transmission screw rod;
the disinfection device comprises a movable plate located in the cabinet body, wherein one end, away from a limiting groove, of the inside of the cabinet body is provided with a first step, the other end, located on the first step, of the inside of the cabinet body is provided with a second step, the top end of the second step is provided with a push rod, the output end of the push rod is provided with a connecting seat, the two sides of the inner wall of the connecting seat are provided with connecting blocks, the top end of the first step is provided with a disinfectant tank, one end, located on the second step, of the outer wall of the disinfectant tank is provided with a sliding seat, the two sides of the outer wall of the sliding seat are provided with sliding grooves, a net box is arranged above the movable plate and located in the cabinet body, an ultraviolet lamp is arranged on one side, located on the net box, of the cabinet body, and an air heater is arranged at one end, located on the net box, of the inner wall of the cabinet body.
As a still further scheme of the utility model: the linkage mechanism is including the drive bevel gear that is located the transmission lead screw outer wall, the top that the inner wall of the cabinet body is located the air heater is provided with the spread groove, the inside bottom that is located the spread groove of the cabinet body is provided with the shifting chute, drive bevel gear's outer wall is provided with driven bevel gear, driven bevel gear's inside is provided with two-way lead screw, the outer wall of two-way lead screw is provided with two and removes the seat, the inside that the top that removes the seat is located the spread groove is provided with the shower nozzle.
As a still further scheme of the utility model: the outer wall of the connecting block is matched with the inner wall of the sliding groove, and the outer wall of the sliding seat is matched with the inner wall of the connecting seat.
As a still further scheme of the utility model: and a limiting plate matched with the inner wall of the limiting groove is arranged on one side of the moving plate, and a circular groove meshed with the outer wall of the transmission screw rod is arranged in the limiting plate.
As a still further scheme of the utility model: the outer wall of the moving seat is matched with the inner wall of the moving groove, a circular groove meshed with the outer wall of the bidirectional screw rod is arranged inside the moving seat, and the spray head is fixedly connected with the top end of the moving seat.
As a still further scheme of the utility model: the two sides of the net cage are fixedly connected with the inner wall of the cabinet body through a fixing frame, and one ends of the two spray heads are connected with an external water tank through a water pump.
As a still further scheme of the utility model: the output end of the motor is rotatably connected with the transmission screw rod through a coupler, the joint of the outer wall of the transmission screw rod and the cabinet body is rotatably connected through a bearing, and the outer wall of the driving bevel gear is meshed and connected with the outer wall of the driven bevel gear.
Compared with the prior art, the utility model has the beneficial effects that:
1. by arranging the net cage, the push rod, the motor, the transmission lead screw, the connecting seat, the sliding groove and the sliding seat, the surgical instrument to be disinfected is placed in the net cage, the push rod is started to push the disinfectant box from the top end of the first step to the top end of the movable plate, the motor is started to drive the transmission lead screw to rotate, so that the movable plate drives the disinfectant box to move upwards, at the moment, the inner wall of the sliding groove slides along the outer wall of the connecting block, the net cage is positioned in the disinfectant box, the surgical instrument is disinfected and sterilized, after the disinfection and sterilization are finished, the motor is started reversely, the movable plate drives the disinfectant box to move downwards and reset, and then the push rod is started to move the disinfectant box to the top end of the first step, so that the rapid disinfection and sterilization are realized;
2. through setting up drive bevel gear, driven bevel gear, two-way lead screw, remove seat and shifting chute, realize the starter motor, when driving transmission lead screw pivoted, make drive bevel gear drive driven bevel gear and rotate, make two-way lead screw rotate to make and remove the seat and drive the shower nozzle and remove, when removing the seat and remove the one end to the spread groove, motor antiport drives and removes seat antiport, so reciprocal circulation realizes evenly spraying aseptic distilled water to surgical instruments, improves the cleaning efficiency.
Drawings

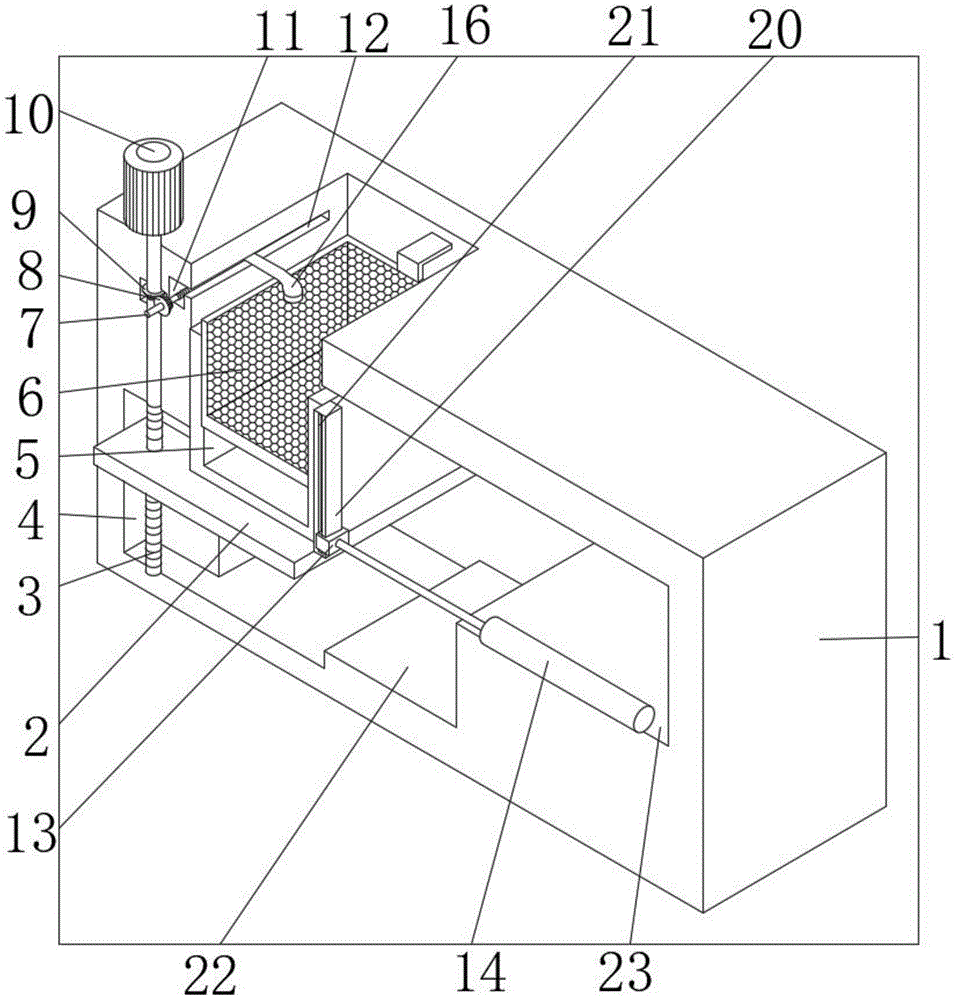

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a cross-sectional view of the cabinet of the present invention;
FIG. 3 is an exploded view of the linkage mechanism of the present invention;
fig. 4 is an enlarged schematic view of the utility model at a.
In the figure: 1. a cabinet body; 2. moving the plate; 3. a transmission screw rod; 4. a limiting groove; 5. a disinfectant tank; 6. a net cage; 7. a bidirectional screw rod; 8. a driven bevel gear; 9. a drive bevel gear; 10. a motor; 11. a moving groove; 12. connecting grooves; 13. a connecting seat; 14. a push rod; 15. a hot air blower; 16. a spray head; 17. an ultraviolet lamp; 18. a movable seat; 19. connecting blocks; 20. a sliding seat; 21. a sliding groove; 22. a first step; 23. a second step.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art. The following describes an embodiment of the present invention based on its overall structure.
Referring to fig. 1 to 4, in an embodiment of the present invention, a surgical instrument disinfection cabinet for cardiovascular medicine includes a cabinet body 1, a disinfection mechanism and a linkage mechanism, wherein a limiting groove 4 is disposed at one end of an inner bottom end of the cabinet body 1, a transmission screw rod 3 penetrating to a top end of the cabinet body 1 is disposed inside the limiting groove 4, and a motor 10 is disposed at a top end of the transmission screw rod 3;
wherein, the disinfection mechanism is including being located the movable plate 2 of the internal portion of cabinet 1, the one end that the spacing groove 4 was kept away from to the inside of the cabinet body 1 is provided with first step 22, the other end that the inside of the cabinet body 1 was located first step 22 is provided with second step 23, the top of second step 23 is provided with push rod 14, the output of push rod 14 is provided with connecting seat 13, the inner wall both sides of connecting seat 13 are provided with connecting block 19, the top of first step 22 is provided with antiseptic solution case 5, the one end that the outer wall of antiseptic solution case 5 was located second step 23 is provided with sliding seat 20, the outer wall both sides of sliding seat 20 are provided with sliding groove 21, the inside of the cabinet body 1 that is located the top of movable plate 2 is provided with net case 6, the inherent one side that is located net case 6 of the cabinet body 1 is provided with ultraviolet lamp 17, the one end that the inner wall of the cabinet body 1 is located net case 6 is provided with air heater 15.
Please refer to fig. 1 and fig. 3, the linkage mechanism includes a driving bevel gear 9 located on the outer wall of the driving screw rod 3, a connecting groove 12 is arranged on the inner wall of the cabinet 1 above the air heater 15, a moving groove 11 is arranged on the bottom end of the connecting groove 12 inside the cabinet 1, a driven bevel gear 8 is arranged on the outer wall of the driving bevel gear 9, a bidirectional screw rod 7 is arranged inside the driven bevel gear 8, two moving seats 18 are arranged on the outer wall of the bidirectional screw rod 7, and a nozzle 16 is arranged inside the connecting groove 12 on the top end of the moving seat 18 for facilitating the nozzle 16 to reciprocate and spray evenly.
Please refer to fig. 1 and 4, the outer wall of the connecting block 19 fits the inner wall of the sliding groove 21, and the outer wall of the sliding seat 20 fits the inner wall of the connecting block 13, so as to facilitate the sliding connection between the connecting block 13 and the sliding seat 20.
Please refer to fig. 1, a limiting plate is disposed on one side of the moving plate 2 and fits with the inner wall of the limiting groove 4, and a circular groove engaged with the outer wall of the driving screw 3 is disposed inside the limiting plate, so that the driving screw 3 rotates to drive the moving plate 2 to move up and down.
Please refer to fig. 2 and 3, the outer wall of the movable base 18 is matched with the inner wall of the movable slot 11, a circular slot engaged with the outer wall of the bidirectional screw 7 is arranged inside the movable base 18, and the nozzle 16 is fixedly connected with the top end of the movable base 18, so that the bidirectional screw 7 rotates to drive the movable base 18 to reciprocate.
Please refer to fig. 1, two sides of the net cage 6 are fixedly connected with the inner wall of the cabinet 1 through a fixing frame for supporting and fixing the net cage 6, and one ends of two nozzles 16 are connected with an external water tank through a water pump for spraying water.
Please refer to fig. 2, the output end of the motor 10 is rotatably connected to the driving screw 3 through a coupling, the connection part of the outer wall of the driving screw 3 and the cabinet 1 is rotatably connected through a bearing, and the outer wall of the driving bevel gear 9 is engaged with the outer wall of the driven bevel gear 8, so that the motor drives the driving screw 3 and the bidirectional screw 7 to rotate.
The working principle of the utility model is as follows: when the surgical instrument disinfection cabinet for the cardiovascular medicine is used, surgical instruments to be disinfected are placed in the net box 6, the push rod 14 is started to push the disinfectant box 5 to the top end of the movable plate 2 from the top end of the first step 22, the starting motor 10 drives the transmission screw rod 3 to rotate, so that the movable plate 2 drives the disinfectant box 5 to move upwards, meanwhile, the outer wall of the sliding seat 20 slides along the inner wall of the connecting seat 13, the inner wall of the sliding groove 21 slides along the outer wall of the connecting block 19, so that the net box 6 is positioned inside the disinfectant box 5, the surgical instruments are disinfected and sterilized, after the disinfection is finished, the motor 10 is started reversely, the movable plate 2 drives the disinfectant box 5 to move downwards to reset, the spray head 16 is prevented from spraying water into the disinfectant box 5, then the push rod 14 is started to enable the disinfectant box 5 to move to the top end of the first step 22, the external water pump is started to provide sterile distilled water for the spray head 16, the motor 10 is started, when the transmission screw rod 3 is driven to rotate, the driving bevel gear 9 drives the driven bevel gear 8 to rotate, the two-way screw rod 7 is driven to rotate, the movable seat 18 drives the spray head 16 to move, when the movable seat 18 moves to one end of the connecting groove 12, the motor 10 rotates in the reverse direction to drive the movable seat 18 to move in the reverse direction, and the reciprocating circulation is adopted, so that sterile distilled water is uniformly sprayed on surgical instruments, sterilized water is rapidly cleaned, and after the hot air blower 15 is started to treat residual moisture on the surgical instruments, the ultraviolet lamp 17 is started to further perform sterilization treatment.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the scope of the present invention, and the technical solutions and the utility model concepts of the present invention are equivalent to or changed within the scope of the present invention.
Claims (7)
1. A surgical instrument disinfection cabinet for cardiovascular medicine comprises a cabinet body (1), a disinfection mechanism and a linkage mechanism, and is characterized in that one end of the bottom end in the cabinet body (1) is provided with a limiting groove (4), a transmission screw rod (3) penetrating to the top end of the cabinet body (1) is arranged in the limiting groove (4), and the top end of the transmission screw rod (3) is provided with a motor (10);
wherein the disinfection mechanism comprises a movable plate (2) positioned inside the cabinet body (1), one end of the interior of the cabinet body (1) far away from the limiting groove (4) is provided with a first step (22), the other end of the interior of the cabinet body (1) positioned on the first step (22) is provided with a second step (23), the top end of the second step (23) is provided with a push rod (14), the output end of the push rod (14) is provided with a connecting seat (13), two sides of the inner wall of the connecting seat (13) are provided with connecting blocks (19), the top end of the first step (22) is provided with a disinfectant tank (5), one end of the outer wall of the disinfectant tank (5) positioned on the second step (23) is provided with a sliding seat (20), two sides of the outer wall of the sliding seat (20) are provided with sliding grooves (21), a net box (6) is arranged above the movable plate (2) positioned inside the cabinet body (1), an ultraviolet lamp (17) is arranged on one side of the cabinet body (1) which is positioned at the net cage (6), and an air heater (15) is arranged at one end of the inner wall of the cabinet body (1) which is positioned at the net cage (6).
2. The surgical instrument disinfection cabinet for the cardiovascular department according to claim 1, wherein the linkage mechanism comprises a driving bevel gear (9) located on the outer wall of the transmission screw rod (3), the inner wall of the cabinet body (1) is provided with a connecting groove (12) above the hot air blower (15), the bottom end of the connecting groove (12) inside the cabinet body (1) is provided with a moving groove (11), the outer wall of the driving bevel gear (9) is provided with a driven bevel gear (8), the inside of the driven bevel gear (8) is provided with a bidirectional screw rod (7), the outer wall of the bidirectional screw rod (7) is provided with two moving seats (18), and the top end of the moving seat (18) is provided with a spray head (16) inside the connecting groove (12).
3. The surgical instrument disinfection cabinet for cardiovascular department according to claim 1, wherein the outer wall of the connection block (19) is engaged with the inner wall of the sliding groove (21), and the outer wall of the sliding seat (20) is engaged with the inner wall of the connection seat (13).
4. The surgical instrument disinfection cabinet for the cardiovascular department according to claim 1, wherein one side of the movable plate (2) is provided with a limiting plate which is matched with the inner wall of the limiting groove (4), and the inside of the limiting plate is provided with a circular groove which is meshed with the outer wall of the transmission screw rod (3).
5. The surgical instrument disinfection cabinet for cardiovascular department according to claim 2, characterized in that the outer wall of the movable base (18) is engaged with the inner wall of the movable groove (11), the inner part of the movable base (18) is provided with a circular groove engaged with the outer wall of the bidirectional screw rod (7), and the spray head (16) is fixedly connected with the top end of the movable base (18).
6. The surgical instrument disinfection cabinet for the cardiovascular department according to claim 2, wherein two sides of the net box (6) are fixedly connected with the inner wall of the cabinet body (1) through a fixing frame, and one end of each of the two spray heads (16) is connected with an external water tank through a water pump.
7. The surgical instrument disinfection cabinet for the cardiovascular department according to claim 2, wherein the output end of the motor (10) is rotatably connected with the transmission screw rod (3) through a coupler, the joint of the outer wall of the transmission screw rod (3) and the cabinet body (1) is rotatably connected through a bearing, and the outer wall of the driving bevel gear (9) is meshed with the outer wall of the driven bevel gear (8).
