CN215035694U

CN215035694U - Strong and plastic product alloy steel cutting device

Info

Publication number: CN215035694U
Application number: CN202121420576.5U
Authority: CN
Inventors: 应立法
Original assignee: Zhejiang Xincheng Mould Material Co ltd
Current assignee: Zhejiang Xincheng Mould Material Co ltd
Priority date: 2021-06-24
Filing date: 2021-06-24
Publication date: 2021-12-07
Anticipated expiration: 2031-06-24

Abstract

The utility model discloses a product alloy steel cutting device excels in, the device comprises a device housing, the interior lower surface four corners of device casing all is equipped with the pillar, four the up end of pillar is equipped with cutting platform, cutting platform's the upper surface left and right sides all is equipped with steel clamping mechanism, cutting platform's top is equipped with the cutting machine, the inside of device casing still is equipped with the lateral shifting mechanism and the vertical movement mechanism that are used for driving the cutting machine and move in level and vertical direction, the interior right flank of device casing is equipped with the dust cage, the dust cage is connected with the one end of dust collecting pipe, the other end of dust collecting pipe is connected with the dust collection box, the up end of dust collection box is equipped with the case lid, be equipped with the dust catcher on the dust collecting pipe. The device has high control precision and accurate operation, and can realize fixed-length and equidistant cutting of steel; can absorb the scraps and dust generated in the cutting process, reduce the pollution to the environment and reduce the harm to the human body.

Description

Strong and plastic product alloy steel cutting device

Technical Field

The utility model relates to an alloy steel cutting technical field, concrete field is a product alloy steel cutting device that moulds by force.

Background

With the development of science and technology and industry, higher requirements are put on materials, such as higher strength, high temperature resistance, high pressure resistance, low temperature resistance, corrosion resistance, abrasion resistance and other requirements on special physical and chemical properties, and carbon steel cannot completely meet the requirements, so that the performance requirements on the materials can be effectively relieved by the appearance of alloy steel. At present, current alloy steel is at the in-process of cutting, produces a large amount of pieces and dust easily to splash everywhere simultaneously, when causing the pollution to its processing air quality, cause the influence to user's healthy easily, and simple structure can't realize the fixed length and the equidistance cutting work of steel, and it is inconvenient to use.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a product alloy steel cutting device excels in to solve the problem that provides among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a forced plastic product alloy steel cutting device comprises a device shell, wherein pillars are arranged at four corners of the inner lower surface of the device shell, cutting platforms are arranged on the upper end surfaces of the four pillars, steel clamping mechanisms are arranged on the left side and the right side of the upper surface of each cutting platform, a cutting machine is arranged above each cutting platform, cutting blades are installed on the cutting machines in a matched mode, a transverse moving mechanism for driving the cutting machines to move in the horizontal direction is installed on the rear side surface of the device shell, a vertical moving mechanism for driving the cutting machines to move in the vertical direction is installed on the moving end of each transverse moving mechanism, the cutting machines are installed on the moving end of each vertical moving mechanism, a dust collection cover is arranged on the inner right side surface of the device shell, each dust collection cover is connected with one end of a dust collection pipe, and the other end of each dust collection pipe is connected with a dust collection box, the dust collecting device is characterized in that a box cover is arranged on the upper end face of the dust collecting box, a vent hole is formed in the box cover, a filter screen is arranged inside the vent hole, a dust collector is arranged on the dust collecting pipe, and a through hole for steel to pass through is formed in the left side wall of the device shell.

Preferably, the steel clamping mechanism comprises a clamping cylinder arranged on the upper surface of the cutting platform, extension plates are arranged at two moving ends of the clamping cylinder, and two clamping plates are oppositely arranged on the extension plates.

Preferably, the lateral shifting mechanism is including installing the mounting panel in the device casing trailing flank, the motor cabinet is installed in the front left side of mounting panel, install the motor on the motor cabinet, there is the lead screw output of motor through the coupling joint, be provided with the nut on the lead screw, the front of mounting panel and the upper and lower both sides that are located the lead screw all are provided with the guide rail, two all be provided with the slider on the guide rail, nut and two sliders are connected with the backup pad jointly, vertical moving mechanism installs in the front of backup pad.

Preferably, vertical moving mechanism is including installing in the L type mounting panel that lateral shifting mechanism removed the end, the last surface mounting of L type mounting panel has the cylinder, the output of cylinder passes the lower lateral wall of L type mounting panel and is connected with the fixed plate, both sides all are provided with linear bearing, two on the lower lateral wall of L type mounting panel and be located the cylinder around the linear bearing's inside all install sharp optical axis, two the lower extreme of sharp optical axis all links to each other with the fixed plate, the cutting machine is installed in the lower surface of fixed plate.

Preferably, the left side and the right side of the front surface of the device shell are respectively and rotatably connected with a sealing door through a butterfly hinge, and a glass window and a door handle are arranged on each of the two sealing doors.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model starts the clamping cylinder to work, so that the two moving ends move in opposite directions, thereby clamping and fixing the steel, and the clamping and fixing are convenient; the transverse moving mechanism of the utility model adopts the form of a screw-nut pair, has high control precision and accurate operation, and can realize the fixed-length and equidistant cutting of steel; the utility model discloses start the dust catcher work, can transport the piece that produces in the cutting process and dust to the dust collecting tank in, reduced the pollution to the environment, reduced the harm that causes the human body.

Drawings

FIG. 1 is a schematic sectional view of the present invention;

FIG. 2 is a schematic side view of the steel clamping mechanism;

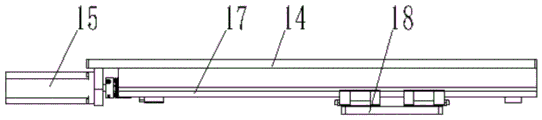

FIG. 3 is a schematic top view of the lateral shifting mechanism;

fig. 4 is a schematic perspective view of the present invention.

In the figure: 1-device shell, 2-support, 3-cutting platform, 4-cutting machine, 5-dust collecting cover, 6-dust collecting box, 7-box cover, 8-filter screen, 9-dust collector, 10-through hole, 11-clamping cylinder, 12-extension plate, 13-clamping plate, 14-mounting plate, 15-motor, 16-lead screw, 17-guide rail, 18-support plate, 19-L-shaped mounting plate, 20-cylinder, 21-fixing plate, 22-linear optical axis, 23-sealing door, 24-glass window and 25-door handle.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a forced plastic product alloy steel cutting device comprises a device shell 1, wherein pillars 2 are arranged at four corners of the inner lower surface of the device shell 1, four pillars 2 are arranged on the upper end surface of the device shell, a cutting platform 3 is arranged on the upper end surface of each pillar 2, steel clamping mechanisms are arranged on the left side and the right side of the upper surface of each cutting platform 3 and used for clamping and fixing steel, a cutting machine 4 is arranged above each cutting platform 3, cutting blades are installed on each cutting machine 4 in a matched mode and used for cutting the steel, a transverse moving mechanism used for driving each cutting machine 4 to move in the horizontal direction is installed on the rear side surface of the device shell 1, a vertical moving mechanism used for driving each cutting machine 4 to move in the vertical direction is installed on the moving end of each vertical moving mechanism, a dust collection cover 5 is arranged on the inner right side surface of the device shell 1, the utility model discloses a cutting device, including device casing 1, dust cage 5, dust collecting pipe, dust-collecting box 6, dust collector 6, dust catcher 9, dust cover 5, filter screen 8, dust filter, dust catcher 9, dust filter, dust collecting pipe, dust collecting cover 5, dust collecting pipe, dust catcher, dust collecting pipe.

Particularly, steel clamping mechanism is including installing in the die clamping cylinder 11 of 3 upper surfaces of cutting platform, all install extension plate 12, two on two removal ends of die clamping cylinder 11 extension plate 12 is last to install two clamp plates 13 relatively, starts die clamping cylinder 11 work, makes its two removal ends remove in opposite directions, can press from both sides tight fixed steel.

Specifically, the lateral moving mechanism includes a mounting plate 14 mounted on the rear side inside the device case 1, a motor base is arranged on the left side of the front surface of the mounting plate 14, a motor 15 is arranged on the motor base, the output end of the motor 15 is connected with a lead screw 16 through a coupler, the lead screw 16 is provided with a nut, guide rails 17 are arranged on the front surface of the mounting plate 14 and positioned on the upper side and the lower side of the screw rod 16, sliding blocks are arranged on the two guide rails 17, the guide rail 17 and the sliding blocks play a role of guiding and supporting, the nut and the two sliding blocks are connected with a supporting plate 18 together, the vertical moving mechanism is arranged on the front surface of the supporting plate 18, the motor 15 is controlled to work, the lead screw 16 is driven to rotate through the coupler, under the guiding action of the guide rail 17 and the sliding block, the nut and the supporting plate 18 can be driven to move left and right, and finally the function of moving the cutting machine 4 in the horizontal direction is achieved.

Specifically, the vertical moving mechanism comprises an L-shaped mounting plate 19 which is arranged at the moving end of the horizontal moving mechanism, the upper surface of the L-shaped mounting plate 19 is provided with an air cylinder 20, the output end of the air cylinder 20 passes through the lower side wall of the L-shaped mounting plate 19 and is connected with a fixing plate 21, linear bearings are arranged on the lower side wall of the L-shaped mounting plate 19 and positioned on the front side and the rear side of the air cylinder 20, linear optical axes 22 are arranged inside the two linear bearings, the linear bearings and the linear optical axes 22 play a role of guiding and supporting, the lower ends of the two linear optical axes 22 are both connected with the fixed plate 21, the cutting machine 4 is arranged on the lower surface of the fixed plate 21, controls the cylinder 20 to work, and under the guiding action of the linear bearing and the linear optical axis 22, the fixing plate 21 can be driven to move up and down, and finally the moving function of the cutting machine 4 in the vertical direction is achieved.

Specifically, the left side and the right side of the front surface of the device shell 1 are rotatably connected with sealing doors 23 through butterfly hinges, chips and dust in the cutting process are prevented from flying out, and a glass window 24 and a door handle 25 are arranged on each of the two sealing doors 23.

The working principle is as follows: when the utility model is used, the clamping cylinder 11 is started to work, so that the two moving ends move oppositely, thereby clamping and fixing steel materials conveniently; then the motor 15 is controlled to work, the lead screw 16 is driven to rotate through the coupler, the nut and the support plate 18 can be driven to move left and right under the guiding action of the guide rail 17 and the sliding block, the air cylinder 20 is controlled to work, the fixing plate 21 can be driven to move up and down under the guiding action of the linear bearing and the linear optical axis 22, and finally the moving function of the cutting machine 4 in the horizontal and vertical directions is realized, so that the cutting work of steel is finished; in the cutting process, the dust collector 9 is started to work, namely, the dust collecting hood 5 can be used for absorbing chips and dust generated in the cutting process, and then the chips and the dust are transported to the dust collecting box 6 through the dust collecting pipe, so that the pollution to the environment is reduced, and the harm to a human body is reduced.

In the description of the present invention, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the record of description and attached drawing, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt conventional model among the prior art, and conventional connection mode among the circuit connection adoption prior art is added, and here detailed description is not repeated.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a product alloy steel cutting device that builds up by force, includes device casing (1), its characterized in that: pillars (2) are arranged at four corners of the inner lower surface of the device shell (1), cutting platforms (3) are arranged on the four upper end surfaces of the pillars (2), steel clamping mechanisms are arranged on the left side and the right side of the upper surface of each cutting platform (3), a cutting machine (4) is arranged above each cutting platform (3), cutting blades are installed on the cutting machines (4) in a matched mode, a transverse moving mechanism used for driving the cutting machines (4) to move in the horizontal direction is installed on the rear side surface of the device shell (1), a vertical moving mechanism used for driving the cutting machines (4) to move in the vertical direction is installed on the moving end of each transverse moving mechanism, the cutting machines (4) are installed on the moving end of each vertical moving mechanism, a dust collection cover (5) is arranged on the inner right side surface of the device shell (1), and one end of a dust collection pipe is connected to each dust collection cover (5), the other end of the dust collecting pipe is connected with a dust collecting box (6), the upper end face of the dust collecting box (6) is provided with a box cover (7), the box cover (7) is provided with a ventilation hole, a filter screen (8) is arranged inside the ventilation hole, the dust collecting pipe is provided with a dust collector (9), and the left side wall of the device shell (1) is provided with a through hole (10) for passing steel.

2. A bar alloy steel cutting apparatus according to claim 1, wherein: the steel clamping mechanism comprises a clamping cylinder (11) installed on the upper surface of the cutting platform (3), extension plates (12) are installed on two moving ends of the clamping cylinder (11), and two clamping plates (13) are installed on the extension plates (12) relatively.

3. A bar alloy steel cutting apparatus according to claim 1, wherein: lateral shifting mechanism is including installing mounting panel (14) in device casing (1) trailing flank, the motor cabinet is installed on the front left side of mounting panel (14), install motor (15) on the motor cabinet, there is lead screw (16) at the output of motor (15) through the coupling joint, be provided with the nut on lead screw (16), the front of mounting panel (14) and the upper and lower both sides that are located lead screw (16) all are provided with guide rail (17), two all be provided with the slider on guide rail (17), nut and two sliders are connected with backup pad (18) jointly, vertical moving mechanism installs in the front of backup pad (18).

4. A bar alloy steel cutting apparatus according to claim 1, wherein: vertical moving mechanism is including installing in L type mounting panel (19) of lateral shifting mechanism removal end, the last surface mounting of L type mounting panel (19) has cylinder (20), the lower lateral wall that L type mounting panel (19) were passed to the output of cylinder (20) and be connected with fixed plate (21), both sides all are provided with linear bearing, two around just being located cylinder (20) on the lower lateral wall of L type mounting panel (19) linear bearing's inside all installs sharp optical axis (22), two the lower extreme of sharp optical axis (22) all links to each other with fixed plate (21), install in the lower surface of fixed plate (21) cutting machine (4).

5. A bar alloy steel cutting apparatus according to claim 1, wherein: the left side and the right side of the front face of the device shell (1) are respectively and rotatably connected with a sealing door (23) through a butterfly hinge, and a glass window (24) and a door handle (25) are arranged on each of the two sealing doors (23).
