Abstract
本实用新型属于医疗辅助器械技术领域，尤其为一种三叉神经球囊阻断介入治疗患者用手术体位垫，包括体位垫本体，所述体位垫本体由外层与内芯构成，所述外层上开设有开合口，所述体位垫本体上端设有肩垫与头托，所述头托上开设有凹陷部，所述头托两端分别固定安设有调节环与固定槽，所述调节环与弹性绷带为穿套连接，通过肩垫在体位垫本体上端的固定安设，且肩垫为凸出体位垫本体表面状，可便于当将体位垫本体平放与手术床上，患者平躺其上时，即可通过体位垫本体上端所固定安设的肩垫，将患者肩部垫高，使患者颈部自然后仰，通过头托在体位垫本体上端的固定安设，可便于当患者肩部被垫高、头部自然后仰时，头托能够对患者后仰的头部进行托垫。
The utility model belongs to the technical field of medical aids, in particular to a surgical position pad for trigeminal nerve balloon blocking interventional therapy patients, comprising a body position pad body, the body position pad body is composed of an outer layer and an inner core, and the outer layer There is an opening and closing opening on the upper end, a shoulder pad and a head support are arranged on the upper end of the body position pad body, a concave part is opened on the head support, and two ends of the head support are respectively fixed with an adjusting ring and a fixing groove. The ring and the elastic bandage are connected through a sleeve, and are fixedly installed on the upper end of the body position pad body through the shoulder pad, and the shoulder pad is protruding from the body position pad body surface, which is convenient when the body position pad body is placed flat on the operating bed, and the patient lies flat. When it is on it, the shoulder pads fixed on the upper end of the body position pad can elevate the patient's shoulders, so that the patient's neck can be naturally tilted back. When the patient's shoulders are raised and the head is naturally reclined, the head support can support the patient's reclined head.
Description
Technical Field
The utility model belongs to medical auxiliary instrument specialty field, concretely relates to trigeminal sacculus blocks intervention treatment patient and fills up with operation position.
Background
At present, in the trigeminal nerve blocking interventional operation treatment process, a patient needs to take a supine position, and in order to ensure the normative of the supine position of the patient, medical staff usually cushion articles with proper height under the shoulder of the patient, so as to ensure that the neck of the patient slightly extends, and simultaneously, the head of the patient can be in a posture of being straightened and slightly bending backwards, only, because the operation position cushion specially used for trigeminal nerve sacculus blocking interventional treatment is not specially arranged in the actual work, the medical staff usually cushion the shoulder of the patient by using a wrapping cloth, thereby achieving the posture of naturally bending backwards the head of the patient, however, the mode of using the wrapping cloth to cushion the shoulder of the patient for auxiliary body position has certain defect, the comfort degree of the patient is lower when the wrapping cloth is cushioned under the shoulder of the patient, and meanwhile, because the wrapping cloth does not have a head-lifting fixing device, after the patient is fully anesthetized, the head of the patient is likely to shift during the puncture operation of the operator, and once the head of the patient shifts, the operator is inconvenient to observe and puncture the anatomical position of the foramen ovale under X-ray fluoroscopy.
SUMMERY OF THE UTILITY MODEL
To solve the problems set forth in the background art described above. The utility model provides a trigeminal sacculus blocks intervenes treatment patient and fills up with operation position, through the fixed installation of position pad body upper end shoulder pad and head support, can be convenient for lie flat on the position pad body when the patient, when the shoulder pad is raised patient's shoulder and is made patient's neck naturally lean back, the head support can be to the head that the patient leaned back support the pad, through the establishment of elastic bandage, and patient's head can't remove easily through elastic bandage's fixed, can be convenient for when the operation doctor punctures the patient in the art and the location operation, can not produce the skew because of patient's head in operation process, and be not convenient for under the X line perspective, the observation of oval hole anatomical position and the characteristics of puncture.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a trigeminal sacculus blocks intervenes treatment patient and uses operation position pad, includes the position pad body, the position pad body comprises skin and inner core, seted up the opening and shutting mouth on the skin, position pad body upper end is equipped with shoulder pad and head rest, the depressed part has been seted up on the head rest, head rest both ends are fixed respectively and have been installed adjustable ring and fixed slot, the adjustable ring is connected for wearing the cover with elastic bandage, be equipped with protection pad and buckle on the elastic bandage.
Preferably, an opening and closing opening is formed in one side of the outer layer of the bottom end of the body position cushion body; through outer one side of position pad body bottom, seted up the opening and shutting mouth, can be convenient for when needs wash the position pad body outside, only need open the opening and shutting mouth, can dismantle, separate the outer from the inner core of position pad body.
Preferably, the shoulder pad is arranged on one side of the middle part of the upper end of the body position pad body, and the shoulder pad is convex in the surface shape of the body position pad body; through the fixed installation of shoulder pad in position pad body upper end, and the shoulder pad is this body surface form of protrusion position pad, can be convenient for when keeping flat with the position pad body with the operation table on to when making the patient lie flat on the position pad body, can be through the fixed shoulder pad of installing of position pad body upper end, with patient's shoulder bed-ups, make patient's neck pitch backward naturally.
Preferably, the head rest is fixedly arranged at the middle position of one side of the upper end of the body position cushion body; through the fixed installation of head rest in position pad body upper end, can be convenient for when patient's shoulder is heightened by the bed, the head naturally leans back, the head that the head rest can lean back to the patient carries out the support pad.
Preferably, the concave part is arranged at the middle part of the head support; set up in headrest middle part position through the depressed part, can be convenient for when the headrest holds in the palm the head of leaning on backward to the patient and holds in the palm when filling up, the depressed part not only can adapt to the pillow of patient's back brain crouching, simultaneously, the travelling comfort when can also increasing patient's pillow crouching.
Preferably, the adjusting ring is fixedly arranged on the side wall of the left end of the head support; through the establishment of adjustable ring, and adjustable ring and elastic bandage are for wearing the cover to be connected, can be convenient for medical personnel can pass through the adjustable ring, adjust elastic bandage's length distance, through the establishment of elastic bandage, can be convenient for when patient's pillow crouches on the headrest, only need to wind the elastic bandage to the other end from patient's head one end through the forehead, and fix, can make the patient after general anesthesia, operating doctor's operation in-process, its head can't remove easily, can't remove easily through the fixed of patient's head through elastic bandage, can be convenient for when operating doctor carries out puncture and location operation to the patient in the art, can not produce the skew because of patient's head in operation, and be not convenient for under the X line perspective, observation and the puncture of oval hole anatomical position.
Preferably, the fixing groove is fixedly arranged on the side wall of the right end of the head support, and the fixing groove is in buckling connection with a buckle fixedly connected with the movable end of the elastic bandage; through the establishment of fixed slot, and the fixed buckle that links to each other of fixed slot and elastic bandage expansion end, be connected for the lock, can be convenient for only need with the buckle lock of elastic bandage expansion end in the fixed slot inside, can accomplish the fixed operation to the elastic bandage expansion end, the arc breach has been seted up through the fixed slot both sides, can be convenient for if need demolish the elastic bandage expansion end from the fixed slot, only need pinch the inside exposed buckle side of arc breach, and upwards pull the buckle, can accomplish the separating operation of buckle and fixed slot.
Preferably, the protection pad is arranged at the outer end of the elastic bandage, and the protection pad is connected with the elastic bandage in a sleeved mode; the protection pad is arranged, the protection pad is arranged at the outer end of the elastic bandage, the protection pad can protect the forehead of a patient when medical workers use the elastic bandage to fix the head of the patient, the elastic bandage is prevented from directly contacting the head of the patient, pressure can be easily caused to the head of the patient, discomfort is brought to the patient, the protection pad is connected with the elastic bandage through the protection pad, the medical workers can conveniently clean or replace the protection pad through the detachable performance of the protection pad and the elastic bandage, and therefore sanitation and safety during use of the protection pad are facilitated.
Compared with the prior art, the beneficial effects of the utility model are that: the arrangement of the opening and closing opening can facilitate the detachment and separation of the outer layer of the body position cushion body from the inner core only by opening the opening and closing opening when the outer part of the body position cushion body is required to be cleaned, the shoulder cushion is fixedly arranged at the upper end of the body position cushion body, the shoulder cushion can cushion the shoulders of a patient to enable the neck of the patient to naturally lean backwards when the patient lies on the body position cushion body, the head support can support the head of the patient to lean backwards when the shoulders of the patient are lifted and the head naturally leans backwards, the arrangement of the elastic bandage can not easily move the head of the patient due to the elastic fixation, and the observation and puncture of the dissecting position of the ovum round hole under the X line can not be convenient because the head of the perspective deviation of the patient in the operation process when an operator punctures and positions the patient in the operation process, through the establishment of protection pad, and the protection pad install the position be the elastic bandage outer end, can be convenient for use when the fixed patient head of elastic bandage when medical personnel, the protection pad can be protected the patient forehead, thereby prevent that elastic bandage if direct and patient head from contacting, easily can cause the pressure of reining in to patient's head, bring the discomfort for the patient, establish the connection for the cover through protection pad and elastic bandage, medical personnel can be convenient for can be through the split nature of protection pad with elastic bandage, wash or replace the protection pad, therefore, be convenient for strengthen the health when using at every turn, the security, be the compliance through the inner core, the higher medical latex material of resilience, can be convenient for strengthen the comfortable compliance of patient pillow position pad body and crouch.
The parts of the device not involved are the same as or can be implemented using prior art.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

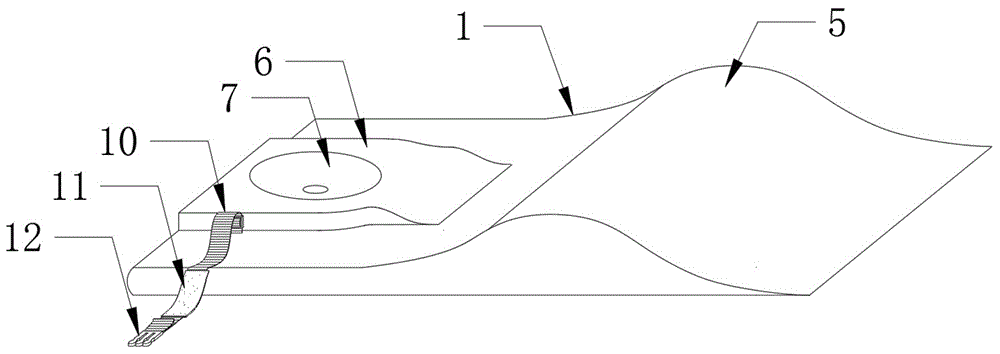

fig. 1 is a left side schematic view of the present invention;
FIG. 2 is a right side schematic view of the present invention;
FIG. 3 is a schematic bottom structure of the present invention;
fig. 4 is a top view of the present invention;
FIG. 5 is a side sectional view of the present invention;
in the figure: 1. a body position pad body; 2. an outer layer; 3. an inner core; 4. opening and closing the opening; 5. a shoulder pad; 6. a head rest; 7. a recessed portion; 8. an adjusting ring; 9. fixing grooves; 10. an elastic bandage; 11. a protection pad; 12. and (5) buckling.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example 1
Referring to fig. 1-5, the present invention provides the following technical solutions: including position pad body 1, position pad body 1 comprises outer 2 and inner core 3, the opening and shutting 4 has been seted up on outer 2, position pad body 1 upper end is equipped with shoulder pad 5 and head rest 6, depressed part 7 has been seted up on the head rest 6, head rest 6 both ends are fixed respectively and have been installed adjustable ring 8 and fixed slot 9, adjustable ring 8 is connected for wearing the cover with elastic bandage 10, be equipped with protection pad 11 and buckle 12 on the elastic bandage 10.
Specifically, an opening and closing opening 4 is formed in one side of the outer layer 2 at the bottom end of the body position cushion body 1; through the outer 2 one sides in 1 bottom of position pad body, seted up and opened and shut 4, can be convenient for when needs rinse the position pad body 1 outside, only need open and close 4, can follow inner core 3 with outer 2 dismantlements, the separation of position pad body 1.
Specifically, the shoulder pad 5 is arranged on one side of the middle part of the upper end of the body position pad body 1, and the shoulder pad 5 is convex in the surface shape of the body position pad body 1; through the fixed installation of shoulder pad 5 in position pad body 1 upper end, and shoulder pad 5 is the convex position pad body 1 surface form, can be convenient for when keeping flat with position pad body 1 with the operation bed on to when making the patient lie flat on position pad body 1, can fill up the height with patient's shoulder through the shoulder pad 5 that the fixed installation of position pad body 1 upper end was filled up, make patient's neck pitch-up naturally.
Specifically, the head rest 6 is fixedly arranged at the middle position of one side of the upper end of the body position cushion body 1; through the fixed installation of head rest 6 in position pad body 1 upper end, can be convenient for when patient's shoulder is heightened by the bed, the head naturally leans back, head rest 6 can carry out the support pad to the head that the patient leaned back.
Specifically, the concave part 7 is arranged in the middle of the head support 6; set up in 6 middle part positions of head rest through depressed part 7, can be convenient for when head rest 6 carries out the support pad to the head that the patient leaned on backward, depressed part 7 not only can adapt to the pillow of patient's back brain and crouch, simultaneously, can also increase the travelling comfort when patient's pillow crouches.
Specifically, the adjusting ring 8 is fixedly arranged on the side wall of the left end of the head support 6; through the establishment of the adjusting ring 8, and the adjusting ring 8 is connected with the elastic bandage 10 in a penetrating manner, medical personnel can conveniently pass through the adjusting ring 8, the length of the elastic bandage 10 is adjusted, through the establishment of the elastic bandage 10, when a patient lies on the headrest 6, the elastic bandage 10 is only required to be wound to the other end from one end of the head of the patient through the forehead, and the elastic bandage is fixed, so that the head of the patient cannot be moved easily in the operation process of an operator after general anesthesia, and the head of the patient cannot be moved easily by the fixation of the patient through the elastic bandage 10, and when the operator performs puncture and positioning operation on the patient in the operation, the head of the patient cannot deviate in the operation process, so that the patient is inconvenient to observe and puncture the position of the oval hole under X-ray fluoroscopy.
Specifically, the fixing groove 9 is fixedly arranged on the side wall of the right end of the head support 6, and the fixing groove 9 is in buckling connection with a buckle 12 fixedly connected with the movable end of the elastic bandage 10; through the establishment of fixed slot 9, and fixed slot 9 and the fixed buckle 12 that links to each other of elastic bandage 10 expansion end, be connected for the lock, can be convenient for only need to demolish elastic bandage 10 expansion end's buckle 12 lock in fixed slot 9 inside, can accomplish the fixed operation to elastic bandage 10 expansion end, the arc breach has been seted up through fixed slot 9 both sides, can be convenient for if need demolish elastic bandage 10 expansion end from fixed slot 9, only need pinch 12 sides of the inside naked buckle of arc breach, and pull buckle 12 upwards, can accomplish the separation operation of buckle 12 and fixed slot 9.
Specifically, the protection pad 11 is arranged at the outer end of the elastic bandage 10, and the protection pad 11 is connected with the elastic bandage 10 in a sleeving manner; through the establishment of protection pad 11, and protection pad 11 installs the position and be elastic bandage 10 outer end, can be convenient for use when the fixed patient head of elastic bandage 10 as medical personnel, protection pad 11 can protect the patient forehead, thereby prevent that elastic bandage 10 from if direct and patient head contact, easily can cause the pressure of reining in to patient head, bring the discomfort for the patient, establish being connected for the cover through protection pad 11 and elastic bandage 10, can be convenient for medical personnel can be through the detachable nature of protection pad 11 with elastic bandage 10, wash or replace protection pad 11, therefore, be convenient for strengthen the health when using at every turn, the security.
The working principle and the using process of the invention are as follows: the opening and closing opening 4 is formed on one side of the outer layer 2 at the bottom end of the body position cushion body 1, so that when the outside of the body position cushion body 1 needs to be cleaned, the outer layer 2 of the body position cushion body 1 can be detached and separated from the inner core 3 only by opening the opening and closing opening 4, the shoulder cushion 5 is fixedly arranged at the upper end of the body position cushion body 1, the shoulder cushion 5 is in a convex surface shape of the body position cushion body 1, so that when the body position cushion body 1 is horizontally arranged on an operation bed and a patient is horizontally laid on the body position cushion body 1, the shoulder cushion 5 fixedly arranged at the upper end of the body position cushion body 1 can be used for heightening the shoulder of the patient, the neck of the patient can naturally tilt backwards, the head support 6 is fixedly arranged at the body position cushion body 1, when the shoulder of the patient is heightened and the head naturally tilts backwards, the head support 6 can support the head of the patient, the middle position of the head support 6 is opened through the concave part 7, when the head support 6 supports the head of a patient who leans backward, the concave part 7 can adapt to the pillow lying of the back of the patient, meanwhile, the comfort of the patient when the pillow lies can be increased, the adjusting ring 8 is arranged, the adjusting ring 8 is connected with the elastic bandage 10 in a penetrating and sleeving manner, medical staff can adjust the length distance of the elastic bandage 10 through the adjusting ring 8, through the arrangement of the elastic bandage 10, when the patient lies on the head support 6, the elastic bandage 10 only needs to be wound to the other end from one end of the head of the patient through the forehead and fixed, the head of the patient can not move easily in the operation process of an operator after general anesthesia, the fixing groove 9 is arranged, the buckle 12 fixedly connected with the movable end of the elastic bandage 10 is connected in a buckling manner, and only the buckle 12 at the movable end of the elastic bandage 10 needs to be buckled in the fixing groove 9, can accomplish the fixed operation to elastic bandage 10 expansion end, the arc breach has been seted up through fixed slot 9 both sides, can be convenient for demolish elastic bandage 10 expansion end from fixed slot 9 as required, only need pinch the inside naked buckle 12 side of arc breach, and draw buckle 12 upwards, can accomplish the separation operation of buckle 12 and fixed slot 9, establish through protection pad 11, and the position of installing of protection pad 11 is elastic bandage 10 outer end, can be convenient for when medical personnel use the fixed patient head of elastic bandage 10, protection pad 11 can protect the forehead of patient, establish for the cover through protection pad 11 and elastic bandage 10 and be connected, can be convenient for medical personnel can be through the split nature of protection pad 11 with elastic bandage 10, wash or replace protection pad 11.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (8)
