CN214767190U - Belt cleaning device for wood working - Google Patents
Belt cleaning device for wood working Download PDFInfo
- Publication number
- CN214767190U CN214767190U CN202120969531.7U CN202120969531U CN214767190U CN 214767190 U CN214767190 U CN 214767190U CN 202120969531 U CN202120969531 U CN 202120969531U CN 214767190 U CN214767190 U CN 214767190U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- main body
- rotating
- wood
- cleaning device
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model discloses a belt cleaning device for wood working, comprising a main body, the inside of main part is equipped with the shower nozzle, the top and the bottom of main part are equipped with first fixed plate and second fixed plate respectively, the inside of main part is rotated and is connected with two reciprocal lead screws, and the outside cover of reciprocal lead screw is equipped with the thread bush, and one side of thread bush is rotated and is connected with first rotating cylinder, and one side of first rotating cylinder is equipped with the rotor plate, and one side of rotor plate bonds and has the brush, and the outside welding of first rotating cylinder has the gear, and the inside welding of main part has the fixed column. The utility model discloses a reciprocal lead screw makes the thread bush reciprocate, and first a rotation section of thick bamboo reciprocates inside the bar through-hole of fixed column, drives the brush and reciprocates, and cooperation shower nozzle spun water washs timber comprehensively, and in the removal of first a rotation section of thick bamboo, gear and rack toothing makes gear revolve, drives first a rotation section of thick bamboo and rotates to make the brush rotatory, fully wash timber.
Description
Technical Field
The utility model relates to a wood working technical field especially relates to a belt cleaning device for wood working.
Background
Wood is an important raw material, can be used for manufacturing various products, is widely applied to various fields such as buildings, home decoration and the like, and is required to be cleaned in the wood processing process, and generally is cleaned manually.
Through the retrieval, chinese patent publication is CN 208245259U's patent, discloses a wood working cleaning machine, including quick-witted case, work box and water tank, quick-witted case, work box and water tank connect gradually, the bottom fixed mounting of machine incasement chamber has the motor, the output shaft of motor runs through the bottom of work box and extends to the inner chamber of work box, and the output shaft fixedly connected with of motor places the platform.
One wood working cleaning machine in the above patent has the following disadvantages: through timber rotation, make the brush board wash panel, to the unable comprehensive washing of timber.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a cleaning device for wood processing.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a belt cleaning device for wood working, includes the main part, the inside of main part is equipped with the shower nozzle, the top and the bottom of main part are equipped with first fixed plate and second fixed plate respectively, the inside of main part is rotated and is connected with two reciprocal lead screws, and the outside cover of reciprocal lead screw is equipped with the thread bush, and one side of thread bush is rotated and is connected with first a rotation section of thick bamboo, and one side of first a rotation section of thick bamboo is equipped with the rotor plate, and one side of rotor plate bonds and has the brush, the outside welding of first a rotation section of thick bamboo has the gear, the inside welding of main part has the fixed column, and the bar through-hole has been seted up to one side of fixed column, and the welding of one side inner wall of bar through-hole has the rack, the rack with gear engagement, the top of main part is equipped with actuating mechanism.
Furthermore, a first spring is welded inside the first rotating cylinder, a first moving rod is welded at one end of the first spring, and one end of the first moving rod is welded with the rotating plate.
Furthermore, two fixing blocks are welded on one side, close to each other, of the first fixing plate and the second fixing plate, and the two fixing blocks are conical.
Furthermore, the inner wall of the top end of the main body is rotatably connected with a second rotating cylinder, a second spring is welded inside the second rotating cylinder, a second moving rod is welded at the bottom end of the second spring, and the bottom end of the second moving rod is welded with the first fixing plate.
Furthermore, the driving mechanism comprises a motor, a rotating shaft is rotatably connected to the top end of the main body, bevel gears are connected to the top end of the rotating shaft and an output shaft of the motor through keys, the two bevel gears are meshed, the top ends of the two reciprocating screw rods extend to the outside of the main body, and a belt is sleeved on the reciprocating screw rods and the outside of the rotating shaft.
Further, the top of main part is rotated and is connected with the connecting axle, the bottom of connecting axle with the welding of a second rotation section of thick bamboo, the welding of the top of connecting axle has first rotation wheel, and four draw-in grooves have been seted up in the outside of first rotation wheel, the welding of the bottom of axis of rotation has the second to rotate the wheel, and the welding of top one side of second rotation wheel has the kelly, kelly and draw-in groove looks adaptation.
Furthermore, an elastic pad is bonded to one side of the fixing block.
The utility model has the advantages that:
1. the reciprocating screw rod, the gear and the rack are arranged, the threaded sleeve is moved up and down through the reciprocating screw rod, the first rotating cylinder is moved up and down in the strip-shaped through hole of the fixed column to drive the hairbrush to move up and down, the wood is comprehensively cleaned by matching with water sprayed by the spray head, and the gear is meshed with the rack while the first rotating cylinder moves to drive the gear to rotate to drive the first rotating cylinder to rotate, so that the hairbrush rotates to fully clean the wood;
2. through the arrangement of the first rotating wheel, the second rotating wheel, the clamping rod and the clamping groove, the rotating shaft drives the reciprocating screw rod and the second rotating wheel to rotate, so that the clamping rod rotates along with the rotating shaft, the clamping rod enters the clamping groove of the first rotating wheel to rotate the first rotating wheel, the second rotating wheel enables the first rotating wheel to rotate in a clearance mode, and the first rotating wheel can be matched with the reciprocating screw rod to drive the hairbrush to clean wood up and down;
3. the first spring is arranged, so that the brush can be always in contact with the wood to adapt to the wood with different diameters;
4. the two conical fixing blocks can clamp the wood by arranging the conical fixing blocks, so that the first fixing plate can drive the wood to rotate conveniently;
5. the first fixing plate and the second fixing plate can clamp the wood by arranging the second spring, so that the wood can be fixed conveniently when rotating;
6. through setting up the cushion, the cushion can be deformed, and when timber was by the fixed block centre gripping, the cushion deformation was convenient for fix the timber centre gripping.
Drawings

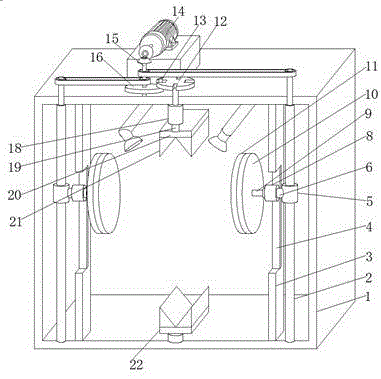

Fig. 1 is a front structural sectional view of a cleaning apparatus for wood working proposed in example 1;
FIG. 2 is a schematic sectional view showing a cleaning apparatus for use in wood working according to embodiment 1;
fig. 3 is a schematic sectional view showing a cleaning apparatus for wood working according to embodiment 2.
In the figure: the device comprises a main body 1, a reciprocating screw rod 2, a fixed column 3, a rack 4, a thread bush 5, a first rotating cylinder 6, a first spring 7, a gear 8, a first moving rod 9, a rotating plate 10, a brush 11, a first rotating wheel 12, a clamping rod 13, a motor 14, a rotating shaft 15, a second rotating wheel 16, a second spring 17, a second rotating cylinder 18, a second moving rod 19, a first fixing plate 20, a fixing block 21, a second fixing plate 22 and an elastic cushion 23.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Example 1
Referring to fig. 1-2, a cleaning device for wood processing comprises a main body 1, a nozzle is arranged inside the main body 1, a first fixing plate 20 and a second fixing plate 22 are respectively arranged at the top end and the bottom end of the main body 1, two reciprocating screws 2 are rotatably connected inside the main body 1, a thread sleeve 5 is sleeved outside the reciprocating screws 2, a first rotating cylinder 6 is rotatably connected to one side of the thread sleeve 5, a rotating plate 10 is arranged at one side of the first rotating cylinder 6, a brush 11 is bonded to one side of the rotating plate 10, a gear 8 is welded outside the first rotating cylinder 6, a fixing column 3 is welded inside the main body 1, a strip-shaped through hole is formed at one side of the fixing column 3, a rack 4 is welded to the inner wall of one side of the strip-shaped through hole, the rack 4 is meshed with the gear 8, a driving mechanism is arranged at the top end of the main body 1, the first fixing plate 20 and the reciprocating screws 2 are driven to rotate by the driving mechanism, the first fixing plate 20 enables wood to rotate, reciprocating screw rod 2 makes thread bush 5 reciprocate, and first a section of thick bamboo 6 reciprocates inside the bar through-hole of fixed column 2, drives brush 11 and reciprocates, and cooperation shower nozzle spun water washs timber comprehensively, and when first a section of thick bamboo 6 removed, gear 8 and rack 4 meshing make gear 8 rotate, drive first a section of thick bamboo 6 and rotate to make brush 11 rotatory, carry out abundant washing to timber.
Wherein, the inside welding of first rotary drum 6 has first spring 7, and the welding of the one end of first spring 7 has first carriage release lever 9, and the one end and the rotor plate 10 welding of first carriage release lever 9 can make brush 11 contact timber all the time through first spring 7 to the timber of different diameters is adapted to.
Wherein, two fixed blocks 21 have all been welded to the one side that first fixed plate 20 and second fixed plate 22 are close to each other, and two fixed blocks 21 are the toper, and two fixed blocks 21 can centre gripping timber, and first fixed plate 20 of being convenient for drives timber and rotates.
Wherein, the top inner wall of main part 1 rotates and is connected with second and rotates a section of thick bamboo 18, and the inside welding of second rotation section of thick bamboo 18 has second spring 17, and the welding of the bottom of second spring 17 has second carriage release lever 19, and the bottom and the first fixed plate 20 welding of second carriage release lever 19 can make first fixed plate 20 and second fixed plate 22 press from both sides timber tight through second spring 17, and is fixed when the timber of being convenient for is rotatory.
Wherein, actuating mechanism includes motor 14, and the top of main part 1 is rotated and is connected with axis of rotation 15, and all there is bevel gear through the key-type connection on the top of axis of rotation 15 and motor 14's the output shaft, and two bevel gear meshes, and the top of two reciprocal lead screws 2 all extends to the outside of main part 1, and reciprocal lead screw 2 is equipped with the belt with the outside cover of axis of rotation 15, can drive reciprocal lead screw 2 through motor 14 and rotate.
Wherein, the top of main part 1 is rotated and is connected with the connecting axle, the bottom and the second of connecting axle rotate a section of thick bamboo 18 welding, the top welding of connecting axle has first rotation wheel 12, four draw-in grooves have been seted up in the outside of first rotation wheel 12, the bottom welding of axis of rotation 15 has second rotation wheel 16, the welding of top one side of second rotation wheel 16 has kelly 13, kelly 13 and draw-in groove looks adaptation, when axis of rotation 15 rotates, can drive second rotation wheel 16 and rotate, thereby make kelly 13 rotate thereupon, inside kelly 13 gets into the draw-in groove of first rotation wheel 12, make first rotation wheel 12 rotate, second rotation wheel 16 makes first rotation wheel 12 clearance rotate, thereby can cooperate reciprocal lead screw 2 to drive the brush and wash about timber.
The working principle is as follows: the driving mechanism drives the first fixing plate 20 and the reciprocating screw rod 2 to rotate, the first fixing plate 20 enables the wood to rotate, the reciprocating screw rod 2 enables the threaded sleeve 5 to move up and down, the first rotating cylinder 6 moves up and down in the strip-shaped through hole of the fixing column 2 to drive the hairbrush 11 to move up and down, the wood is comprehensively cleaned by matching with water sprayed by the spray head, the gear 8 is meshed with the rack 4 while the first rotating cylinder 6 moves, the gear 8 rotates to drive the first rotating cylinder 6 to rotate, so that the hairbrush 11 rotates to fully clean the wood;
the motor 14 can drive the rotating shaft 15 to rotate, so as to drive the reciprocating screw rod 2 and the second rotating wheel 16 to rotate, so that the clamping rod 13 rotates along with the rotating shaft, the clamping rod 13 enters the clamping groove of the first rotating wheel 12, so that the first rotating wheel 12 rotates, the second rotating wheel 16 enables the first rotating wheel 12 to rotate in a clearance mode, and therefore the reciprocating screw rod 2 can be matched with a brush to drive the wood to clean the wood up and down;
the brush 11 can be always contacted with the wood through the first spring 7 so as to adapt to the wood with different diameters;
the two fixing blocks 21 are conical, and the two fixing blocks 21 can clamp wood, so that the first fixing plate 20 can drive the wood to rotate conveniently;
the first fixing plate 20 and the second fixing plate 22 can clamp the wood through the second spring 17, so that the wood can be fixed when rotating.
Example 2
Referring to fig. 3, compared with embodiment 1, in this embodiment, in order to increase the practicability of the device, an elastic pad 23 is bonded to one side of a fixing block 21, and the elastic pad 23 can deform, so that when wood is clamped by the fixing block 21, the elastic pad 23 deforms, thereby facilitating clamping and fixing of the wood.
The working principle is as follows: the driving mechanism drives the first fixing plate 20 and the reciprocating screw rod 2 to rotate, the first fixing plate 20 enables the wood to rotate, the reciprocating screw rod 2 enables the threaded sleeve 5 to move up and down, the first rotating cylinder 6 moves up and down in the strip-shaped through hole of the fixing column 2 to drive the hairbrush 11 to move up and down, the wood is comprehensively cleaned by matching with water sprayed by the spray head, the gear 8 is meshed with the rack 4 while the first rotating cylinder 6 moves, the gear 8 rotates to drive the first rotating cylinder 6 to rotate, so that the hairbrush 11 rotates to fully clean the wood;
the motor 14 can drive the rotating shaft 15 to rotate, so as to drive the reciprocating screw rod 2 and the second rotating wheel 16 to rotate, so that the clamping rod 13 rotates along with the rotating shaft, the clamping rod 13 enters the clamping groove of the first rotating wheel 12, so that the first rotating wheel 12 rotates, the second rotating wheel 16 enables the first rotating wheel 12 to rotate in a clearance mode, and therefore the reciprocating screw rod 2 can be matched with a brush to drive the wood to clean the wood up and down;
the brush 11 can be always contacted with the wood through the first spring 7 so as to adapt to the wood with different diameters;
the two fixing blocks 21 are conical, and the two fixing blocks 21 can clamp wood, so that the first fixing plate 20 can drive the wood to rotate conveniently;
the first fixing plate 20 and the second fixing plate 22 can clamp the wood through the second spring 17, so that the wood can be fixed when rotating;
the elastic pad 23 can be deformed, and when the wood is clamped by the fixing block 21, the elastic pad 23 is deformed, so that the wood is clamped and fixed conveniently.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. A cleaning device for wood processing comprises a main body (1) and is characterized in that a sprayer is arranged inside the main body (1), a first fixing plate (20) and a second fixing plate (22) are respectively arranged at the top end and the bottom end of the main body (1), two reciprocating lead screws (2) are rotatably connected inside the main body (1), threaded sleeves (5) are sleeved outside the reciprocating lead screws (2), a first rotating cylinder (6) is rotatably connected to one side of each threaded sleeve (5), a rotating plate (10) is arranged on one side of each first rotating cylinder (6), a brush (11) is fixedly connected to one side of each rotating plate (10), a gear (8) is fixedly connected to the outside of each first rotating cylinder (6), a fixing column (3) is fixedly connected to the inside of the main body (1), a strip-shaped through hole is formed in one side of each fixing column (3), a rack (4) is fixedly connected to the inner wall of one side of each strip-shaped through hole, the rack (4) is meshed with the gear (8), and a driving mechanism is arranged at the top end of the main body (1).
2. The cleaning device for wood working according to claim 1, wherein a first spring (7) is fixedly connected to the inside of the first rotary cylinder (6), a first moving rod (9) is fixedly connected to one end of the first spring (7), and one end of the first moving rod (9) is welded to the rotary plate (10).
3. The cleaning device for wood processing as defined in claim 1, wherein two fixing blocks (21) are fixedly connected to the sides of the first fixing plate (20) and the second fixing plate (22) close to each other, and the two fixing blocks (21) are tapered.
4. The cleaning device for wood working according to claim 1, wherein a second rotating cylinder (18) is rotatably connected to the inner wall of the top end of the main body (1), a second spring (17) is fixedly connected to the inside of the second rotating cylinder (18), a second moving rod (19) is fixedly connected to the bottom end of the second spring (17), and the bottom end of the second moving rod (19) is welded to the first fixing plate (20).
5. The cleaning device for wood processing as defined in claim 4, wherein the driving mechanism comprises an electric motor (14), the top end of the main body (1) is rotatably connected with a rotating shaft (15), the top end of the rotating shaft (15) and the output shaft of the electric motor (14) are connected with bevel gears through a key, the two bevel gears are meshed, the top ends of the two reciprocating screw rods (2) extend to the outside of the main body (1), and the reciprocating screw rods (2) and the outside of the rotating shaft (15) are sleeved with a belt.
6. The cleaning device for wood processing as claimed in claim 5, wherein the top end of the main body (1) is rotatably connected with a connecting shaft, the bottom end of the connecting shaft is welded with the second rotating cylinder (18), the top end of the connecting shaft is fixedly connected with a first rotating wheel (12), four clamping grooves are formed in the outer side of the first rotating wheel (12), the bottom end of the rotating shaft (15) is fixedly connected with a second rotating wheel (16), one side of the top end of the second rotating wheel (16) is fixedly connected with a clamping rod (13), and the clamping rod (13) is matched with the clamping grooves.
7. A cleaning device for wood working according to claim 3, characterized in that an elastic pad (23) is fixedly connected to one side of the fixing block (21).
