Abstract
The utility model provides a thistle board production line waste recovery device belongs to thistle board technical field. The waste recovery device for the paper-surface gypsum board production line comprises a roller type crusher assembly and a fine crushing assembly. Waste material after preliminary crushing falls into screen cloth barrel spare, the rotatory in-process of garrulous blade, constantly carry out the breakage again of waste material, the fixed plate stirs the waste material, make the waste material constantly fall into shell spare bottom through screen cloth barrel spare, the fixed plate stirs the waste material in-process, screen cloth barrel spare discontinuous upper and lower vibration, through twice breakage, the waste material is broken more completely, filter the waste material by screen cloth barrel spare, the waste material granule after the screening is more even, vibrate through screen cloth barrel spare, improve the screening effect, reduce waste material accumulation and screen cloth barrel spare and block up, can be continuous add the roll crusher subassembly with the waste material, realize continuous breakage, when the waste material on the present thistle board production line of effectual improvement is retrieved, screening efficiency is low, can not be in succession and even broken problem.
Description
Technical Field
The utility model relates to a thistle board field particularly, relates to a thistle board production line waste recovery device.
Background
The gypsum plaster board is a board made up by using building gypsum as main raw material, adding proper quantity of additive and fibre as core and using specially-made board paper as protective face through a certain preparation process. During the production of gypsum boards, a plurality of leftover materials are accompanied after the cutting process, and some products with unqualified inspection indexes are added into a batching system in proportion for reuse after being crushed.
Among the prior art, the broken recovery of waste material on the thistle board production line, one kind is to use the roller crusher to carry out the breakage, but the inhomogeneous of the granule after the breakage can be broken in succession, and crushing effect is ideal, and another kind is to carry out repeated breakage and screening through the inside crushing roller that is provided with of roll screen, has reached the even purpose of granule, but the latter has following problem in production:
1. the roller is used for classifying the broken gypsum powder by means of rotation, but the gypsum is easy to absorb moisture, the powder is fine, and the gypsum is easy to adhere to the screen cylinder piece, so that the screening process and the whole breaking progress are influenced.
2. The roll screen is kept flat, and the feed inlet sets up in the roll screen side, when the workshop space is restricted, is not convenient for in succession reinforced, and unloads and have the adhesion occasionally, can't realize continuous broken purpose.
3. The screen cloth barrel spare of straight section of thick bamboo can't fuse with the reciprocating sieve in reforming transform, can't solve screen cloth barrel spare and erect and establish the purpose that realizes crushing and screening.
Based on the problems in the above background art, research and development personnel provide a paper-surface gypsum board production line waste recovery device.
SUMMERY OF THE UTILITY MODEL
In order to compensate above not enough, the utility model provides a thistle board production line waste recovery device, when aiming at improving the waste recovery on the current thistle board production line, screening efficiency is low, can not be in succession and even broken problem.
The utility model discloses a realize like this:
a waste recovery device for a paper-surface gypsum board production line comprises a roller type crusher assembly and a fine crushing assembly.
The fine crushing assembly comprises an outer shell part, a sliding sleeve, a vibrating part, a screen cylinder part, a driving support frame and a crushing cutter part, wherein the outer shell part is fixedly connected to a discharge port at the lower end of the roller type crusher assembly, the sliding sleeve is fixedly connected to two sides of the inner wall of the outer shell part, the vibrating part comprises a sliding rod, a first pressing plate, a compression spring, a first baffle, a stop lever, a first motor, a rotating disc and a swinging rod, the first pressing plate and the first baffle are fixedly sleeved at the lower end of the sliding rod, the sliding rod is slidably inserted in the sliding sleeve, the compression spring is sleeved in the sliding rod, the compression spring compresses the compression spring on the upper side of the sliding sleeve by the first pressing plate, the first baffle is positioned at the lower side of the sliding sleeve, the stop lever is fixedly connected to the sliding rod, the first motor is fixedly connected to the outer wall of the outer shell part, and the output end of the first motor extends into the outer shell part, the rotating disc is fixedly connected with the output end of the first motor, the swing rod is fixedly connected with the periphery of the rotating disc, the swing rod can press the stop lever, the outer wall of the upper end of the screen cylinder part is fixedly connected with the top end of the slide rod, the driving support frame comprises a second motor, a rotating shaft, a first connecting rod and a second connecting rod, the second motor is fixedly connected with the outer wall of the bottom end of the screen cylinder part, the output end of the second motor extends into the screen cylinder part, the rotating shaft is fixedly connected with the output end of the second motor, the first connecting rod and the second connecting rod are respectively fixedly connected with the outer walls of the upper end and the lower end of the rotating shaft, the crushing cutter part comprises a fixed plate and a crushing blade, the two ends of the fixed plate are respectively and fixedly connected between the end parts of the first connecting rod and the second connecting rod, and the crushing blade is fixedly connected with the side wall of the fixed plate, the outer side of the fixing plate is close to the inner wall of the screen cylinder.
In an embodiment of the invention, the roller crusher assembly comprises a roller crusher body and a feed hopper arranged in an upper end of the roller crusher body.
In an embodiment of the present invention, the outer wall of the lower end of the roller crusher body is fixedly connected with a first mounting plate, the outer shell member comprises a shell and a second mounting plate fixedly connected to the outer wall of the upper end of the shell, and the second mounting plate is fixedly connected to the first mounting plate through a bolt.
In an embodiment of the present invention, the front surface and the back surface of the housing are both provided with a sealing door.
In an embodiment of the present invention, the inner wall of the upper end of the housing is fixedly connected to a guiding plate.
In an embodiment of the invention, the lower side of the bottom end of the housing is provided with a discharge opening.
The utility model discloses an in the embodiment, screen cloth barrel spare is including fixed section of thick bamboo, a screen cloth section of thick bamboo and connecting plate, screen cloth section of thick bamboo upper end outer wall pass through bolt fixed connection in the outer wall of fixed section of thick bamboo lower extreme, screen cloth section of thick bamboo longitudinal section sets up to W shape, the mounting hole has been seted up to screen cloth section of thick bamboo lower extreme, connecting plate downside fixed connection in the periphery of mounting hole upside, second motor fixed connection in the connecting plate, the second motor is located in the mounting hole, the second connecting rod be close to in the connecting plate upside.
The utility model discloses an in one embodiment, the inner wall fixed connection mount of screen cloth barrel spare upper end, the upper end of axis of rotation is rotated run through in the mount.
The utility model discloses an in one embodiment, the mount include installation cover and fixed connection in the dead lever of installation cover outer wall, dead lever one end fixed connection in the inner wall of screen cloth barrel spare upper end.
The utility model discloses an in the embodiment, axis of rotation upper end fixedly connected with blanking pole, blanking pole laminate in installation cover upper end.
The utility model has the advantages that: the utility model discloses a paper gypsum board production line waste recovery unit who obtains through the design, when using, take out the paper on the gypsum board waste material after, drop into roller crusher subassembly, carry out the preliminary breakage of waste material, the waste material after preliminary breakage falls into screen cloth barrel spare, open the second motor, the second motor drives the axis of rotation, first connecting rod and second connecting rod rotate, first connecting rod and second connecting rod drive the rotation of crushing blade and fixed plate, in the crushing blade rotation process, constantly carry out the breakage again of waste material, the fixed plate stirs waste material, make waste material constantly fall into shell spare bottom through screen cloth barrel spare, discharge the waste material after the breakage at last, in the fixed plate stirs waste material process, open the first motor, first motor drives rolling disc and pendulum rod and rotates, the pendulum rod discontinuous pushes down the pin, drive the pin downstream, and then drive the slide bar and slide along the sliding sleeve, resume the normal position again under compression spring's elastic force effect, so continuous repeated up-and-down motion, drive the up-and-down vibration of screen cloth barrel spare discontinuous, through twice breakage, can make the waste material breakage more complete, screen the waste material by screen cloth barrel spare, the waste material granule after the screening is more even, simultaneously through screen cloth barrel spare vibration, improve the screening effect, reduce waste material accumulation and screen cloth barrel spare jam, can be continuous add the roller crusher subassembly with the waste material, realize continuous breakage, and then when the waste material on the effectual current thistle board production line of improvement is retrieved, screening efficiency is low, can not be continuous and evenly broken problem.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.
FIG. 1 is a schematic structural diagram of a waste recycling device of a paper-surface gypsum board production line according to an embodiment of the present invention;
FIG. 2 is a schematic diagram of a roller crusher assembly according to an embodiment of the present invention;
FIG. 3 is a schematic diagram of a fine crushing assembly according to an embodiment of the present invention;
FIG. 4 is a schematic view of a housing component according to an embodiment of the present invention;
fig. 5 is an enlarged schematic structural diagram of a point a in fig. 3 according to an embodiment of the present invention;
fig. 6 is a schematic structural view of the rotary disk according to the embodiment of the present invention;
fig. 7 is a schematic structural view of a driving support frame according to an embodiment of the present invention;
fig. 8 is a schematic diagram of a screen cartridge according to an embodiment of the present invention;

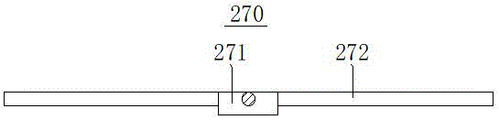

fig. 9 is a schematic structural view of a fixing frame according to an embodiment of the present invention.
In the figure: 100-a roller crusher assembly; 110-a roller crusher body; 120-a feed hopper; 130-a first mounting plate; 200-a fine crushing assembly; 210-a housing member; 211-a housing; 212-discharge opening; 213-a primer plate; 214-a sealing door; 215-a second mounting plate; 220-a sliding sleeve; 230-a vibrating member; 231-a slide bar; 232-a first platen; 233-compression spring; 234 — a first baffle; 235-a stop lever; 236-a first motor; 237-rotating disk; 238-swing link; 240-screen cylinder; 241-a fixed cylinder; 242-screen cylinder; 243-connecting plate; 250-driving the supporting frame; 251-a second motor; 252-a rotating shaft; 253-a first link; 254-a second link; 255-a blanking bar; 260-a crushing insert; 261-fixing plate; 262-crushing blade; 270-a fixing frame; 271-mounting sleeve; 272-fixing the rod.
Detailed Description
To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings of the embodiments of the present invention are combined to clearly and completely describe the technical solutions of the embodiments of the present invention, and obviously, the described embodiments are some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
In the present disclosure, unless expressly stated or limited otherwise, the first feature "on" or "under" the second feature may comprise direct contact between the first and second features, or may comprise contact between the first and second features not directly. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
Examples
Referring to fig. 1, the utility model provides a thistle board production line waste recovery unit, including roller crusher subassembly 100 and meticulous broken subassembly 200, roller crusher subassembly 100 is used for carrying out preliminary breakage to the gypsum board waste material of retrieving, and meticulous broken subassembly 200 is used for the gypsum board waste material after preliminary breakage once more.
Referring to fig. 2, the roller crusher assembly 100 includes a roller crusher body 110 and a feed hopper 120 disposed at an upper end of the roller crusher body 110 to facilitate the introduction of recycled gypsum board waste into the roller crusher body 110.
Referring to fig. 3, the fine crushing assembly 200 includes a housing member 210, a sliding bush 220, a vibrating member 230, a screen cylinder member 240, a driving support frame 250, and a crushing blade member 260, the housing member 210 is fixedly coupled to a discharge port of a lower end of the roller crusher assembly 100, the sliding bush 220 is fixedly coupled to both sides of an inner wall of the housing member 210, and it should be noted that the sliding bush 220 is fixedly coupled to the housing member 210 by welding.
Referring to fig. 4, a first mounting plate 130 is fixedly connected to an outer wall of a lower end of a roller crusher body 110, wherein the first mounting plate 130 is fixedly connected to the outer wall of the lower end of the roller crusher body 110 by welding, a housing member 210 includes a housing 211 and a second mounting plate 215 fixedly connected to the outer wall of an upper end of the housing 211, specifically, the second mounting plate 215 is fixedly connected to the outer wall of the upper end of the housing 211 by welding, the second mounting plate 215 is fixedly connected to the first mounting plate 130 by bolts, the connecting bolts of the first mounting plate 130 and the second mounting plate 215 are released, the roller crusher body 110 is disassembled and the top end of the housing member 210 is opened, so as to facilitate the installation and maintenance of the roller crusher body 110 and the internal parts of the housing member 210, sealing doors 214 are provided on both the front and the back of the housing 211, preferably, the sealing doors 214 are connected to the front and the back of the housing 211 by hinge-fit locks, the peripheral fixedly connected with of shell 211 upper end inner wall draws material board 213, draws material board 213 to pass through welded fastening and connects in shell 211 upper end inner wall, draws material board 213 slope setting and the lower extreme corresponds the setting with screen cloth barrel 240, makes the waste material that draws material board 213 to fall can get into screen cloth barrel 240 in, and the low side of shell 211 bottom is provided with discharge opening 212, is convenient for emit the waste material after the breakage.
Referring to fig. 5 and 6, the vibrating member 230 includes a sliding rod 231, a first pressing plate 232, a compression spring 233, a first baffle 234, a stop lever 235, a first motor 236, a rotating disc 237 and a swing rod 238, wherein the first pressing plate 232 and the first baffle 234 are both fixedly sleeved at the lower end of the sliding rod 231, specifically, the first pressing plate 232 and the sliding rod 231 are an integrated structure, the first baffle 234 is fixedly connected to the lower end of the sliding rod 231 through a bolt, the sliding rod 231 is slidably inserted into the sliding sleeve 220, the compression spring 233 is sleeved on the sliding rod 231, the compression spring 233 is pressed by the first pressing plate 232 on the upper side of the sliding sleeve 220, the first baffle 234 is located at the lower side of the sliding sleeve 220, the stop lever 235 is fixedly connected to the sliding rod 231 through a welding, the first motor 236 is fixedly connected to the outer wall of the casing member 210, in this embodiment, the first motor 236 is fixedly connected to the outer wall of the casing member 210 through a bolt, the output end of the first motor 236 extends into the casing member 210, the rotating disc 237 is fixedly connected to the output end of the first motor 236, the swing link 238 is fixedly connected to the periphery of the rotating disc 237, in a specific arrangement, the swing link 238 is fixedly connected to the periphery of the rotating disc 237 through welding, the swing link 238 can press the stop lever 235, the outer wall of the upper end of the screen cylinder 240 is fixedly connected to the top end of the slide bar 231, and it should be noted that the outer wall of the upper end of the screen cylinder 240 is fixedly connected to the top end of the slide bar 231 through welding.
Referring to fig. 7, the driving support frame 250 includes a second motor 251, a rotating shaft 252, a first link 253 and a second link 254, the second motor 251 is fixedly connected to an outer wall of a bottom end of the screen cylinder 240, an output end of the second motor 251 extends into the screen cylinder 240, the rotating shaft 252 is fixedly connected to an output end of the second motor 251 by welding, the first link 253 and the second link 254 are respectively fixedly connected to outer walls of upper and lower ends of the rotating shaft 252 by welding, the crushing cutter 260 includes a fixing plate 261 and a crushing blade 262, two ends of the fixing plate are respectively fixedly connected between ends of the first link 253 and the second link 254, the fixing plate 261 is respectively fixedly connected between ends of the first link 253 and the second link 254 by screws, the crushing blade 262 is fixedly connected to the side wall of the fixing plate 261, the crushing blade 262 and the fixing plate 261 are of an integrated structure, and the outer side of the fixing plate 261 is close to the inner wall of the screen cylinder 240.
In this embodiment, after taking out the paper surface of the gypsum board waste, the waste is thrown into the feeding hopper 120, the waste falls into the roller crusher body 110 through the feeding hopper 120, the waste is primarily crushed under the action of the crushing roller of the roller crusher body 110, the waste after the primary crushing falls into the screen cylinder 240 under the guidance of the material guiding plate 213, the second motor 251 is turned on, the second motor 251 drives the rotating shaft 252, the first connecting rod 253 and the second connecting rod 254 to rotate, the first connecting rod 253 and the second connecting rod 254 drive the crushing blade 262 and the fixed plate 261 to rotate, the crushing blade 262 continuously crushes the waste again during the rotation process, the fixed plate 261 stirs the waste, the waste continuously falls into the bottom end of the housing 210 through the screen cylinder 240, the crushed waste is discharged through the discharge opening 212, the fixed plate 261 stirs the waste, the first motor 236 is turned on, the rotating disc 237 and the swing rod 238 are driven by the first motor 236 to rotate, swing link 238 intermittent type pushes down pin 235, drive pin 235 downstream, and then drive slide bar 231 and slide along sliding sleeve 220, resume the normal position under compression spring 233's elastic force again, so continuous repeated up-and-down motion, drive the up-and-down vibration of screen cloth barrel 240 intermittent type, through twice breakage, can make the waste material breakage more complete, screen the waste material by screen cloth barrel 240, the waste material granule after the screening is more even, simultaneously through screen cloth barrel 240 vibration, improve the screening effect, reduce waste material accumulation and screen cloth barrel 240 and block up, can continuous joining waste material through feeder hopper 120, and when the waste material on the current thistle board production line of effectual improvement is retrieved, be not convenient for the continuous and even broken problem of waste material.
Referring to fig. 8, the screen cylinder 240 includes a fixed cylinder 241, a screen cylinder 242 and a connecting plate 243, the outer wall of the upper end of the screen cylinder 242 is fixedly connected to the outer wall of the lower end of the fixed cylinder 241 by bolts, the longitudinal section of the screen cylinder 242 is W-shaped, which facilitates the installation of the second motor 251, reduces the rain on the second motor 251, the lower end of the screen cylinder 242 is provided with an installation hole, the lower side of the connecting plate 243 is fixedly connected to the periphery of the upper side of the installation hole by screws, the second motor 251 is fixedly connected to the connecting plate 243, the second motor 251 is located in the installation hole, the second connecting rod 254 is close to the upper side of the connecting plate 243, during the rotation of the second connecting rod 254, the waste accumulated on the upper side of the connecting plate 243 can be swept, the sealing door 214 is opened, the connecting bolts of the screen cylinder 242 and the fixed cylinder 241 are removed through the opening of the sealing door 214, and the connecting bolts of the connecting plate 243 and the screen cylinder 242 are removed, and then can take off a sieve net section of thick bamboo 242 from a fixed section of thick bamboo 241, take out from broken cutter 260 again, take out from sealing door 214 opening part, can carry out the clearance and the change of a sieve net section of thick bamboo 242, the change process is simple, reduces sieve net section of thick bamboo 242 and damages or blocks up the back, influences the purpose of screening effect.
Referring to fig. 9, an inner wall of an upper end of the screen cylinder 240 is fixedly connected to the fixing frame 270, an upper end of the rotating shaft 252 is rotatably penetrated through the fixing frame 270 through a bearing, the fixing frame 270 includes a mounting sleeve 271 and a fixing rod 272 fixedly connected to an outer wall of the mounting sleeve 271, the fixing rod 272 is fixedly connected to the mounting sleeve 271 through a welding joint, one end of the fixing rod 272 is fixedly connected to an inner wall of an upper end of the screen cylinder 240, the fixing rod 272 and the screen cylinder 240 are fixedly connected through a welding joint, an upper end of the rotating shaft 252 is fixedly connected to a blanking rod 255, the blanking rod 255 is fixedly connected to the rotating shaft 252 through a thread, the blanking rod 255 is attached to an upper end of the mounting sleeve 271, and wastes accumulated at an upper end of the mounting sleeve 271 are swept down during rotation of the blanking rod 255 along with the rotating shaft 252, thereby reducing accumulation of wastes on the screen cylinder 240 and the fixing frame 270.
Specifically, this thistle board production line waste recovery device's theory of operation: when in use, after taking out the paper surface on the gypsum board waste, putting the paper surface into the feed hopper 120, the waste falls into the roller crusher body 110 through the feed hopper 120, and under the action of the crushing roller of the roller crusher body 110, performing primary crushing on the waste, the waste after the primary crushing falls into the screen cylinder 240 under the guidance of the material guiding plate 213, opening the second motor 251, the second motor 251 drives the rotating shaft 252, the first connecting rod 253 and the second connecting rod 254 to rotate, the first connecting rod 253 and the second connecting rod 254 drive the crushing blade 262 and the fixed plate 261 to rotate, during the rotation process of the crushing blade 262, continuously performing re-crushing on the waste, the fixed plate 261 stirs the waste, so that the waste continuously falls into the bottom end of the shell 210 through the screen cylinder 240, and then the crushed waste is discharged from the discharge port 212, during the waste stirring process of the fixed plate 261, opening the first motor 236, the first motor 236 drives the rotating disc 237 and the swing rod 238 to rotate, swing link 238 intermittent type pushes down pin 235, drive pin 235 downstream, and then drive slide bar 231 and slide along sliding sleeve 220, resume the normal position under compression spring 233's elastic force again, so continuous repeated up-and-down motion, drive the up-and-down vibration of screen cloth barrel 240 intermittent type, through twice breakage, can make the waste material breakage more complete, screen the waste material by screen cloth barrel 240, the waste material granule after the screening is more even, simultaneously through screen cloth barrel 240 vibration, improve the screening effect, reduce waste material accumulation and screen cloth barrel 240 and block up, can continuous joining waste material through feeder hopper 120, and when the waste material on the current thistle board production line of effectual improvement is retrieved, be not convenient for the continuous and even broken problem of waste material.
In the whole process, with the help of setting up original roll screen is perpendicular to making the adaptability improvement to a screen cloth section of thick bamboo 242, cooperating vibrating part 230, realizing dual function that promotes the screening, broken blade 262 realizes the effect of broken and dispersion waste material, and vibrating part 230 promotes the quick screening of waste material on a screen cloth section of thick bamboo 242. Therefore, the accumulation of waste materials and the blockage of the screen cylinder 240 are reduced, the continuous crushing is realized, and the problems of low screening efficiency and incapability of continuous and uniform crushing are solved.
The second connecting rod 254 rotates, can sweep the waste material that the connecting plate 243 upside was accumulated, and the blanking pole 255 rotates the in-process along with the axis of rotation 252, sweeps the waste material that the installation cover 271 upper end was accumulated, reduces the circumstances that the waste material accumulated on screen cylinder spare 240 and mount 270.
It should be noted that the specific model specifications of the roller crusher body 110, the first motor 236 and the second motor 251 need to be determined by model selection according to the actual specification of the device, and the specific model selection calculation method adopts the prior art, so detailed and redundant operations are not needed.
The power supply of the roller crusher body 110, the first motor 236 and the second motor 251 and the principle thereof will be clear to a person skilled in the art and will not be described in detail here.
The above is only a preferred embodiment of the present invention, and is not intended to limit the present invention, and various modifications and changes will occur to those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. A waste recovery device for a paper-surface gypsum board production line is characterized by comprising
A roller crusher assembly (100);
the fine crushing assembly (200), the fine crushing assembly (200) comprises an outer shell (210), a sliding sleeve (220), a vibrating piece (230), a screen cylinder (240), a driving support frame (250) and a crushing cutter (260), the outer shell (210) is fixedly connected with a discharge hole at the lower end of the roller crusher assembly (100), the sliding sleeve (220) is fixedly connected with two sides of the inner wall of the outer shell (210), the vibrating piece (230) comprises a sliding rod (231), a first pressing plate (232), a compression spring (233), a first baffle (234), a stop lever (235), a first motor (236), a rotating disc (237) and a swinging rod (238), the first pressing plate (232) and the first baffle (234) are fixedly sleeved at the lower end of the sliding rod (231), the sliding rod (234) is slidably inserted in the sliding sleeve (220), and the compression spring (233) is sleeved in the sliding rod (231), the first pressing plate (232) presses the compression spring (233) to the upper side of the sliding sleeve (220), the first baffle (234) is located at the lower side of the sliding sleeve (220), the stop lever (235) is fixedly connected to the sliding rod (231), the first motor (236) is fixedly connected to the outer wall of the housing member (210), the output end of the first motor (236) extends into the housing member (210), the rotating disc (237) is fixedly connected to the output end of the first motor (236), the swing rod (238) is fixedly connected to the periphery of the rotating disc (237), the swing rod (238) can press the stop lever (235), the outer wall of the upper end of the screen cylinder member (240) is fixedly connected to the top end of the sliding rod (231), the driving support frame (250) comprises a second motor (251), a rotating shaft (252), a first connecting rod (253) and a second connecting rod (254), the second motor (251) is fixedly connected to the outer wall of the bottom end of the screen cylinder member (240), the output end of the second motor (251) extends into the screen cylinder member (240), the rotating shaft (252) is fixedly connected to the output end of the second motor (251), the first connecting rod (253) and the second connecting rod (254) are respectively and fixedly connected to the outer walls of the upper end and the lower end of the rotating shaft (252), the crushing cutter member (260) comprises a fixing plate (261) and crushing blades (262), the two ends of the fixing plate (261) are respectively and fixedly connected between the first connecting rod (253) and the end of the second connecting rod (254), the crushing blades (262) are fixedly connected to the side wall of the fixing plate (261), and the outer side of the fixing plate (261) is close to the inner wall of the screen cylinder member (240).
2. A gypsum board production line waste recycling device according to claim 1, wherein the roller crusher assembly (100) comprises a roller crusher body (110) and a feed hopper (120) disposed at the upper end of the roller crusher body (110).
3. A gypsum board production line waste recycling device according to claim 2, wherein the outer wall of the lower end of the roller crusher body (110) is fixedly connected with a first mounting plate (130), the housing member (210) comprises a housing (211) and a second mounting plate (215) fixedly connected with the outer wall of the upper end of the housing (211), and the second mounting plate (215) is fixedly connected with the first mounting plate (130) through bolts.
4. A waste recycling device for paper-surface gypsum board production line according to claim 3, characterized in that the front and back of the housing (211) are provided with sealing doors (214).
5. A waste recycling device for paper-surface gypsum board production line according to claim 3, characterized in that the periphery of the inner wall of the upper end of the housing (211) is fixedly connected with a material guiding plate (213).
6. A gypsum board production line waste recovery device as claimed in claim 3, wherein the lower side of the bottom end of the housing (211) is provided with a discharge opening (212).
7. The waste recycling device of paper-surface gypsum board production line of claim 1, wherein the screen cylinder member (240) comprises a fixed cylinder (241), a screen cylinder (242) and a connecting plate (243), the outer wall of the upper end of the screen cylinder (242) is fixedly connected to the outer wall of the lower end of the fixed cylinder (241) through bolts, the longitudinal section of the screen cylinder (242) is W-shaped, the lower end of the screen cylinder (242) is provided with a mounting hole, the lower side of the connecting plate (243) is fixedly connected to the periphery of the upper side of the mounting hole, the second motor (251) is fixedly connected to the connecting plate (243), the second motor (251) is located in the mounting hole, and the second connecting rod (254) is close to the upper side of the connecting plate (243).
8. The waste recycling device of gypsum board production line as claimed in claim 1, wherein the inner wall of the upper end of the screen cylinder (240) is fixedly connected to a fixing frame (270), and the upper end of the rotating shaft (252) is rotatably penetrated through the fixing frame (270).
9. The waste recycling device of paper-surface gypsum board production line as claimed in claim 8, wherein said fixing frame (270) comprises a mounting sleeve (271) and a fixing rod (272) fixedly connected to the outer wall of said mounting sleeve (271), one end of said fixing rod (272) is fixedly connected to the inner wall of the upper end of said screen cylinder member (240).
10. The waste recycling device of gypsum plasterboard production line according to claim 9, wherein a blanking bar (255) is fixedly connected to an upper end of the rotating shaft (252), and the blanking bar (255) is attached to an upper end of the mounting sleeve (271).
