Abstract
本实用新型提供一种具有裁切功能的蔬菜包装机。所述具有裁切功能的蔬菜包装机包括箱体；两个支撑板，两个所述支撑板均固定安装在所述箱体的底部内壁上；进料输送带，所述进料输送带设置在所述箱体的一侧，所述进料输送带延伸至所述箱体内；出料输送带，所述出料输送带设置在所述箱体的另一侧，所述出料输送带延伸至所述箱体内；工作台，所述工作台固定安装在两个所述支撑板的顶部；加热器，所述加热器固定安装在所述箱体的底部内壁上并位于两个所述支撑板之间；固定杆，所述固定杆固定安装在所述箱体的顶部内壁上。本实用新型提供的具有裁切功能的蔬菜包装机具有减少传送带停止裁切时间，提高了对蔬菜包装和裁切效率的优点。
The utility model provides a vegetable packaging machine with a cutting function. The vegetable packaging machine with cutting function includes a box body; two support plates, both of which are fixedly installed on the bottom inner wall of the box body; a feeding conveyor belt, which is provided with On one side of the box body, the feeding conveyor belt extends into the box body; extending into the box; a workbench, the workbench is fixedly installed on the top of the two support plates; a heater, the heater is fixedly installed on the bottom inner wall of the box and located on the two Between the support plates; a fixing rod, the fixing rod is fixedly installed on the top inner wall of the box body. The vegetable packaging machine with the cutting function provided by the utility model has the advantages of reducing the stopping time of the conveyor belt for cutting, and improving the packaging and cutting efficiency of vegetables.
Description
Technical Field
The utility model relates to a packagine machine technical field especially relates to a vegetables packagine machine with function cuts.
Background
The vegetable packaging machine is an automatic thermal shrinkage film packaging machine, is suitable for the thermal shrinkage automatic packaging of products such as green vegetables, garlic seedlings, fruits, tomatoes, cucumbers and the like, and is directly packaged on a working platform in the field of vegetable packaging at present.
Then utilize cutting device to cut again, when cutting after the vegetables packing, need the conveyer belt to stop for a long time and just can cut, though the stop time of every turn is all comparatively short, but under the condition that once stops once cutting, has influenced cutting efficiency, has also influenced vegetables packing efficiency simultaneously, leads to cutting inefficiency.
Therefore, there is a need to provide a new vegetable packing machine with cutting function to solve the above technical problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a technical problem provide a vegetable packaging machine with reduce conveyer belt and stop cutting time, improved to vegetable packing and cutting efficiency have the function of cutting.
In order to solve the technical problem, the utility model provides a vegetables packagine machine with function of cutting includes: a box body; the two supporting plates are fixedly arranged on the inner wall of the bottom of the box body; the feeding conveying belt is arranged on one side of the box body and extends into the box body; the discharging conveying belt is arranged on the other side of the box body and extends into the box body; the workbench is fixedly arranged on the tops of the two supporting plates; the heater is fixedly arranged on the inner wall of the bottom of the box body and is positioned between the two supporting plates; the fixed rod is fixedly arranged on the inner wall of the top of the box body; the frame body is fixedly arranged on the bottom end of the fixed rod; the packaging mechanism is arranged in the box body; and the cutting mechanism is arranged on the inner wall of the top of the frame body.
Preferably, packagine machine constructs including two unreeling roller, two wind-up rolls, two first connecting rollers and two second connecting rollers, two unreeling roller fixed mounting respectively is in on the bottom inner wall of box and one side inner wall, two wind-up roll fixed mounting respectively is in on the bottom inner wall of box and the opposite side inner wall, two first connecting roller sets up respectively the both sides of workstation, two the second connecting roller sets up respectively the both sides of framework.
Preferably, the cutting mechanism includes support, cutting wheel, electric telescopic handle, mounting panel, two springs, U type piece and two cutting knives, support fixed mounting is in on the top inner wall of framework, the cutting wheel rotates to be installed on the support, electric telescopic handle fixed mounting is in on the top inner wall of framework, mounting panel fixed mounting is in on electric telescopic handle's the output pole, two the equal fixed mounting of spring is in the bottom of mounting panel, U type piece fixed mounting be in the bottom of mounting panel is located two between the spring, two the equal fixed mounting of cutting knife is in the bottom of U type piece.
Preferably, the top of workstation has seted up the mounting groove, the mounting groove internal rotation is installed a plurality of cylinders, and is a plurality of the cylinder all with feeding conveyer belt and ejection of compact conveyer belt are located the coplanar.
Preferably, the bottom ends of the two springs are respectively and fixedly provided with a press roller, and the two press rollers are respectively positioned on two sides of the cutting knife.
Preferably, the two sides of the box body are provided with placing holes, and the feeding conveyer belt and the discharging conveyer belt are respectively positioned in the two placing holes.
Compared with the prior art, the utility model provides a vegetables packagine machine with function of cutting has following beneficial effect:
the utility model provides a vegetables packagine machine with function cuts has carried through packagine machine to two-layer packaging material and has avoided appearing the damage and lead to causing unqualified problem to the packing of vegetables to avoid packaging material's waste, through the compaction of two compression rollers to vegetables, made things convenient for the cutting of cutting knife, can reduce the phenomenon that the transmission band is stagnant through cutting the mechanism, the improvement of while is packed vegetables and is cut efficiency.
Drawings

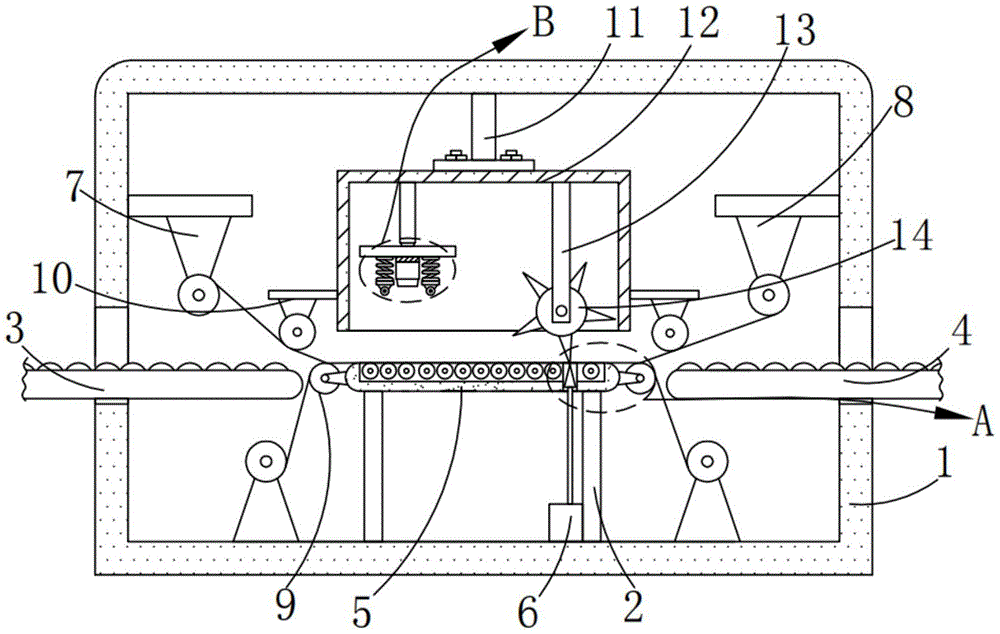

Fig. 1 is a schematic structural view of a vegetable packaging machine with a cutting function according to a preferred embodiment of the present invention;
FIG. 2 is an enlarged schematic view of portion A shown in FIG. 1;
fig. 3 is an enlarged schematic view of a portion B shown in fig. 1.
Reference numbers in the figures: 1. a box body; 2. a support plate; 3. a feed conveyor belt; 4. a discharge conveyer belt; 5. a work table; 6. a heater; 7. unwinding rollers; 8. a wind-up roll; 9. a first connecting roller; 10. a second connecting roller; 11. fixing the rod; 12. a frame body; 13. a support; 14. a cutting wheel; 15. an electric telescopic rod; 16. mounting a plate; 17. a spring; 18. a U-shaped block; 19. a cutting knife.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
Please refer to fig. 1, fig. 2 and fig. 3 in combination, wherein fig. 1 is a schematic structural diagram of a vegetable packing machine with cutting function according to a preferred embodiment of the present invention; FIG. 2 is an enlarged view of portion A of FIG. 1; fig. 3 is an enlarged schematic view of part B shown in fig. 1. The vegetable packing machine with the cutting function comprises: a box body 1; the two supporting plates 2 are fixedly arranged on the inner wall of the bottom of the box body 1; the feeding conveyer belt 3 is arranged on one side of the box body 1, and the feeding conveyer belt 3 extends into the box body 1; the discharging conveyer belt 4 is arranged on the other side of the box body 1, and the discharging conveyer belt 4 extends into the box body 1; the workbench 5 is fixedly arranged on the tops of the two supporting plates 2; the heater 6 is fixedly arranged on the inner wall of the bottom of the box body 1 and is positioned between the two supporting plates 2; the fixing rod 11 is fixedly arranged on the inner wall of the top of the box body 1; the frame body 12 is fixedly arranged on the bottom end of the fixing rod 11; the packaging mechanism is arranged in the box body 1; a cutting mechanism disposed on the top inner wall of the frame 12.
Packagine machine constructs including two unreel roller 7, two wind-up rolls 8, two first connecting rollers 9 and two second connecting rollers 10, two unreel roller 7 fixed mounting respectively on the bottom inner wall of box 1 and one side inner wall, two wind-up rolls 8 fixed mounting respectively is in on the bottom inner wall of box 1 and the opposite side inner wall, two first connecting rollers 9 set up respectively workstation 5's both sides, two second connecting rollers 10 set up respectively framework 12's both sides have been carried through packagine machine to two-layer packaging material and have been avoided appearing the damage and lead to leading to the packing of vegetables to lead to the fact unqualified problem to avoid packaging material's waste.
Cutting mechanism includes support 13, cutting wheel 14, electric telescopic handle 15, mounting panel 16, two springs 17, U type piece 18 and two cutting knives 19, support 13 fixed mounting be in on the top inner wall of framework 12, cutting wheel 14 rotates and installs on support 13, electric telescopic handle 15 fixed mounting be in on the top inner wall of framework 12, mounting panel 16 fixed mounting be in on electric telescopic handle 15's the output pole, two the equal fixed mounting of spring 17 is in the bottom of mounting panel 16, 18 fixed mounting of U type piece be in the bottom of mounting panel 16 is located two between the spring 17, two the equal fixed mounting of cutting knife 19 is in the bottom of U type piece 18 can reduce the stagnant phenomenon of transmission band through cutting the mechanism, the while has improved packing vegetables and cutting efficiency.
Preferably, the mounting groove has been seted up at the top of workstation 5, a plurality of cylinders are installed to the mounting groove internal rotation, and is a plurality of the cylinder all with feeding conveyer belt 3 and ejection of compact conveyer belt 4 are located the coplanar, pass through convenient packing material and the vegetables to cutting of a plurality of cylinders.
Preferably, the bottom ends of the two springs 17 are respectively and fixedly provided with a pressing roller, the two pressing rollers are respectively positioned on two sides of the cutting knife 19, and the vegetables are compacted through the two pressing rollers, so that the cutting knife 19 is convenient to cut.
Preferably, the placing holes are formed in the two sides of the box body 1, the feeding conveying belt 3 and the discharging conveying belt 4 are respectively located in the two placing holes, the feeding conveying belt 3 and the discharging conveying belt 4 are connected with the workbench 5 through the two placing holes, continuous conveying is facilitated, and meanwhile cutting and packaging are convenient to hold.
The utility model provides a vegetables packagine machine with function cuts theory of operation as follows:
before packaging: firstly, a packaged material is stretched from two unwinding rollers 7 to two winding rollers 8 and fixed, then the two winding rollers 8 are driven by a motor (not shown) on one side, wherein the motor is the prior mounting technology, the two unwinding rollers 7 rotate to drive two layers of packaging materials to rotate on the two unwinding rollers 7, meanwhile, vegetables to be packaged are sequentially conveyed to one of the first connecting rollers 9 by the feeding conveyer belt 3, are conveyed to a plurality of rollers on the workbench 5 and simultaneously move along with the packaging materials on the upper layer and the lower layer, the packaging materials on the two layers are conveyed by the packaging mechanism, the problem that the packaging of the vegetables is unqualified due to damage is reduced, and the packaging material waste is avoided;
when the vegetables move to the position under the cutting knife 19, the electric telescopic rod 15 is started, the electric telescopic rod 15 drives the mounting plate 16 to descend, the mounting plate 16 drives the two springs 17 and the U-shaped block 18 to descend, when the vegetables descend to the position that the two springs 17 abut against the workbench 5, the cutting knives 19 on the two sides of the bottom of the U-shaped block 18 are cut on the two sides of the packaging material, then the vegetables enter the position under the cutting wheel 14, when the cutting wheel 14 is driven to rotate by a motor (not shown) on the other side, the cutting wheel 14 is in contact with a heating head on the top of the heater 6, so that the packaging material is softened and cut at the same time, the middle part of the packaging material is cut, the rest packaging material is wound on the two winding rollers 8 through the first connecting roller 9 and the second connecting roller 10, the packaged vegetable discharging and conveying belt 4 is sent out of the box body 1, and the phenomenon of conveying belt stagnation can be reduced through the cutting mechanism, meanwhile, the efficiency of packing and cutting vegetables is improved.
Compared with the prior art, the utility model provides a vegetables packagine machine with function of cutting has following beneficial effect:
the utility model provides a vegetables packagine machine with function cuts has carried through packagine machine to two-layer packaging material and has avoided appearing the damage and lead to causing unqualified problem to the packing of vegetables to avoid packaging material's waste, through the compaction of two compression rollers to vegetables, made things convenient for the cutting of cutting knife 19, can reduce the phenomenon that the transmission band is stagnant through cutting the mechanism, the improvement of while is packed vegetables and is cut efficiency.
It should be noted that the device structure and the accompanying drawings of the present invention mainly describe the principle of the present invention, and in the technology of this design principle, the settings of the power mechanism, the power supply system, the control system, etc. of the device are not completely described, and the details of the power mechanism, the power supply system, and the control system can be clearly known on the premise that those skilled in the art understand the principle of the present invention.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
