Abstract
The utility model relates to the technical field of feed crushing devices, which is a feed crushing device capable of preventing sticking materials and comprises a U-shaped frame, wherein a tray is arranged in the U-shaped frame, vertical bars are symmetrically arranged on the left and right sides of the top end of the tray and are rotationally connected with vertical plates of the U-shaped frame through rotating shafts, a turnover mechanism is arranged between the tray and the U-shaped frame, a crushing cylinder is arranged on the top surface of the tray, a first convex ring is arranged at the bottom end of the crushing cylinder, first balls are uniformly arranged at the bottom end of the first convex ring, an annular groove is arranged on the top surface of the tray corresponding to the first convex ring, the feed crushing structure in the scheme is non-closed, so that the internal cutter and the cylinder wall can be conveniently cleaned after the processing is finished, the crushing cylinder can be manually rotated after the processing process or is finished, thereby a scraping rod can scrape and sweep the scraps on the cylinder wall, and the problem caused by the feed residues is avoided, through the tilting mechanism who sets up, can realize the slope of crushing barrel automatically and unload.
Description
Technical Field
The utility model relates to a fodder reducing mechanism technical field specifically is a fodder reducing mechanism that can prevent sizing.
Background
The feed is a general term of food of all animals raised by people, and a common feed in a narrower sense mainly refers to food of animals raised in agriculture or animal husbandry, and comprises feed raw materials of more than ten varieties, such as soybean, soybean meal, corn, fish meal, amino acid, miscellaneous meal, whey powder, grease, meat and bone meal, grains, feed additives and the like. The feed is often required to be crushed in the using process, the aim of crushing the feed is to increase the surface area of the feed and adjust the granularity, increase the surface area, improve the palatability, and be easily contacted with digestive juice in a digestion edge, thereby being beneficial to improving the digestibility and better absorbing the nutrient components of the feed.
Present fodder reducing mechanism does not possess the function of antiseized material, after the fodder is smashed, remains more fodder piece on the crushing barrel inner wall, and present fodder crushing apparatus is mostly closed structure, therefore is not convenient for clear up the fodder piece, has caused the waste of fodder.
Based on this, this scheme has designed a fodder reducing mechanism that can prevent sizing to solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a can prevent fodder reducing mechanism of sizing to solve the problem in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a feed crushing device capable of preventing materials from being stuck comprises a U-shaped frame, wherein a tray is arranged in the U-shaped frame, vertical strips are symmetrically arranged on the left and right sides of the top end of the tray, the vertical strips are rotationally connected with vertical plates of the U-shaped frame through rotating shafts, a turnover mechanism is arranged between the tray and the U-shaped frame, a crushing barrel is arranged on the top surface of the tray, a first convex ring is arranged at the bottom end of the crushing barrel, first balls are uniformly arranged at the bottom end of the first convex ring, an annular groove is formed in the top surface of the tray corresponding to the first convex ring, the convex ring is rotationally installed in the annular groove, a second convex ring is arranged on the upper portion of the outer wall of the crushing barrel, second balls are uniformly distributed at the upper end and the lower end of the second convex ring, a limiting sliding groove is formed in the upper portion of the vertical strips corresponding to the second convex ring, a cutting shaft is rotationally arranged in the middle of the top end of the tray, and the upper portion of the cutting shaft movably penetrates through the crushing barrel and is connected with a cutting blade, the bottom end of the cutting shaft penetrates through the tray and is connected with a motor, scraping rods are symmetrically arranged in the left and right of an inner cavity of the crushing barrel, and the top ends of the scraping rods are connected with the tops of the vertical bars on the same side.
Preferably, the supporting strips are symmetrically arranged at the left and right sides of the bottom end of the transverse plate of the U-shaped frame, and the supporting strips and the transverse plate of the U-shaped frame are in a cross-shaped cross design.
Preferably, the turnover mechanism comprises an electric push rod hinged to the outer side of the vertical plate of the U-shaped frame, a cross rod is arranged at the movable rod end of the electric push rod, and one end, far away from the electric push rod, of the cross rod is rotatably connected with the side edge of the tray.
Preferably, the cutting blades are divided into a plurality of groups spaced up and down.
Preferably, the distance between the tip of the cutting blade and the inner wall of the crushing cylinder is 10 mm.
Preferably, the thickness of the scraping rod is not more than 4 mm.
Preferably, the scraping rod top is equipped with elastic adjustment mechanism, elastic adjustment mechanism sets firmly the square bar on vertical retort upper portion including the level, the square bar is parallel with one of them footpath line of crushing section of thick bamboo, the one end that the vertical retort was kept away from to the square bar is equipped with the anticreep board, sliding sleeve is equipped with the sliding sleeve on the square bar, scraping rod top rigid coupling sliding sleeve bottom surface, be equipped with the spring between sliding sleeve and the anticreep board, and the spring is around connecing in the square bar outside.
Preferably, the distance from one end of the square rod far away from the vertical bar to the inner wall of the crushing barrel is not more than 9 mm.
Compared with the prior art, the beneficial effects of the utility model are that: the fodder crushing structure in this scheme is non-closed, therefore after processing, is convenient for clear up inside cutter and section of thick bamboo wall, and the course of working or end back can manual rotation crushing barrel to scrape the pole and can scrape the piece on the section of thick bamboo wall and sweep, avoid the remaining extravagant problem that causes of fodder, through the tilting mechanism that sets up, can realize automatically that the slope of crushing barrel is unloaded.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

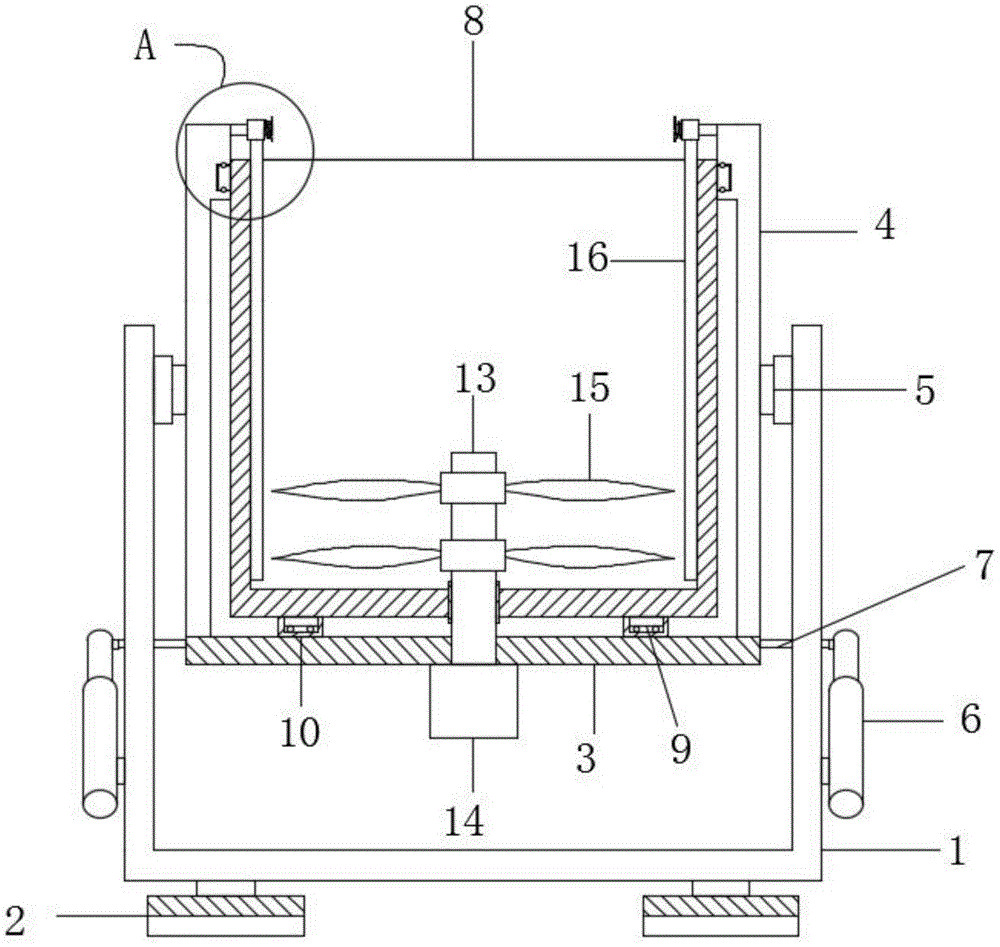

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a left side view of the present invention;
fig. 3 is an enlarged schematic view of the position a of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1 to 3, the present invention provides a technical solution: a feed crushing device capable of preventing materials from being stuck comprises a U-shaped frame 1, a tray 3 is arranged in the U-shaped frame 1, vertical strips 4 are symmetrically arranged on the left and right of the top end of the tray 3, the vertical strips 4 are rotationally connected with vertical plates of the U-shaped frame 1 through rotating shafts 5, a turnover mechanism is arranged between the tray 3 and the U-shaped frame 1, a crushing barrel 8 is arranged on the top surface of the tray 3, a first convex ring 9 is arranged at the bottom end of the crushing barrel 8, first balls are uniformly arranged at the bottom end of the first convex ring 9, an annular groove 10 is arranged on the top surface of the tray 3 corresponding to the first convex ring 9, the convex ring 9 is rotationally arranged in the annular groove 10, a second convex ring 11 is arranged on the upper portion of the outer wall of the crushing barrel 8, second balls are uniformly distributed at the upper end and the lower end of the second convex ring 11, a limiting sliding groove 12 is arranged on the upper portion of the vertical strips 4 corresponding to the second convex ring 11, a cutting shaft 13 is rotationally arranged in the middle of the top end of the tray 3, the cutting shaft 13, the upper portion movably penetrates through the crushing barrel 8, the bottom end of the cutting shaft 13 penetrates through the tray 3 and is connected with a motor 14, the left and right inner cavities of the crushing barrels 8 are symmetrically provided with scraping rods 16, and the top ends of the scraping rods 16 are connected with the tops of the vertical bars 4 on the same side.
Furthermore, the support bars 2 are symmetrically arranged at the left and right sides of the bottom end of the transverse plate of the U-shaped frame 1, and the support bars 2 and the transverse plate of the U-shaped frame 1 are in a cross-shaped cross design.
Further, tilting mechanism is including articulated establishing the electric putter 6 in the 1 riser outside of U type frame, and electric putter 6's activity rod end is equipped with horizontal pole 7, and the one end that electric putter 6 was kept away from to horizontal pole 7 rotates with 3 sides of tray to be connected.
Further, the cutting blades 15 are divided into a plurality of groups spaced up and down.
Further, the distance from the tip of the cutting blade 15 to the inner wall of the crushing cylinder 8 is 10 mm.
Further, the thickness of the bar 16 is not more than 4mm, and there is no problem of interference with the cutting blade 15.
Further, scrape 16 tops of pole and be equipped with elasticity adjustment mechanism, elasticity adjustment mechanism includes that the level sets firmly square bar 17 on 4 upper portions of vertical retort, square bar 17 is parallel with one of them radial line of crushing barrel 8, the one end that vertical retort 4 was kept away from to square bar 17 is equipped with anticreep board 19, sliding sleeve is equipped with sliding sleeve 18 on the square bar 17, scrape 16 top rigid coupling sliding sleeve 18 bottom surfaces of pole, be equipped with spring 20 between sliding sleeve 18 and the anticreep board 19, and spring 20 round joint is in the square bar 17 outside, this structural design can make to scrape 16 contact degree that keep with the section of thick bamboo wall of pole, guarantee to scrape the effect of sweeping.
Further, the distance between one end of the square rod 17 far away from the vertical bar 4 and the inner wall of the crushing barrel 8 is not more than 9mm, so that the scraping rod 16 cannot interfere with the cutting blade 15 at any position, and the normal operation of cutting is ensured.
The working principle is as follows: the electrical part is all through external control switch and external power source electric connection in this scheme, before the use, the circuit is connected, starter motor 14, treat in crushing feed to pour into crushing barrel 8 with the appropriate amount, high-speed rotatory cutting blade 15 carries out abundant breakage to the feed (this in-process can use some common shelters to cover the nozzle, avoid the piece departure), smash the end back, can manually promote crushing barrel 8 rotatory, 8 relatively static scrapes pole 16 and rotates crushing barrel, scrape pole 16 and paste nearly barrel inner wall under spring 20's effect, scrape the piece on it, then start electric putter 6, its extension makes crushing barrel 8 towards the lopsidedness, make the crushed aggregates fall into in the outside collection box.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The further embodiments of the present invention disclosed above are merely intended to help illustrate the present invention. Further embodiments are not exhaustive and do not limit the utility model to the specific embodiments described. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (8)
1. The feed crushing device capable of preventing materials from being stuck is characterized by comprising a U-shaped frame (1), wherein a tray (3) is arranged in the U-shaped frame (1), vertical bars (4) are symmetrically arranged on the left and right sides of the top end of the tray (3), the vertical bars (4) are rotatably connected with a vertical plate of the U-shaped frame (1) through a rotating shaft (5), a turnover mechanism is arranged between the tray (3) and the U-shaped frame (1), a crushing barrel (8) is arranged on the top surface of the tray (3), a first convex ring (9) is arranged at the bottom end of the crushing barrel (8), first balls are uniformly arranged at the bottom end of the first convex ring (9), an annular groove (10) is formed in the top surface of the tray (3) corresponding to the first convex ring (9), the convex ring (9) is rotatably installed in the annular groove (10), a second convex ring (11) is arranged on the upper portion of the outer wall of the crushing barrel (8), and second balls are uniformly distributed at the upper end and the lower end of the second convex ring (11), vertical bar (4) upper portion corresponds second bulge loop (11) and is equipped with spacing spout (12), tray (3) top middle part is rotated and is provided with cutting axle (13), the activity of cutting axle (13) upper portion is run through crushing barrel (8) and is connected with cutting blade (15), cutting axle (13) bottom is run through tray (3) and is connected with motor (14), the inner chamber bilateral symmetry of crushing barrel (8) is provided with scrapes pole (16), it is connected with vertical bar (4) top of homonymy to scrape pole (16) top.
2. A feed grinder assembly as claimed in claim 1, wherein the feed grinder assembly is adapted to: the supporting strips (2) are symmetrically arranged at the left and right sides of the bottom end of the transverse plate of the U-shaped frame (1), and the transverse plates of the supporting strips (2) and the U-shaped frame (1) are designed in a crossed mode.
3. A feed grinder assembly as claimed in claim 1, wherein the feed grinder assembly is adapted to: tilting mechanism includes articulated electric putter (6) of establishing in the U type frame (1) riser outside, the activity rod end of electric putter (6) is equipped with horizontal pole (7), the one end that electric putter (6) were kept away from in horizontal pole (7) is connected with tray (3) side rotation.
4. A feed grinder assembly as claimed in claim 1, wherein the feed grinder assembly is adapted to: the cutting blades (15) are divided into a plurality of groups spaced up and down.
5. A feed grinder assembly as claimed in claim 1, wherein the feed grinder assembly is adapted to: the distance between the tool tip of the cutting blade (15) and the inner wall of the crushing barrel (8) is 10 mm.
6. A feed grinder assembly as claimed in claim 1, wherein the feed grinder assembly is adapted to: the thickness of the scraping rod (16) is not more than 4 mm.
7. A feed grinder assembly as claimed in claim 1, wherein the feed grinder assembly is adapted to: scrape pole (16) top and be equipped with elasticity adjustment mechanism, elasticity adjustment mechanism includes that the level sets firmly square bar (17) on vertical retort (4) upper portion, square bar (17) are parallel with one of them footpath line of crushing section of thick bamboo (8), the one end that vertical retort (4) were kept away from in square bar (17) is equipped with anticreep board (19), sliding sleeve is equipped with sliding sleeve (18) on square bar (17), scrape pole (16) top rigid coupling sliding sleeve (18) bottom surface, be equipped with spring (20) between sliding sleeve (18) and anticreep board (19), and spring (20) wire-wound joint is in the square bar (17) outside.
8. A feed grinder capable of preventing sticking materials as claimed in claim 7, wherein: the distance from one end of the square rod (17) far away from the vertical bar (4) to the inner wall of the crushing barrel (8) is not more than 9 mm.
