Abstract
The utility model discloses a sewage discharge treatment device for park sponge greenery patches, including handling the case, it is equipped with the inlet tube to handle the intercommunication on the case, be equipped with first filter mechanism in the inlet tube, first filter mechanism includes the first filter screen of fixed connection in the inlet tube, it is equipped with the inlet pipe that is used for dropping into the water treatment agent to handle the intercommunication on the case, the rabbling mechanism that is equipped with in the case of handling, fixedly connected with mounting panel on the case of handling, be equipped with power unit on the mounting panel, power unit is including rotating the reciprocal lead screw of connection between mounting panel and processing case, reciprocal lead screw and agitating unit fixed connection, be equipped with the motor on the mounting panel, the output shaft end and the reciprocal lead screw fixed connection of motor. The utility model discloses rational in infrastructure, it can filter the grit in the sewage in advance, avoids the grit to damage the processing case, can realize controlling sewage and sewage treatment agent's ratio simultaneously, improves the sewage treatment effect.
Description
Technical Field
The utility model relates to a sewage treatment technical field especially relates to a sewage discharge treatment device for park sponge greenery patches.
Background
Sewage treatment is a process of purifying sewage to meet the water quality requirement of discharging the sewage into a certain water body or reusing the sewage. Sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people.
The sewage contains a lot of gravels, the sewage is directly introduced into the treatment box for sewage treatment by the existing sewage discharge treatment device for the sponge green land in the park, the gravels are not filtered in advance, the gravels enter the treatment box and impact is caused on the inner wall of the treatment box, the treatment box is easy to damage, and the existing sewage discharge treatment device for the sponge green land in the park can not realize the control of the ratio of the sewage to the sewage treatment agent, so that the waste of the treatment agent or the incomplete sewage treatment caused by insufficient treatment agent can be caused.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the shortcoming that exists among the prior art, and the sewage discharge treatment device for park sponge greenery patches that proposes, it can filter the grit in the sewage in advance, avoids the grit to damage the treatment box, can realize controlling sewage and sewage treatment agent's ratio simultaneously, improves sewage treatment effect.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a sewage discharge treatment device for a park sponge greenbelt comprises a treatment box, wherein a water inlet pipe is communicated with the treatment box, a first filtering mechanism is arranged in the water inlet pipe and comprises a first filtering net fixedly connected in the water inlet pipe, a feeding pipe for feeding a water treatment agent is communicated with the treatment box, a stirring mechanism is arranged in the treatment box, a mounting plate is fixedly connected with the treatment box, a power mechanism is arranged on the mounting plate and comprises a reciprocating lead screw rotatably connected between the mounting plate and the treatment box, the reciprocating lead screw is fixedly connected with the stirring device, a motor is arranged on the mounting plate, the tail end of an output shaft of the motor is fixedly connected with the reciprocating lead screw, a lead screw sleeve is arranged on the reciprocating lead screw, one end of an L-shaped rod is fixedly connected onto the lead screw sleeve, and a cleaning scraper for cleaning the first filtering mechanism is also arranged on the water inlet pipe, the clearance scraper blade contacts with first filter screen, the other end of L shape pole runs through the inlet tube and fixes in clearance scraper blade top, it is equipped with the pipe of slagging tap to handle bottom of the case portion intercommunication, it is equipped with the drain pipe to handle the intercommunication on the case, be equipped with second filter mechanism in the drain pipe.
Preferably, a collecting box is communicated below the water inlet pipe and adjacent to the first filter screen.
Preferably, be equipped with the installation cavity in the wall of inlet tube, be equipped with blocking mechanism in the installation cavity, blocking mechanism includes the limiting plate of sliding connection in the installation cavity, fixedly connected with runs through the installation cavity and extends to the wedge pole of inlet tube with the collection box junction on the limiting plate, the limiting plate passes through spring elastic connection with the right side inner wall of installation cavity.
Preferably, the collecting box is screwed below the water inlet pipe.
Preferably, rabbling mechanism is including rotating the installation pole of connection in handling the incasement, a plurality of puddlers of fixedly connected with on the installation pole, reciprocal lead screw with installation pole fixed connection.
Preferably, handle the incasement and be equipped with control mechanism, control mechanism includes first arc and second arc that all passes through many connecting rods and installation pole fixed connection, the lateral wall of first arc and second arc all with handle the contact of incasement lateral wall, the arc length of first arc and second arc is different.
Preferably, the second filtering mechanism comprises a second filter screen fixedly connected in the liquid outlet pipe, a first electromagnetic valve is arranged in the liquid outlet pipe, and a second electromagnetic valve is arranged in the slag outlet pipe.
Compared with the prior art, the utility model, its beneficial effect does:
1. through setting up first filter mechanism, clearance scraper blade and stop gear, realize carrying out filtration treatment to the grit in the sewage in advance, can avoid the grit to get into the processing incasement damage processing case.
2. By arranging the control mechanism, the proportion of the sewage and the sewage treatment agent is controlled, and the condition that the treatment agent is wasted or not enough to cause incomplete sewage treatment is avoided.
Drawings

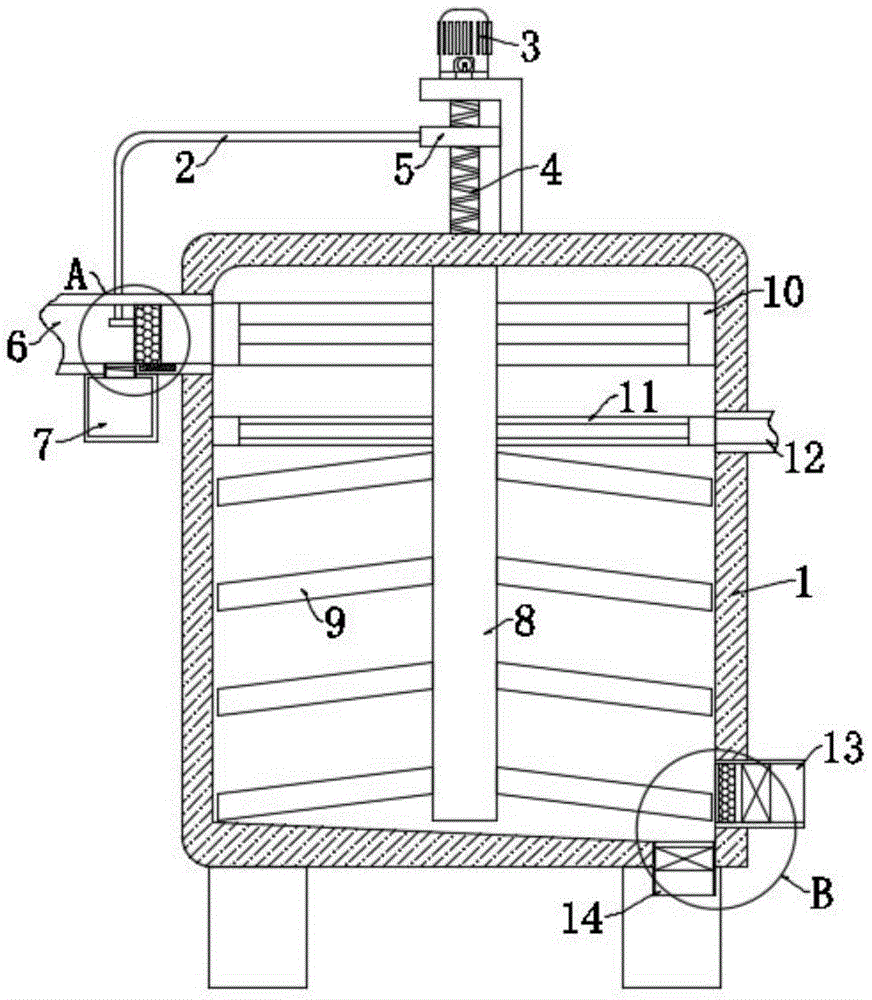

FIG. 1 is a schematic view of a sewage disposal device for a sponge green space of a park according to the present invention;
FIG. 2 is an enlarged schematic view of a structure at the position A of the sewage discharge treatment device for the sponge green land of the park;
FIG. 3 is an enlarged schematic view of a structure at the position B of the sewage disposal device for the sponge green land of the park;
FIG. 4 is a schematic top view of a first arc-shaped plate of a sewage disposal device for a sponge green space of a park;
fig. 5 is a schematic top view of a second arc-shaped plate of the sewage discharge treatment device for the sponge green land of the park.
In the figure: 1 handles case, 2L shape pole, 3 motor, 4 reciprocal lead screws, 5 lead screw covers, 6 inlet tubes, 7 collection boxes, 8 installation poles, 9 puddlers, 10 first arc, 11 second arc, 12 inlet pipes, 13 drain pipes, 14 pipes of slagging tap, 15 first filter screens, 16 clearance scrapers, 17 wedge pole, 18 installation cavity, 19 second filter screens, 20 first solenoid valves, 21 second solenoid valves.
Detailed Description
In order to make the above objects, features and advantages of the present invention more comprehensible, embodiments of the present invention are described in detail below with reference to the accompanying drawings. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention. The present invention can be embodied in many different forms other than those specifically described herein, and it will be apparent to those skilled in the art that similar modifications can be made without departing from the spirit and scope of the invention, and it is therefore not to be limited to the specific embodiments disclosed below.
It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present. The terms "vertical," "horizontal," "left," "right," and the like as used herein are for illustrative purposes only and do not represent the only embodiments.
Referring to fig. 1-5, a sewage discharge treatment device for sponge green land in park, comprising a treatment tank 1, a water inlet pipe 6 is communicated with the treatment tank 1, a first filtering mechanism is arranged in the water inlet pipe 6, the first filtering mechanism comprises a first filter screen 15 fixedly connected in the water inlet pipe 6, a collecting box 7 is communicated with the lower part of the water inlet pipe 6 adjacent to the first filter screen 15, the collecting box 7 is connected below the water inlet pipe 6 in a threaded manner, the sewage in the sponge green land in park enters the treatment tank 1 through the water inlet pipe 6, before sewage got into in the treatment box 1, first filter screen 15 can filter the grit in the sewage, and the sewage after having filtered the grit gets into in the treatment box 1, and L shape pole 2 reciprocates, can make clearance scraper blade 16 reciprocate and clear up first filter screen 15, and the grit that clears up falls into and collects in the box 7 and unify the collection and handle.
Handle case 1 and go up the intercommunication and be equipped with the inlet pipe 12 that is used for dropping into the water treatment agent, be equipped with installation cavity 18 in the wall of inlet tube 6, be equipped with blocking mechanism in the installation cavity 18, blocking mechanism includes the limiting plate of sliding connection in installation cavity 18, fixedly connected with runs through installation cavity 18 on the limiting plate and extends to inlet tube 6 and the wedge rod 17 of collecting the box 7 junction, the limiting plate passes through spring elastic connection with the right side inner wall of installation cavity 18, the existence of wedge rod 17 can prevent that the clearance from advancing to collect in the box 7 gravel and getting back to in the inlet tube 6 once more.
Handle the rabbling mechanism that is equipped with in the case 1, fixedly connected with mounting panel on the case 1 of handling, be equipped with power unit on the mounting panel, power unit is including rotating the reciprocal lead screw 4 of connection between mounting panel and processing case 1, reciprocal lead screw 4 and agitating unit fixed connection, the rabbling mechanism is including rotating the installation pole 8 of connection in handling case 1, a plurality of puddlers 9 of fixedly connected with on the installation pole 8, reciprocal lead screw 4 and 8 fixed connection of installation pole, the sewage treatment agent gets into from inlet pipe 12 and carries out purification treatment with the sewage reaction in handling case 1, reciprocal lead screw 4 rotates and to make installation pole 8 rotate, make puddler 9 rotate and stir sewage and sewage treatment agent, make the reaction effect better.
Be equipped with motor 3 on the mounting panel, motor 3's output shaft end and 4 fixed connection of reciprocal lead screw, be equipped with screw housing 5 on the reciprocal lead screw 4, fixedly connected with L shape pole 2's one end on screw housing 5, still be equipped with the clearance scraper blade 16 that is used for clearing up first filter mechanism on the inlet tube 6, clearance scraper blade 16 contacts with first filter screen 15, the other end of L shape pole 2 runs through inlet tube 6 and fixes in clearance scraper blade 16 top, it is equipped with slag pipe 14 to handle 1 bottom intercommunication of case, it is equipped with drain pipe 13 to handle 1 last intercommunication of case, be equipped with second filter mechanism in drain pipe 13, second filter mechanism includes the second filter screen 19 of fixed connection in drain pipe 13, be equipped with first solenoid valve 20 in the drain pipe 13, be equipped with second solenoid valve 21 in the slag pipe 14, impurity in the sewage reacts with the sewage treatment agent and generates the sediment, clean water is discharged from drain pipe 13, sediment is handled from slag pipe 14 discharge.
When the utility model is used, sewage in the sponge green land of the park enters the treatment box 1 through the water inlet pipe 6, before the sewage enters the treatment box 1, the first filter screen 15 can filter sand in the sewage, the sewage after the sand is filtered enters the treatment box 1, the motor 3 is started, the motor 3 can rotate the reciprocating lead screw 4, the lead screw sleeve 5 is made to move up and down, the L-shaped rod 2 is made to move up and down, the cleaning scraper 16 is made to move up and down to clean the first filter screen 15, the cleaned sand falls into the collection box 7 for uniform collection treatment, the wedge-shaped rod 17 can prevent the sand from returning to the water inlet pipe 6 again, the sewage treatment agent enters the treatment box 1 from the inlet pipe 12 to react with the sewage to purify the sewage, the reciprocating lead screw 4 rotates to rotate the installation rod 8, the stirring rod 9 rotates to stir the sewage and the sewage treatment agent, make the reaction effect better, first arc 10 and second arc 11 can carry out certain sheltering from to inlet tube 6 and inlet pipe 12 respectively simultaneously, can realize the proportion of the input volume of inflow and sewage treatment agent through the arc length of controlling first arc 10 and second arc 11, and impurity in the sewage reacts with sewage treatment agent and generates the sediment, and clean water is discharged from drain pipe 13, deposits from 14 discharges of slagging tap pipe.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. A sewage discharge treatment device for a park sponge greenbelt comprises a treatment box (1) and is characterized in that a water inlet pipe (6) is communicated with the treatment box (1), a first filtering mechanism is arranged in the water inlet pipe (6) and comprises a first filter screen (15) fixedly connected in the water inlet pipe (6), a feeding pipe (12) for feeding a water treatment agent is communicated with the treatment box (1), a stirring mechanism is arranged in the treatment box (1), a mounting plate is fixedly connected to the treatment box (1), a power mechanism is arranged on the mounting plate and comprises a reciprocating lead screw (4) rotatably connected between the mounting plate and the treatment box (1), the reciprocating lead screw (4) is fixedly connected with the stirring device, a motor (3) is arranged on the mounting plate, and the tail end of an output shaft of the motor (3) is fixedly connected with the reciprocating lead screw (4), be equipped with lead screw cover (5) on reciprocal lead screw (4), the one end of fixedly connected with L shape pole (2) is gone up in lead screw cover (5), still be equipped with clearance scraper blade (16) that are used for clearing up first filter mechanism on inlet tube (6), clearance scraper blade (16) contact with first filter screen (15), the other end of L shape pole (2) runs through inlet tube (6) and fixes in clearance scraper blade (16) top, it is equipped with slag pipe (14) to handle case (1) bottom intercommunication, it is equipped with drain pipe (13) to handle the intercommunication on case (1), be equipped with second filter mechanism in drain pipe (13).
2. The sewage discharge treatment device for the sponge green land of the park as claimed in claim 1, wherein a collecting box (7) is communicated below the water inlet pipe (6) adjacent to the first filter screen (15).
3. The sewage discharge treatment device for the sponge green land in the park as claimed in claim 2, wherein a mounting cavity (18) is formed in the wall of the water inlet pipe (6), a blocking mechanism is arranged in the mounting cavity (18), the blocking mechanism comprises a limiting plate which is slidably connected in the mounting cavity (18), a wedge-shaped rod (17) which penetrates through the mounting cavity (18) and extends to the joint of the water inlet pipe (6) and the collection box (7) is fixedly connected to the limiting plate, and the limiting plate is elastically connected with the inner wall of the right side of the mounting cavity (18) through a spring.
4. A sewage discharge treatment plant for park sponge green areas according to claim 2, characterized in that the collecting box (7) is screwed below the water inlet pipe (6).
5. The sewage discharge treatment device for the sponge green land of the park as claimed in claim 1, wherein the stirring mechanism comprises a mounting rod (8) rotatably connected in the treatment tank (1), a plurality of stirring rods (9) are fixedly connected on the mounting rod (8), and the reciprocating screw rod (4) is fixedly connected with the mounting rod (8).
6. A sewage disposal device for sponge green areas of parks as claimed in claim 5, wherein a control mechanism is arranged in said treatment box (1), said control mechanism comprises a first arc-shaped plate (10) and a second arc-shaped plate (11) which are fixedly connected with a mounting rod (8) through a plurality of connecting rods, the outer side walls of said first arc-shaped plate (10) and said second arc-shaped plate (11) are contacted with the inner side wall of the treatment box (1), and the arc lengths of said first arc-shaped plate (10) and said second arc-shaped plate (11) are different.
7. The sewage discharge treatment device for sponge green land in park as claimed in claim 1, wherein said second filtering mechanism comprises a second filter screen (19) fixedly connected in a liquid outlet pipe (13), a first electromagnetic valve (20) is arranged in said liquid outlet pipe (13), and a second electromagnetic valve (21) is arranged in said slag outlet pipe (14).
