CN216418504U - Wastewater treatment equipment with filtering capability - Google Patents
Wastewater treatment equipment with filtering capability Download PDFInfo
- Publication number
- CN216418504U CN216418504U CN202122796105.0U CN202122796105U CN216418504U CN 216418504 U CN216418504 U CN 216418504U CN 202122796105 U CN202122796105 U CN 202122796105U CN 216418504 U CN216418504 U CN 216418504U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- brush plate
- wastewater treatment
- bevel gear
- treatment equipment
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Filtration Of Liquid (AREA)
Abstract
本实用新型公开了一种具有过滤功能的废水处理设备，涉及废水处理技术领域，针对现有过滤处理方式多为简单的过滤网进行过滤处理，无法对废水中的杂质进行分解处理，容易对过滤孔造成堵塞和后期处理清理比较麻烦的问题，现提出如下方案，包括机体，所述机体的外侧顶部固定连接有电机，所述电机的输出轴固定连接有传动杆，所述传动杆上固定连接有多个铰刀和连接杆，所述连接杆的右端固定连接有第一刷板，所述第一刷板的左侧下方固定连接有第二刷板，所述传动杆的下方固定连接有第一锥齿轮和固定板。本实用新型不仅可以进行对废水中的杂质进行粉碎处理，同时可以将粉碎的杂质进行快速的分离处理，有效的提高了废水过滤处理的效果和效率。
The utility model discloses a waste water treatment device with a filtering function, which relates to the technical field of waste water treatment. The existing filtering and treatment methods are mostly simple filter screens for filtering treatment, which cannot decompose impurities in the waste water and are easy to filter. The problem of blockage caused by the hole and the troublesome post-processing and cleaning is now proposed, including a body, the outer top of the body is fixedly connected with a motor, the output shaft of the motor is fixedly connected with a transmission rod, and the transmission rod is fixedly connected There are multiple reamers and connecting rods, the right end of the connecting rod is fixedly connected with a first brush plate, the lower left side of the first brush plate is fixedly connected with a second brush plate, and the lower part of the transmission rod is fixedly connected with a The first bevel gear and the fixed plate. The utility model can not only pulverize the impurities in the wastewater, but also can quickly separate the pulverized impurities, thereby effectively improving the effect and efficiency of the wastewater filtration treatment.
Description
Technical Field
The utility model relates to a waste water treatment technical field especially relates to a waste water treatment equipment with filtering capability.
Background
The waste water treatment utilizes physics, chemistry and biological method to handle waste water, make waste water purification, pollution abatement, in order to reach waste water recovery, reuse, the technique of make full use of water resource, waste water treatment's commonly used medicament has flocculating agent, coagulant aid, amendment etc., the processing technology has the preliminary treatment, novel filler, ceramic membrane etc., current waste water purification treatment carries out purification treatment or passes through simple filtration treatment through adding the additive, the great impurity in the waste water blocks up the filter screen easily, lead to the filter effect poor, inefficiency, can't decompose the great impurity and handle, it is more troublesome to clear up, for this reason, we have proposed a waste water treatment equipment with filtering capability.
SUMMERY OF THE UTILITY MODEL
The utility model provides a pair of waste water treatment equipment with filtering capability has solved current filtration treatment mode and has mostly been simple filter screen and carry out filtration treatment, can't decompose the processing to the impurity in the waste water, causes the more troublesome problem of jam and later stage processing clearance to filtering the hole easily.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a wastewater treatment device with a filtering function comprises a machine body, wherein the top of the outer side of the machine body is fixedly connected with a motor, the output shaft of the motor is fixedly connected with a transmission rod, a plurality of reamers and connecting rods are fixedly connected to the transmission rod, the right end of the connecting rod is fixedly connected with a first brush board, the lower part of the left side of the first brush board is fixedly connected with a second brush board, a first bevel gear and a fixed plate are fixedly connected below the transmission rod, a filter screen is fixedly connected at the top of the fixed plate, a material outlet box is fixedly connected on the left side of the bottom of the fixed plate, a spiral pushing rod is rotatably connected inside the material outlet box, the right end of the spiral pushing rod is fixedly connected with a second bevel gear which is in meshing transmission with the first bevel gear, the inside below fixedly connected with a plurality of filters of organism, the bottom of transfer line rotates the top of connecting the filter that is located the top.
Preferably, the right side of the first brush board and the bottom of the second brush board are respectively provided with bristles, and the bristles are respectively contacted with the inside of the filter screen and the top of the fixing board.
Preferably, a through hole is formed in the left side of the fixing plate, a movable hole is formed in the right side of the material outlet box, the movable hole is formed in the right side of the spiral pushing rod in a sleeved mode, and the left side of the spiral pushing rod is rotatably connected with the left side of the inside of the material outlet box.
Preferably, the outside top fixedly connected with fixed block of filter screen, the other end of fixed block and the inside fixed connection of organism, the bin outlet has been seted up on the bottom left side of going out the magazine.
Preferably, a water inlet is formed in the right side of the top of the machine body, a water inlet pipe is fixedly connected to the outside of the water inlet, a water discharge outlet is formed in the bottom of the machine body, a control valve is fixedly connected to the outside of the water discharge outlet, and three support columns are fixedly connected to the bottom of the machine body.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses an installation motor; a transmission rod; a reamer; a first bevel gear; a connecting rod; a first brush plate; a second brush plate; a screw push rod; a second bevel gear; a filter screen; a filter plate; a water inlet pipe; discharging the material box; a fixing plate; mechanism such as control valve rotates through the motor and drives the reamer and rotate, drives the rotation of spiral propelling movement pole simultaneously, and this device modern design, easy operation, this equipment not only can carry out shredding to the impurity in the waste water, can carry out quick separation processing with kibbling impurity simultaneously, the effectual effect and the efficiency that has improved waste water filtration.
Drawings
FIG. 1 is a schematic perspective view of an internal part of a wastewater treatment facility with a filtering function according to the present invention;
FIG. 2 is a schematic left side view of a wastewater treatment facility with a filtering function according to the present invention;
FIG. 3 is a schematic diagram of a right side perspective three-dimensional structure of a wastewater treatment facility with a filtering function according to the present invention;

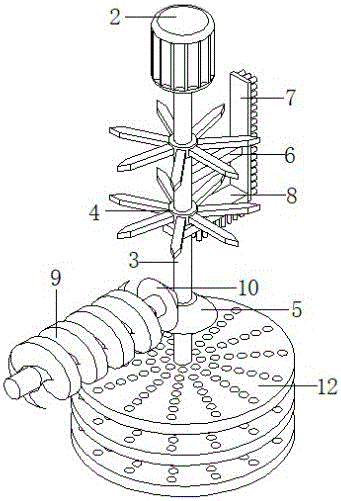

fig. 4 is a schematic view of a top-down three-dimensional structure of internal components of a wastewater treatment device with a filtering function according to the present invention.
In the figure: 1. a body; 2. a motor; 3. a transmission rod; 4. a reamer; 5. a first bevel gear; 6. a connecting rod; 7. a first brush plate; 8. a second brush plate; 9. a screw push rod; 10. a second bevel gear; 11. a filter screen; 12. a filter plate; 13. a water inlet pipe; 14. discharging the material box; 15. a fixing plate; 16. and (4) controlling the valve.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-4, an embodiment provided by the present disclosure is a wastewater treatment equipment with filtering function, which includes a machine body 1, a motor 2 fixedly connected to the top of the outer side of the machine body 1, a transmission rod 3 fixedly connected to the output shaft of the motor 2, a plurality of reamers 4 and a connection rod 6 fixedly connected to the transmission rod 3, a first brush plate 7 fixedly connected to the right end of the connection rod 6, a second brush plate 8 fixedly connected to the lower left side of the first brush plate 7, a first bevel gear 5 and a fixing plate 15 fixedly connected to the lower side of the transmission rod 3, a filter screen 11 fixedly connected to the top of the fixing plate 15, a discharging box 14 fixedly connected to the left side of the bottom of the fixing plate 15, a spiral pushing rod 9 rotatably connected to the inside of the discharging box 14, a second bevel gear 10 fixedly connected to the right end of the spiral pushing rod 9, the second bevel gear 10 engaged with the first bevel gear 5 for transmission, a plurality of filter plates 12 fixedly connected to the lower inside of the machine body 1, the bottom of the transmission rod 3 is rotatably connected to the top of the upper filter plate.
Preferably, the right side of the first brush plate 7 and the bottom of the second brush plate 8 are respectively provided with bristles, which are respectively in contact with the inside of the filter net 11 and the top of the fixing plate 15.
Preferably, the left side of the fixing plate 15 is provided with a through hole, the right side of the material outlet box 14 is provided with a movable hole, the right side of the spiral pushing rod 9 is movably sleeved in the movable hole, and the left side of the spiral pushing rod 9 is rotatably connected with the left side of the inside of the material outlet box 14.
Preferably, the fixed block is fixedly connected to the upper portion of the outer portion of the filter screen 11, the other end of the fixed block is fixedly connected with the inner portion of the machine body 1, and a discharge port is formed in the left side of the bottom of the material outlet box 14.
Preferably, the water inlet has been seted up on the top right side of organism 1, and the outside fixedly connected with inlet tube 13 of water inlet, the drain has been seted up to the bottom of organism 1, and the outside fixedly connected with control valve 16 of drain, the three support column of bottom fixedly connected with of organism 1.
The working principle is that firstly, wastewater is poured into the machine body 1 through the water inlet pipe 13 and enters the inside of the filter screen 11, the rotation of the motor 2 drives the transmission rod 3 to rotate, the rotation of the transmission rod 3 drives the reamer 4 to rotate, the rotation of the reamer 4 crushes large impurities in the wastewater, the transmission rod 3 rotates and simultaneously drives the first brush plate 7 and the second brush plate 8 to synchronously rotate, the filter screen 11 is cleaned through bristles by the rotation of the first brush plate 7 and the second brush plate 8, the crushed impurities are cleaned to the position of a discharge port by the rotation of the second brush plate 8, the rotation of the transmission rod 3 drives the first bevel gear 5 to rotate, the rotation of the first bevel gear 5 drives the second bevel gear 10 to rotate, and the rotation of the spiral push rod 9 is driven by the rotation of the second bevel gear 10, the inside of organism 1 can be got rid of with the impurity after smashing through the rotation of spiral propelling movement pole 9, continues filtration treatment to waste water through filter 12, and waste water after through the multiple-layer filtering passes through delivery port discharge organism 1.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The wastewater treatment equipment with the filtering function comprises an equipment body (1) and is characterized in that the top of the outer side of the equipment body (1) is fixedly connected with a motor (2), an output shaft of the motor (2) is fixedly connected with a transmission rod (3), the transmission rod (3) is fixedly connected with a plurality of reamers (4) and a connecting rod (6), the right end of the connecting rod (6) is fixedly connected with a first brush plate (7), the lower side of the left side of the first brush plate (7) is fixedly connected with a second brush plate (8), the lower side of the transmission rod (3) is fixedly connected with a first bevel gear (5) and a fixed plate (15), the top of the fixed plate (15) is fixedly connected with a filter screen (11), the left side of the bottom of the fixed plate (15) is fixedly connected with a material outlet box (14), and the inner part of the material outlet box (14) is rotatably connected with a spiral pushing rod (9), the right-hand member fixedly connected with second bevel gear (10) of spiral propelling movement pole (9), second bevel gear (10) and first bevel gear (5) meshing transmission, a plurality of filter (12) of inside below fixedly connected with of organism (1), the bottom of transfer line (3) is rotated and is connected at the top that is located the top filter.
2. The wastewater treatment equipment with filtering function according to claim 1, wherein the right side of the first brush plate (7) and the bottom of the second brush plate (8) are respectively provided with bristles, and the two bristles are respectively in contact with the inside of the filter screen (11) and the top of the fixed plate (15).
3. The wastewater treatment equipment with the filtering function according to claim 1, wherein a through hole is formed in the left side of the fixing plate (15), a movable hole is formed in the right side of the material outlet box (14), the right side of the spiral pushing rod (9) is movably sleeved in the movable hole, and the left side of the spiral pushing rod (9) is rotatably connected with the left side of the inside of the material outlet box (14).
4. The wastewater treatment equipment with the filtering function according to claim 1, wherein a fixed block is fixedly connected to the upper part of the outside of the filter screen (11), the other end of the fixed block is fixedly connected with the inside of the machine body (1), and a discharge port is formed in the left side of the bottom of the discharge box (14).
5. The wastewater treatment equipment with the filtering function according to claim 1, wherein a water inlet is formed in the right side of the top of the machine body (1), a water inlet pipe (13) is fixedly connected to the outside of the water inlet, a water outlet is formed in the bottom of the machine body (1), a control valve (16) is fixedly connected to the outside of the water outlet, and three support columns are fixedly connected to the bottom of the machine body (1).
