本实用新型涉及机械加工的技术领域，特别是涉及一种空调壳体车削加工工装，其通过设置顶板对空调壳体进行支撑，防止车削机构对空调壳体加工时使空调壳体受到挤压变形，提高装置对空调壳体的保护效果，提高装置对空调壳体的加工质量，提高装置实用性；还包括底座、工作台、加工板、滑轨、第一丝杠、第一手轮、第一滑块、第一连接柱、支撑板、第二滑块、第二连接柱、多组导向柱和顶板，底座顶端与工作台的底端连接，工作台顶端设置有车削机构，加工板底端与工作台的顶端连接，加工板的顶端设置有固定机构，滑轨的顶端与工作台的底端连接，第一丝杠横向设置在底座的内侧壁上，并且第一丝杠的表面设置为对向螺纹。
The utility model relates to the technical field of machining, in particular to a turning tooling for an air-conditioning casing, which supports the air-conditioning casing by arranging a top plate to prevent the air-conditioning casing from being squeezed and deformed when the turning mechanism processes the air-conditioning casing. , to improve the protection effect of the device on the air-conditioning shell, improve the processing quality of the device on the air-conditioning shell, and improve the practicability of the device; it also includes a base, a workbench, a processing board, a slide rail, a first lead screw, a first handwheel, and a second A sliding block, a first connecting column, a support plate, a second sliding block, a second connecting column, a plurality of groups of guide columns and a top plate, the top of the base is connected with the bottom end of the worktable, the top of the worktable is provided with a turning mechanism, and the bottom of the processing plate is The end is connected with the top end of the workbench, the top end of the processing plate is provided with a fixing mechanism, the top end of the slide rail is connected with the bottom end of the workbench, the first lead screw is laterally arranged on the inner side wall of the base, and the surface of the first lead screw is set For the opposite thread.
Description
Technical Field
The utility model relates to a technical field of machining especially relates to an air conditioner casing lathe work frock.
Background
The air conditioner shell turning tool is an auxiliary device for turning the air conditioner shell, and is widely used in the field of machining; the existing air conditioner shell turning tool is discovered in use, turning is a method for cutting a workpiece by utilizing the rotation of the workpiece relative to a cutter on a lathe, the cutting energy of the turning is mainly provided by the workpiece rather than the cutter, the turning is the most basic and common cutting method and plays a very important role in production, the turning is suitable for processing a rotary surface, most of the workpieces with the rotary surface can be processed by the turning method, such as an inner cylindrical surface, an outer cylindrical surface, an inner conical surface, an outer conical surface, an end surface, a groove, a thread, a rotary forming surface and the like, the used cutter is mainly a turning tool, and when the air conditioner shell is turned at present, the device is easily extruded and deformed in the turning process of the air conditioner shell after being fixed, so that the protection effect of the device on the air conditioner shell is poor, and the practicability of the device is poor.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides an air conditioner casing lathe work frock through setting up the roof and supporting air conditioner casing, prevents that turning mechanism from making air conditioner casing receive extrusion deformation man-hour to air conditioner casing, and the improvement device is to air conditioner casing's protection effect, and the improvement device is to air conditioner casing's processingquality, improvement device practicality.
The utility model discloses an air conditioner shell turning frock, still include the base, the workstation, the processing board, the slide rail, first lead screw, first hand wheel, first slider, first spliced pole, the backup pad, the second slider, the second spliced pole, multiunit guide post and roof, the base top is connected with the bottom of workstation, the workstation top is provided with the turning mechanism, the processing board bottom is connected with the top of workstation, the top of processing board is provided with fixed establishment, the top of slide rail is connected with the bottom of workstation, first lead screw transversely sets up on the inside wall of base, and the surface of first lead screw sets up to subtend screw thread, the left end of first lead screw is rotatable to be connected with the inside wall of base, the right-hand member of first lead screw passes the inside wall of base and is fixedly connected with the left end of first hand wheel, the top of first slider is connected with the bottom of slide rail, first slider suit is on the outside of first lead screw, and the rotation of first slider through first lead screw is in the bottom horizontal slip of slide rail, the top of first spliced pole and the bottom swivelling joint of first slider, the bottom of first spliced pole and the left end swivelling joint of backup pad, the top of second slider is connected with the bottom of slide rail, the second slider suit is on the lateral wall of first lead screw, and the rotation of second slider through first lead screw is in the bottom horizontal slip of slide rail, the top of second spliced pole and the bottom swivelling joint of second slider, the bottom of second spliced pole and the right-hand member swivelling joint of backup pad, the bottom of multiunit guide post is connected with the top of backup pad respectively, the top of multiunit guide post is connected with the bottom of roof respectively, and the roof setting is in the top of processing board.
The utility model discloses an air conditioner casing lathe work frock, the supporting mechanism sets up to two sets, and two sets of supporting mechanism respectively opposite direction sets up the left and right sides two at the processing board top, the supporting mechanism includes quick-witted case, the second lead screw, splint, the limiting plate, first gear, the connecting piece, the second hand wheel and second gear, machine bottom end is connected with the top of processing board, be provided with the cavity in the quick-witted case, the cavity right-hand member is provided with the opening, the opening communicates with in the cavity, the second lead screw is vertically rotatable to be set up in the cavity, the left part suit of splint is on the lateral wall of second lead screw, and splint slide from top to bottom in the cavity through the rotation of second lead screw, the right-hand member of splint stretches out of the cavity through the cavity opening, the limiting plate is fixed to be suit on the lateral wall of second lead screw, first gear is fixed to be adorned in the lateral wall lower part of second lead screw, the connecting piece bottom is connected with the top of processing board, the second hand wheel is rotatably and transversely arranged on the connecting piece, the right end of the second hand wheel extends into the cavity and is connected with the left end of the second gear, and the second gear is meshed with the first gear.
The utility model discloses an air conditioner casing lathe work frock, turning mechanism include multiunit electric telescopic column, diaphragm, shifting piece and turning head, and the bottom of multiunit electric telescopic column is connected with the top of workstation respectively, and the top output of multiunit electric telescopic column is connected with the bottom of diaphragm respectively, and the shifting piece can remove through reciprocating drive device and removes the bottom of installing at the diaphragm, and the turning head leads to all around reciprocating drive device installs the bottom at the shifting piece.
The utility model discloses an air conditioner casing lathe work frock still includes the multiunit shock pad, and the bottom of multiunit shock pad is connected and sets up the below at the roof with the top of processing board respectively.
The utility model discloses an air conditioner casing lathe work frock still includes the light, and the light is installed on the lateral wall of turning head.
The utility model discloses an air conditioner casing lathe work frock still includes the multiunit stabilizer blade, and the top of multiunit stabilizer blade is connected with the bottom of base respectively.
The utility model discloses an air conditioner casing lathe work frock still includes two sets of protection pads, and two sets of protection pads are installed respectively in the bottom of two sets of splint.
Compared with the prior art, the beneficial effects of the utility model are that: firstly, an air conditioner shell to be processed is sleeved outside a top plate, a first screw rod is driven to rotate by rotating a first hand wheel, the first screw rod rotates to respectively drive a first slide block and a second slide block to move outwards and oppositely, so that the first slide block and the second slide block respectively push a support plate upwards through a first connecting column and a second connecting column, thereby the support plate pushes the top plate upwards through a plurality of groups of guide posts to support the inner side wall of the air-conditioning shell, the left end and the right end of the air-conditioning shell are fixed through the fixing mechanism after the support is finished, the air-conditioning shell is processed through the turning mechanism after the fixing is finished, the air conditioner shell is supported by the top plate, the air conditioner shell is prevented from being extruded and deformed when the turning mechanism is used for machining the air conditioner shell, the protection effect of the device on the air conditioner shell is improved, the machining quality of the device on the air conditioner shell is improved, and the practicability of the device is improved.
Drawings

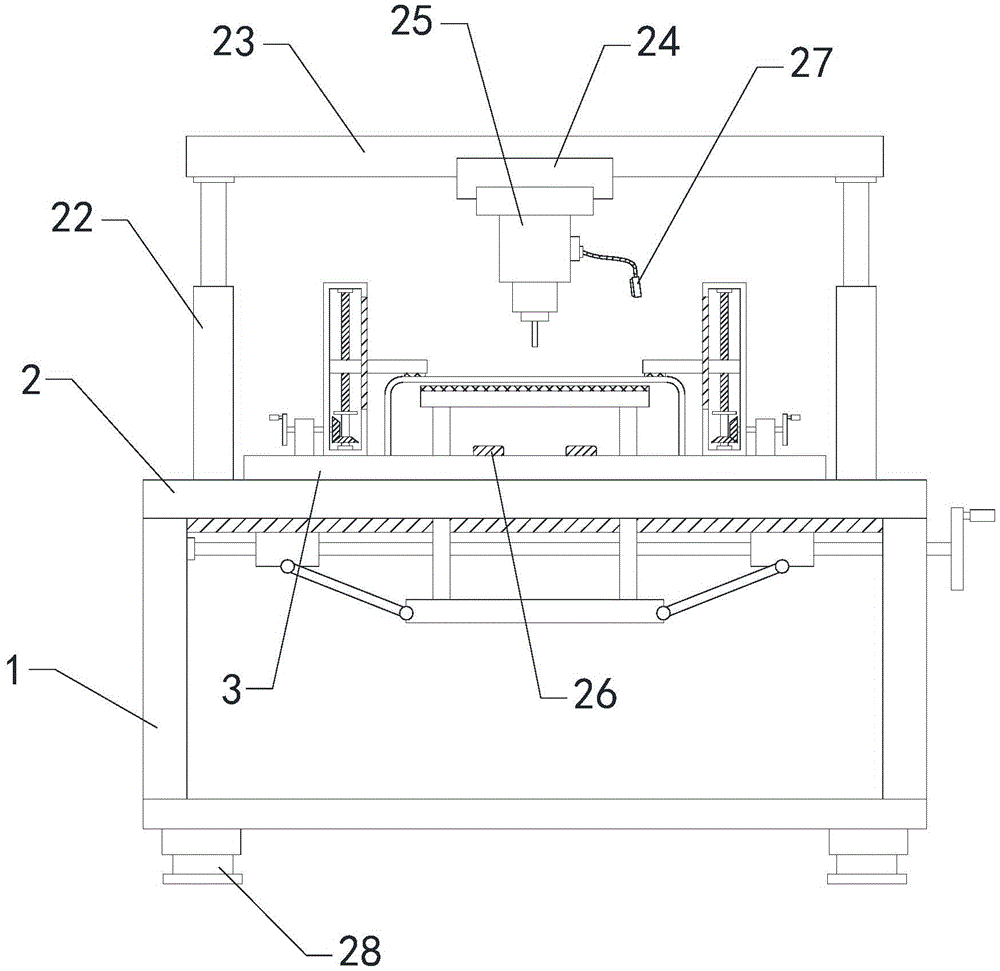

Fig. 1 is a schematic structural diagram of the present invention;
FIG. 2 is an enlarged schematic view of the connection of the first slider to the first connecting post;
FIG. 3 is an enlarged schematic structural view of the connection of the second lead screw with the limiting plate and the like;
FIG. 4 is an enlarged schematic view of the connection of the shift block to the lathe head or the like;
in the drawings, the reference numbers: 1. a base; 2. a work table; 3. processing a plate; 4. a slide rail; 5. a first lead screw; 6. a first hand wheel; 7. a first slider; 8. a first connecting column; 9. a support plate; 10. a second slider; 11. a second connecting column; 12. a guide post; 13. a top plate; 14. a chassis; 15. a second lead screw; 16. a splint; 17. a limiting plate; 18. a first gear; 19. a connecting member; 20. a second hand wheel; 21. a second gear; 22. an electric telescopic column; 23. a transverse plate; 24. a shift block; 25. turning a head; 26. a shock pad; 27. an illuminating lamp; 28. a support leg; 29. a protective pad.
Detailed Description
The following detailed description of the embodiments of the present invention is provided with reference to the accompanying drawings and examples. The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention.
As shown in fig. 1 to 4, the turning tool for air conditioner casings of the present invention further comprises a base 1, a workbench 2, a processing plate 3, a slide rail 4, a first lead screw 5, a first hand wheel 6, a first slider 7, a first connecting post 8, a supporting plate 9, a second slider 10, a second connecting post 11, a plurality of sets of guiding posts 12 and a top plate 13, wherein the top end of the base 1 is connected with the bottom end of the workbench 2, the top end of the workbench 2 is provided with a turning mechanism, the bottom end of the processing plate 3 is connected with the top end of the workbench 2, the top end of the processing plate 3 is provided with a fixing mechanism, the top end of the slide rail 4 is connected with the bottom end of the workbench 2, the first lead screw 5 is transversely arranged on the inner side wall of the base 1, the surface of the first lead screw 5 is provided with opposite threads, the left end of the first lead screw 5 is rotatably connected with the inner side wall of the base 1, the right end of the first lead screw 5 passes through the inner side wall of the base 1 and is fixedly connected with the left end of the first hand wheel 6, the top end of a first sliding block 7 is connected with the bottom end of a sliding rail 4, the first sliding block 7 is sleeved on the outer side of a first lead screw 5, the first sliding block 7 slides left and right at the bottom end of the sliding rail 4 through the rotation of the first lead screw 5, the top end of a first connecting column 8 is rotatably connected with the bottom end of the first sliding block 7, the bottom end of the first connecting column 8 is rotatably connected with the left end of a supporting plate 9, the top end of a second sliding block 10 is connected with the bottom end of the sliding rail 4, a second sliding block 10 is sleeved on the outer side wall of the first lead screw 5, the second sliding block 10 slides left and right at the bottom end of the sliding rail 4 through the rotation of the first lead screw 5, the top end of a second connecting column 11 is rotatably connected with the bottom end of the second sliding block 10, the bottom end of the second connecting column 11 is rotatably connected with the right end of the supporting plate 9, the bottom ends of a plurality of groups of guide columns 12 are respectively connected with the top end of the supporting plate 9, the top ends of a plurality of groups of guide columns 12 are respectively connected with the bottom end of a top plate 13, and the top plate 13 is disposed above the processing plate 3; firstly, an air conditioner shell to be processed is sleeved outside a top plate 13, a first lead screw 5 is driven to rotate by rotating a first hand wheel 6, the first lead screw 5 rotates to respectively drive a first slide block 7 and a second slide block 10 to move outwards and oppositely, so that the first slide block 7 and the second slide block 10 respectively push a support plate 9 upwards through a first connecting column 8 and a second connecting column 11, the support plate 9 pushes the top plate 13 upwards through a plurality of groups of guide columns 12 to support the inner side wall of the air conditioner shell, the left end and the right end of the air conditioner shell are fixed through a fixing mechanism after the support is finished, the air conditioner shell is processed through a turning mechanism after the fixing is finished, the air conditioner shell is supported through the top plate 13, the air conditioner shell is prevented from being extruded and deformed when the turning mechanism processes the air conditioner shell, the protection effect of the device on the air conditioner shell is improved, and the processing quality of the device on the air conditioner shell is improved, the practicability of the device is improved.
The utility model relates to an air conditioner shell turning tool, the supporting mechanism is set into two groups, and two groups of supporting mechanisms are respectively arranged on the left and right parts of the top end of a processing plate 3 in opposite directions, the supporting mechanism comprises a machine case 14, a second lead screw 15, a clamping plate 16, a limiting plate 17, a first gear 18, a connecting piece 19, a second wheel 20 and a second gear 21, the bottom end of the machine case 14 is connected with the top end of the processing plate 3, a cavity is arranged in the machine case 14, the right end of the cavity is provided with an opening which is communicated with the cavity, the second lead screw 15 is vertically and rotatably arranged in the cavity, the left part of the clamping plate 16 is sleeved on the outer side wall of the second lead screw 15, the clamping plate 16 slides up and down in the cavity through the rotation of the second lead screw 15, the right end of the clamping plate 16 extends out of the cavity through the opening, the limiting plate 17 is fixedly sleeved on the outer side wall of the second lead screw 15, the first gear 18 is fixedly sleeved on the lower part of the outer side wall of the second lead screw 15, the bottom end of the connecting piece 19 is connected with the top end of the processing plate 3, a second wheel 20 is rotatably and transversely arranged on the connecting piece 19, the right end of the second wheel 20 extends into the chamber and is connected with the left end of a second gear 21, and the second gear 21 is meshed with the first gear 18; rotate connecting piece 19 through snatching second hand wheel 20, it is rotatory to make connecting piece 19 drive second lead screw 15 through second gear 21 and first gear 18, thereby make splint 16 move down and press from both sides the top of air conditioner casing tight fixed, improve the convenience that the air conditioner casing is fixed, reduce rocking during air conditioner casing adds man-hour, improve the machining precision of air conditioner casing, through setting up second hand wheel 20, improve splint 16 lifting control's convenience, improve the convenience that operating personnel used, it is spacing to splint 16 through setting up limiting plate 17, prevent that splint 16 from descending and second gear 21 from bumping and causing the device to damage, the practicality of improvement device.
The utility model discloses an air conditioner casing lathe work frock, the turning mechanism includes multiunit electronic flexible post 22, diaphragm 23, aversion piece 24 and turning head 25, the bottom of multiunit electronic flexible post 22 is connected with the top of workstation 2 respectively, the top output of multiunit electronic flexible post 22 is connected with the bottom of diaphragm 23 respectively, aversion piece 24 can be moved about through reciprocating drive device and install in the bottom of diaphragm 23, turning head 25 leads to the front and back reciprocating drive device and installs in the bottom of aversion piece 24; through the flexible length of the electronic flexible post 22 of control multiunit to control turning head 25 is to air conditioner casing lathe work height, and the device of being convenient for is processed the air conditioner casing of equidimension not, and through the horizontal and longitudinal movement position of control turning head 25, the quick processing of turning head 25 to the air conditioner casing of being convenient for improves the machining efficiency of device, improves the practicality of device.
The utility model discloses an air conditioner shell turning tool, which also comprises a plurality of groups of shock pads 26, wherein the bottom ends of the shock pads 26 are respectively connected with the top end of the processing plate 3 and are arranged below the top plate 13; through setting up multiunit shock pad 26, improve the shock attenuation nature between roof 13 bottom and the 3 tops of processing board, reduce roof 13 decline and the processing board 3 collision strength between the top, improve the protectiveness of device, improve the practicality.
The turning tool for the air conditioner shell further comprises a lighting lamp 27, and the lighting lamp 27 is installed on the outer side wall of the turning head 25; through setting up light 27, improve the illuminating effect when turning head 25 is turned air conditioner casing, improve the convenience that lathe work observed.
The turning tool for the air conditioner shell further comprises a plurality of groups of support legs 28, and the top ends of the plurality of groups of support legs 28 are respectively connected with the bottom end of the base 1; through setting up multiunit stabilizer blade 28, improve the steady effect that base 1 placed, improve the stability of device during operation, improve the practicality.
The turning tool for the air conditioner shell of the utility model also comprises two groups of protective pads 29, wherein the two groups of protective pads 29 are respectively arranged at the bottom ends of the two groups of clamping plates 16; through setting up two sets of protection pads 29, improve the protectiveness of two sets of splint 16 when fixed to the air conditioner casing, reduce the mar on air conditioner casing surface, improve the convenience of protection.
The utility model discloses an air conditioner casing lathe work frock, it is at work, at first will need the air conditioner casing suit of processing outside roof 13, drive first lead screw 5 to rotate through rotating first hand wheel 6, first lead screw 5 is rotatory to drive first slider 7 and second slider 10 outwards opposite direction respectively, make first slider 7 and second slider 10 respectively through first spliced pole 8 and second spliced pole 11 with the backup pad 9 upwards promote, thereby make backup pad 9 promote roof 13 upwards through multiunit guide post 12 and support the inside wall of air conditioner casing, fix the left and right both ends of air conditioner casing through fixed establishment after the support is accomplished, process the air conditioner casing through the lathe work mechanism after the fixed completion, later rotate connecting piece 19 through snatching second hand wheel 20, make connecting piece 19 drive second lead screw 15 to rotate through second gear 21 and first gear 18, thereby make splint 16 move down and press from both sides the top of air conditioner casing tight fixedly, then through the flexible length of controlling the electronic flexible post 22 of multiunit to control turning head 25 is to the operating height of air conditioner casing lathe work, and the device of being convenient for is processed the air conditioner casing of equidimension not, and through the horizontal and longitudinal movement position of control turning head 25, the quick processing of turning head 25 to the air conditioner casing of being convenient for.
The turning tool for the air conditioner shell of the utility model adopts a common mechanical mode, such as an installation mode, a connection mode or a setting mode, and can be implemented as long as beneficial effects can be achieved; the utility model discloses an air conditioner casing lathe work frock's electronic flexible post 22, turning head 25 and light 27 for purchase on the market, this industry technical staff only need according to its subsidiary instructions install and operate can.
The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications and variations can be made without departing from the technical principle of the present invention, and these modifications and variations should also be regarded as the protection scope of the present invention.
Claims (7)
1. The air conditioner shell turning tool is characterized by further comprising a base (1), a workbench (2), a processing plate (3), a sliding rail (4), a first lead screw (5), a first hand wheel (6), a first sliding block (7), a first connecting column (8), a supporting plate (9), a second sliding block (10), a second connecting column (11), a plurality of groups of guide columns (12) and a top plate (13), wherein the top end of the base (1) is connected with the bottom end of the workbench (2), the top end of the workbench (2) is provided with a turning mechanism, the bottom end of the processing plate (3) is connected with the top end of the workbench (2), the top end of the processing plate (3) is provided with a fixing mechanism, the top end of the sliding rail (4) is connected with the bottom end of the workbench (2), the first lead screw (5) is transversely arranged on the inner side wall of the base (1), and the surface of the first lead screw (5) is oppositely threaded, the left end of a first lead screw (5) is rotatably connected with the inner side wall of a base (1), the right end of the first lead screw (5) penetrates through the inner side wall of the base (1) and is fixedly connected with the left end of a first hand wheel (6), the top end of a first sliding block (7) is connected with the bottom end of a sliding rail (4), the first sliding block (7) is sleeved on the outer side of the first lead screw (5), the first sliding block (7) slides left and right at the bottom end of the sliding rail (4) through the rotation of the first lead screw (5), the top end of a first connecting column (8) is rotatably connected with the bottom end of a first sliding block (7), the bottom end of the first connecting column (8) is rotatably connected with the left end of a supporting plate (9), the top end of a second sliding block (10) is connected with the bottom end of the sliding rail (4), the second sliding block (10) is sleeved on the outer side wall of the first lead screw (5), and the second sliding block (10) slides left and right at the bottom end of the sliding rail (4) through the rotation of the first lead screw (5), the top of second spliced pole (11) and the bottom swivelling joint of second slider (10), the bottom of second spliced pole (11) and the right-hand member swivelling joint of backup pad (9), the bottom of multiunit guide post (12) is connected with the top of backup pad (9) respectively, the top of multiunit guide post (12) is connected with the bottom of roof (13) respectively to roof (13) set up the top at processing board (3).
2. The air conditioner shell turning tool according to claim 1, wherein two groups of supporting mechanisms are arranged, the two groups of supporting mechanisms are respectively arranged on the left portion and the right portion of the top end of the processing plate (3) in an opposite mode, the supporting mechanisms comprise a machine case (14), a second lead screw (15), a clamping plate (16), a limiting plate (17), a first gear (18), a connecting piece (19), a second hand wheel (20) and a second gear (21), the bottom end of the machine case (14) is connected with the top end of the processing plate (3), a cavity is arranged in the machine case (14), an opening is formed in the right end of the cavity and communicated with the cavity, the second lead screw (15) is longitudinally and rotatably arranged in the cavity, the left portion of the clamping plate (16) is sleeved on the outer side wall of the second lead screw (15), the clamping plate (16) slides up and down in the cavity through rotation of the second lead screw (15), and the right end of the clamping plate (16) extends out of the cavity through the opening of the cavity, the fixed suit of limiting plate (17) is on the lateral wall of second lead screw (15), the fixed suit in the lateral wall lower part of second lead screw (15) of first gear (18), connecting piece (19) bottom is connected with the top of processing board (3), rotatable horizontal setting on connecting piece (19) of second hand wheel (20), the right-hand member of second hand wheel (20) stretches into the left end of the inside and second gear (21) of cavity and is connected, and second gear (21) and first gear (18) meshing.
3. The air conditioner shell turning tool according to claim 1, wherein the turning mechanism comprises a plurality of groups of electric telescopic columns (22), a transverse plate (23), a shifting block (24) and a turning head (25), the bottom ends of the groups of electric telescopic columns (22) are respectively connected with the top end of the workbench (2), the top end output ends of the groups of electric telescopic columns (22) are respectively connected with the bottom end of the transverse plate (23), the shifting block (24) can be installed at the bottom end of the transverse plate (23) in a left-right moving mode through a reciprocating driving device, and the turning head (25) is installed at the bottom end of the shifting block (24) through a front-back reciprocating driving device.
4. The air conditioner shell turning tool according to claim 3, further comprising a plurality of groups of shock absorbing pads (26), wherein the bottom ends of the plurality of groups of shock absorbing pads (26) are respectively connected with the top end of the processing plate (3) and are arranged below the top plate (13).
5. The air conditioner shell turning tool according to claim 4, further comprising an illuminating lamp (27), wherein the illuminating lamp (27) is installed on an outer side wall of the turning head (25).
6. The air conditioner shell turning tool according to claim 5, further comprising a plurality of groups of support legs (28), wherein the top ends of the plurality of groups of support legs (28) are respectively connected with the bottom end of the base (1).
7. The air conditioner shell turning tool according to claim 6, further comprising two sets of protection pads (29), wherein the two sets of protection pads (29) are respectively mounted at the bottom ends of the two sets of clamping plates (16).
