CN214434699U - External fixing device for upper limb fracture patient - Google Patents
External fixing device for upper limb fracture patient Download PDFInfo
- Publication number
- CN214434699U CN214434699U CN202022004312.3U CN202022004312U CN214434699U CN 214434699 U CN214434699 U CN 214434699U CN 202022004312 U CN202022004312 U CN 202022004312U CN 214434699 U CN214434699 U CN 214434699U
- Authority
- CN
- China
- Prior art keywords
- ring
- fixedly connected
- chest
- fixed cylinder
- patients
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model discloses an external fixing device for patients with upper limb fracture, which comprises a fixing cylinder and a chest ring, wherein the front side of one end of the chest ring is provided with a button, the front side of the other end of the chest ring is provided with a button hole, the rear side of the chest ring is provided with an elastic band, a shoulder belt is fixedly connected above the chest ring, the shoulder belt is provided with a telescopic regulator, one side of the shoulder belt is provided with a tension band, one end of the tension band is fixedly connected with an arm ring, one end of the arm ring is provided with a magic tape, the lower end of the arm ring is provided with the elastic band, the lower end of the elastic band is provided with a hook, the hook is detachably connected with a female buckle, the lower end of the female buckle is fixedly connected with the fixing cylinder, the outer surface of the fixing cylinder is provided with a plate bin, the inner part of the plate bin is provided with a fixing plate, the utility model plays a role of fixing the patients with fracture through the simple connection of the fixing cylinder and the chest ring, can also facilitate the activities of other parts of the patient.
Description
Technical Field
The utility model relates to the technical field of medical equipment, specifically an external fixation device for upper limb fracture patient.
Background
The medical fixing band is mainly used for supporting the local part of an affected part of a patient before and after treatment and reduction, relieving or alleviating the pain and the aching pain of muscles and preventing the disease from spreading (preventing the broken end from moving), and generally comprises a wrist guard, an elbow guard, an eversion fixing sleeve of the thumb, a forearm fixing sleeve and the like.
The slight removal just can produce huge misery when sick of fracture patient, and lie in bed for a long time and be unfavorable for the health of health organ, and the patient of local fracture is done the local fixed just enough, because the outer fixing device of upper limbs mostly is the cotton that fracture patient postoperative recovery phase used and hangs the fixed mode of neck, reduces patient's comfort level easily, and it can not satisfy fracture patient's the fixed of the fracture position of sick phase far away.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an upper limbs fracture patient uses external fixation device to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: an external fixing device for patients with upper limb fracture comprises a fixing barrel and a chest ring, wherein a button is arranged on the front side of one end of the chest ring, a button hole is arranged on the front side of the other end of the chest ring, an elastic band is arranged on the rear side of the chest ring, a shoulder belt is fixedly connected above the chest ring, a telescopic regulator is arranged on the shoulder belt, a tension belt is arranged on one side of the shoulder belt, one end of the tension belt is fixedly connected with an arm ring, a magic tape is arranged on one end of the arm ring, an elastic band is arranged at the lower end of the arm ring, a hook is arranged at the lower end of the elastic band, the hook is detachably connected with a female buckle, the lower end of the female buckle is fixedly connected with the fixing barrel, a belt is arranged on the outer surface of the fixing barrel, a fastener is arranged at one end of the belt, a plate bin is arranged inside the fixing barrel, a fixing plate is arranged inside the plate bin, a connecting band is arranged in the middle of the fixing plate, and a silica gel pad is arranged on one side of the plate bin, the inner side of the silica gel pad is provided with a soft pad.
As a further aspect of the present invention: the fixed cylinder is divided into an upper half cylinder and a lower half cylinder, the upper half cylinder and the lower half cylinder are connected through a connecting sheet, the connecting sheet is arranged on the inner side of the fixed cylinder, and the belt is arranged on the outer side of the fixed cylinder.
As a further aspect of the present invention: two rows of connecting belts are arranged in the middle of the fixing plate and are connected with the fixing plate in a gluing mode.
As a further aspect of the present invention: the fixed cylinder is made of medical gauze surrounding the plate cabin.
As a further aspect of the present invention: the fixed cylinder is detachably connected with the arm ring.
As a further aspect of the present invention: one end of the tension band is fixedly connected with an arm ring, the other end of the tension band is fixedly connected with a shoulder band, and the arm ring, the shoulder band and the tension band are all made of high-strength elastic materials.
Compared with the prior art, the beneficial effects of the utility model are that:
1. one end of the tension band is fixedly connected with the arm ring, the other end of the tension band is fixedly connected with the shoulder band, and the arm ring, the elastic band, the shoulder band and the tension band are made of high-strength elastic materials, so that the utility model is ensured to be suitable for all patients;
2. the utility model is divided into a front arm part and an upper arm part, the two parts can be fixed in a right angle and can be respectively adapted to the fracture of the upper arm, the forearm and the elbow joint, the hook of the upper arm part can be detachably connected with the female buckle of the front arm part, so that the fixed cylinder can be used independently, and the female buckle can enable the fixed cylinder to be hung in any place with the hook, thereby facilitating the daily life of patients and reducing the risk of wound infection;
3. the inside fixed plate that is provided with of solid fixed cylinder, the fixed plate plays the primary role, and one side is provided with the silica gel pad toward interior again, and solid fixed cylinder distal end and near-end inboard increase tangent circle and cushion, has avoided sharp-end oppression, increases the comfort level when the patient wears, and solid fixed cylinder is inside to set up the connection piece and connects first and second section of thick bamboo, and the surface is provided with the belt and can adjusts the size of a dimension at solid fixed cylinder upper and lower both ends.
Drawings

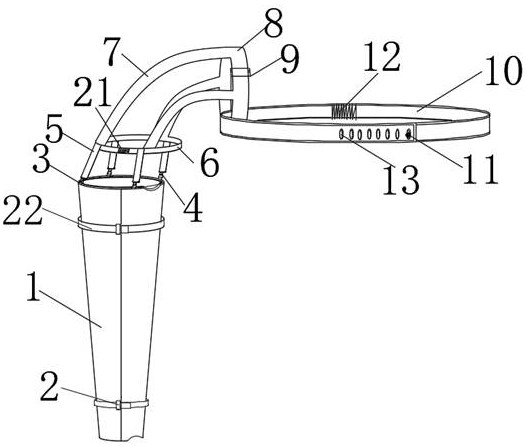

FIG. 1 is a front view of an external fixator for patients with fractured upper limbs;
FIG. 2 is a schematic structural view of a fixing plate of an external fixing device for patients with fractured upper limbs;
FIG. 3 is a schematic view of the internal structure of a fixing cylinder in an external fixing device for patients with fractured upper limbs;
fig. 4 is a schematic structural view of a fixing cylinder in an external fixing device for patients with upper limb fracture.
In the figure: 1. a fixed cylinder; 2. a fastener; 3. a female buckle; 4. a hook; 5. an elastic band; 6. an arm ring; 7. A tension band; 8. shoulder straps; 9. a telescopic adjuster; 10. a chest ring; 11. a button; 12. elastic bands; 13. A button hole; 14. a fixing plate; 15. a connecting belt; 16. connecting sheets; 17. a silica gel pad; 18. a belt; 19. a plate bin; 20. a soft cushion; 21. magic tape.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, in an embodiment of the present invention, an external fixation device for patients with upper limb fracture comprises a fixation cylinder 1 and a chest ring 10, wherein a button 11 is disposed on the front side of one end of the chest ring 10, a button hole 13 is disposed on the front side of the other end of the chest ring 10, an elastic band 12 is disposed on the rear side of the chest ring 10, a shoulder strap 8 is fixedly connected above the chest ring 10, a telescopic adjuster 9 is disposed on the shoulder strap 8, a tension band 7 is disposed on one side of the shoulder strap 8, one end of the tension band 7 is fixedly connected to an arm ring 6, one end of the arm ring 6 is provided with a magic tape 21, the lower end of the arm ring 6 is provided with an elastic band 5, the lower end of the elastic band 5 is provided with a hook 4, the hook 4 is detachably connected with a female buckle 3, the lower end of the female buckle 3 is fixedly connected to the fixation cylinder 1, a belt 18 is disposed on the outer surface of the fixation cylinder 1, a fastener 2 is disposed on one end of the belt 18, a plate chamber 19 is disposed inside the fixation cylinder 1, a fixation plate chamber 14 is disposed inside a fixation plate chamber 14, the middle part of the fixing plate 14 is provided with a connecting belt 15, one side of the inner side of the plate bin 19 is provided with a silica gel pad 17, and the inner side of the silica gel pad 17 is provided with a soft pad 20.
Preferably, the fixed cylinder 1 is divided into an upper half cylinder and a lower half cylinder, the connecting piece 16 is arranged on the inner side of the fixed cylinder 1, the two parts are connected by the connecting piece 16, the connecting piece 16 is connected with the upper half cylinder and the lower half cylinder, the belt 18 is arranged on the outer side of the fixed cylinder 1, the belt 18 adjusts the size of the fixed cylinder 1, two rows of connecting belts 15 are arranged on the middle part of the fixed plate 14, the connecting belts 15 are connected with the fixed plate 14 in a glue connection mode, so that the fixed plate 14 can be circularly arranged in the plate bin 19, the fixed cylinder 1 is made by winding medical gauze around the plate bin 19, the air permeability in the device can be effectively kept, the fixed cylinder 1 is detachably connected with the arm ring 6, the fixed cylinder 1 can be used independently, one end of the tension belt 7 is fixedly connected with the arm ring 6, the other end of the tension belt 7 is fixedly connected with the shoulder belt 8, the arm ring 6, the shoulder belt 8 and the tension belt 7 are made of high-strength elastic materials, so as to reduce the pulling force applied to the upper arm, the function of keeping the semi-rotation forward position is also convenient for the daily activities of the user.
The utility model discloses a theory of operation is: when in use, the shoulder strap 8 is sleeved on the shoulder, the chest ring 10 is tied on the chest through the button hole 13 and the button 11, the size of the shoulder strap 8 is adjusted through the telescopic adjuster 9, the back side of the chest ring 10 is provided with the elastic band 12 with strong elasticity, so that a user can not feel the constraint feeling, the button 11 is buckled on the proper button hole 13 to play a role of fixing the chest ring 10, the upper arm ring 6 is sleeved to adjust the size and stick the magic tape 21, the arm at the fracture part with changed medicine is put into the fixed cylinder 1, the inner sides of the far end and the near end of the fixed cylinder 1 are provided with the tangential chamfer and the cushion 20 to avoid the sharp compression, the fixed cylinder 1 is covered, the belts 18 at the two ends of the fixed cylinder 1 are adjusted to control the sizes of the upper end and the lower end of the fixed cylinder 1, the cushion 20 at the inner sides of the far end and the near end of the fixed cylinder 1 is avoided the sharp compression, the belts 18 are fastened by the fastener 2 after the adjustment, the hook 4 is hooked on the female buckle at the top of the fixed cylinder 1, the pulling force on the upper arm is reduced, the semi-pronation position is kept, and the device is worn completely.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides an upper limbs fracture patient uses external fixation device, includes fixed section of thick bamboo (1) and chest ring (10), its characterized in that: the chest ring is characterized in that a button (11) is arranged on the front side of one end of a chest ring (10), a button hole (13) is arranged on the front side of the other end of the chest ring (10), an elastic band (12) is arranged on the rear side of the chest ring (10), a shoulder strap (8) is fixedly connected to the upper side of the chest ring (10), a telescopic regulator (9) is arranged on the shoulder strap (8), a tension band (7) is arranged on one side of the shoulder strap (8), one end of the tension band (7) is fixedly connected with an arm ring (6), a magic tape (21) is arranged at one end of the arm ring (6), an elastic band (5) is arranged at the lower end of the arm ring (6), a hook (4) is arranged at the lower end of the elastic band (5), the hook (4) is detachably connected with a female buckle (3), a fixed cylinder (1) is fixedly connected with the lower end of the female buckle (3), a belt (18) is arranged on the outer surface of the fixed cylinder (1), and a fastener (2) is arranged at one end of the belt (18), fixed section of thick bamboo (1) is inside to be provided with board storehouse (19), board storehouse (19) is inside to be provided with fixed plate (14), fixed plate (14) middle part is provided with connecting band (15), board storehouse (19) is provided with silica gel pad (17) by inboard one side, silica gel pad (17) inboard is provided with cushion (20).
2. The external fixation device for patients with fractured upper limbs of claim 1, wherein: the fixed cylinder (1) is divided into an upper half cylinder and a lower half cylinder, the upper half cylinder and the lower half cylinder are connected through a connecting sheet (16), the connecting sheet (16) is arranged on the inner side of the fixed cylinder (1), and the belt (18) is arranged on the outer side of the fixed cylinder (1).
3. The external fixation device for patients with fractured upper limbs of claim 1, wherein: two rows of connecting bands (15) are arranged in the middle of the fixing plate (14), and the connecting bands (15) are connected with the fixing plate (14) in an adhesive connection mode.
4. The external fixation device for patients with fractured upper limbs of claim 1, wherein: the fixed cylinder (1) is made of medical gauze surrounding a plate cabin (19).
5. The external fixation device for patients with fractured upper limbs of claim 1, wherein: the fixed cylinder (1) is detachably connected with the arm ring (6).
6. The external fixation device for patients with fractured upper limbs of claim 1, wherein: one end of the tension band (7) is fixedly connected with an arm ring (6), the other end of the tension band is fixedly connected with a shoulder belt (8), and the arm ring (6), the shoulder belt (8) and the tension band (7) are all made of high-strength elastic materials.
