CN214393635U

CN214393635U - Grinding device is used in spare part processing

Info

Publication number: CN214393635U
Application number: CN202022793876.XU
Authority: CN
Inventors: 周皓宸
Original assignee: Jiangsu Zhebiao General Parts Co ltd
Current assignee: Jiangsu Zhebiao General Parts Co ltd
Priority date: 2020-11-27
Filing date: 2020-11-27
Publication date: 2021-10-15
Anticipated expiration: 2030-11-27

Abstract

The utility model discloses a polishing device for processing parts, which belongs to the technical field of processing parts and comprises a bottom plate, wherein four corners of the bottom plate are welded by four vertically arranged support columns, mounting plates are welded on two sides of the top of the bottom plate, a horizontally arranged cross beam is slidably mounted between the two mounting plates, a first motor is mounted at the top of the cross beam, a vertically arranged rotating shaft is rotatably mounted at the bottom of the cross beam, and an output shaft of the first motor is in transmission connection with the rotating shaft; the utility model can effectively fix the workpiece, and simultaneously can turn the edge of the workpiece, thereby improving the working efficiency and reducing the labor capacity of personnel; can collect the dust that produces when polishing, avoid the dust to produce harm to personnel's health, can conveniently clear up the filter simultaneously, guarantee the filter effect of filter.

Description

Grinding device is used in spare part processing

Technical Field

The utility model belongs to the technical field of the spare part processing, concretely relates to grinding device is used in spare part processing.

Background

The existing part processing and polishing device is not convenient for fixing a workpiece, the workpiece cannot be flanged when being polished simultaneously, time and labor are wasted, the workload of workers is greatly increased, the workpiece processing process is slowed down, meanwhile, the existing polishing device cannot purify dust generated in the polishing process, the practicability is low, harm is generated to the health of the workers, and therefore the problem is solved by the polishing device for part processing.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a grinding device is used in spare part processing to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a polishing device for part processing comprises a base plate, four corners of the bottom of the base plate are welded by four vertically arranged support columns, vertically arranged mounting plates are welded on two sides of the top of the base plate, a horizontally arranged cross beam is installed between the two mounting plates in a sliding manner, a first motor is installed at the top of the cross beam, a vertically arranged rotating shaft is installed at the bottom of the cross beam in a rotating manner, an output shaft of the first motor is in transmission connection with the rotating shaft, a polishing piece is welded at the bottom end of the rotating shaft, two vertically arranged fixing plates are installed at the top of the base plate in a sliding manner, the two fixing plates are located between the two mounting plates, a second motor is installed on one side, close to the mounting plates, of the two fixing plates, an installation block is installed on one side, close to the two fixing plates, an output shaft of the second motor is in transmission connection with the installation block, a first cavity is formed in the installation block, an air cylinder is installed on one side in the first cavity, and a vertically arranged vertical plate is installed on the installation block in a sliding manner, a piston rod of the cylinder is fixedly connected with a vertical plate, the top and the bottom of one side of the vertical plate are hinged with a first inclined connecting rod, one end of the first connecting rod, which is far away from the vertical plate, is hinged with a clamping arm, one end of the clamping arm, which is far away from the first connecting rod, is welded with a non-slip mat, a box body is arranged below the bottom plate, the top of the box body is provided with a through hole, the bottom of one side of the box body is fixedly connected with a pipeline, one side of the box body is provided with a fan, an air inlet of the fan is fixedly connected with one end of the pipeline, which is far away from the box body, the bottom plate is provided with an air suction pipe, the top end of the air suction pipe penetrates through the bottom plate and is fixedly connected with the inner wall of the through hole, grooves are formed in the inner walls of the two sides of the box body, vertically arranged springs are respectively arranged at the top and the bottom of the groove, sliding blocks are slidably arranged in the grooves, the top and the bottom of the sliding blocks are respectively fixedly connected with the two springs, one side of the sliding blocks is provided with mounting grooves, a third motor is installed in the installation groove, a horizontally arranged filter plate is rotatably installed between the two sliding blocks, an output shaft of the third motor is in transmission connection with one end of the filter plate, a horizontally arranged transverse plate is slidably installed on the inner wall of one side of the box body, a fourth motor is installed on one side of the top of the transverse plate, a second cavity is formed in the transverse plate, a vertically arranged reciprocating lead screw is rotatably installed in the second cavity, an output shaft of the fourth motor is in transmission connection with the reciprocating lead screw, a horizontally arranged sliding plate is slidably installed in the second cavity, the sliding plate is in threaded connection with the reciprocating lead screw, a vertically arranged vertical rod is slidably installed at the bottom of the transverse plate, the top end of the vertical rod extends into the second cavity and is fixedly connected with the sliding plate, a second connecting rod is hinged to the bottom of the transverse plate, a horizontally arranged connecting rod is hinged to one side of the bottom of the connecting rod, and one end, far away from the vertical rod, of the second connecting rod is hinged to the rod, the end of the racket rod far away from the connecting rod is welded with a racket plate which is positioned above the filter plate.

Furthermore, one side, close to each other, of each mounting plate is provided with a first vertically-arranged sliding groove, a fifth motor is mounted at the bottom of the first sliding groove, a first vertically-arranged screw rod is rotatably mounted in the first sliding groove, the fifth motor is in transmission connection with the screw rod, the cross beam is slidably mounted in the first sliding groove and in threaded connection with the first screw rod, and the cross beam can move in the vertical direction.

Furthermore, a second sliding groove is formed in the top of the bottom plate, a sixth motor is installed on one side in the second sliding groove, a horizontally arranged bidirectional screw rod is installed in the second sliding groove in a rotating mode, an output shaft of the sixth motor is in transmission connection with the bidirectional screw rod, the fixing plate is installed in the second sliding groove in a sliding mode and in threaded connection with the bidirectional screw rod, and the two fixing plates can move in the horizontal direction in the opposite direction.

Furthermore, a third vertically-arranged sliding groove is formed in the inner wall of one side of the box body, a seventh motor is installed at the bottom of the third sliding groove, a second vertically-arranged screw rod is installed in the third sliding groove in a rotating mode, a fifth motor is in transmission connection with the second screw rod, a transverse plate is installed in the third sliding groove in a sliding mode and in threaded connection with the second screw rod, and the transverse plate can move in the vertical direction.

Further, the through-hole has been seted up to one side that the fan was kept away from to the bottom half, and it has sealing door to articulate on the through-hole, and last the articulating of sealing door has the handle, conveniently clears up the interior cuttings of box, avoids the cuttings to waft out in the box simultaneously.

Compared with the prior art, the beneficial effects of the utility model are that:

through structures such as the fixing plate, the motor II, the mounting block, the cavity I, the cylinder and the vertical plate, the workpiece can be effectively fixed, meanwhile, the workpiece can be flanged, the working efficiency is improved, and meanwhile, the labor capacity of personnel is reduced.

Through riser, box, filter, reciprocal lead screw, motor four, montant isotructure, can collect the dust that produces when polishing, avoid the dust to produce harm to personnel's health, can conveniently clear up the filter simultaneously, guaranteed the filter effect of filter.

Drawings

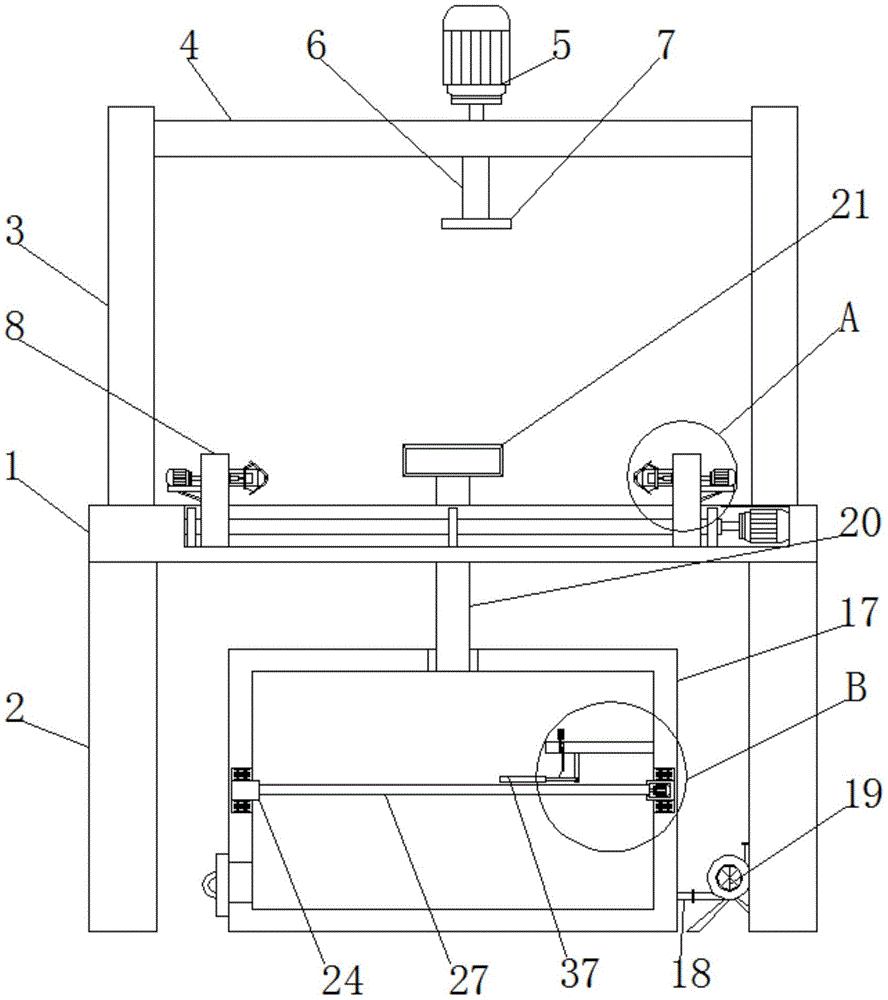

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a front view of the present invention;

fig. 3 is an enlarged view of the utility model at a;

fig. 4 is an enlarged view of the point B of the present invention.

In the figure: 1. a base plate; 2. a support pillar; 3. mounting a plate; 4. a cross beam; 5. a first motor; 6. a rotating shaft; 7. grinding the sheets; 8. a fixing plate; 9. a second motor; 10. mounting blocks; 11. a first cavity; 12. a cylinder; 13. a vertical plate; 14. a first connecting rod; 15. clamping arms; 16. a non-slip mat; 17. a box body; 18. a pipeline; 19. a fan; 20. an air intake duct; 21. an air intake cover; 22. a groove; 23. a spring; 24. a slider; 25. mounting grooves; 26. a third motor; 27. a filter plate; 28. a transverse plate; 29. a fourth motor; 30. a second cavity; 31. a reciprocating screw rod; 32. a slide plate; 33. a vertical rod; 34. a second connecting rod; 35. a connecting rod; 36. a racket shaft; 37. and (7) clapping the board.

Detailed Description

The present invention will be further described with reference to the following examples.

The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention. The condition in the embodiment can be further adjusted according to concrete condition the utility model discloses a it is right under the design prerequisite the utility model discloses a simple improvement of method all belongs to the utility model discloses the scope of claiming.

Referring to fig. 1-4, the utility model provides a polishing device for processing parts, which comprises a bottom plate 1, four vertically arranged supporting columns 2 are welded at four corners of the bottom plate 1, vertically arranged mounting plates 3 are welded at two sides of the top of the bottom plate 1, a horizontally arranged cross beam 4 is slidably mounted between the two mounting plates 3, a motor 5 is mounted at the top of the cross beam 4, a vertically arranged rotating shaft 6 is rotatably mounted at the bottom of the cross beam 4, an output shaft of the motor 5 is in transmission connection with the rotating shaft 6, a polishing piece 7 is welded at the bottom end of the rotating shaft 6, two vertically arranged fixing plates 8 are slidably mounted at the top of the bottom plate 1, the two fixing plates 8 are positioned between the two mounting plates 3, a motor two 9 is mounted at one side of the two fixing plates 8 close to the mounting plates 3, a mounting block 10 is rotatably mounted at one side of the two fixing plates 8 close to each other, an output shaft of the motor two fixing plates 9 is in transmission connection with the mounting block 10, a first cavity 11 is formed in the mounting block 10, an air cylinder 12 is mounted on one side in the first cavity 11, a vertical plate 13 is slidably mounted on the mounting block 10, a piston rod of the air cylinder 12 is fixedly connected with the vertical plate 13, a first inclined connecting rod 14 is hinged to the top and the bottom of one side of the vertical plate 13, a clamping arm 15 is hinged to one end, away from the vertical plate 13, of the first connecting rod 14, a non-slip mat 16 is welded to one end, away from the first connecting rod 14, of the clamping arm 15, a box body 17 is arranged below the bottom plate 1, a through hole is formed in the top of the box body 17, a pipeline 18 is fixedly connected to the bottom of one side of the box body 17, a fan 19 is arranged on one side of the box body 17, an air inlet of the fan 19 is fixedly connected with one end, away from the box body 17, of the pipeline 18, an air suction pipe 20 is mounted on the bottom plate 1, a suction cover 21 is mounted on the top end of the suction pipe 20, the bottom end of the suction pipe 20 penetrates through the bottom plate 1 and is fixedly connected with the inner wall of the through hole, grooves 22 are formed in the inner walls of the two sides of the box body 17, the top and the bottom of the groove 22 are both provided with vertically arranged springs 23, a slide block 24 is arranged in the groove 22 in a sliding manner, the top and the bottom of the slide block 24 are respectively and fixedly connected with the two springs 23, one side of one slide block 24 is provided with a mounting groove 25, a motor III 26 is arranged in the mounting groove 25, a horizontally arranged filter plate 27 is rotatably arranged between the two slide blocks 24, an output shaft of the motor III 26 is in transmission connection with one end of the filter plate 27, a horizontally arranged transverse plate 28 is slidably arranged on the inner wall of one side of the box body 17, a motor IV 29 is arranged on one side of the top of the transverse plate 28, a cavity II 30 is arranged on the transverse plate 28, a vertically arranged reciprocating screw rod 31 is rotatably arranged in the cavity II 30, an output shaft of the motor IV 29 is in transmission connection with the reciprocating screw rod 31, a horizontally arranged slide plate 32 is slidably arranged in the cavity II 30, the slide plate 32 is in threaded connection with the reciprocating screw rod 31, a vertically arranged vertical rod 33 is slidably arranged at the bottom of the transverse plate 28, the top end of the vertical rod 33 extends into the second cavity 30 to be fixedly connected with the sliding plate 32, the bottom end of the vertical rod 33 is hinged with a second connecting rod 34, the bottom of the transverse plate 28 is welded with a connecting rod 35 which is vertically arranged, one side of the bottom of the connecting rod 35 is hinged with a racket rod 36 which is horizontally arranged, one end, away from the vertical rod 33, of the second connecting rod 34 is hinged with the racket rod 36, one end, away from the connecting rod 35, of the racket rod 36 is welded with a racket board 37, and the racket board 37 is located above the filter plate 27.

In this embodiment, the first sliding groove of the vertical arrangement is formed in one side, close to each other, of each of the two mounting plates 3, the fifth motor is installed at the bottom of the first sliding groove, the first lead screw of the vertical arrangement is installed in the first sliding groove in a rotating mode, the fifth motor is in transmission connection with the first lead screw, the cross beam 4 is installed in the sliding mode and the first sliding groove in a sliding mode, and the cross beam 4 is in threaded connection with the first lead screw, so that the cross beam 4 can move in the vertical direction.

In this embodiment, a second sliding groove is formed in the top of the bottom plate 1, a sixth motor is installed on one side in the second sliding groove, a horizontally arranged bidirectional screw rod is installed in the second sliding groove in a rotating mode, an output shaft of the sixth motor is in transmission connection with the bidirectional screw rod, the fixing plate 8 is installed in the second sliding groove in a sliding mode, and the fixing plate 8 is in threaded connection with the bidirectional screw rod, so that the two fixing plates 8 can move in the horizontal direction in the opposite direction.

In this embodiment, a third sliding groove is formed in the inner wall of one side of the box body 17, a seventh motor is installed at the bottom of the third sliding groove, a second lead screw is installed in the third sliding groove in a rotating mode, the fifth motor is in transmission connection with the second lead screw, the transverse plate 28 is installed in the third sliding groove in a sliding mode, and the transverse plate 28 is in threaded connection with the second lead screw, so that the transverse plate 28 can move in the vertical direction.

In this embodiment, the through-hole has been seted up to one side that fan 19 was kept away from to box 17 bottom, and it has the sealing door to articulate on the through-hole, and the last articulated handle that has of sealing door conveniently clears up the sweeps in the box 17, avoids the sweeps out in the box 17 of sweeps simultaneously.

When the polishing machine is used, firstly, the motor six is turned on, the bidirectional screw rod is driven to rotate through the rotation of the output shaft of the motor six, the two fixing plates 8 are enabled to be close to each other, then the motor six is turned off when the output shaft of the motor six reaches a certain position, the cylinder 12 can be turned on, the vertical plate 13 is pushed through the extension of the piston rod of the cylinder, the vertical plate 13 drives the two connecting rods 14, the two connecting rods 14 respectively drive the clamping arms 15, workpieces are fixed through the anti-slip pads 16, then the motor five can be turned on, the screw rod is driven to rotate through the rotation of the output shaft of the motor five, the cross beam 4 moves downwards, the polishing sheet 7 is moved to the surface of the workpieces, the motor one 5 is turned on, the rotating shaft 6 is driven to rotate through the rotation of the output shaft of the motor five, the polishing sheet 7 can polish the workpieces, the cross beam 4 ascends after polishing is finished, the cross beam 9 is turned on at the same time, and the output shaft of the cross beam 9 rotates, the mounting block 10 is driven to rotate, the mounting block 10 drives the vertical plate 13, the vertical plate 13 drives the first connecting rod 14, the first connecting rod 14 drives the clamping arm 15, the clamping arm 15 drives the anti-slip pad 16 to flange a workpiece, the fan 19 is started while polishing, dust can be sucked into the air suction pipe 20 through the air suction cover 21 and then enters the box body 17 from the air suction pipe 20, the dust can be collected through filtering of the filter plate 27, after the work is finished, the third motor 26 is started, the filter plate 27 is driven to rotate through rotation of the output shaft of the third motor, the filter plate 27 is flanged, then the seventh motor is started, the transverse plate 28 is lowered, the transverse plate 28 drives the vertical rod 33 and the connecting rod 35 to be lowered, the vertical rod 33 and the connecting rod 35 drive the clapper 36 to be lowered, the clapper 36 drives the clapper 37 to be lowered, the clapper 37 is close to the filter plate 27, the fourth motor 29 is started, the reciprocating screw rod 31 is driven to rotate through rotation of the output shaft of the fourth motor, reciprocating screw 31 drives slide 32 and carries out the reciprocating motion of vertical direction, slide 32 drives montant 33, montant 33 drives two 34 of connecting rod, two 34 of connecting rod drive clap pole 36, clap pole 36 drives clap board 37, can pat filter 27, simultaneously through the cooperation of spring 23, make filter 27 shake, thereby carry out abundant clearance to the dust on filter 27 surface, then concentrate the collection processing can to the dust of box 17 bottom, to sum up, the device, labour saving and time saving during the use makes personnel's health be ensured simultaneously, is worth promoting.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a spare part is grinding device for processing, includes bottom plate (1), its characterized in that: the four corners of the bottom plate (1) are welded by four vertically arranged supporting columns (2), vertically arranged mounting plates (3) are welded on two sides of the top of the bottom plate (1), a horizontally arranged cross beam (4) is installed between the two mounting plates (3) in a sliding mode, a motor I (5) is installed at the top of the cross beam (4), a vertically arranged rotating shaft (6) is installed at the bottom of the cross beam (4) in a rotating mode, an output shaft of the motor I (5) is in transmission connection with the rotating shaft (6), a polishing disc (7) is welded at the bottom end of the rotating shaft (6), two vertically arranged fixing plates (8) are installed at the top of the bottom plate (1) in a sliding mode, the two fixing plates (8) are located between the two mounting plates (3), a motor II (9) is installed on one side, close to the mounting plates (3), and an installation block (10) is installed on one side, close to the two fixing plates (8), the output shaft of the motor II (9) is in transmission connection with the mounting block (10), a cavity I (11) is formed in the mounting block (10), an air cylinder (12) is mounted on one side in the cavity I (11), a vertical plate (13) which is vertically arranged is slidably mounted on the mounting block (10), a piston rod of the air cylinder (12) is fixedly connected with the vertical plate (13), a connecting rod I (14) which is obliquely arranged is hinged to the top and the bottom of one side of the vertical plate (13), one end, away from the vertical plate (13), of the connecting rod I (14) is hinged to a clamping arm (15), an anti-skid pad (16) is welded to one end, away from the connecting rod I (14), of the clamping arm (15), a box body (17) is arranged below the bottom plate (1), a through hole is formed in the top of the box body (17), a pipeline (18) is fixedly connected to the bottom of one side of the box body (17), a fan (19) is arranged on one side of the box body (17), an air inlet of the fan (19) is fixedly connected with one end, away from the pipeline (18), the air suction pipe (20) is installed on the bottom plate (1), the air suction cover (21) is installed at the top end of the air suction pipe (20), the bottom end of the air suction pipe (20) penetrates through the bottom plate (1) and is fixedly connected with the inner wall of the through hole, grooves (22) are formed in the inner walls of the two sides of the box body (17), vertically arranged springs (23) are installed at the top and the bottom of each groove (22), sliding blocks (24) are installed in the grooves (22) in a sliding mode, the top and the bottom of each sliding block (24) are fixedly connected with the two springs (23) respectively, a mounting groove (25) is formed in one side of each sliding block (24), a motor III (26) is installed in each mounting groove (25), a horizontally arranged filter plate (27) is installed between the two sliding blocks (24) in a rotating mode, the output shaft of the motor III (26) is connected with one end of each filter plate (27) in a transmission mode, and a horizontally arranged transverse plate (28) is installed on the inner wall of one side of the box body (17) in a sliding mode, a motor IV (29) is installed on one side of the top of the transverse plate (28), a cavity II (30) is formed in the transverse plate (28), a vertically-arranged reciprocating screw rod (31) is rotatably installed in the cavity II (30), an output shaft of the motor IV (29) is in transmission connection with the reciprocating screw rod (31), a horizontally-arranged sliding plate (32) is slidably installed in the cavity II (30), the sliding plate (32) is in threaded connection with the reciprocating screw rod (31), a vertically-arranged vertical rod (33) is slidably installed at the bottom of the transverse plate (28), the top end of the vertical rod (33) extends into the cavity II (30) and is fixedly connected with the sliding plate (32), a connecting rod II (34) is hinged to the bottom end of the vertical rod (33), a vertically-arranged connecting rod (35) is welded to the bottom of the transverse plate (28), a horizontally-arranged racket rod (36) is hinged to one side of the bottom of the connecting rod (35), and one end, far away from the vertical rod (33), of the connecting rod II (34), is hinged to the racket rod (36), a clapper (37) is welded at one end of the clapper rod (36) far away from the connecting rod (35), and the clapper (37) is positioned above the filter plate (27).

2. The grinding device for processing the component according to claim 1, wherein: two the spout one of vertical setting is all seted up to the one side that mounting panel (3) are close to mutually, and motor five is installed to the bottom of spout one, and the lead screw one of vertical setting is installed to spout internal rotation, and motor five is connected with the lead screw transmission, and in crossbeam (4) slidable mounting and the spout one, and crossbeam (4) and a lead screw threaded connection.

3. The grinding device for processing the component according to claim 1, wherein: a second sliding groove is formed in the top of the bottom plate (1), a sixth motor is installed on one side in the second sliding groove, a horizontally arranged bidirectional screw rod is installed in the second sliding groove in a rotating mode, an output shaft of the sixth motor is in transmission connection with the bidirectional screw rod, a fixing plate (8) is installed in the second sliding groove in a sliding mode, and the fixing plate (8) is in threaded connection with the bidirectional screw rod.

4. The grinding device for processing the component according to claim 1, wherein: a third vertically-arranged sliding groove is formed in the inner wall of one side of the box body (17), a seventh motor is installed at the bottom of the third sliding groove, a second vertically-arranged screw rod is installed in the third sliding groove in a rotating mode, the fifth motor is in transmission connection with the second screw rod, the transverse plate (28) is installed in the third sliding groove in a sliding mode, and the transverse plate (28) is in threaded connection with the second screw rod.

5. The grinding device for processing the component according to claim 1, wherein: a through hole is formed in one side, far away from the fan (19), of the bottom of the box body (17), a sealing door is hinged to the through hole, and a handle is hinged to the sealing door.
