Abstract
本实用新型公开了一种测绘工程用测绘仪定位装置，属于工程测绘技术领域。一种测绘工程用测绘仪定位装置，包括安装座、测绘仪和支腿，所述支腿设置在安装座的底部，所述安装座内开设有活动槽，所述活动槽内铰接有半球，所述半球的顶部固定连接连接板，所述连接板的顶部转动连接有安装板，所述安装板上设有用于固定测绘仪的夹持机构，所述半球的底部固定连接有连接杆，所述连接杆的底部固定连接有重力球，所述安装座内开设有滑槽，所述滑槽内滑动连接有滑杆；本实用新型通过地心引力来调节安装板的水平，从而快速且精准的完成安装板的水平位置调节。
The utility model discloses a surveying and mapping instrument positioning device for surveying and mapping engineering, which belongs to the technical field of engineering surveying and mapping. A surveying and mapping instrument positioning device for surveying and mapping engineering, comprising a mounting seat, a surveying and mapping instrument and a supporting leg, the supporting leg is arranged at the bottom of the mounting seat, a movable groove is opened in the mounting seat, and a hemisphere is hinged in the movable groove, The top of the hemisphere is fixedly connected to a connecting plate, the top of the connecting plate is rotatably connected with a mounting plate, the mounting plate is provided with a clamping mechanism for fixing the surveying instrument, and the bottom of the hemisphere is fixedly connected with a connecting rod, so The bottom of the connecting rod is fixedly connected with a gravity ball, and the mounting seat is provided with a chute, and a sliding rod is slidably connected in the chute; the utility model adjusts the level of the mounting plate by the gravitational force, so as to be fast and accurate Complete the horizontal position adjustment of the mounting plate.
Description
Technical Field
The utility model relates to an engineering survey and drawing technical field especially relates to a mapping instrument positioner for mapping engineering.
Background
Surveying is measuring and mapping. Based on computer technology, photoelectric technology, network communication technology, space science and information science, a global navigation satellite positioning system, remote sensing and a geographic information system are taken as technical cores, existing characteristic points and boundary lines on the ground are measured by a measuring means to obtain graphs and position information reflecting the current situation of the ground, surveying and mapping are carried out by working personnel through a certain instrument to obtain data and draw a map, and in the surveying and mapping work, a surveying and mapping instrument is indispensable to use.
Among the prior art, in order to keep the stability of surveying instrument when surveying and mapping, need install the surveying instrument on the support, when the installing support, especially when the ground support of unevenness, in order to make the platform of fixed surveying instrument keep horizontal position, need adjust the platform, and manual adjustment is more time-consuming and laborious, and the precision is also not high, so need design kind of surveying instrument positioner for the surveying and mapping engineering.
Disclosure of Invention
The utility model aims at solving the problem of the manual horizontal position of adjusting inefficiency and precision among the prior art, and the mapping instrument positioner for mapping engineering who provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a mapping instrument positioner for mapping engineering, includes mount pad, mapping instrument and landing leg, the landing leg sets up the bottom at the mount pad, the activity groove has been seted up in the mount pad, the activity inslot articulates there is the hemisphere, the top fixed connection connecting plate of hemisphere, the top of connecting plate is rotated and is connected with the mounting panel, be equipped with the fixture who is used for fixed mapping instrument on the mounting panel, the bottom fixedly connected with connecting rod of hemisphere, the bottom fixedly connected with gravity ball of connecting rod, the spout has been seted up in the mount pad, sliding connection has the slide bar in the spout, the slide bar extends to activity inslot fixedly connected with electro-magnet, the electro-magnet cooperatees with the hemisphere, be equipped with the elastic component in the spout, the both ends of elastic component respectively with the inner wall and the slide bar fixed connection of spout.
Preferably, fixture includes splint and two-way threaded rod, splint sliding connection is on the mounting panel, splint are equipped with two sets ofly, and are two sets of splint symmetric distribution is on the mounting panel, and is two sets of all set up the screw hole corresponding with two-way threaded rod on the splint, two-way threaded rod is equipped with two sets ofly, and is two sets of two-way threaded rod symmetric distribution is on splint, and is two sets of equal fixedly connected with band pulley on the two-way threaded rod is two sets of the band pulley passes through the belt and rotates the connection, the equal fixedly connected with in both ends of two-way threaded rod is used for rotating the adjust knob of two-way threaded rod.
Preferably, the inner wall of the clamping plate is fixedly connected with a rubber pad.
Preferably, the landing leg includes first branch and second branch, first branch rotates the bottom of connecting at the mount pad, the bottom fixedly connected with screw thread section of thick bamboo of first branch, the top fixedly connected with screw thread dish of second branch, screw thread dish threaded connection is in the screw thread section of thick bamboo, the first regulation pole of fixedly connected with on the second branch, the bottom of second branch is fixed to be had the soil prick awl, threaded connection has protective sleeve on the second branch, protective sleeve cooperatees with the soil prick awl, the last fixedly connected with second of protective sleeve is adjusted the pole.
Preferably, the inside fixedly connected with battery of mount pad, the lateral wall of mount pad is equipped with for the charging socket with battery matched with, the battery cooperatees with the electro-magnet.
Preferably, a groove is formed in the movable groove, a ball is arranged in the groove, and the ball is matched with the hemisphere.
Compared with the prior art, the utility model provides a mapping instrument positioner for mapping engineering possesses following beneficial effect:
1. this surveying instrument positioner for mapping engineering adjusts the level of mounting panel through gravity to quick and accurate horizontal position adjustment of accomplishing the mounting panel.
2. This surveying instrument positioner for mapping engineering through fixedly connected with rubber pad on the inner wall of splint, cushions surveying instrument and splint, prevents that splint from pressing from both sides the surveying instrument bad.
3. This surveying instrument positioner for mapping engineering has seted up the recess through the activity inslot, is equipped with the ball in the recess, and the ball cooperatees with the hemisphere, reduces the contact surface of hemisphere and other objects to reduce frictional force, and then prevent that the hemisphere from being blocked.
Drawings

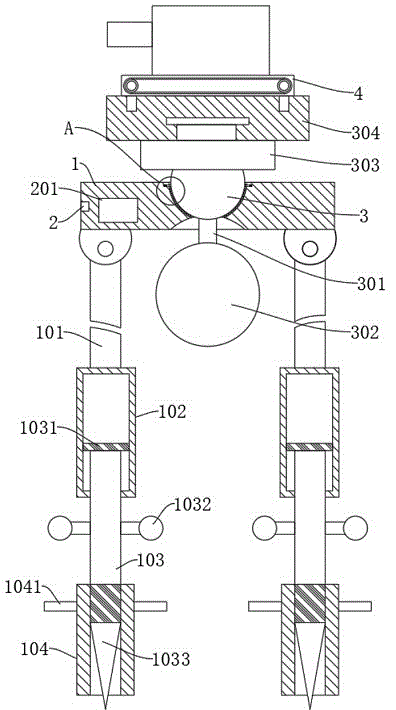

Fig. 1 is a first front view of a surveying instrument positioning device for surveying and mapping engineering according to the present invention;
fig. 2 is a second front view of the surveying instrument positioning device for surveying and mapping engineering according to the present invention;
fig. 3 is a schematic structural view of a clamping mechanism of a surveying instrument positioning device for surveying and mapping engineering according to the present invention;
fig. 4 is the utility model provides a mapping engineering uses mapping apparatus positioner a part's schematic structure view in fig. 2.
In the figure: 1. a mounting seat; 101. a first support bar; 102. a threaded barrel; 103. a second support bar; 1031. a threaded disc; 1032. a first adjusting lever; 1033. pricking a soil cone; 104. a protective sleeve; 1041. a second adjusting lever; 105. a movable groove; 1051. a ball bearing; 106. a chute; 1061. a slide bar; 1062. an electromagnet; 1063. an elastic member; 2. a charging jack; 201. a storage battery; 3. a hemisphere; 301. a connecting rod; 302. a gravity ball; 303. a connecting plate; 304. mounting a plate; 4. a splint; 401. a bidirectional threaded rod; 4011. adjusting a knob; 402. a pulley; 4021. a belt; 403. and (7) a rubber pad.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Example (b):
referring to fig. 1-4, a mapping instrument positioning device for mapping engineering, including a mounting base 1, a mapping instrument and supporting legs, the supporting legs are disposed at the bottom of the mounting base 1, a movable groove 105 is opened in the mounting base 1, a hemisphere 3 is hinged in the movable groove 105, a top portion of the hemisphere 3 is fixedly connected with a connecting plate 303, the top portion of the connecting plate 303 is rotatably connected with a mounting plate 304, a clamping mechanism for fixing the mapping instrument is disposed on the mounting plate 304, a connecting rod 301 is fixedly connected with the bottom portion of the hemisphere 3, a gravity ball 302 is fixedly connected with the bottom portion of the connecting rod 301, a sliding groove 106 is opened in the mounting base 1, a sliding rod 1061 is slidably connected in the sliding groove 106, the sliding rod 1061 extends into the movable groove 105 and is fixedly connected with an electromagnet 1062, the electromagnet 1062 is matched with the hemisphere 3, an elastic member 1063 is disposed in the sliding groove 106, and two ends of the elastic member 1063 are respectively fixedly connected with an inner wall of the sliding groove 106 and the sliding rod 1061.
Fixture includes splint 4 and two-way threaded rod 401, 4 sliding connection of splint are on mounting panel 304, splint 4 is equipped with two sets ofly, 4 symmetric distribution of two sets of splint are on mounting panel 304, all set up the screw hole corresponding with two-way threaded rod 401 on two sets of splint 4, two-way threaded rod 401 is equipped with two sets ofly, 401 symmetric distribution of two sets of two-way threaded rod is on splint 4, equal fixedly connected with band pulley 402 on two sets of two-way threaded rod 401, two sets of band pulleys 402 pass through belt 4021 and rotate the connection, the equal fixedly connected with in both ends of two-way threaded rod 401 is used for rotating two-way threaded rod 401's adjust knob 4011.
A rubber pad 403 is fixedly connected to the inner wall of the splint 4.
The landing leg includes first branch 101 and second branch 103, first branch 101 rotates the bottom of connecting at mount pad 1, the bottom fixedly connected with thread cylinder 102 of first branch 101, the top fixedly connected with thread disc 1031 of second branch 103, thread disc 1031 threaded connection is in thread cylinder 102, the first regulation pole 1032 of fixedly connected with on the second branch 103, the bottom of second branch 103 is fixed to be had with soil prick awl 1033, threaded connection has protective sleeve 104 on the second branch 103, protective sleeve 104 cooperatees with soil prick awl 1033, protective sleeve 104 is last fixedly connected with second regulation pole 1041.
Fixedly connected with battery 201 in mount pad 1, the lateral wall of mount pad 1 is equipped with to cooperate charging socket 2 with battery 201, and battery 201 cooperatees with electro-magnet 1062.
A groove is formed in the movable groove 105, a ball 1051 is arranged in the groove, and the ball 1051 is matched with the hemisphere 3.
In the utility model, the supporting legs are opened, the height is adjusted according to the height of the user, specifically, the first adjusting rod 1032 is rotated to extend the second supporting rod 103 to the screw cylinder 102, the soil-pricking awl 1033 is inserted into the ground after the user, the soil-pricking awl is fixed, the surveying instrument is installed on the installation plate 304, the adjusting knob 4011 is rotated to rotate the two-way threaded rod 401, the two-way threaded rod 401 slides the clamping plate 4 on the installation plate 304 to fix the surveying instrument, the gravity center of the gravity ball 302 is always kept vertically downwards under the action of gravity force, so as to adjust the angle of the hemisphere 3, and further the installation plate 304 is always kept at the horizontal position, after the gravity ball 302 is kept stable, the electromagnet 1062 is electrified, the electromagnet 1062 generates magnetic force to be adsorbed on the hemisphere 3, the hemisphere 3 is fixed through the sliding rod 1061, at this time, the elastic part 1063 is in a stretching state, after the electromagnet 1062 is powered off, the elastic member 1063 rebounds, and the electromagnet 1062 is separated from the hemisphere 3 by the sliding rod 1061, so that the device can quickly and accurately adjust the horizontal position of the mounting plate 304 by adjusting the horizontal position of the mounting plate 304 through gravity.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a mapping instrument positioner for mapping engineering, includes mount pad (1), mapping instrument and landing leg, the landing leg sets up the bottom at mount pad (1), its characterized in that, movable groove (105) have been seted up in mount pad (1), articulated in movable groove (105) have hemisphere (3), the top fixed connection connecting plate (303) of hemisphere (3), the top of connecting plate (303) is rotated and is connected with mounting panel (304), be equipped with the fixture who is used for fixed mapping instrument on mounting panel (304), the bottom fixedly connected with connecting rod (301) of hemisphere (3), the bottom fixedly connected with gravity ball (302) of connecting rod (301), spout (106) have been seted up in mount pad (1), sliding connection has slide bar (1061) in spout (106), slide bar (1061) extends to fixedly connected with electro-magnet (1062) in movable groove (105), the electromagnet (1062) is matched with the hemisphere (3), the sliding groove (106) is internally provided with an elastic part (1063), and two ends of the elastic part (1063) are respectively fixedly connected with the inner wall of the sliding groove (106) and the sliding rod (1061).
2. The surveying instrument positioning device for surveying engineering according to claim 1, the clamping mechanism comprises a clamping plate (4) and a bidirectional threaded rod (401), the clamping plate (4) is connected on the mounting plate (304) in a sliding way, the two groups of clamping plates (4) are arranged, the two groups of clamping plates (4) are symmetrically distributed on the mounting plate (304), threaded holes corresponding to the two-way threaded rods (401) are formed in the two groups of clamping plates (4), two groups of the two-way threaded rods (401) are arranged, the two groups of the two-way threaded rods (401) are symmetrically distributed on the clamping plate (4), belt wheels (402) are fixedly connected to the two groups of the two-way threaded rods (401), the two groups of the belt wheels (402) are rotationally connected through a belt (4021), the two ends of the bidirectional threaded rod (401) are fixedly connected with adjusting knobs (4011) used for rotating the bidirectional threaded rod (401).
3. The surveying instrument positioning device for surveying and mapping engineering according to claim 2, characterized in that a rubber pad (403) is fixedly connected to the inner wall of the clamping plate (4).
4. The surveying instrument positioning device for surveying engineering according to claim 1, the supporting legs comprise a first supporting rod (101) and a second supporting rod (103), the first supporting rod (101) is rotatably connected to the bottom of the mounting seat (1), the bottom of the first support rod (101) is fixedly connected with a threaded cylinder (102), the top of the second support rod (103) is fixedly connected with a threaded disc (1031), the threaded disc (1031) is in threaded connection with the threaded cylinder (102), the second support rod (103) is fixedly connected with a first adjusting rod (1032), the bottom of the second supporting rod (103) is fixedly connected with a soil-pricking cone (1033), the second supporting rod (103) is in threaded connection with a protective sleeve (104), the protective sleeve (104) is matched with the soil-pricking cone (1033), and a second adjusting rod (1041) is fixedly connected to the protective sleeve (104).
5. The mapping instrument positioning device for mapping engineering according to claim 1, wherein a storage battery (201) is fixedly connected in the mounting seat (1), a charging socket (2) matched with the storage battery (201) is arranged on the side wall of the mounting seat (1), and the storage battery (201) is matched with the electromagnet (1062).
6. The surveying instrument positioning device for surveying and mapping engineering according to claim 1, characterized in that a groove is formed in the movable groove (105), a ball (1051) is arranged in the groove, and the ball (1051) is matched with the hemisphere (3).
