Abstract

The application relates to a concrete production technology, in particular to a concrete waste slurry and wastewater storage device which comprises a storage tank, wherein a storage cavity is formed in the storage tank, a water outlet pipe is arranged at the bottom of the storage tank and communicated with the storage tank, a first cleaning assembly is arranged at the top of the storage tank and extends into the storage cavity, and mortar on the inner wall of the storage tank is cleaned through the first cleaning assembly; the top of storage jar is equipped with the second clearance subassembly, the second clearance subassembly extends the storage intracavity, through the second clearance subassembly is cleared up the sedimentary mortar of outlet pipe department. The application has the effect of cleaning the mortar deposited in the waste water storage device so that the waste water storage device cannot be blocked.

Description

Concrete waste slurry and waste water storage device
Technical Field
The application relates to the technical field of concrete production, in particular to a concrete waste slurry and wastewater storage device.
Background
In the process of concrete production, because of the characteristics of concrete, stirring equipment and concrete transportation equipment need to be cleaned regularly, and a large amount of slurry is generated in the cleaning process. After the slurry is generated, the wastewater and the waste slurry are stored for waiting for treatment, and the slurry generated by cleaning the concrete transportation equipment is recycled, so that the concepts of green production and environment-friendly production are reflected.
The related Chinese patent with the authorization publication number of CN207890413U discloses a waste water storage device, which comprises a waste water discharge port arranged at the bottom of a feeding channel, wherein a collecting barrel used for collecting waste water is arranged below the waste water discharge port, a drainage pipeline is communicated between the collecting barrel and the waste water discharge port and comprises a main flow channel and an auxiliary flow channel, and the main flow channel comprises a flow gathering part and a drainage part. The waste water mixed with the sand and stone raw materials in the feeding channel flows into the drainage pipeline through the waste water discharge port and then flows into the collecting barrel through the drainage part and the auxiliary flow passage. The collection operation of the wastewater is carried out by adopting a multi-pipeline shunting mode, so that the possibility of blockage of the drainage pipeline is reduced, and the aim of improving the working reliability of the drainage pipeline is fulfilled; and waste water directly flows into the collecting vessel after being drained by the drainage pipeline, thereby reducing the influence of the external environment on the waste water collecting operation, and limiting the waste water from splashing to the external environment, thereby achieving the purpose of protecting the surrounding environment.
In view of the above-mentioned related art, the wastewater storage device in the above application deposits heavy sand in the wastewater and waste slurry when storing the waste slurry and the wastewater, and the sand accumulates in the inner wall and the pipeline of the wastewater storage device, which may cause the pipeline of the wastewater storage device to be blocked in long-term use.
SUMMERY OF THE UTILITY MODEL
Thereby make waste water storage equipment can not block up in order to clear up the sedimentary mortar in the waste water storage device, this application provides a concrete waste thick liquid waste water storage device.
The application provides a pair of concrete waste slurry waste water storage device adopts following technical scheme:
a concrete waste slurry and wastewater storage device comprises a storage tank, wherein a storage cavity is formed in the storage tank, a water outlet pipe is arranged at the bottom of the storage tank and communicated with the storage tank, a first cleaning assembly is arranged at the top of the storage tank and extends into the storage cavity, and mortar on the inner wall of the storage tank is cleaned through the first cleaning assembly; the top of storage jar is equipped with the second clearance subassembly, the second clearance subassembly extends the storage intracavity, through the second clearance subassembly is cleared up the sedimentary mortar of outlet pipe department.
Through adopting above-mentioned technical scheme, the storage chamber in the holding vessel is used for saving waste water, and the outlet pipe is used for discharging waste water. When storage jar is saved the waste water that contains grit and useless thick liquid, heavier grit can deposit in the storage jar, piles up in the inner wall and the outlet pipe of storage jar, and first clearance subassembly is cleared up storage jar accumulational mortar on the inner wall, and second clearance subassembly is cleared up accumulational mortar on the outlet pipe, compares in storage jar in the correlation technique and uses more conveniently, and the reduction takes place because the mortar deposit leads to the condition of pipe blockage to take place.
Preferably, the first cleaning assembly comprises an annular mounting frame, the annular mounting frame is located in the storage cavity, two communication holes are formed in the upper surface of the storage tank and communicated with the storage cavity, a sliding plate is connected in the communication holes in a sliding mode and is vertical, and the sliding plate is fixedly connected with the annular mounting frame; a mud scraper is arranged on the outer side of the annular mounting frame and is abutted against the inner wall of the storage tank; and the storage tank is provided with a driving component for driving the sliding plate to vertically move downwards.
Through adopting above-mentioned technical scheme, the sliding plate can be along vertical direction downstream under drive assembly's drive, and the in-process that the sliding plate downstream can drive rather than fixed connection's annular mounting bracket downstream. The mud scraper on the annular mounting frame scrapes the lateral wall of storage jar thereby clear up the mortar of adhesion on the storage jar inner wall in the in-process annular mounting frame that moves down.
Preferably, the number of the mud scrapers is multiple, and the mud scrapers are circumferentially arranged along the outer side of the annular mounting frame; the mud scraper is arc-shaped and blocky, and the arc-shaped surface of the mud scraper is attached to the inner wall of the storage tank.
Through adopting above-mentioned technical scheme, the setting of a plurality of mud scrapers can make the annular mount frame clean the holistic lateral wall of storage jar in the in-process of removing downwards.
Preferably, the driving assembly comprises a rack, the rack is arranged on the side surface of the sliding plate, a driving motor is arranged on the upper surface of the storage tank, a gear is fixedly connected to an output shaft of the driving motor, and the gear is meshed with the rack.
By adopting the technical scheme, when the driving motor is started, the output shaft of the driving motor rotates to drive the gear fixedly connected with the driving motor to rotate, and the gear rotates to enable the rack meshed with the gear to move downwards in the vertical direction, so that the sliding plate is driven to move.
Preferably, the second cleaning assembly comprises a cleaning disc, the cleaning disc is located in the storage cavity, a cleaning scraping blade is arranged on the cleaning side face, and the cleaning scraping blade is used for cleaning the inner wall of the water outlet pipe; the storage tank is provided with a telescopic assembly, and the cleaning disc extends into the water outlet pipe to be cleaned through the telescopic assembly.
Through adopting above-mentioned technical scheme, the cleaning disc can stretch into in the outlet pipe under the drive of flexible subassembly. The cleaning scraper on the cleaning disc can clean the inner wall of the water outlet pipe, so that mortar cannot be accumulated on the inner wall of the water outlet pipe.
Preferably, the telescopic assembly comprises a telescopic cylinder, the telescopic cylinder is fixedly connected to the upper surface of the storage tank, the telescopic cylinder is vertical, and the extending direction of the driving end of the telescopic cylinder is vertical downward; the through hole has been seted up to storage jar upper surface, telescopic cylinder's drive end passes the through hole and extends the storage intracavity, telescopic cylinder's tip fixedly connected with drives the piece, it is located the storage intracavity to drive the piece, drive piece below is located to the cleaning dish, be equipped with the driving piece of drive cleaning dish pivoted in the drive piece.
Through adopting above-mentioned technical scheme, when starting telescopic cylinder, telescopic cylinder's drive end stretches out downwards, and telescopic cylinder's drive end stretches out downwards and drives rather than fixed connection's drive block downstream in the holding vessel, and the drive block downstream makes and locates the cleaning disc of drive block below and extend in the outlet pipe.
Preferably, the driving part comprises a rotating motor, the rotating motor is fixedly connected in the driving block, and an output shaft of the rotating motor is fixedly connected with a rotating shaft of the cleaning disc.
By adopting the technical scheme, when the rotating motor is started, the output shaft of the rotating motor rotates to drive the cleaning disc fixedly connected with the output shaft to rotate, the cleaning disc rotates to enable the cleaning scraping blade to rotate, and the cleaning scraping blade can scrape mortar on the inner wall of the water outlet pipe to clean the water outlet pipe.
Preferably, the cleaning blade is provided in plurality, and the plurality of cleaning blades are arranged along the outer circumference of the cleaning disc.
Through adopting above-mentioned technical scheme, a plurality of cleaning blade have further strengthened the clearance effect to the outlet pipe.
In summary, the present application includes at least one of the following beneficial technical effects:
the storage chamber in the holding vessel is used for saving waste water, and the outlet pipe is used for discharging waste water. When the storage tank stores wastewater containing gravels and waste slurry, the heavier gravels in the storage tank can be deposited and accumulated on the inner wall of the storage tank and the water outlet pipe, the first cleaning assembly cleans mortar accumulated on the inner wall of the storage tank, and the second cleaning assembly cleans the mortar accumulated on the water outlet pipe, so that compared with the storage tank in the related technology, the use is more convenient, and the occurrence of pipeline blockage caused by mortar deposition is reduced;
when the rotating motor is started, the output shaft of the rotating motor rotates to drive the cleaning disc fixedly connected with the rotating motor to rotate, the cleaning disc rotates to enable the cleaning scraping blade to rotate, the cleaning scraping blade can scrape mortar on the inner wall of the water outlet pipe, and the water outlet pipe is cleaned.
Drawings

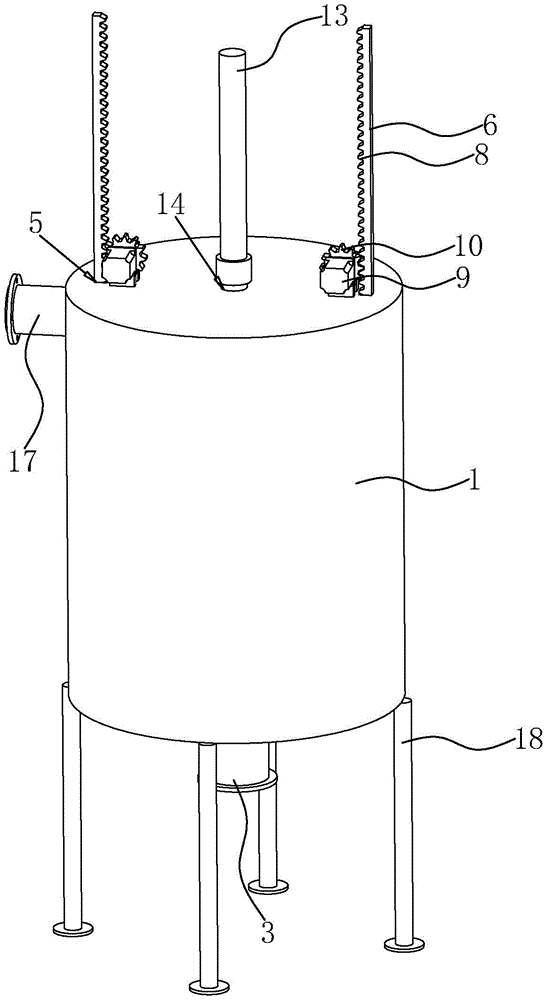

FIG. 1 is a schematic structural diagram of an embodiment of the present application;
fig. 2 is a schematic sectional view of a storage tank in an embodiment of the present application.
Description of reference numerals: 1. storing the tank; 2. a storage chamber; 3. a water outlet pipe; 4. an annular mounting frame; 5. a communicating hole; 6. a sliding plate; 7. a mud scraper; 8. a rack; 9. a drive motor; 10. a gear; 11. cleaning the disc; 12. cleaning a wiper blade; 13. a telescopic cylinder; 14. a through hole; 15. a drive block; 16. rotating the motor; 17. a water inlet pipe; 18. and a support plate.
Detailed Description
The present application is described in further detail below with reference to figures 1-2.
The application discloses useless thick liquid waste water storage device of concrete refers to 1 and fig. 2, including storage jar 1, storage jar 1 is cylindricly, a plurality of backup pads 18 of storage jar 1 bottom fixedly connected with. A plurality of support plates 18 have a supporting effect on the storage tank 1. A storage cavity 2 is formed in the storage tank 1, and the storage cavity 2 is used for storing wastewater. The bottom of the storage tank 1 is fixedly connected with a water outlet pipe 3, the water outlet pipe 3 is communicated with the storage tank 1, and the other end of the book outlet pipe is communicated to the next link of wastewater treatment. The book outlet pipe is vertical, and the water outlet pipe 3 is positioned at the bottom end of the storage tank 1. The water outlet pipe 3 is fixedly provided with a water outlet valve which is used for controlling the water outlet pipe 3 to discharge waste water. When the water outlet valve is opened, the water outlet pipe 3 can discharge the waste water in the storage tank 1. The side of the storage tank 1 is fixedly connected with a water inlet pipe 17, and waste water can enter the storage cavity 2 from the water inlet pipe 17.
Referring to fig. 1 and 2, a first cleaning assembly is arranged at the top of the storage tank 1, extends into the storage cavity 2, and cleans mortar on the inner wall of the storage tank 1 through the first cleaning assembly; the top of storage jar 1 is equipped with the second clearance subassembly, and in the second clearance subassembly extended storage chamber 2, the sedimentary mortar of outlet pipe 3 department was cleared up through the second clearance subassembly. The first clearance subassembly and the second clearance subassembly that storage jar 1 top set up clear up the inner wall of storage jar 1 and the inner wall of outlet pipe 3 respectively, compare in storage jar 1 among the correlation technique, and the improvement of this application lies in can effectively preventing that the mortar deposit from getting off when storage jar 1 storage waste slurry and waste water and leading to outlet pipe 3 to block up.
Referring to fig. 1 and 2, first clearance subassembly includes annular mounting bracket 4, and annular mounting bracket 4 is located storage chamber 2, and two intercommunicating pores 5 have been seted up to the upper surface of storage jar 1, and intercommunicating pore 5 sets up with storage chamber 2 intercommunication. The communicating hole 5 is internally and slidably connected with a sliding plate 6, the sliding plate 6 is vertical, and the sliding plate 6 can move up and down in the communicating hole 5 along the vertical direction. The sliding plate 6 is fixedly connected with the annular mounting frame 4, and when the sliding plate 6 moves up and down in the communicating hole 5, the annular mounting frame 4 fixedly connected with the bottom end of the sliding plate 6 can be driven to move up and down in the storage cavity 2. Annular mounting bracket 4 is ring shape, and the diameter of annular mounting bracket 4 is less than the diameter of storage jar 1, and the outside fixedly connected with mud scraper 7 of annular mounting bracket 4, mud scraper 7 and the inner wall butt of storage jar 1. The mud scraper 7 is a plurality of, and a plurality of mud scraper 7 set up along the outside circumference of annular mounting bracket 4, and mud scraper 7 is arc cubic, and the arcwall face of mud scraper 7 and the inner wall laminating of storage jar 1. At the in-process that annular mounting bracket 4 reciprocated in storage chamber 2, the inner wall of storage jar 1 is scraped to mud scraper 7, can scrape the mortar of adhesion on storage jar 1 inner wall down when mud scraper 7 removes, has realized the clearance to the storage pipe inner wall.
Referring to fig. 1 and 2, the storage tank 1 is provided with a driving assembly for driving the sliding plate 6 to move vertically downward. The driving assembly comprises a rack 8, the rack 8 is arranged on the side face of the sliding plate 6, the upper surface of the storage tank 1 is fixedly connected with a driving motor 9, a gear 10 is fixedly connected onto an output shaft of the driving motor 9, the storage tank 1 is fixedly connected with two fixing plates, the gear 10 is rotatably connected between the two fixing plates, and the gear 10 is meshed with the rack 8. When the driving motor 9 is started, the output shaft of the driving motor 9 rotates to drive the gear 10 fixedly connected with the driving motor to rotate, and when the gear 10 rotates forwards or reversely, the sliding plate 6 meshed with the gear 10 moves upwards or downwards. Thereby enabling the driving of the movement of the slide plate 6.
Referring to fig. 1 and 2, the second cleaning assembly includes a cleaning disc 11, the cleaning disc 11 is disc-shaped, the cleaning disc 11 is located in the storage chamber 2, a plurality of cleaning blades 12 are fixedly connected to a cleaning side surface, the plurality of cleaning blades 12 are arranged along an outer circumferential direction of the cleaning disc 11. The diameter of the water outlet pipe 3 is matched with the lengths of the cleaning disc 11 and the cleaning scraping blade 12, and the cleaning scraping blade 12 is used for cleaning the inner wall of the water outlet pipe 3. Be equipped with flexible subassembly on the storage jar 1, make cleaning disc 11 stretch to clear up in outlet pipe 3 through flexible subassembly. The cleaning disc 11 can be driven by the telescopic assembly to extend downwards, and when the cleaning disc 11 extends into the inner wall of the water outlet pipe 3, the cleaning blade 12 can scrape the inner wall of the water outlet pipe 3 to scrape off mortar deposited on the inner wall.
Referring to fig. 1 and 2, telescopic component includes telescopic cylinder 13, and telescopic cylinder 13 fixed connection is in the upper surface of storage jar 1, and telescopic cylinder 13 is vertical, and telescopic cylinder 13's drive end stretches out the vertical downwards of direction, and through hole 14 has been seted up to storage jar 1 upper surface, and telescopic cylinder 13's drive end passes through hole 14 and extends in storage chamber 2. The tip fixedly connected with of telescopic cylinder 13 drives piece 15, and drive piece 15 is located storage chamber 2, and drive piece 15 below is located to cleaning disc 11, is equipped with the pivoted driving piece of drive cleaning disc 11 in the drive piece 15. When the telescopic cylinder 13 is started, the driving end of the telescopic cylinder 13 extends downwards, the driving end of the telescopic cylinder 13 slides in the through hole 14, and the driving block 15 and the cleaning disc 11 are driven to move downwards to extend into the water inlet pipe 17.
Referring to fig. 1 and 2, the driving member includes a rotating motor 16, the rotating motor 16 is fixedly connected to the inside of the driving block 15, and an output shaft of the rotating motor 16 is fixedly connected to a rotating shaft of the cleaning disk 11. The rotating motor 16 is a waterproof motor, an output shaft of the rotating motor 16 rotates to drive the cleaning disc 11 fixedly connected with the rotating motor to rotate, the cleaning disc 11 rotates to drive the cleaning scraping blades 12 to rotate, and the cleaning scraping blades 12 can better clean the inner wall of the water inlet pipe 17 in the rotating process.
The implementation principle of the concrete waste slurry and wastewater storage device in the embodiment of the application is as follows: and starting the driving motor 9, driving the gear 10 fixedly connected with the driving motor 9 to rotate by the rotation of the driving motor 9, and driving the rack 8 and the sliding plate 6 fixed with the rack 8 to move in the vertical direction by the forward or reverse rotation of the gear 10. The telescopic cylinder 13 is started, the driving end of the telescopic cylinder 13 extends downwards, the driving end of the telescopic cylinder 13 moves downwards to drive the driving block 15 and the cleaning disc 11 to move into the water inlet pipe 17, the rotating motor 16 is started to drive the cleaning disc 11 to rotate, and the cleaning disc 11 rotates to enable the cleaning scraping blade 12 fixedly connected with the cleaning device to rotate, so that the inner wall of the water inlet pipe 17 is cleaned.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.

Claims (8)

1. The utility model provides a concrete waste pulp waste water storage device, includes storage jar (1), its characterized in that: a storage cavity (2) is formed in the storage tank (1), a water outlet pipe (3) is arranged at the bottom of the storage tank (1), the water outlet pipe (3) is communicated with the storage tank (1), a first cleaning assembly is arranged at the top of the storage tank (1), the first cleaning assembly extends into the storage cavity (2), and mortar on the inner wall of the storage tank (1) is cleaned through the first cleaning assembly; the top of storage jar (1) is equipped with the second clearance subassembly, in the second clearance subassembly extended storage chamber (2), through the second clearance subassembly is cleared up outlet pipe (3) the sedimentary mortar of locating.
2. The concrete waste slurry and wastewater storage device according to claim 1, wherein: the first cleaning assembly comprises an annular mounting frame (4), the annular mounting frame (4) is located in the storage cavity (2), two communication holes (5) are formed in the upper surface of the storage tank (1), the communication holes (5) are communicated with the storage cavity (2), a sliding plate (6) is connected in the communication holes (5) in a sliding mode, the sliding plate (6) is vertical, and the sliding plate (6) is fixedly connected with the annular mounting frame (4); a mud scraper (7) is arranged on the outer side of the annular mounting frame (4), and the mud scraper (7) is abutted against the inner wall of the storage tank (1); and a driving component for driving the sliding plate (6) to vertically move downwards is arranged on the storage tank (1).
3. The concrete waste slurry and wastewater storage device according to claim 2, wherein: the plurality of the mud scrapers (7) are arranged along the outer circumferential direction of the annular mounting frame (4); the mud scraper (7) is arc-shaped and blocky, and the arc-shaped surface of the mud scraper (7) is attached to the inner wall of the storage tank (1).
4. The concrete waste slurry and wastewater storage device according to claim 2, wherein: the driving assembly comprises a rack (8), the rack (8) is arranged on the side face of the sliding plate (6), a driving motor (9) is arranged on the upper surface of the storage tank (1), a gear (10) is fixedly connected to an output shaft of the driving motor (9), and the gear (10) is meshed with the rack (8).
5. The concrete waste slurry and wastewater storage device according to claim 1, wherein: the second cleaning component comprises a cleaning disc (11), the cleaning disc (11) is positioned in the storage cavity (2), a cleaning scraping blade (12) is arranged on the cleaning side face, and the cleaning scraping blade (12) is used for cleaning the inner wall of the water outlet pipe (3); be equipped with flexible subassembly on storage jar (1), through flexible subassembly makes cleaning disc (11) to clear up in extending outlet pipe (3).
6. The concrete waste slurry and wastewater storage device according to claim 5, wherein: the telescopic assembly comprises a telescopic cylinder (13), the telescopic cylinder (13) is fixedly connected to the upper surface of the storage tank (1), the telescopic cylinder (13) is vertical, and the extending direction of the driving end of the telescopic cylinder (13) is vertical and downward; through hole (14) have been seted up to storage jar (1) upper surface, the drive end of telescopic cylinder (13) passes through hole (14) and extends in storage chamber (2), the tip fixedly connected with of telescopic cylinder (13) drives drive block (15), it is located storage chamber (2) to drive block (15), drive block (15) below is located in cleaning disc (11), be equipped with drive cleaning disc (11) pivoted driving piece in driving block (15).
7. The concrete waste slurry and wastewater storage device according to claim 6, wherein: the driving piece comprises a rotating motor (16), the rotating motor (16) is fixedly connected into the driving block (15), and an output shaft of the rotating motor (16) is fixedly connected with a rotating shaft of the cleaning disc (11).
8. The concrete waste slurry and wastewater storage device according to claim 7, wherein: the cleaning device is characterized in that the number of the cleaning scraping blades (12) is multiple, and the cleaning scraping blades (12) are arranged along the outer circumferential direction of the cleaning disc (11).
