CN214272894U

CN214272894U - SMC composite building template

Info

Publication number: CN214272894U
Application number: CN202022877672.4U
Authority: CN
Inventors: 朱圣光
Original assignee: Hangzhou Jisheng Composite Material Co ltd
Current assignee: Hangzhou Jisheng Composite Material Co ltd
Priority date: 2020-12-02
Filing date: 2020-12-02
Publication date: 2021-09-24
Anticipated expiration: 2030-12-02

Abstract

The utility model belongs to the technical field of the building templates, and a compound building templates of SMC is disclosed, which comprises a housin, the equal activity joint in the left and right sides of casing inside has the bottom plate, two the equal fixed mounting in bottom of bottom plate has the support, two the equal fixed mounting in top of bottom plate has a handle, two the equal fixed mounting of medial surface of bottom plate has a fixed plate, two be in the same place through round hole mould fixed connection between the fixed plate. The utility model discloses a be outside casing and inside template two parts with the building templates design, the whole body is made by SMC combined material except that the handle, when the preparation was accomplished, and the cement board after will solidifying is proposed through controlling two handles with inside template, makes the cement board need not just can take out easily through dismantling outside casing, can make the compound building templates of template SMC carry out repetitious usage, the utility model provides a problem that the compound building templates of SMC can not reutilization, reduced workflow greatly.

Description

SMC composite building template

Technical Field

The utility model belongs to the technical field of the building templates, specifically a SMC composite building templates.

Background

The building formwork is a temporary supporting structure, which is manufactured according to the design requirement, so that a concrete structure and a member are formed according to the specified position and geometric dimension, the correct position of the concrete structure and the member is kept, the self weight of the building formwork and the external load acting on the building formwork are borne, and the SMC composite building formwork is a building formwork made of SMC composite materials, so that the SMC composite building formwork has the characteristics of light weight, corrosion resistance and long service life.

Among the prior art, SMC composite construction template is mostly single use template, when taking out the cement board, needs to let the workman demolish SMC composite construction template's outside casing, takes out the cement board that wherein has solidified, when needs reuse, needs the workman to carry out the adhesion again and assembles processes such as, and whole process is numerous, has dragged the progress of time limit for a project greatly slowly.

The middle part of cement slab is equipped with the hole, and in prior art, the dismantlement structure of SMC composite construction template self is complicated, need unpack the mould groove apart completely just can thoroughly take out the mould of seting up the hole, and whole dismantlement process is wasted time and energy to need again through complicated structure fixed mounting when recycling, thereby whole the time of assembling is of a specified duration, has increased unnecessary work load.

SUMMERY OF THE UTILITY MODEL

The utility model aims at the above problem, the utility model provides a SMC composite building template has reuse, dismantles the advantage of installation fast.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a compound building templates of SMC, includes the casing, the equal activity joint in the inside left and right sides of casing has a bottom plate, two the equal fixed mounting in bottom of bottom plate has the support, two the equal fixed mounting in top of bottom plate has the handle, two the equal fixed mounting of medial surface of bottom plate has a fixed plate, two through round hole mould fixed connection together between the fixed plate.

As a preferred technical scheme of the utility model, the equal fixed mounting of inner wall has the stopper around the casing, the quantity of stopper is eight, and per two divide into a set ofly, divide into four groups altogether, and every two sets of coplanar that are in, and the position is accurate when inner wall fixed mounting's stopper can ensure to put into the casing with the bottom plate around to because the distance that designs in advance, so make fixed plate and round hole mould concatenation department closely link to each other can not produce the gap.

As an optimal technical scheme of the utility model, the left and right sides fixed mounting of casing bottom surface has the spacing groove, the quantity of spacing groove is four, four per two of spacing groove divide into a set ofly, and the spacing groove can be fixed the support of bottom plate below wherein, makes the bottom plate keep vertical can not crooked.

As the utility model discloses a preferred technical scheme, the quantity of round hole mould is four, four the equidistant distribution of round hole mould is between two fixed plates, and a plurality of round hole moulds can guarantee that the cement board can not take place deformation because of various external forces.

As a preferred technical scheme of the utility model, the slot has been seted up to the one end of round hole mould, one of them the medial surface fixed mounting of fixed plate has the inserted bar, the one end and a fixed plate fixed connection of round hole mould, the one end of seting up the slot has the fixed plate activity joint of inserted bar with another medial surface fixed mounting, and the round hole mould passes through slot and fixed plate activity joint, and the other end and fixed plate fixed connection can make things convenient for the work of tearing open after the cement board shaping to the movable joint port zonulae occludens of fixed plate and round hole mould can not produce the gap together.

As an optimal technical scheme of the utility model, both sides all are equipped with the lug around the bottom plate, and lug and stopper looks adaptation, and the lug of bottom plate both sides is for the use of cooperation stopper, makes more accurate the placing in this position of putting of bottom plate, makes it can not take place the skew.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the SMC composite building template is designed into a separable structure and is divided into an external shell and an internal template, the whole body except the handle is made of SMC composite materials, the weight is light, the strength is high, the corrosion resistance is high, and more adhesion with a cement plate can not occur; after the cement board is completely solidified, the inner template is lifted by the left and right handles and separated from the outer shell, the cement board cannot be damaged when lifted, the cement board can be easily taken out without detaching the outer shell, the integrity of the outer shell is ensured, the SMC composite building template can be repeatedly utilized, the problem that the SMC composite building template cannot be repeatedly utilized is solved, the utilization rate is improved, the work flow is greatly reduced, and the progress of the construction period cannot be prolonged.

2. The utility model has the advantages that one end of the round hole die is fixedly connected with one fixed plate, the other end of the round hole die is movably clamped with the other fixed plate, the disassembly convenience of the round hole die is ensured through a simple splicing mode, the fixed plate can be easily separated from the round hole die only by pulling the two ends, and the round hole die can be easily drawn out from the cement plate due to SMC composite materials in the same way; utilize inside stopper and the spacing groove of casing for inside template can not take place crooked and empty, makes fixed plate and round hole mould closely laminate, thereby has avoided complicated dismouting process, the utility model provides a thereby problem that the work efficiency who leads to is low because of prior art concatenation is numerous and diverse.

Drawings

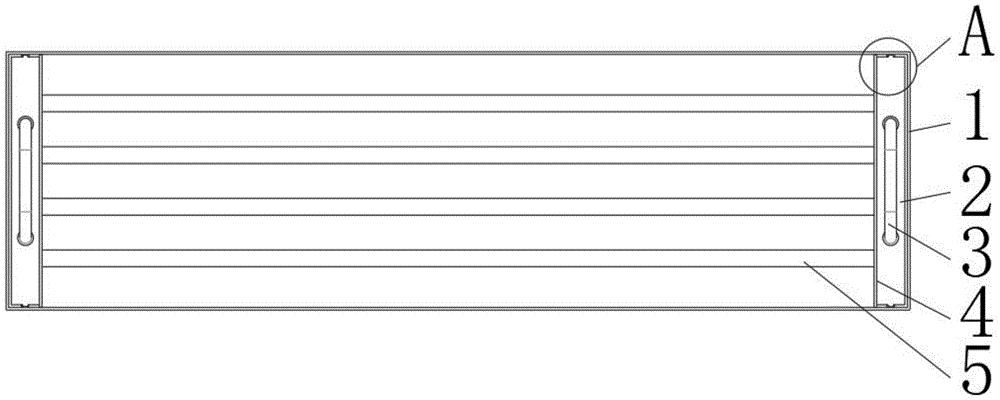

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view of the area A of the structure of the present invention;

FIG. 3 is a schematic view showing the connection between the insertion rod and the slot of the present invention;

FIG. 4 is a side sectional view of the structure of the present invention;

FIG. 5 is a schematic view of the outer shell and the inner form of the present invention;

FIG. 6 is an enlarged view of the area B of the present invention;

fig. 7 is an enlarged view of the area C of the present invention.

In the figure: 1. a housing; 2. a base plate; 3. a grip; 4. a fixing plate; 5. a circular hole die; 6. a limiting block; 7. a bump; 8. a support; 9. a limiting groove; 10. a slot; 11. and (4) inserting the rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1 to 7, the utility model provides a compound building templates of SMC, including casing 1, the equal activity joint in the left and right sides of casing 1 inside has bottom plate 2, the equal fixed mounting in bottom of two bottom plates 2 has support 8, the equal fixed mounting in top of two bottom plates 2 has handle 3, the equal fixed mounting of medial surface of two bottom plates 2 has fixed plate 4, be in the same place through 5 fixed connection of round hole mould between two fixed plates 4, the cement board size that this template can produce is 1200 2400mm, the degree of depth is 10mm, be conventional edition, it can with the highly level of casing 1 self to pour cement into.

Wherein, the equal fixed mounting of inner wall has stopper 6 around casing 1, and the quantity of stopper 6 is eight, and per two divide into a set ofly, divide into four groups altogether, and every two sets of coplanar that is in, and front and back inner wall fixed mounting's stopper 6 is accurate when can ensure to put into casing 1 with bottom plate 2 to because the distance of designing well in advance, so make

fixed plate

4 and 5 concatenation departments of round hole mould closely link to each other and can not produce the gap.

Wherein, the left and right sides fixed mounting of casing 1 bottom surface has spacing groove 9, and the quantity of spacing groove 9 is four, and every two of four spacing grooves 9 divide into a set ofly, and spacing groove 9 can be fixed the support 8 of bottom plate 2 below wherein, makes bottom plate 2 keep vertically can not crooked.

Wherein, the quantity of round hole mould 5 is four, and four round hole moulds 5 equidistant distribution are between two fixed plates 4, and a plurality of round hole moulds 5 can guarantee that the cement board can not take place deformation because of various external forces.

Wherein, slot 10 has been seted up to the one end of round hole mould 5, the medial surface fixed mounting of one of them fixed plate 4 has inserted bar 11, the one end and the 4 fixed connection of a fixed plate of round hole mould 5, the one end of seting up slot 10 has the 4 movable joint of fixed plate of inserted bar 11 with another medial surface fixed mounting, round hole mould 5 passes through

slot

10 and 4 movable joint of fixed plate, the other end and fixed plate 4 fixed connection, can conveniently tear open after the cement board shaping and get the work, and fixed plate 4 can not produce the gap with round hole mould 5's movable joint port zonulae occludens together.

Wherein, both sides all are equipped with lug 7 around bottom plate 2, and lug 7 and stopper 6 looks adaptation, and lug 7 of 2 both sides of bottom plate is in order to cooperate stopper 6's use, makes the more accurate position of placing at this position of putting of bottom plate 2, makes it can not take place the skew.

The utility model discloses a theory of operation and use flow:

inserting the inserted bar 11 on the fixed plate 4 into the slot 10 of the round hole mold 5, then placing it into the shell 1, when placing, aligning the bumps 7 at the front and back sides of the bottom plate 2 with the stoppers 6 fixedly mounted on the front and back inner walls of the shell 1, making the joint of the fixed plate 4 and the round hole mold 5 tightly connected by the restriction of the stoppers 6, aligning the bracket 8 with the stopper slot 9 to keep the whole mold upright, then pouring cement (where cement is prepared in advance), after the cement is completely solidified, lifting it out and placing it on the ground by the grip 3, pulling the two grips 3 to two sides, making the inserted bar 11 on the fixed plate 4 separate from the slot 10 of the round hole mold 5, and because the SMC composite material has the property of chemical resistance and corrosion resistance, the molecules are tight, thereby achieving the effect of not easy to adhere with the cement, therefore, the circular hole mold 5 is easily taken out of the cement board, the fixing plate 4 and the circular hole mold 5 are spliced after the circular hole mold 5 is taken out, and the circular hole mold is placed into the shell 1 for the next pouring.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An SMC composite building template, comprising a shell (1), characterized in that: the equal activity joint in the left and right sides of casing (1) inside has bottom plate (2), two the equal fixed mounting in bottom of bottom plate (2) has support (8), two the equal fixed mounting in top of bottom plate (2) has handle (3), two the equal fixed mounting of medial surface of bottom plate (2) has fixed plate (4), two through round hole mould (5) fixed connection together between fixed plate (4).

2. An SMC composite building panel as in claim 1, wherein: the equal fixed mounting of inner wall has stopper (6) around casing (1), the quantity of stopper (6) is eight, and every two divide into a set of, divide into four groups altogether, and every two sets of coplanar that is in.

3. An SMC composite building panel as in claim 1, wherein: the left and right sides fixed mounting of casing (1) bottom surface has spacing groove (9), the quantity of spacing groove (9) is four, four per two of spacing groove (9) divide into a set of.

4. An SMC composite building panel as in claim 1, wherein: the number of the circular hole molds (5) is four, and the four circular hole molds (5) are distributed between the two fixing plates (4) at equal intervals.

5. An SMC composite building panel as in claim 1, wherein: slot (10), one of them slot (10) have been seted up to the one end of round hole mould (5) the medial surface fixed mounting of fixed plate (4) has inserted bar (11), the one end and a fixed plate (4) fixed connection of round hole mould (5), the one end of seting up slot (10) and fixed plate (4) activity joint that another medial surface fixed mounting has inserted bar (11).

6. An SMC composite building panel as in claim 2, wherein: both sides all are equipped with lug (7) around bottom plate (2), and lug (7) and stopper (6) looks adaptation.
