Abstract
一种汽车零件装配加工用可调节钻孔装置，包括钻孔机本体，在钻孔机本体上安装有防护罩，防护罩上固定安装有安装箱，安装箱内设有电机，电机上设有多个扇叶，安装箱内固定安装有固定板，固定板上开设有多个圆孔和一个连接孔，安装箱上开设有吸尘口和清理口，清理口内活动安装有箱门。本实用新型的有益效果是：结构简单，构造合理，成本低廉，将防护罩罩在钻孔机本体上，防止碎屑溅出，同时能够将钻孔时的碎屑吸入到安装箱内，避免了磨削碎屑，进入空气中对操作人员造成危害，同时避免了碎屑堆积在工作台上，对夹持装置的夹持精度造成影响，能够有效地确保装夹精准，从而确保加工质量。
An adjustable drilling device for assembling and processing automobile parts, comprising a drilling machine body, a protective cover is installed on the drilling machine body, an installation box is fixedly installed on the protective cover, a motor is arranged in the installation box, and the motor is provided with A plurality of fan blades, a fixing plate is fixedly installed in the installation box, a plurality of round holes and a connecting hole are opened on the fixing plate, a dust suction port and a cleaning port are opened on the installation box, and a box door is movably installed in the cleaning port. The beneficial effects of the utility model are as follows: the structure is simple, the structure is reasonable, and the cost is low; In order to avoid grinding debris, it will cause harm to the operator when it enters the air, and at the same time, it avoids debris from accumulating on the worktable and affects the clamping accuracy of the clamping device, which can effectively ensure the clamping accuracy and thus the processing quality.
Description
Technical Field
The utility model relates to an automobile parts assembly and processing technology field especially relates to an adjustable drilling equipment is used in automobile parts assembly and processing.
Background
A drilling machine is a general name of a machine and an apparatus that leave a cylindrical hole or a hole in an object by a rotary cutting or rotary pressing method using a tool harder and sharper than the object, and is also called a drilling machine, a punching machine, a hole drilling machine, a via machine, and the like.
In the prior art, patent publication No. CN207464250U discloses an adjustable drilling machine, the upper end surface of the upper workbench of the drilling machine is provided with a pushing cylinder at one side of the baffle plate, the other side is provided with a sliding seat in a sliding way, the upper end surface of the sliding seat is rotatably provided with a stand column, a support with a drill bit is sleeved on the stand column, and an adjusting component is arranged between the sliding seat and the stand column, so the existing drilling machine has an adjustable function, however, in the drilling process of the existing drilling machine, after the drill bit enters the drilled material, grinding chips can be generated, the debris can centrifugally splash outwards along with the high-speed rotation of the drill bit, enter air, can be sucked into the body by an operator, the damage to the health of operators is caused, a large amount of scraps are easy to accumulate on the worktable of the drilling machine, the clamping precision of the clamping device is easy to be influenced, further causing damage to parts, so that an adjustable drilling device for assembling and machining automobile parts is needed to meet the requirements of people.
Disclosure of Invention
Aiming at the problems in the prior art, the utility model provides an adjustable drilling device for assembling and processing automobile parts, which solves the problems that the scraps centrifugally splash outwards in the adjusting and rotating process of a drill bit mentioned in the background technology, the health of operators is damaged, and a large amount of scraps are easy to accumulate around the working table surface of a drilling machine,
the clamping precision of the clamping device is influenced.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes:
the utility model provides an automobile parts assembly processing is with adjustable drilling equipment, includes the drilling machine body install the protection casing on the drilling machine body to fixed mounting has the install bin on the protection casing, has seted up two ventilation holes on the install bin, is equipped with the motor in the install bin, is equipped with a plurality of flabellums on the motor, fixed mounting has the fixed plate in the install bin, has seted up a plurality of round holes and a connecting hole on the fixed plate, seted up the dust absorption mouth on the install bin, fixed mounting has the dust absorption pipeline in the dust absorption mouth, and the one end fixed mounting of dust absorption pipeline has the suction hood, and suction hood fixed mounting is on the protection casing, seted up the clearance mouth on the install bin, movable mounting has the chamber door in.
Preferably, the output shaft of the motor is fixedly provided with a rotating shaft through a coupler, and the fan blades are fixedly arranged on the rotating shaft, so that the rotating shaft can drive the fan blades to rotate when rotating.
Preferably, the one end fixed mounting of rotation axis has the connecting rod, and the one end through connection hole and the fixed mounting of connecting rod have the clearance pole, drive the rotation of clearance pole when the rotation axis of being convenient for rotates.
Preferably, two rotation grooves have all been seted up on the inner wall of clearance mouth both sides, and the equal fixed mounting in chamber door both sides has the axis of rotation, and the one end that two axis of rotation were kept away from each other extends to two rotation inslots respectively, and the chamber door of being convenient for receives the injecing in rotation groove when rotating, prevents that chamber door and rotation groove from breaking away from.
Preferably, equal fixed mounting has the fixture block on install bin and the chamber door, has all seted up the jack on two fixture blocks, and movable mounting has the same inserted block in two jacks, is convenient for the chamber door to fix when closing spacing.
Preferably, fixed mounting has two supports in the install bin, and fixed mounting has same U type frame on the one side that two supports are close to each other, and motor fixed mounting is fixed spacing to the motor on U type frame conveniently.
Preferably, fixed mounting has the filter screen on the fixed plate, and the clearance pole contacts with the filter screen, drives the clearance pole when the rotation axis of being convenient for rotates on the filter screen to make the cleaning rod clear up the filter screen.
Advantageous effects
The utility model has the advantages that: simple structure, it is rational in infrastructure, low cost utilizes the design of install bin, motor, flabellum, protection casing for the protection casing covers on the drilling machine body, prevents the piece spill, can inhale the install bin with the piece when drilling simultaneously in, has avoided the grinding piece, causes harm to operating personnel in the entering air, has avoided the piece to pile up on the workstation simultaneously, causes the influence to the centre gripping precision of clamping device, can ensure effectively that the clamping is accurate, thereby ensures processingquality.
In drilling process, starter motor, motor drive rotation axis rotate, and the rotation axis drives the flabellum and rotates, and the rotation axis drives the connecting rod rotation simultaneously, and the connecting rod drives the clearance pole and rotates on the filter screen, can clear up the filter screen to can ensure normally to absorb the piece.
Drawings

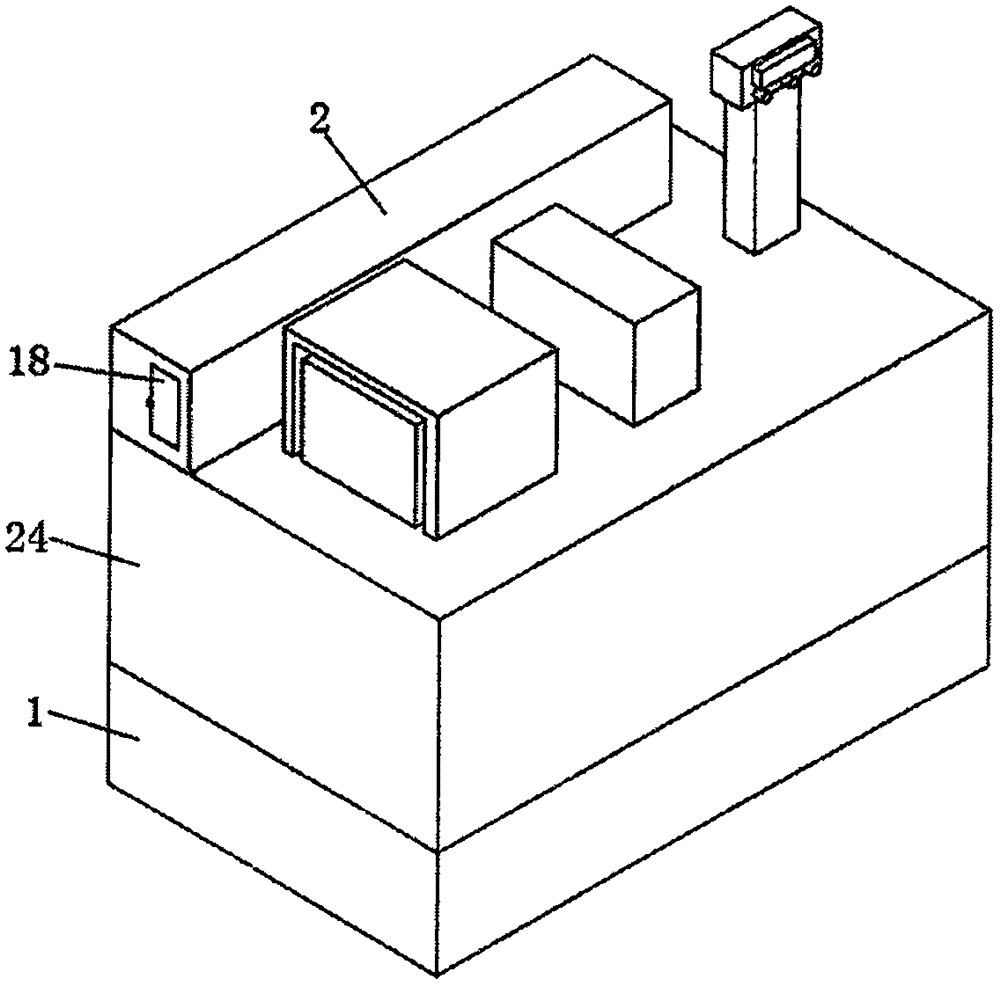

Fig. 1 is a perspective view of the present invention.
Fig. 2 is a perspective view of the installation box of the present invention.
Fig. 3 is a sectional view of the installation box of the present invention.
Fig. 4 is a schematic side sectional view of the present invention.
Description of reference numerals: 1. a drilling machine body; 2. installing a box; 3. a support; 4. a U-shaped frame; 5. a motor; 6. a rotating shaft; 7. a fan blade; 8. a connecting rod; 9. a fixing plate; 10. connecting holes; 11. a circular hole; 12. Cleaning the rod; 13. a dust suction port; 14. a dust collection duct; 15. a dust hood; 16. a rotating groove; 17. a rotating shaft; 18. a box door; 19. a clamping block; 20. a jack; 21. inserting a block; 22. a vent hole; 23. cleaning the opening; 24. A shield.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, an adjustable drilling device for automobile part assembly and processing comprises a drilling machine body 1, a protective cover 24 is sleeved on the drilling machine body 1, an installation box 2 is fixedly installed on the protective cover 24, two ventilation holes 22 are formed in the installation box 2, a motor 5 is arranged in the installation box 2, a plurality of fan blades 7 are arranged on the motor 5, a fixing plate 9 is fixedly installed in the installation box 2, a plurality of round holes 11 and a connection hole 10 are formed in the fixing plate 9, a dust suction port 13 is formed in the installation box 2, a dust suction pipeline 14 is fixedly installed in the dust suction port 13, a dust suction hood 15 is fixedly installed at one end of the dust suction pipeline 14, the dust suction hood 15 is fixedly installed on the protective cover 24, a cleaning port 23 is formed in the installation box 2, and a box door 18 is movably installed in the cleaning port 23.
Preferably, the output shaft of the motor 5 is fixedly provided with a rotating shaft 6 through a coupling, and the fan blades 7 are fixedly arranged on the rotating shaft 6, so that the rotating shaft 6 drives the fan blades 7 to rotate when rotating.
Preferably, a connecting rod 8 is fixedly installed at one end of the rotating shaft 6, and a cleaning rod 12 is fixedly installed at one end of the connecting rod 8 and penetrates through the connecting hole 10, so that the rotating shaft 6 can drive the cleaning rod 12 to rotate when rotating.
Preferably, two rotating grooves 16 are formed in inner walls of two sides of the cleaning opening 23, rotating shafts 17 are fixedly mounted on two sides of the box door 18, and ends, away from each other, of the two rotating shafts 17 extend into the two rotating grooves 16, so that the box door 18 is limited by the rotating grooves 16 when rotating, and the rotating shafts 17 are prevented from being separated from the rotating grooves 16.
Preferably, the mounting box 2 and the box door 18 are both fixedly provided with a fixture block 19, the two fixture blocks 19 are both provided with insertion holes 20, and the two insertion holes 20 are movably provided with the same insertion block 21, so that the box door 18 can be fixed and limited when being closed.
As preferred scheme, furthermore, two supports 3 are fixedly installed in the installation box 2, the same U-shaped frame 4 is fixedly installed on the side, close to each other, of the two supports 3, and the motor 5 is fixedly installed on the U-shaped frame 4, so that the motor 5 is convenient to fix and limit.
Preferably, a filter screen is fixedly mounted on the fixing plate 9, and the cleaning rod 12 is in contact with the filter screen, so that the cleaning rod 12 is driven to rotate on the filter screen when the rotating shaft 6 rotates, and the filter screen is cleaned by the cleaning rod 12.
The working principle is as follows:
when the drilling machine body 1 works, the arrangement of the protective cover 24 can prevent the splash of fragments, the motor 5 is started, the motor 5 drives the rotating shaft 6 to rotate, the rotating shaft 6 rotates to drive the fan blades 7 to rotate, the rotating shaft 6 rotates to drive the connecting rod 8 to rotate, the connecting rod 8 rotates to drive the cleaning rod 12 to rotate on the filter screen, so that the cleaning rod 12 can clean impurities on the filter screen, normal ventilation of the filter screen can be ensured, the fan blades 7 rotate to generate suction, the suction sucks grinding fragments generated when the drilling machine body 1 works into the installation box 2 through the dust suction pipeline 14 and the dust suction cover 15, as the installation box 2 is internally and fixedly provided with the fixing plate 9, the filter screen is fixedly arranged on the fixing plate 9, the sucked fragments can not damage the fan blades 7, the normal work of the fan blades 7 is ensured, when the fragments in the installation box 2 need to be cleaned, pull out inserted block 21, can open chamber door 18, clear up the piece, consequently drilling machine body 1 is in the installation box 2 with the piece suction in the course of working, has avoided grinding piece entering air to cause the harm to operating personnel's health, has avoided the piece to pile up on the workstation simultaneously, can effectually ensure that the clamping is accurate to can ensure processingquality.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
