Abstract

The utility model belongs to the technical field of wood cabinet processing, in particular to a cutting device with a dust removing structure for processing a wood cabinet, which comprises a dust hood and a device base, a water inlet is penetrated through the inner wall of the dust separation cover, one end of the water inlet is connected with a hollow connecting rod, and the lower part of the hollow connecting rod is connected with a nozzle, the outer side of the dust shield is fixed with a fan, the side surface of the dust shield is connected with a first motor, one end of the first motor is connected with a rotating shaft, one end of the rotating shaft is connected with a screw rod, a fixed block penetrates through the outer side of the screw rod, a second motor is fixed below the fixed block, and one side of the second motor is connected with a cutting saw blade, a machine tool is fixed below the dust hood, and the inner side of the machine tool is provided with a roller, the device base is fixed below the machine tool, and a material guide opening is formed above the device base. This cutting device is used in processing of wooden cupboard with dust removal structure has the dust removal function, is convenient for cut.

Description

Cutting device is used in processing of wooden cupboard with dust removal structure
Technical Field
The utility model relates to a wooden cupboard processing technology field specifically is a cutting device is used in processing of wooden cupboard with dust removal structure.
Background
Cutting equipment means to carry out the size cutting to various building, furniture panel a device, especially in the furniture field, before furniture such as cupboard is assembled, need process the cutting to panel earlier, along with the development of society, many neotype cutting equipment continue to put into the market, nevertheless current cutting equipment technique still has following problem:
1. the existing cutting equipment does not have a dust removal function in use, a large amount of sawdust can be generated in the process of cutting the cabinet plate, but part of smaller sawdust can fly in the air, and is easily sucked into the body by workers, so that the health of the human body is affected;
2. the existing cutting equipment is inconvenient to cut in use, the cutting device needs to be adjusted due to different sizes, lengths and widths of each part of the cabinet, and the cutting device in the existing cutting equipment is inconvenient to adjust, so that the practicability of the equipment is affected.
To the above problems, innovative design is urgently needed on the basis of the original cutting device for processing the wooden cabinet with the dust removal structure.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a cutting device is used in processing of wooden cupboard with dust removal structure to it does not have dust removal function, the problem of the cutting of being not convenient for to provide current cutting device is used in processing of wooden cupboard with dust removal structure in solving above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a cutting device with a dust removal structure for processing a wooden cabinet comprises a dust separation cover and a device base, wherein a water inlet penetrates through the inner wall of the dust separation cover, one end of the water inlet is connected with a hollow connecting rod, a nozzle is connected below the hollow connecting rod, a fan is fixed on the outer side of the dust separation cover, a first motor is connected to the side face of the dust separation cover, a rotating shaft is connected to one end of the first motor, a lead screw is connected to one end of the rotating shaft, a fixing block penetrates through the outer side of the lead screw, a second motor is fixed below the fixing block, a cutting saw blade is connected to one side of the second motor, a machine tool is fixed below the dust separation cover, a roller wheel is arranged on the inner side of the machine tool, the device base is fixed below the machine tool, a material guide opening is formed above the device base, a collecting box is arranged below the material guide opening, a filter screen is arranged inside the collecting box, and a water outlet is arranged below the filter screen.
Preferably, the dust hood and the machine tool are arranged in the same straight line, and the dust hood and the machine tool are connected by a vertical structure.
Preferably, the nozzles are distributed on the hollow connecting rod at equal intervals, and the nozzles and the machine tool are arranged in the same straight line.
Preferably, the fans are symmetrically arranged about the axis of the machine tool, and the fans are distributed on the side surface of the machine tool at equal intervals.
Preferably, a transmission mounting structure is formed between the first motor and the second motor through a screw rod, and the first motor and the screw rod are coaxially arranged.
Preferably, the material guide port and the machine tool are arranged in a parallel structure, and the material guide port and the collecting box are arranged in the same straight line.
Compared with the prior art, the beneficial effects of the utility model are that: the cutting device with the dust removal structure for processing the wooden cupboard has the dust removal function and is convenient to cut;
1. when the device is used, the cutting device with the dust removal structure for processing the wooden cabinet is provided with the dust isolation cover, generated sawdust dust can be blocked by the dust isolation cover in the cutting process, the dust isolation cover can be connected with a water pipe through a water inlet, a water source is sprayed out through a nozzle arranged below the hollow connecting rod, dust falling operation is performed on the dust generated in the cutting process, and the dust and the sawdust are blown into a material guide opening through a fan, so that the dust falling operation can be completed;
2. when using the device, through placing panel on the running roller on the lathe, through promoting panel, make panel pass through the running roller and move on the lathe, through starting first motor, first motor drives the lead screw rotation through the pivot, and the lead screw drives the cutting saw bit through the fixed block is indirect and carries out horizontal back-and-forth movement for the position of adjustable cutting panel is convenient for to the cutting of panel.
Drawings

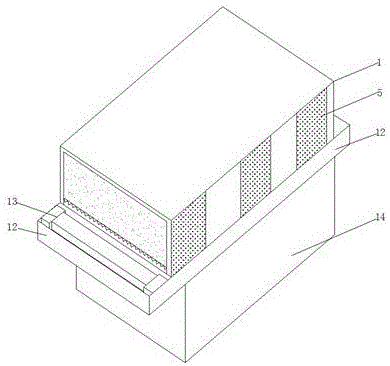

FIG. 1 is a schematic view of the overall three-dimensional structure of the present invention;
FIG. 2 is a schematic view of the overall front view cross-section structure of the present invention;
FIG. 3 is a schematic view of the overall external structure of the present invention;
FIG. 4 is a schematic view of the overall left-side external structure of the present invention;
fig. 5 is a schematic view of the overall top-view cross-sectional structure of the present invention.
In the figure: 1. a dust shield; 2. a water inlet; 3. a hollow connecting rod; 4. a nozzle; 5. a fan; 6. a first motor; 7. a rotating shaft; 8. a screw rod; 9. a fixed block; 10. a second motor; 11. cutting the saw blade; 12. a machine tool; 13. a roller; 14. a device base; 15. a material guide port; 16. a collection box; 17. filtering with a screen; 18. and (7) a water outlet.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a cutting device with a dust removal structure for processing a wooden cabinet comprises a dust shield 1, a water inlet 2, a hollow connecting rod 3, a nozzle 4, a fan 5, a first motor 6, a rotating shaft 7, a screw rod 8, a fixed block 9, a second motor 10, a cutting saw blade 11, a machine tool 12, a roller 13, a device base 14, a material guide port 15, a collecting box 16, a filter screen 17 and a water outlet 18, wherein the water inlet 2 penetrates through the inner wall of the dust shield 1, one end of the water inlet 2 is connected with the hollow connecting rod 3, the nozzle 4 is connected below the hollow connecting rod 3, the fan 5 is fixed on the outer side of the dust shield 1, the first motor 6 is connected on the side surface of the dust shield 1, one end of the first motor 6 is connected with the rotating shaft 7, one end of the rotating shaft 7 is connected with the screw rod 8, the screw rod 9 penetrates through the outer side of the fixed block 8, the second motor 10 is fixed below the fixed on the fixed block 9, and one side of the second motor 10 is connected with the cutting saw blade 11, a machine tool 12 is fixed below the dust hood 1, a roller 13 is arranged on the inner side of the machine tool 12, a device base 14 is fixed below the machine tool 12, a material guide port 15 is formed above the device base 14, a collecting box 16 is arranged below the material guide port 15, a filter screen 17 is arranged inside the collecting box 16, and a water outlet 18 is arranged below the filter screen 17;
furthermore, the dust hood 1 and the machine tool 12 are arranged in the same straight line, and the dust hood 1 and the machine tool 12 are connected by adopting a vertical structure, so that dust and sawdust generated in the cutting process are conveniently blocked, and the dust hood 1 and the machine tool 12 are connected by adopting a vertical structure, so that the stability of the device is conveniently maintained;
furthermore, the nozzles 4 are distributed on the hollow connecting rod 3 at equal intervals, and the nozzles 4 and the machine tool 12 are arranged in the same straight line, so that the arrangement of the nozzles 4 is convenient for keeping the humidity inside the dust hood 1 and reducing dust of fine wood dust;
further, the fans 5 are symmetrically arranged about the axis of the machine tool 12, and the fans 5 are equidistantly distributed on the side surface of the machine tool 12, so that the mixture of wood chips, dust and the like generated in the cutting process is blown into the material guide port 15 through the fans 5 to clean the waste chips;
further, a transmission mounting structure is formed between the first motor 6 and the second motor 10 through a screw rod 8, the first motor 6 and the screw rod 8 are coaxially arranged, the first motor 6 and the second motor 10 drive the screw rod 8 to rotate through a rotating shaft 7 by starting the first motor 6 through the transmission structure, and the screw rod 8 indirectly drives the cutting saw blade 11 to horizontally move back and forth through a fixing block 9;
furthermore, the material guiding port 15 and the machine tool 12 are arranged in a parallel structure, and the material guiding port 15 and the collecting box 16 are arranged in the same straight line, so that dust and sawdust can be conveniently fed into the collecting box 16 through the material guiding port 15.
The working principle is as follows: when the cutting device with the dust removal structure for processing the wooden cabinet is used, firstly, the plate is placed on the roller 13 on the machine tool 12, the plate is moved on the machine tool 12 through the roller 13 by pushing the plate, the first motor 6 is started, the first motor 6 drives the screw rod 8 to rotate through the rotating shaft 7, the screw rod 8 indirectly drives the cutting saw blade 11 to horizontally move back and forth through the fixing block 9, so that the position of the cutting plate can be adjusted, the cutting of the plate is convenient, in the cutting process, the generated sawdust dust can be blocked by the dust-proof cover 1, the water pipe can be connected through the water inlet 2, a water source is sprayed out through the nozzle 4 arranged below the hollow connecting rod 3, the dust generated in the cutting process is subjected to dust fall operation, the dust and the sawdust are blown into the guide opening 15 through the fan 5, the waste scraps enter the collecting box 16 through the guide opening 15, and the waste scraps are filtered through the filter screen 17, separating the waste scraps from the water, and discharging the waste water through the water outlet 18.
It should be finally noted that the above only serves to illustrate the technical solution of the present invention, and not to limit the scope of the present invention, and that simple modifications or equivalent replacements performed by those skilled in the art to the technical solution of the present invention do not depart from the spirit and scope of the technical solution of the present invention.

Claims (6)

1. The utility model provides a cutting device is used in processing of wooden cupboard with dust removal structure, includes dust hood (1) and device base (14), its characterized in that: a water inlet (2) penetrates through the inner wall of the dust separation cover (1), one end of the water inlet (2) is connected with a hollow connecting rod (3), a nozzle (4) is connected below the hollow connecting rod (3), a fan (5) is fixed on the outer side of the dust separation cover (1), a first motor (6) is connected to the side surface of the dust separation cover (1), a rotating shaft (7) is connected to one end of the first motor (6), a lead screw (8) is connected to one end of the rotating shaft (7), a fixing block (9) penetrates through the outer side of the lead screw (8), a second motor (10) is fixed below the fixing block (9), a cutting saw blade (11) is connected to one side of the second motor (10), a machine tool (12) is fixed below the dust separation cover (1), a roller (13) is arranged on the inner side of the machine tool (12), and a device base (14) is fixed below the machine tool (12), and a material guide port (15) is formed above the device base (14), a collecting box (16) is arranged below the material guide port (15), a filter screen (17) is arranged inside the collecting box (16), and a water outlet (18) is arranged below the filter screen (17).
2. The cutting device with a dust removing structure for processing wooden cabinets of claim 1, wherein: the dust hood (1) and the machine tool (12) are arranged in the same straight line, and the dust hood (1) and the machine tool (12) are connected through a vertical structure.
3. The cutting device with a dust removing structure for processing wooden cabinets of claim 1, wherein: the nozzles (4) are distributed on the hollow connecting rod (3) at equal intervals, and the nozzles (4) and the machine tool (12) are arranged in the same straight line.
4. The cutting device with a dust removing structure for processing wooden cabinets of claim 1, wherein: the fans (5) are symmetrically arranged relative to the axis of the machine tool (12), and the fans (5) are distributed on the side surface of the machine tool (12) at equal intervals.
5. The cutting device with a dust removing structure for processing wooden cabinets of claim 1, wherein: a transmission mounting structure is formed between the first motor (6) and the second motor (10) through a screw rod (8), and the first motor (6) and the screw rod (8) are coaxially arranged.
6. The cutting device with a dust removing structure for processing wooden cabinets of claim 1, wherein: the material guide port (15) and the machine tool (12) are arranged in a parallel structure, and the material guide port (15) and the collection box (16) are arranged in the same straight line.
