Abstract
The utility model discloses a detection device for electric power thing networking, including the electric box, be provided with a plurality of electric power check out test set in the electric box, the vertical mounting panel that is provided with in the electric box, each electric power check out test set all installs on the mounting panel, still installs intelligent temperature controller and temperature sensor on the mounting panel, and temperature sensor is electrically connected with the input of intelligent temperature controller; the left end and the right end of the top wall of the electrical box are respectively positioned on the left side of the left side wall and the right side of the right side wall of the electrical box, and the bottom wall of the electrical box is positioned above the lower ends of the four side walls of the electrical box; the upper ends of the left side wall and the right side wall of the electric box are provided with upper air holes, the bottom wall of the electric box is provided with lower air holes, a heat dissipation fan is arranged at the position of the lower air holes on the bottom wall of the electric box, and the heat dissipation fan is electrically connected with the output end of the intelligent temperature controller; the utility model discloses fine heat-sinking capability and waterproof ability have concurrently, can ensure that each check out test set can be normal use under bad weather such as high temperature, rainy day.
Description
Technical Field
The utility model relates to an electric power detects technical field, specifically is a detection device for electric power thing networking.
Background
The electric power internet of things is an intelligent service system which surrounds all links of an electric power system, fully applies modern information technologies such as mobile interconnection, artificial intelligence and the like and advanced communication technologies, realizes the mutual object interconnection and man-machine interaction of all links of the electric power system, and has the characteristics of comprehensive state perception, efficient information processing and convenient and flexible application. The detection equipment used by the power internet of things comprises voltage detection equipment, current detection equipment, electric energy detection equipment, electric leakage detection equipment, comprehensive detection equipment for detecting various power parameters and the like. These test devices are usually centrally located in an electrical box, forming a systematic test set, and are installed close to the electrical devices or facilities to be tested. When the electrical equipment or facilities to be detected are arranged outdoors, such as bus stations, road street lamps and the like, the detection device is required to have good heat dissipation capability and waterproof capability so as to ensure that each detection device can be normally used in severe weather such as high temperature, rainy days and the like.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an electric power is detection device for thing networking has fine heat-sinking capability and waterproof ability concurrently, can ensure that each check out test set can be normal use under bad weather such as high temperature, rainy day.
The utility model discloses a realize like this: a detection device for an electric power Internet of things comprises an electric box, wherein a plurality of electric power detection devices are arranged in the electric box, a rubber sealing strip is arranged between a box door and a door frame of the electric box, an installation plate is vertically arranged in the electric box, each electric power detection device is installed on the installation plate, an intelligent temperature controller and a temperature sensor are also installed on the installation plate, and the temperature sensor is electrically connected with the input end of the intelligent temperature controller; the left end and the right end of the top wall of the electrical box are respectively positioned on the left side of the left side wall and the right side of the right side wall of the electrical box, and the bottom wall of the electrical box is positioned above the lower ends of the four side walls of the electrical box; the upper end of the left side wall and the right side wall of the electric box is provided with an air vent, the bottom wall of the electric box is provided with a lower air vent, a heat dissipation fan is installed at the position of the lower air vent on the bottom wall of the electric box, and the heat dissipation fan is electrically connected with the output end of the intelligent temperature controller.
Further, the left end below slope left side of electrical box roof sets up, and the lower extreme of electrical box roof left end is less than the last bleeder vent that sets up on the electrical box left side wall, the right-hand member below slope right side of electrical box roof sets up, and the lower extreme of electrical box roof right-hand member is less than the last bleeder vent that sets up on the electrical box right side wall.
Furthermore, a left baffle is arranged on the left side wall of the electric box and positioned on the front side and the rear side of the air holes on the left side wall of the electric box respectively, the upper end of the left baffle is connected with the top wall of the electric box, and the lower end of the left baffle is lower than the upper air holes arranged on the left side wall of the electric box; the left side wall of the electric box is provided with a left baffle plate, the right side wall of the electric box is provided with a right baffle plate, the left side wall and the right side wall of the electric box are respectively provided with a left air hole and a right air hole, the left side wall and the right side wall of the electric box are respectively provided with a right baffle plate, the upper end of the right baffle plate is connected with the top wall of the electric box, and the lower end of the right baffle plate is lower than the left air hole.
Furthermore, except the outer side surface of the bottom wall of the electric box, the outer side surfaces of other box walls are provided with aluminum foil reflecting films.
Furthermore, the intelligent temperature controller is a digital display type intelligent temperature controller with the model of CH102, and the temperature sensor is a compression spring couple with the model of WRET-01.
Furthermore, be provided with the ring installed part of constituteing by two semicircle rings on the rear side wall of electric box, in two semicircle rings of ring installed part, a semicircle ring links to each other with the rear side wall welding of electric box, and another semicircle ring passes through the bolt and nut can dismantle with this semicircle ring and links to each other.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses fine heat-sinking capability and waterproof ability have concurrently, can ensure that each check out test set can be normal use under bad weather such as high temperature, rainy day.
2. The electric box all is provided with the aluminium foil reflectance coating on the lateral surface of other each tank wall except the lateral surface of diapire for the electric box has the thermal ability of reflection sunshine irradiation, has improved the utility model discloses an adaptability among the high temperature environment.
3. Be provided with the ring installed part of constituteing by two semicircle rings on the rear side wall of electric box, in two semicircle rings of ring installed part, a semicircle ring links to each other with the rear side wall welding of electric box, and another semicircle ring passes through the bolt and the nut can dismantle with this semicircle ring and links to each other. Make through setting up of ring installed part the utility model discloses be convenient for install on cylindric objects such as wire pole, street lamp pole, improved the utility model discloses the convenience of installation.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.
Fig. 1 is a schematic structural view of the detection device for the power internet of things of the present invention;
fig. 2 is a side view of the detection device for the power internet of things of the present invention;
fig. 3 is a schematic perspective view of a ring mounting member of the detection device for the power internet of things according to the present invention;

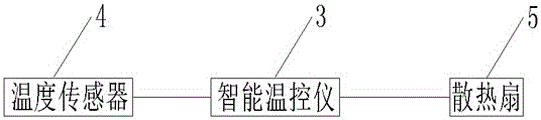

fig. 4 is the utility model relates to an electric power is automatically controlled structure block diagram of detection device for thing networking.
In the figure: 1. an electric box; 101. air holes are arranged; 102. air holes are formed; 2. mounting a plate; 3. an intelligent temperature controller; 4. a temperature sensor; 5. a heat dissipation fan; 6. a left baffle; 7. a right baffle; 8. a ring mount; 801. a semicircular ring.
Detailed Description
To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings of the embodiments of the present invention are combined to clearly and completely describe the technical solutions of the embodiments of the present invention, and obviously, the described embodiments are some embodiments of the present invention, not all embodiments. Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the terms in the present invention can be understood according to the specific situation by those skilled in the art.
Referring to fig. 1 and 4, a detection device for an electric power internet of things includes an electrical box 1, a plurality of electric power detection devices are disposed in the electrical box 1, and a rubber sealing strip is disposed between a box door and a door frame of the electrical box 1. The electrical box 1 is vertically provided with the mounting plate 2, and each power detection device is installed on the mounting plate 2 and is not directly installed on the rear wall or the front wall of the electrical box 1, so that the rear wall or the front wall of the electrical box 1 does not need to be perforated, and the waterproof capacity of the electrical box 1 is improved. Still install intelligent temperature controller 3 and temperature sensor 4 on the mounting panel 2, intelligent temperature controller 3 chooses for use the model to be the digital display formula intelligent temperature controller of CH102, and temperature sensor 4 chooses for use the model to be the pressure spring couple of WRET-01, and temperature sensor 4 links to each other with intelligent temperature controller 3's input electrical property. Both ends are located the left side of 1 left side wall of electric box and the right side of right side wall respectively about the roof of electric box 1, and the diapire of electric box 1 is located the top of 1 four lateral wall lower extremes of electric box. The upper ends of the left side wall and the right side wall of the electric box 1 are provided with an upper air hole 101, the bottom wall of the electric box 1 is provided with a lower air hole 102, a heat dissipation fan 5 is installed at the position of the lower air hole 102 on the bottom wall of the electric box 1, and the heat dissipation fan 5 is electrically connected with the output end of the intelligent temperature controller 3.
The utility model discloses a theory of operation: because both ends are located the left side of electric box 1 left side wall and the right side of right side wall respectively about electric box 1 roof, the diapire of electric box 1 is located the top of the four lateral wall lower extremes of electric box 1 for during rainwater weather, external rainwater can not get into in electric box 1 through last bleeder vent 101 that sets up in electric box 1 left side wall and right side wall upper end and the lower bleeder vent 102 that sets up on electric box 1 diapire. Since the upper vent hole 101 and the lower vent hole 102 are respectively disposed at the upper end and the lower end of the electrical box 1, when air is circulated, air entering the electrical box 1 flows through each power detection device in the electrical box 1, and the heat dissipation effect is good. During high temperature weather, can not satisfy the heat dissipation requirement through the free circulation of air, set up alarm temperature on intelligent temperature controller 3, when temperature sensor 4 detected the temperature in electric box 1 and reached alarm temperature, intelligent temperature controller 3 control heat dissipation fan 5 starts, dispels the heat to each electric power check out test set in the electric box 1.
To sum up, the utility model discloses have fine heat-sinking capability and waterproof ability concurrently, can ensure that each check out test set can be normal use under bad weather such as high temperature, rainy day.
Referring to fig. 1, the left end of the top wall of the electrical box 1 is inclined towards the left lower side, the lowest end of the left end of the top wall of the electrical box 1 is lower than the upper air hole 101 formed in the left side wall of the electrical box 1, the right end of the top wall of the electrical box 1 is inclined towards the right lower side, and the lowest end of the right end of the top wall of the electrical box 1 is lower than the upper air hole 101 formed in the right side wall of the electrical box 1. The left side wall of the electric box 1 is provided with a left baffle 6 at the front side and the rear side of the air hole 101, the upper end of the left baffle 6 is connected with the top wall of the electric box 1, and the lower end of the left baffle is lower than the upper air hole 101 arranged on the left side wall of the electric box 1. The right side wall of the electric box 1 is provided with a right baffle 7 at the front side and the rear side of the air hole 101, the upper end of the right baffle 7 is connected with the top wall of the electric box 1, and the lower end of the right baffle is lower than the upper air hole 101 arranged on the right side wall of the electric box 1. Under the protection of both ends and left baffle 6 and right baffle 7 about electric box 1 roof, external rainwater also hardly gets into electric box 1 through last bleeder vent 101 under the effect of wind, has further improved the utility model discloses a waterproof capacity.
In this embodiment, the electric box 1 all is provided with the aluminium foil reflectance coating on the lateral surface of other each tank wall except the lateral surface of diapire for electric box 1 has the thermal ability of reflection sunshine irradiation, has improved the utility model discloses an adaptability among the high temperature environment.
Referring to fig. 2 and 3, a circular ring installation member 8 composed of two semicircular rings 801 is disposed on a rear side wall of the electrical box 1, one semicircular ring 801 of the two semicircular rings 801 of the circular ring installation member 8 is connected with the rear side wall of the electrical box 1 by welding, and the other semicircular ring 801 is detachably connected with the semicircular ring 801 by bolts and nuts. Make through setting up of ring installed part 8 the utility model discloses be convenient for install on cylindric objects such as wire pole, street lamp pole, improved the utility model discloses the convenience of installation.
The above is only a preferred embodiment of the present invention, and is not intended to limit the present invention, and various modifications and changes will occur to those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The detection device for the power Internet of things comprises an electrical cabinet (1), wherein a plurality of power detection devices are arranged in the electrical cabinet (1), and a rubber sealing strip is arranged between a cabinet door and a door frame of the electrical cabinet (1), and is characterized in that a mounting plate (2) is vertically arranged in the electrical cabinet (1), each power detection device is mounted on the mounting plate (2), an intelligent temperature controller (3) and a temperature sensor (4) are further mounted on the mounting plate (2), and the temperature sensor (4) is electrically connected with an input end of the intelligent temperature controller (3); the left end and the right end of the top wall of the electrical box (1) are respectively positioned on the left side of the left side wall and the right side of the right side wall of the electrical box (1), and the bottom wall of the electrical box (1) is positioned above the lower ends of the four side walls of the electrical box (1); the left side wall of electric box (1) and the upper end of right side wall are provided with bleeder vent (101), be provided with bleeder vent (102) down on the diapire of electric box (1), the position department that lies in bleeder vent (102) down on the diapire of electric box (1) installs heat dissipation fan (5), the output electrical property of heat dissipation fan (5) and intelligent temperature controller (3) links to each other.
2. The electric power is detection device for thing networking of claim 1, characterized in that, the left end of electrical cabinet (1) roof sets up to the below left slope, and the bottommost end of electrical cabinet (1) roof left end is less than last bleeder vent (101) that set up on electrical cabinet (1) left side wall, the right end of electrical cabinet (1) roof sets up to the below right slope, and the bottommost end of electrical cabinet (1) roof right end is less than last bleeder vent (101) that set up on electrical cabinet (1) right side wall.
3. The detection device for the internet of things of electric power according to claim 2, wherein a left baffle (6) is respectively arranged on the left side wall of the electric box (1) at the front side and the rear side of the air hole (101) formed in the electric box, the upper end of the left baffle (6) is connected with the top wall of the electric box (1), and the lower end of the left baffle is lower than the upper air hole (101) formed in the left side wall of the electric box (1); the left side wall of the electric box (1) is provided with a left baffle (7) on the front side and the rear side of the air holes (101) on the left side wall, the upper end of the left baffle (7) is connected with the top wall of the electric box (1), and the lower end of the left baffle is lower than the upper air holes (101) arranged on the right side wall of the electric box (1).
4. The detection device for the internet of things of electric power according to any one of claims 1 to 3, wherein an aluminum foil reflection film is arranged on the outer side surface of each box wall except the outer side surface of the bottom wall of the electric box (1).
5. The detection device for the Internet of things of electric power according to any one of claims 1 to 3, wherein a digital display type intelligent temperature controller with the model of CH102 is selected as the intelligent temperature controller (3), and a pressure spring couple with the model of WRET-01 is selected as the temperature sensor (4).
6. The detection device for the internet of things of electric power according to any one of claims 1 to 3, wherein a circular ring installation piece (8) consisting of two semicircular rings (801) is arranged on the rear side wall of the electric box (1), one semicircular ring (801) of the two semicircular rings (801) of the circular ring installation piece (8) is connected with the rear side wall of the electric box (1) in a welding mode, and the other semicircular ring (801) is detachably connected with the semicircular ring (801) through a bolt and a nut.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202023035704.2U CN213880729U (en) | 2020-12-17 | 2020-12-17 | Detection device for electric power thing networking |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202023035704.2U CN213880729U (en) | 2020-12-17 | 2020-12-17 | Detection device for electric power thing networking |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN213880729U true CN213880729U (en) | 2021-08-03 |
Family
ID=77068671
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202023035704.2U Expired - Fee Related CN213880729U (en) | 2020-12-17 | 2020-12-17 | Detection device for electric power thing networking |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN213880729U (en) |
-
2020
- 2020-12-17 CN CN202023035704.2U patent/CN213880729U/en not_active Expired - Fee Related
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
