Abstract
The utility model relates to the technical field of cutting machines, and discloses a cutting device for clothing production, which solves the problems that no corresponding fixing device is arranged on the workbench of the clothing cutting device on the current market, so that the cloth which is cut is easy to move when the material is cut, the cutting precision is reduced, and the current cutting device uses manual cutting and wastes manpower, and comprises a cutting machine base, a cutting workbench is fixedly arranged at the top of the cutting machine base, a transmission motor is fixedly arranged inside the cutting workbench, a rotating shaft rod is fixedly sleeved at the output end of the transmission motor, a gear is sleeved outside the rotating shaft rod, a clamping plate is fixedly arranged inside the cutting workbench, a rack plate is movably connected inside the clamping plate, sliding grooves are respectively arranged at two sides of the rack plate, and the bottom of the rack plate is meshed and connected with the outer wall of the gear, the utility model, the cloth cutting machine has the advantages that the cloth can be automatically cut and fixed to the cloth to be cut, and the cloth is prevented from sliding in the cutting process.
Description
Technical Field
The utility model belongs to the technical field of the cutter, specifically be a tailoring device is used in clothing production.
Background
The cutting machine is suitable for sportswear such as women's dress, fashion, uniform, suit, jeans and the like, knitted dress, automobile seats, interior trim parts, furniture and the like, and the equipment is designed in a silent mode, so that the noise concentration (outdoor) exhaust of working environment is reduced, dust is reduced, and the production environment is improved, and the equipment is provided with a self-diagnosis function (when a fault occurs, a screen automatically prompts).
However, the current garment cutting devices on the market do not have corresponding fixing devices on the workbench, so that the cut cloth is easy to move and the cutting precision is reduced when the cloth is cut, and the current cutting devices use manual cutting and waste manpower.
Disclosure of Invention
To the above situation, for overcoming prior art's defect, the utility model provides a tailoring device is used in clothing production does not have corresponding fixing device on the effectual workstation that has solved the tailoring device on the existing market to when leading to the cloth to tailor, the cloth that needs to tailor moves easily, leads to tailorring the precision and descends, and what be exactly now tailors the device and uses the manual work to tailor, the problem of extravagant manpower.
In order to achieve the above object, the utility model provides a following technical scheme: a tailoring device for clothing production comprises a tailoring machine base, wherein a tailoring workbench is fixedly installed at the top of the tailoring machine base, a transmission motor is fixedly installed inside the tailoring workbench, a rotating shaft rod is fixedly sleeved at the output end of the transmission motor, a gear is fixedly sleeved outside the rotating shaft rod, a clamping plate is fixedly installed inside the tailoring workbench, a rack plate is movably connected inside the clamping plate, sliding grooves are formed in two sides of the rack plate, the bottom of the rack plate is meshed and connected with the outer wall of the gear, a fixed rod is fixedly installed at the top of the rack plate, a nut is in threaded connection with one end of the fixed rod, a tailoring machine box is fixed on one side of the nut, a buckle is fixedly installed on one side of the tailoring machine box, a control rod is movably inserted inside the buckle, and a connecting rod is fixedly connected at the bottom of the control rod, the utility model discloses a cutting machine, including the bottom fixed mounting of connecting rod, protect the inside fixed cover of bracelet and have connect the blade, the top activity plug-in of blade is to the inside of tailor quick-witted case, one side of tailorring the workstation is equipped with the fixed subassembly of joint, the fixed subassembly of joint includes first bracing piece, first telescopic link, hinge, fixed thorn, second telescopic link and second bracing piece, one side fixed mounting who tailors the workstation has first bracing piece, first telescopic link has been cup jointed in the inside activity of first bracing piece, the inside fixed mounting of first telescopic link has the hinge, top one side of first telescopic link is equipped with the second bracing piece, the second bracing piece passes through hinge swing joint with first telescopic link, the inside activity of second bracing piece is pegged graft and is had the second telescopic link, one side fixed mounting of second telescopic link has fixed thorn.
Preferably, a handle is fixedly mounted on one side of the cutting machine case, and the handle and the buckles are distributed on two sides of the cutting machine case.
Preferably, the bottom fixed mounting of cutter base has the universal wheel, the quantity of universal wheel is four, four the distribution of the equal distance of universal wheel is in the bottom of cutter base.
Preferably, the number of the buckles is two, and the internal threads of the two buckles are connected with two screws which are fixedly connected through the screws.
Preferably, the top of the cutting workbench is provided with a groove, and the bottom of the fixing rod penetrates through the groove and is fixedly connected to the top of the rack plate.
Preferably, a rack plate opening is formed in one side of the cutting workbench, and the rack plate opening and a rack plate movably mounted inside the cutting workbench are located on the same horizontal plane.
Compared with the prior art, the beneficial effects of the utility model are that:
1) in the work, a transmission motor 19 is fixedly installed inside the cutting workbench 11, when the motor works, a rotating shaft rod is fixedly connected with the output end of the transmission motor, when the rotating shaft rod rotates, a gear sleeved outside the rotating shaft rod is driven to rotate, the gear is meshed with a rack plate through a gear, when the gear rotates, the rack plate is driven to move, a fixed rod is fixedly installed at the top of the rack plate, when the rack plate moves, the fixed rod moves, one end of the fixed rod is fixedly connected with a cutting machine case through a nut, when the fixed rod moves, the cutting machine case is driven to move, and when the fixed rod moves, a blade movably inserted into the cutting machine case is arranged, so that the blade moves when the cutting machine case moves, and therefore, the cloth is automatically cut by the device;
2) the utility model discloses a cloth cutting machine, including first bracing piece, first telescopic link, hinge and second bracing piece swing joint, the inside activity of second bracing piece is pegged graft and is had the second telescopic link, one side fixed mounting of second telescopic link has fixed thorn, when the during operation, draw superimposed cloth thickness with the second telescopic link, use fixed thorn to press on the cloth, has reached from this to the required fixed of tailorring the cloth, prevents to tailor in-process cloth and slides.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

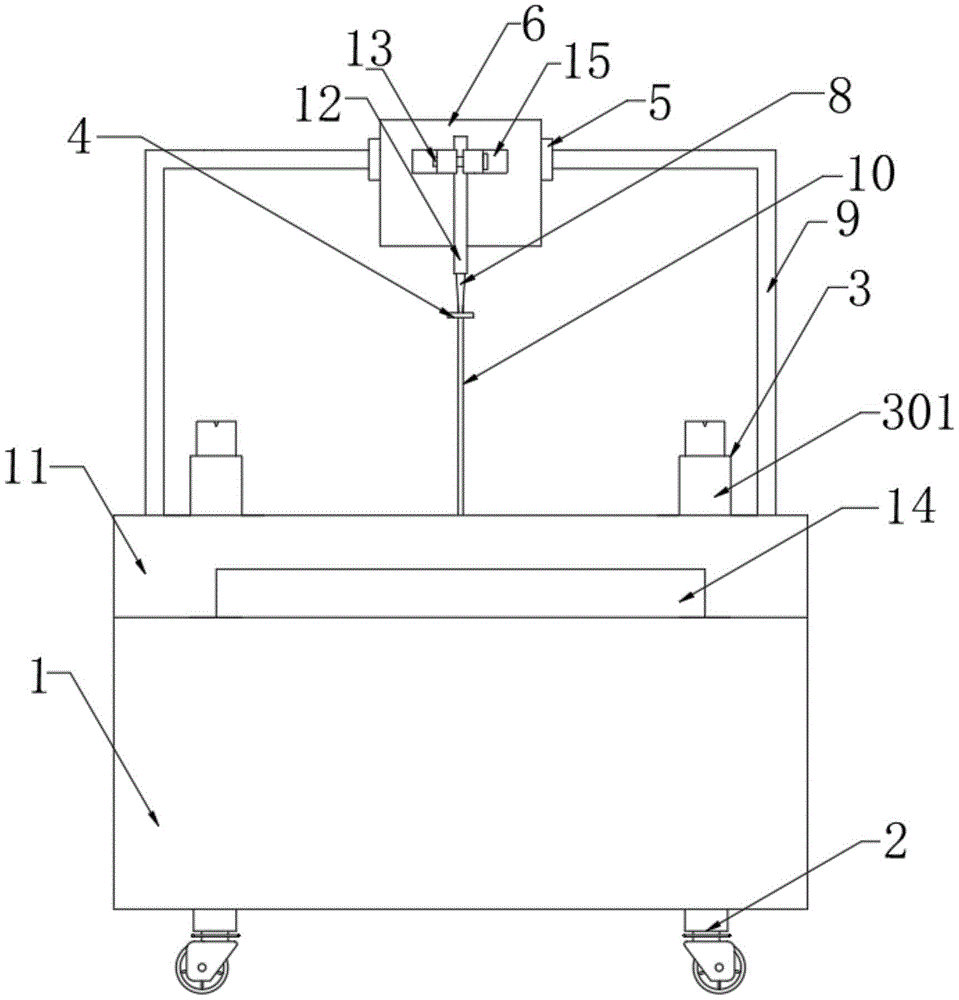

fig. 1 is a schematic back structure diagram of the present invention;
fig. 2 is a schematic front structural view of the present invention;
FIG. 3 is a schematic top view of the cutting table of the present invention;
fig. 4 is a schematic view of a rack plate connection structure of the present invention;
fig. 5 is a schematic structural view of the fixing assembly of the present invention;
in the figure: 1. a cutting machine base; 2. a universal wheel; 3. clamping and fixing the assembly; 301. a first support bar; 302. a first telescopic rod; 303. hinge; 304. fixing the spine; 305. a second telescopic rod; 306. a second support bar; 4. a hand protecting ring; 5. a nut; 6. cutting a case; 7. a handle; 8. a connecting rod; 9. fixing the rod; 10. a blade; 11. a cutting workbench; 12. a control lever; 13. a screw; 14. a rack plate opening; 15. buckling; 16. a gear; 17. a spindle rod; 18. A rack plate; 19. a drive motor; 20. a clamping and connecting plate; 21. a chute.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the first embodiment, as shown in fig. 1-5, the utility model comprises a cutting machine base 1, a cutting table 11 is fixedly installed on the top of the cutting machine base 1, a transmission motor 19 is fixedly installed inside the cutting table 11, a rotating shaft rod 17 is fixedly sleeved on the output end of the transmission motor 19, a gear 16 is sleeved on the outer portion of the rotating shaft rod 17, a clamping plate 20 is fixedly installed inside the cutting table 11, a rack plate 18 is movably connected inside the clamping plate 20, sliding grooves 21 are respectively arranged on both sides of the rack plate 18, the bottom of the rack plate 18 is engaged with the outer wall of the gear 16, a fixing rod 9 is fixedly installed on the top of the rack plate 18, a nut 5 is connected with one end of the fixing rod 9 through a thread, a cutting machine case 6 is fixed on one side of the nut 5, a buckle 15 is fixedly installed on one side of the cutting machine case 6, and a control rod, the bottom of the control rod 12 is fixedly connected with a connecting rod 8, the bottom of the connecting rod 8 is fixedly provided with a hand-protecting ring 4, the inside of the hand-protecting ring 4 is fixedly sleeved with a blade 10, the top end of the blade 10 is movably inserted into the inside of the cutting machine case 6, one side of the cutting workbench 11 is provided with a clamping and fixing component 3, the clamping and fixing component 3 comprises a first supporting rod 301, a first telescopic rod 302, a hinge 303, a fixing thorn 304, a second telescopic rod 305 and a second supporting rod 306, one side of the cutting workbench 11 is fixedly provided with the first supporting rod 301, the inside of the first supporting rod 301 is movably sleeved with the first telescopic rod 302, the inside of the first telescopic rod 302 is fixedly provided with the hinge 303, one side of the top of the first telescopic rod 302 is provided with the second supporting rod 306, the second supporting rod 306 is movably connected with the first telescopic rod 302 through the hinge 303, the inside of the second supporting rod 306 is movably inserted with the second telescopic rod 305, a fixing thorn 304 is fixedly arranged on one side of the second telescopic rod 305.
In the second embodiment, on the basis of the first embodiment, the handle 7 is fixedly installed at one side of the cutting machine case 6, the handle 7 and the buckle 15 are distributed at two sides of the cutting machine case 6, and the handle 7 can be used for facilitating the use of the device when people use the device manually.
Third embodiment, on the basis of first embodiment, the bottom fixed mounting of cutting machine base 1 has universal wheel 2, and the quantity of universal wheel 2 is four, and the distribution of the equal distance of four universal wheels 2 is in the bottom of cutting machine base 1, can be when removing this device, and is swift laborsaving more.
Fourth embodiment, on the basis of first embodiment, the buckle 15 quantity is two, and two buckles 15 of two buckle 15's internal thread connection have screw 13 two buckles 15 through screw 13 fixed connection, and screw 13 unscrews, and the distance between two buckles 15 becomes big for control rod 12 can move between two buckles 15, adjusts to a certain position when control rod 12, tightens screw 13, makes two buckles 15 fix control rod 12.
In the fifth embodiment, on the basis of the first embodiment, the top of the cutting table 11 is provided with a groove, and the bottom of the fixing rod 9 is fixedly connected to the top of the rack plate 18 through the groove
Sixth embodiment, on the basis of the first embodiment, a rack plate opening 14 is formed in one side of the cutting table 11, the rack plate opening 14 and a rack plate 18 movably mounted inside the cutting table 11 are located on the same horizontal plane, and when the rack plate 18 moves, the rack plate 18 can extend to the outside of the cutting table 11 through the rack plate opening 14 formed in one side of the cutting table 11.
In this embodiment: the transmission motor is B1/X3.
The working principle is as follows: one side of the cutting workbench 11 is provided with a switch, the transmission motor 19 is electrically connected with a power supply through the switch, the inside of the cutting workbench 11 is fixedly provided with the transmission motor 19, when the motor works, the output end of the transmission motor 19 is fixedly connected with a rotating shaft rod 17, so that the output end of the transmission motor 19 drives the rotating shaft rod 17 to rotate, when the rotating shaft rod 17 rotates, a gear 16 is fixedly sleeved on the outside of the rotating shaft rod 17 to drive the gear 16 to rotate, the gear 16 is meshed and connected with a rack plate 18 through the gear 16, when the gear 16 rotates, the rack plate 18 is driven to move, the inside of a sliding chute 21 arranged on the two sides of the rack plate 18 is fixedly connected with a clamping plate 20 fixedly arranged with the cutting workbench 11, so that the rack plate 18 can be fixed inside the cutting workbench 11, when the rack plate 18 moves, a fixing rod 9 penetrating through a groove arranged on the top of the cutting workbench 11 is fixedly arranged on the top of the rack plate 18, thereby drive dead lever 9 and remove, through nut 5 fixedly connected with tailor quick-witted case 6 of one end of dead lever 9, when dead lever 9 removed for tailor quick-witted case 6 removes, and it has blade 10 to peg graft through the inside activity of tailor quick-witted case 6, makes and drives blade 10 and remove when tailorring quick-witted case 6 removes, reaches this device from this and tailors the cloth automatically.
The second telescopic rod 305 is pulled to reach a certain height, the second telescopic rod 305 is movably inserted into the second supporting rod 306 in a matching way, a first limiting block is fixedly arranged at the bottom of the second telescopic rod 305, the first limiting block is driven to move when the second telescopic rod 305 moves, the first limiting block is contacted with the top of the second supporting rod 306 through the first limiting block, the second supporting rod 306 is driven to move when the first limiting block moves, the second supporting rod 306 is movably connected with the first telescopic rod 302 through a hinge 303, the first telescopic rod 302 is driven to move when the second supporting rod 306 moves, the first telescopic rod 302 is movably inserted into the first supporting rod 301 when the first telescopic rod 302 moves, the first telescopic rod 302 is made to stretch out and draw back in the first supporting rod 301, the second telescopic rod 305 is pulled to control the height according to the thickness of the cut cloth, one side of the second telescopic rod 305 is fixedly provided with the fixed thorn 304, and when the second telescopic rod 305 adjusts a certain height, the fixed thorn 304 fixes the cloth, so that the cloth to be cut is fixed, and the cloth is prevented from sliding in the cutting process.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a tailoring device for clothing production, includes clipper base (1), its characterized in that: the top fixed mounting of cutter base (1) has tailor workstation (11), the inside fixed mounting of tailoring workstation (11) has drive motor (19), the fixed cover of output of drive motor (19) has connect pivot pole (17), the fixed cover in outside of pivot pole (17) has connect gear (16), the inside fixed mounting of tailoring workstation (11) has joint board (20), the inside swing joint of joint board (20) has rack plate (18), spout (21) have all been seted up to the both sides of rack plate (18), the bottom of rack plate (18) is connected with the outer wall meshing of gear (16), the top fixed mounting of rack plate (18) has dead lever (9), the one end threaded connection of dead lever (9) has nut (5), one side of nut (5) is fixed with cutter case (6), one side of the cutting machine case (6) is fixedly provided with a buckle (15), the inner part of the buckle (15) is movably inserted with a control rod (12), the bottom of the control rod (12) is fixedly connected with a connecting rod (8), the bottom of the connecting rod (8) is fixedly provided with a hand-protecting ring (4), the inner part of the hand-protecting ring (4) is fixedly sleeved with a blade (10), the top end of the blade (10) is movably inserted into the cutting machine case (6), one side of the cutting workbench (11) is provided with a clamping fixing component (3), the clamping fixing component (3) comprises a first supporting rod (301), a first telescopic rod (302), a hinge (303), a fixing spine (304), a second telescopic rod (305) and a second supporting rod (306), one side of the cutting workbench (11) is fixedly provided with the first supporting rod (301), the inner part of the first supporting rod (301) is movably sleeved with the first telescopic rod (302), hinge (303) are fixedly installed inside the first telescopic rod (302), a second supporting rod (306) is arranged on one side of the top of the first telescopic rod (302), the second supporting rod (306) is movably connected with the first telescopic rod (302) through the hinge (303), a second telescopic rod (305) is movably inserted into the inside of the second supporting rod (306), and a fixing thorn (304) is fixedly installed on one side of the second telescopic rod (305).
2. The cutting device for garment production according to claim 1, characterized in that: one side of the cutting machine case (6) is fixedly provided with a handle (7), and the handle (7) and the buckle (15) are distributed on two sides of the cutting machine case (6).
3. The cutting device for garment production according to claim 1, characterized in that: the bottom fixed mounting of cutting machine base (1) has universal wheel (2), the quantity of universal wheel (2) is four, four the distribution of the impartial distance of universal wheel (2) is in the bottom of cutting machine base (1).
4. The cutting device for garment production according to claim 1, characterized in that: the number of the buckles (15) is two, the internal threads of the two buckles (15) are connected with two screws (13), and the two buckles (15) are fixedly connected through the screws (13).
5. The cutting device for garment production according to claim 1, characterized in that: the top of the cutting workbench (11) is provided with a groove, and the bottom of the fixing rod (9) penetrates through the groove and is fixedly connected to the top of the rack plate (18).
6. The cutting device for garment production according to claim 1, characterized in that: one side of the cutting workbench (11) is provided with a rack plate opening (14), and the rack plate opening (14) and a rack plate (18) movably arranged in the cutting workbench (11) are positioned on the same horizontal plane.
