The utility model discloses a medical elasticity socks of anti-drop. The anti-falling medical elastic sock comprises an elastic sock main body, a waistband and an elastic rope for connecting the elastic sock main body and the waistband; the elastic sock main body is a long tubular elastic sock from toes or a sole to legs, and the waistband and the elastic rope can be detached. The utility model discloses simple structure can prevent effectively that the elasticity socks from gliding, bad emergence such as drop to the antiskid that has effectively prevented the plastic granule from taking off the emergence that the design leads to allergic phenomenon, improves medical elasticity socks's security.
Description
Technical Field
The utility model relates to the technical field of medical auxiliary equipment, in particular to medical elasticity socks of anti-drop.
Background
The principle of the medical elastic socks is that the pressure from the far end of the instep to the thigh is gradually reduced, the highest supporting pressure is established at the ankle part and gradually reduced upwards along the leg part, and the gradual reduction change of the pressure can lead the venous blood of the lower limb to flow back, thereby effectively relieving or improving the pressure born by the veins and the venous valves of the lower limb. On the other hand, in order to match with the leg structure of the human body, the sock is usually in a structure with a narrow lower surface and a wide upper surface, so that the elastic sock is particularly easy to slide and fall off, and the treatment and prevention effects are affected.
The medical elastic socks are widely applied clinically, and aiming at the problem that the upper parts of the elastic socks are easy to fall off, the plastic particles are added on the upper parts of the elastic socks in the conventional anti-falling method, but the incidence rate of allergy of patients to the plastic materials is high, and certain potential safety hazards exist.
SUMMERY OF THE UTILITY MODEL
The utility model provides an anti-drop medical elasticity socks can solve one or several kinds among the above-mentioned prior art problem.
According to one aspect of the utility model, the anti-falling medical elastic socks are provided, which comprise an elastic sock main body, a waistband and an elastic rope for connecting the elastic sock main body and the waistband; the elastic sock main body is a long tubular elastic sock from toes or a sole to legs, and the waistband and the elastic rope can be detached.
The beneficial effects of the utility model reside in that, the elasticity socks main part is the long tube-shape elasticity socks from toe or sole to thigh middle part or thigh root, and the elasticity socks main part is from the lower part to upper portion decompression in proper order, can make low limbs venous blood backward flow after dressing, and effectual alleviating or improvement shank vein and venous valve bear pressure have good effect to symptoms such as prevention and auxiliary treatment low limbs varicose vein, the deep venous thrombosis of low limbs, low limbs lymphedema. The elastic sock main body is connected with the waistband through the elastic ropes, and the waistband is wound on the waist of a patient, so that the elastic sock main body can be effectively prevented from sliding down or falling off, and the using effect of the medical elastic socks is guaranteed. The elastic rope has stronger flexibility and smaller binding force on the lower limbs, can generate elastic deformation along with the movement of the lower limbs in a certain range, and cannot influence the normal movement of the lower limbs. The waistband and the elastic rope can be detached, so that the whole medical elastic socks can be conveniently put on and taken off, and the comfort of patients is ensured.
In some embodiments, one end of the elastic cord is attached to the waistband and the other end of the elastic cord is attached to the upper edge of the sock body. The elastic sock has the beneficial effects that the upper part of the elastic sock main body is connected with the waistband through the elastic rope, so that the upper part of the elastic sock main body can be effectively prevented from sliding downwards. One end of the elastic rope is connected with the waistband, and one end of the elastic rope is fixed through the waistband wound on the waist. The other end of the elastic rope lifts and pulls the upper part of the elastic sock main body to prevent falling. The anti-falling measure for lifting through the elastic deformation of the elastic rope is safe and effective, and can avoid friction of plastic particles on the skin of the legs, thereby effectively avoiding the symptom of skin allergy.
In some embodiments, the upper edge of the sock body is provided with a first connector capable of engaging an end of the elastic cord; the waistband is provided with a second connecting piece which can be matched with the other end of the elastic rope. The elastic rope has the advantages that the elastic rope is connected with the elastic sock main body and the waistband through the first connecting piece and the second connecting piece respectively, and the elastic rope is simple in structure, convenient to install and not prone to falling off. In some embodiments, the first connector is identical to the second connector. For example, the first connecting piece and the second connecting piece can be provided with the same hook, and correspondingly, the two ends of the elastic rope are provided with the retaining rings matched with the hook. In some embodiments, the first connecting member is different from the second connecting member, for example, the first connecting member and the second connecting member may be respectively configured as a buckle, a hook and loop fastener, and the like, and correspondingly, the two ends of the elastic rope may be respectively configured with a ferrule and a hook and loop fastener structure that are matched with the buckle and the hook and loop fastener.
In some embodiments, the first connecting member is a "Y" shaped strap, and one end of the elastic cord is provided with a buckle that mates with the "Y" shaped strap. The elastic sock has the beneficial effects that the Y-shaped hanging belt can be provided with a plurality of stress points at the upper edge of the elastic sock main body. When the elastic socks are worn, the hasps at one ends of the elastic ropes are connected with the Y-shaped hanging belts, and the pulling force applied by the elastic ropes is shared by different stress points, so that the deformation caused by uneven stress of the elastic sock main body can be avoided. On the other hand, the Y-shaped hanging belt is stably connected with the hasp, so that the elastic rope can be prevented from displacing.
In some embodiments the first connector is a plurality. The elastic sock has the beneficial effects that the upper edge of the elastic sock main body is provided with a plurality of stress points, so that the surface of the elastic sock main body is smooth when the elastic sock main body is worn. Generally, the front and the back of the elastic sock main body are respectively provided with a first connecting piece, so that the front and the back surfaces of the elastic sock main body are stressed evenly. According to the requirement, a first connecting piece can be additionally arranged on the side surface of the elastic sock main body. The number of the elastic ropes is one or more according to the number of the first connecting pieces. The elastic sock main body can be fixed by the elastic ropes from different angles, so that stress on each part of the elastic sock main body is balanced, and deformation of the medical elastic sock when the medical elastic sock is worn is prevented.
In some embodiments, the first connecting member and the second connecting member are both plural. The elastic rope has the beneficial effect that the elastic rope can be matched with a plurality of elastic ropes. In some embodiments, the first connecting piece and the second connecting piece are arranged in one-to-one correspondence with the elastic ropes, so that the plurality of elastic ropes are uniformly distributed.
In some embodiments, the waistband is a stretch tightening band or a hook and loop fastener band. The waistband has the advantages that the waistband can be suitable for patients with different waistlines, is convenient to put on and take off, and enhances the practicability.
In some embodiments, the upper edge of the sock body is provided with a threaded cuff structure. The elastic stocking has the beneficial effects that the thread closing-up structure can enhance the elasticity of the upper edge of the elastic stocking main body and reduce the risk of the downward sliding of the elastic stocking main body. On the other hand, the thread closing-up structure can effectively prevent the edge of the elastic sock main body from curling, and is convenient to put on and take off, high in comfort and attractive in appearance. In some embodiments, the lower portion of the sock body is also open-ended, and the lower edge is also provided with a threaded closure. So, the lower limb of elasticity socks main part can extend to patient's sole position when dressing, and screw thread binding off structure has the effect of preventing to drop, be convenient for wear to take off, improve the comfort level equally.
In some embodiments, the lower edge of the sock body is of closed construction. Thus, when worn, the lower edge of the elastic sock main body can extend to the toe part of a patient to wrap the whole foot. In some embodiments, the lower edge of the sock body is open-ended. Thus, when the sock is worn, the lower edge of the sock main body also extends to the sole or ankle of the patient, and wraps the lower leg to the thigh. The patient may be selected as desired.
Drawings

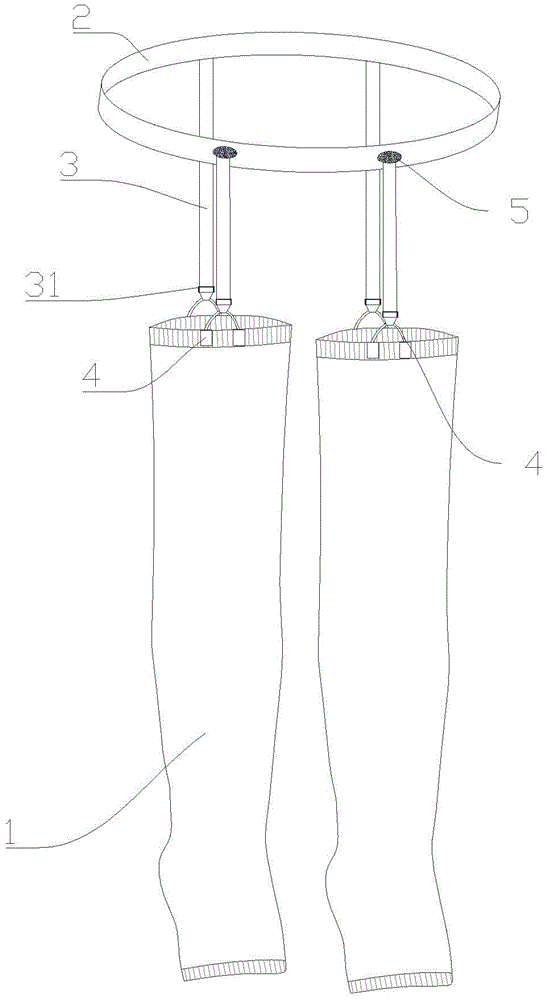

Fig. 1 is a schematic structural view of the anti-drop medical elastic sock according to embodiment 1;
FIG. 2 is a schematic view of the elastic cord of the anti-falling medical elastic stocking according to embodiment 1;
fig. 3 is a schematic view of the elastic sock main body of the anti-drop medical elastic sock according to embodiment 2;
fig. 4 is a schematic view of the waistband of the anti-falling medical elastic sock according to embodiment 2;
fig. 5 is a schematic view of the elastic cord of the anti-drop medical elastic sock according to embodiment 2.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
Example 1
Fig. 1 to 2 schematically show an anti-drop medical elastic sock according to an embodiment of the present invention. As shown in the figure, the device comprises an elastic sock main body 1, a waistband 2 and an elastic rope 3 for connecting the elastic sock main body 1 and the waistband 2, wherein both the waistband 2 and the elastic rope 3 can be detached, and the wearing and the taking off are convenient.
Wherein, the elastic sock body 1 is a long tube-shaped sequential decompression elastic sock from a sole to a leg, and the upper part and the lower part are both open. The lower part of the elastic sock main body 1 is used for wrapping the sole part, and the pressure of the part is maximum; the upper part of the elastic sock body 1 can wrap the middle part of the thigh, and the pressure of the part is minimum. The length of the elastic sock body 1 can be selected according to the requirement. The upper edge and the lower edge of elasticity socks main part 1 all are equipped with screw thread binding off structure, and when the patient dressed and takes off, the upper edge and the lower edge of elasticity socks main part 1 all were difficult for taking place to curl, can be fine with human laminating, improve the comfort level of dress. In addition, the structure design of the thread closing can enhance the partial pressure and reduce the possibility of the slippage of the elastic sock main body 1.
The upper edge of the elastic sock main body 1 is provided with a first connecting piece 4, the waistband 2 is provided with a second connecting piece 5, one end of the elastic rope 3 can be matched with the first connecting piece 4 to be connected with the upper part of the elastic sock main body 1, and the other end of the elastic rope 3 can be fixed on the second connecting piece 5. Thus, the two ends of the elastic rope 3 can be respectively connected with the elastic sock main body 1 and the waistband 2. When the elastic socks are worn, a patient winds the waistband 2 on the waist, wraps the elastic socks main body 1 above the soles to the middle parts of the thighs, and then connects the upper edges of the elastic socks main body 1 with the waistband 2 through the elastic ropes 3. Therefore, the waistband 2 applies a certain pulling force to the upper part of the elastic sock main body 1 through the elastic rope 3, and can effectively prevent the elastic sock main body 1 from sliding down and falling off.
In this embodiment, the first connecting member 4 is a Y-shaped hanging belt, and a buckle 31 is disposed at one end of the elastic cord 3, and the buckle 31 can be buckled with the Y-shaped hanging belt. The second connecting piece 5 is a button, the other end of the elastic rope 3 is provided with a button hole 32, and the button hole 32 can be hung on the button.
The upper edge of each elastic sock main body 1 is provided with two Y-shaped hanging belts which are respectively positioned at the front and the back of the elastic sock main body 1, and the front and the back of the elastic sock main body 1 can be respectively lifted by adopting two elastic ropes 3. Correspondingly, 4 buttons are arranged on the waistband 2, are distributed on the front side and the rear side of the waistband and are opposite to the Y-shaped hanging belt on the elastic sock main body 1, so that the two elastic ropes 3 are longitudinally connected with the waistband 2 and the elastic sock main body 1 along the lower limbs from the front side and the rear side of the leg of a patient respectively when the elastic socks are worn. Therefore, the front side and the rear side of the elastic sock main body 1 are simultaneously lifted and pulled by the elastic ropes 3, so that the surface of the elastic sock main body 1 is smooth and prevented from sliding off. According to the needs, the Y-shaped hanging belt positioned on the side face can be additionally arranged on the elastic sock main body 1, and the button is arranged at the corresponding position of the waistband 2, so that the lifting of the elastic sock main body 1 can be enhanced through the elastic ropes 3, and the anti-falling effect is ensured. The Y-shaped hanging belt increases the stress points on the upper edge of the elastic sock main body 1, and the elastic sock main body 1 can be ensured to be worn smoothly and comfortably under the lifting action of the elastic rope 3.
The waistband 2 is an elastic tightening belt, can be stably fixed on the waist of a patient, can be suitable for patients with various statures, and has strong adaptability. The elastic tightening belts with different sizes and specifications can be selected according to the self requirements of the patient, so that the stability is ensured, and the comfort level is enhanced.
Example 2
As shown in fig. 3 to 5, in the present embodiment, the elastic sock body 1 has a structure in which the upper end is open and the lower end is closed, and the lower portion of the elastic sock body 1 can completely wrap the foot of the patient, and is not easy to fall off and has strong fitting properties. The first connecting pieces 4 and the second connecting pieces 5 are buttons, the first connecting pieces 4 are distributed at the upper edge of the elastic sock main body 1, and the second connecting pieces 5 are distributed on the waistband 2. Both ends of the elastic rope 3 are provided with button holes 32, and the two ends of the elastic rope 3 can be respectively connected with the waistband 2 and the elastic sock main body 1 through the buckling of the buttons and the button holes 32. In this way, the elastic cord 3 can also reinforce the lifting of the elastic sock body 1 to prevent the falling.
As shown in fig. 4, in this embodiment, the belt 2 is also a hook and loop fastener fixing band, which is convenient to put on and take off, and the length of the belt 2 can be adjusted within a certain range to ensure the stability of the belt 2.
What has been described above are only some embodiments of the invention. For those skilled in the art, without departing from the inventive concept, several modifications and improvements can be made, which are within the scope of the invention.
Claims (7)
1. An anti-drop medical elastic sock is characterized by comprising an elastic sock main body (1), a waistband (2) and an elastic rope (3) for connecting the elastic sock main body (1) and the waistband (2); the elastic sock main body (1) is a long tubular elastic sock from toes or a sole to legs; the waistband (2) and the elastic rope (3) can be detached.
2. The anti-drop medical elastic stocking according to claim 1, wherein one end of the elastic cord (3) is connected with the waistband (2), and the other end of the elastic cord (3) is connected with the upper edge of the elastic stocking body (1).
3. The anti-drop medical elastic stocking according to claim 1, characterized in that the upper edge of the elastic stocking body (1) is provided with a first connecting piece (4), the first connecting piece (4) being capable of cooperating with one end of the elastic cord (3); the waistband (2) is provided with a second connecting piece (5), and the second connecting piece (5) can be matched with the other end of the elastic rope (3).
4. The anti-drop medical elastic stocking according to claim 3, wherein the first connecting piece (4) is a Y-shaped hanging belt, and one end of the elastic rope (3) is provided with a hasp matched with the Y-shaped hanging belt.
5. The fall-off preventive medical elastic stocking according to claim 3, wherein the first connecting member (4) is plural.
6. The anti-drop medical elastic stocking according to claim 1, wherein the waistband (2) is an elastic tightening belt or a magic tape fixing belt.
7. The anti-drop medical elastic stocking according to claim 1, wherein a thread closing structure is arranged at the upper edge of the elastic stocking body (1).
